Thermal optics have traditionally been large, heavy, and limited to rifle platforms. The Owlset HEIM ES X-Nano Mini Thermal Sight series changes that expectation.
Built around the same thermal imaging core, the series is available in two models:
• Standard Edition — Owlset HEIM ES X-Nano STD Mini Thermal Sight (VEOT-RS08)
• WiFi Edition — Owlset HEIM ES X-Nano XPD Mini Thermal Sight Wi-Fi (VEOT-RSS08)
Designed as a compact thermal optic system for handguns, the ES X-Nano series brings fast heat-signature detection to platforms where size and weight matter. Its small footprint adds thermal capability without affecting balance or handling.
Suitable for pistol setups, AR-platform rifles, and wargame scenarios, the ES X-Nano series helps users detect targets in darkness, smoke, and other low-visibility environments.
1. Clear Thermal Detection for Close and Extended Ranges
The ES X-Nano series uses a 256×192 resolution, 12 μm thermal sensor, designed for compact size while maintaining reliable heat detection. Paired with 0.5× base magnification, it provides a wide field of view that supports fast scanning and strong situational awareness.
Instead of relying on reflected light like conventional optics, thermal imaging detects heat signatures directly. This allows targets to remain visible even in darkness, smoke, light fog, or visually cluttered environments.
1.1 Thermal Display and Reticle Options

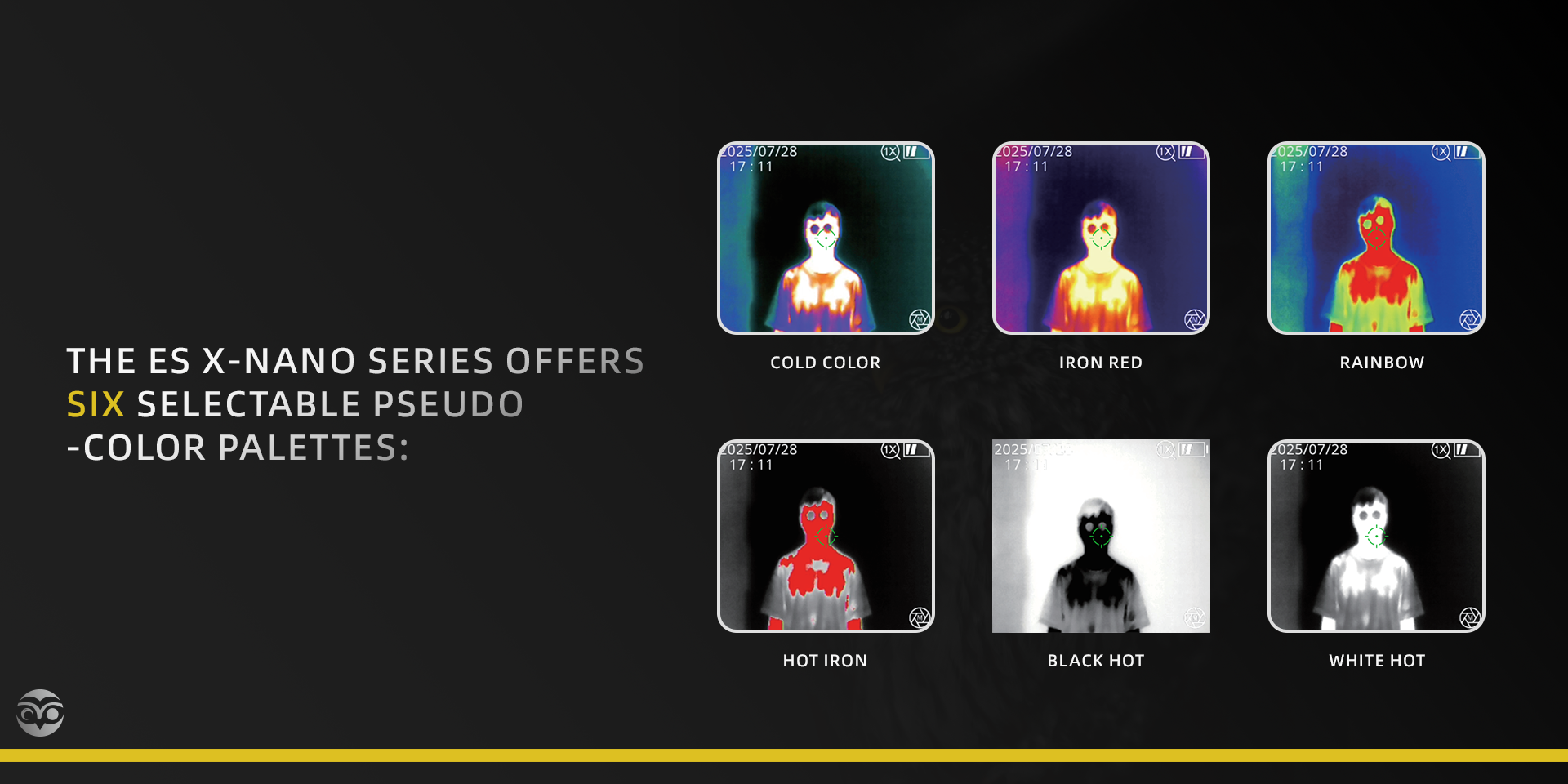

To adapt to different nighttime conditions, the ES X-Nano series offers six selectable pseudo-color palettes:
• White Hot
• Black Hot
• Hot Iron
• Rainbow
• Iron Red
• Cold Color
These display modes increase thermal contrast between objects and their surroundings, making heat sources easier to identify across varied backgrounds.

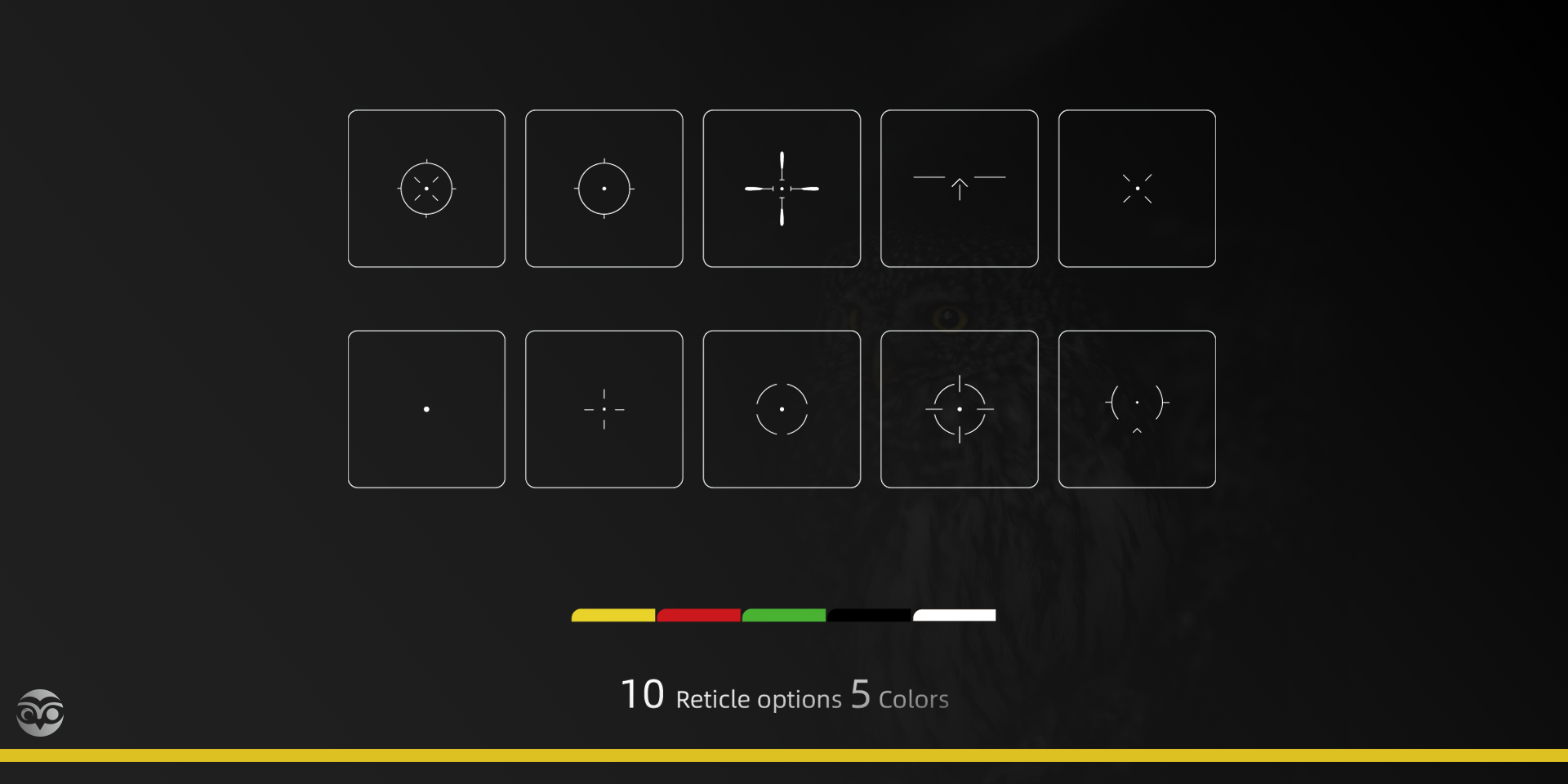

Users can further adjust the sight picture with 10 reticle patterns and five reticle color options (Black, White, Red, Green, Yellow). This flexibility helps maintain clear aiming alignment under different terrain and lighting conditions.
1.2 Thermal Detection Performance
The ES X-Nano series combines a high-resolution sensor with a wide viewing angle, making it ideal for short-to-mid-range detection and fast target scanning.

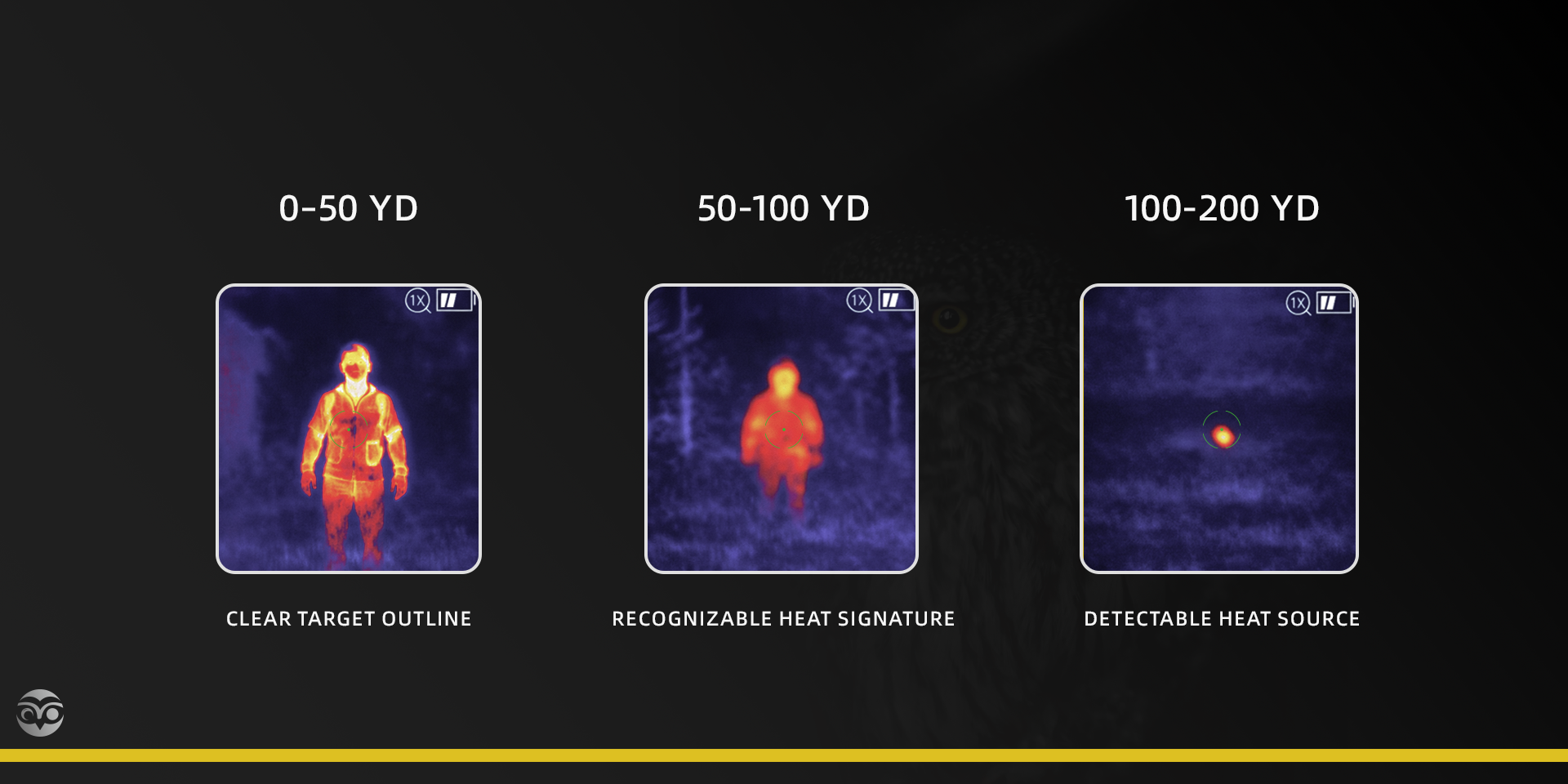

In typical outdoor conditions, a human-sized heat signature can usually be detectedat distances of approximately 100–200 yards , depending on factors like temperature contrast, humidity, and terrain.
At closer distances, the thermal image reveals more detail, making it easier to spot moving targets or heat sources that might otherwise blend into shadows, vegetation, or complex backgrounds.
This makes the ES X-Nano well suited for a variety of scenarios:
• Night defense observation
• Wargame and tactical simulation
• Short-range hunting and animal tracking
• Low-light scanning before transitioning to a primary optic
Rather than replacing traditional optics, the thermal view adds an extra layer of situational awareness, helping users locate heat signatures that would otherwise be difficult to see.
Unlike traditional night vision devices, thermal imaging does not rely on ambient light, allowing detection even in complete darkness.
2. Compact Thermal Capability for Modern Platforms
The ES X-Nano series brings thermal imaging into a compact format designed to integrate naturally with modern pistols and rifle platforms.
With lightweight construction, practical durability, and adaptable mounting options, the ES X-Nano series provides a streamlined thermal solution for shooters seeking reliable target detection in low-visibility environments.
For defensive setups, rifle platforms, and wargame applications, the ES X-Nano delivers thermal awareness without unnecessary complexity.
The series is available in Standard and WiFi editions, both delivering the same thermal detection performance.
The WiFi Edition adds smartphone connectivity for live viewing, settings adjustment, and photo or video recording, while the Standard Edition provides the same thermal capability in a simplified stand-alone configuration.
3. Compact Integration for Handgun-Ready Performance

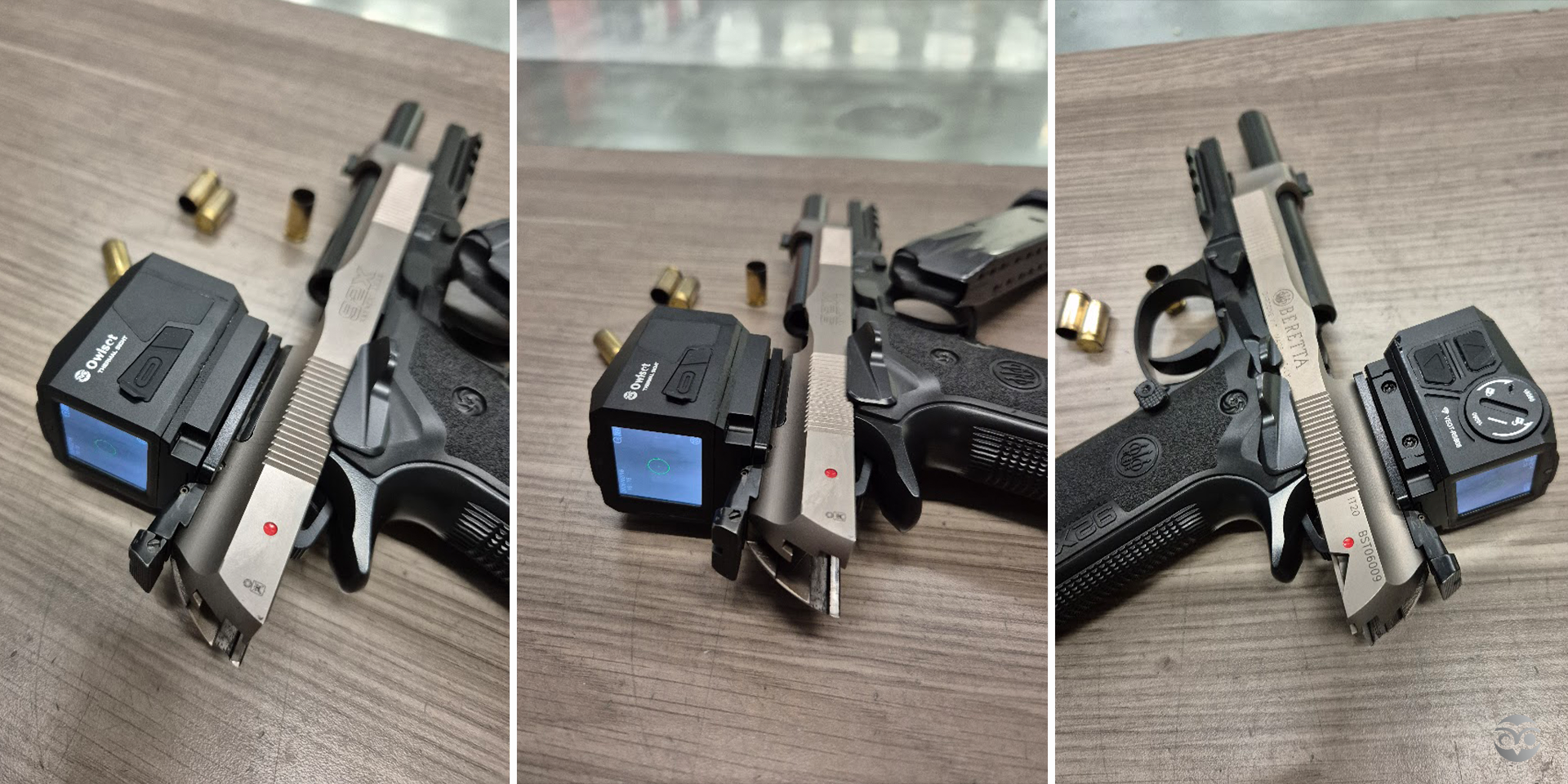

Designed for seamless platform integration, the ES X-NANO series features a lightweight, one-piece housing that preserves natural handling and balance. Weighing just 123g (4.34oz), the compact body minimizes (51×43×46 mm) added mass on slide-mounted pistols while maintaining structural stability under recoil.
3.1 Thermal Detection for Pistol Platforms

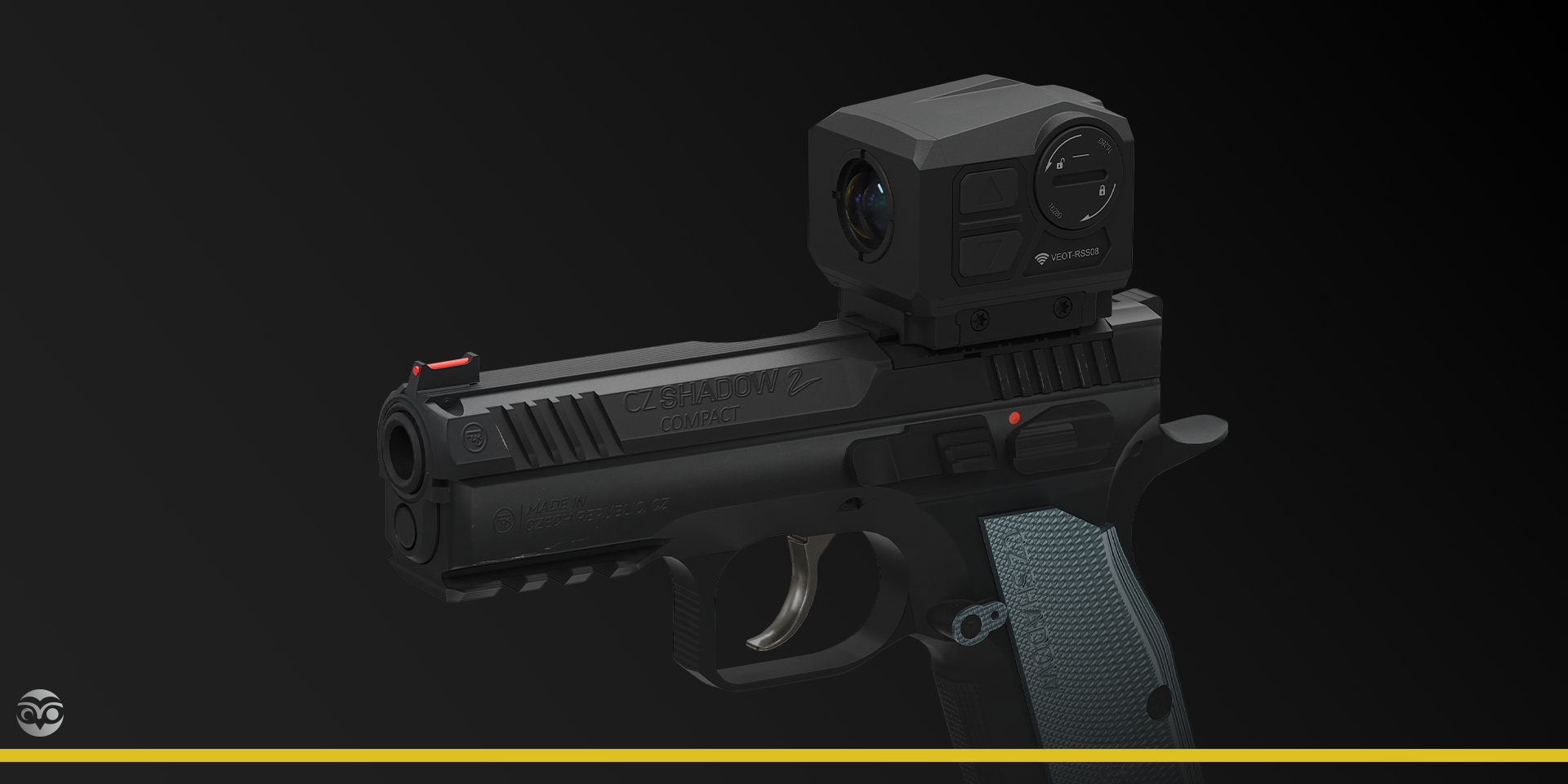

Built on the VOD footprint, compatible with the Aimpoint ACRO mounting standard, it ensures secure installation across a wide range of optics-ready platforms. Engineered around recoil dynamics, the reinforced internal structure maintains stable zero retention without unnecessary bulk.

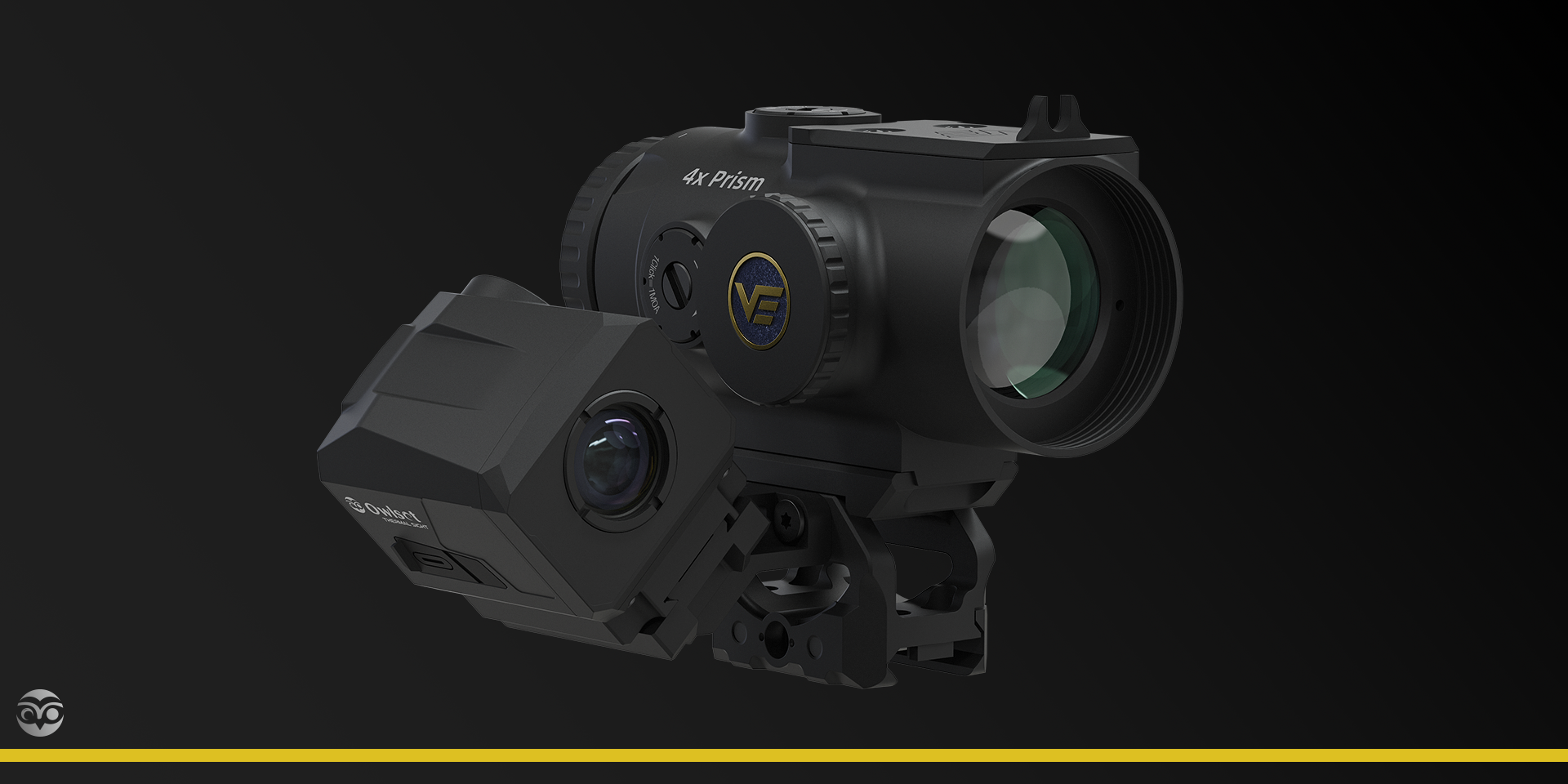

With optional VAS™ adapter plates for prism optics integration like Paragon 4X24 Prism Scope (SCPS-M04), it offers added flexibility for users building modular thermal solutions.

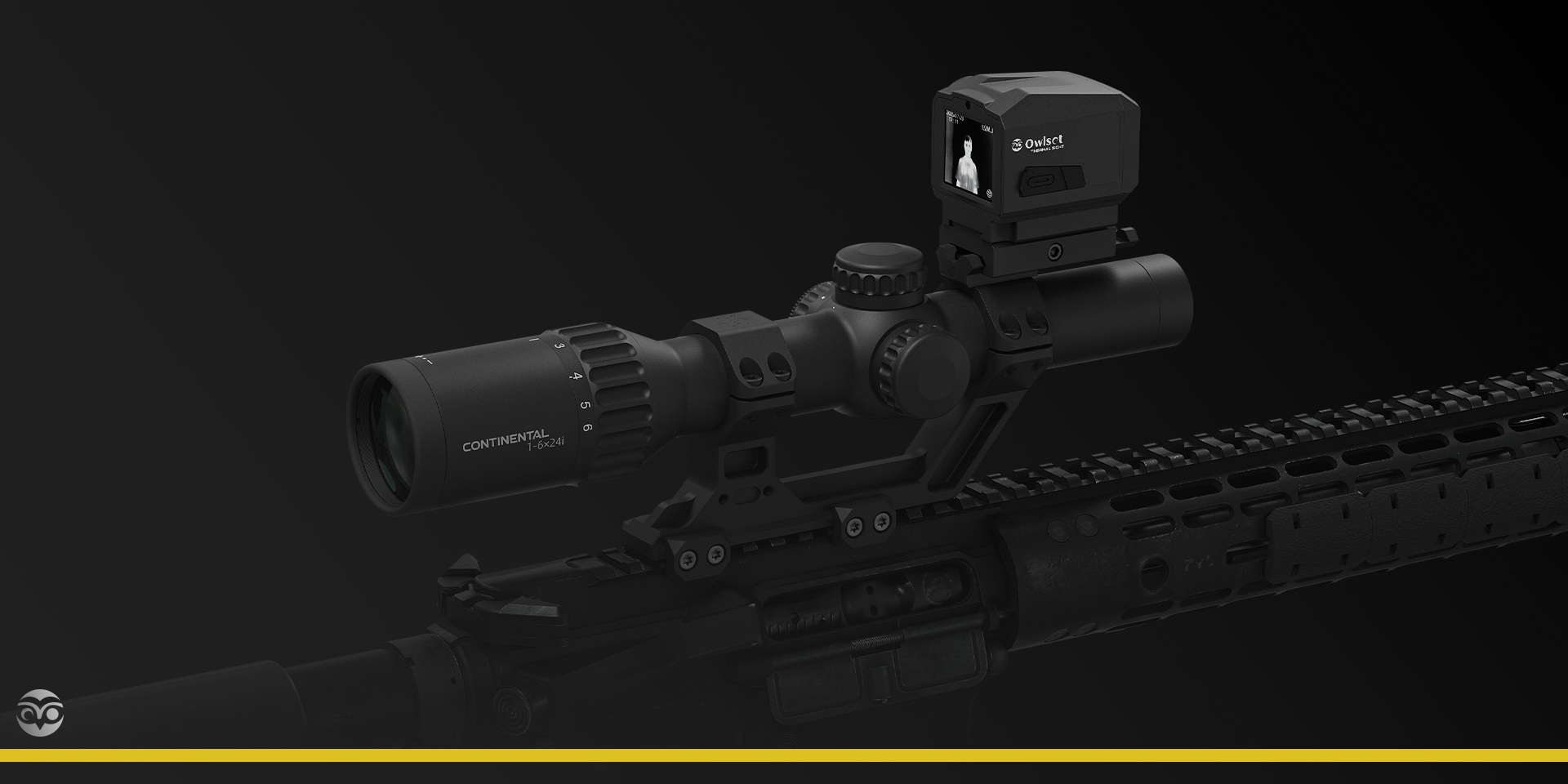

3.2 Thermal Cueing for AR Platforms
Although compact enough for handgun use, the ES X-Nano series can also work well on AR-platform rifles as a thermal detection aid when paired with conventional optics.
In this setup, the unit is not intended to replace the rifle’s primary sight. Instead, it serves as a thermal cueing device mounted alongside optics such as an LPVOs or prism scopes. The thermal image helps the shooter quickly locate heat signatures in low-light environments, then transition to the primary optic for accurate aiming.
This approach is particularly useful for short-to-mid-range hunting, tracking, and observation in low-visibility conditions. Animals or human targets that blend into shadows, vegetation, or uneven terrain can often be detected much faster through thermal contrast.
Rather than replacing dedicated high-resolution thermal rifle scopes, the ES X-Nano is designed to work in combination with traditional optics. Its compact size and wide situational view make it well suited for rapid heat detection, while the magnified optic remains responsible for precise target engagement.
4. Field-Ready Durability for Real Conditions
4.1 Why Thermal on a Pistol?
Traditional handgun optics rely on visible light. In darkness, heavy shadows, or visually complex environments, targets can become difficult to see.
Thermal imaging works differently. Instead of relying on light, it detects heat signatures, allowing warm objects and heat sources to stand out clearly against cooler backgrounds—even in complete darkness.
When mounted on a handgun, the ES X-Nano adds thermal detection to compact platforms. Users can quickly identify movement or heat sources that may otherwise blend into vegetation, dark terrain, or cluttered environments. In close-range scenarios, this additional awareness can help improve reaction time and target recognition.
With its compact size and lightweight design, the ES X-Nano adds thermal capability without significantly affecting pistol balance or handling, making it practical for dynamic handgun setups.
4.2 Built for Real-World Use
Handgun-mounted optics must withstand repeated recoil and unpredictable field conditions. The ES X-Nano series is designed with durability in mind.

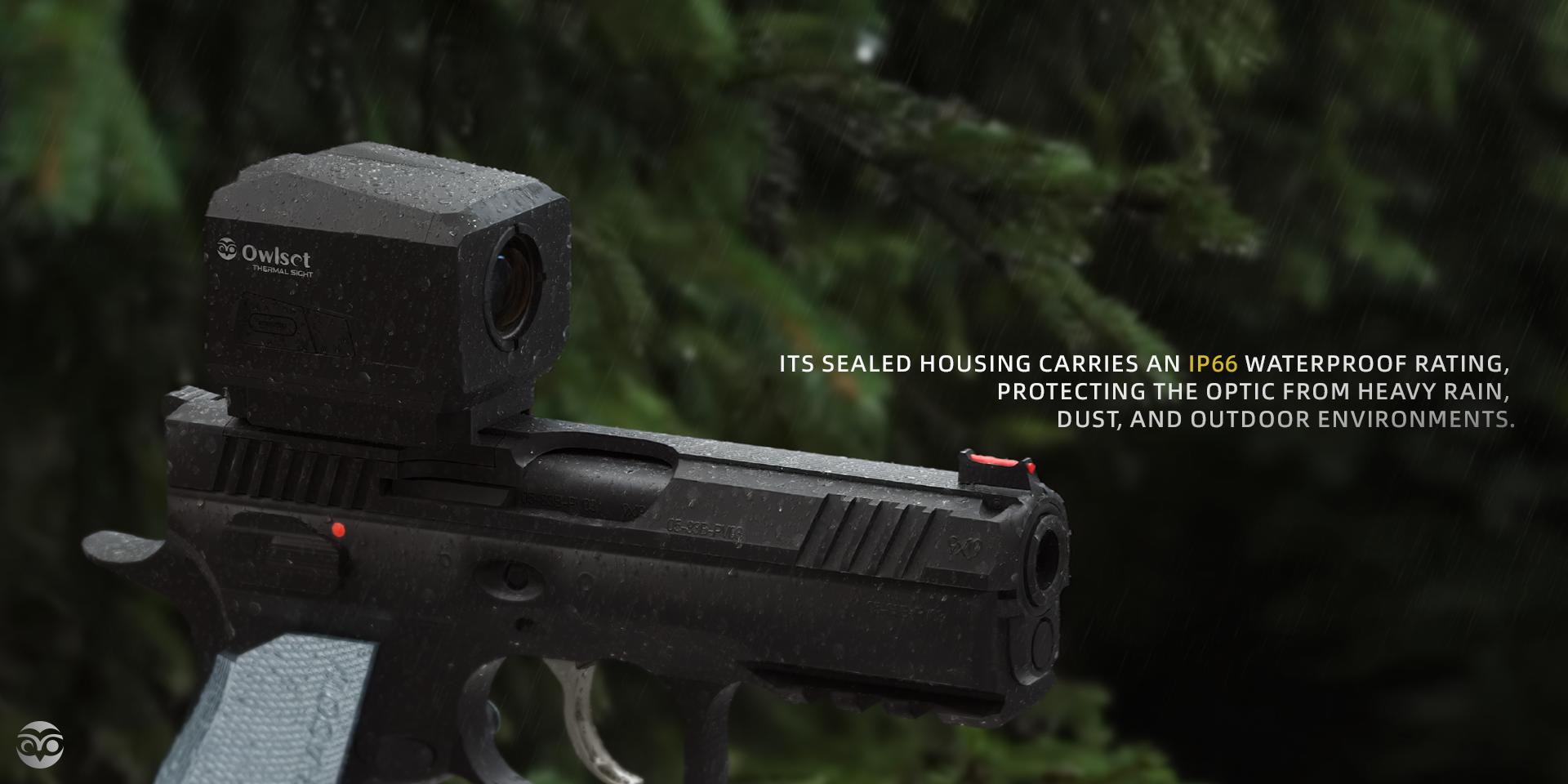

Its sealed housing carries an IP66 waterproof rating, protecting the optic from heavy rain, dust, and outdoor environments. The reinforced internal structure is rated to handle up to 1000G of shock, helping maintain structural stability during live-fire use.
Whether used for night training, defensive scenarios, or wargame environments, the ES X-Nano series delivers dependable thermal awareness when visibility is limited and reliability matters most.
4.3 Thermal in Wargame and Tactical Simulation
Thermal imaging is becoming increasingly common in wargame and tactical simulation environments, especially during night games or low-light scenarios. In these conditions, traditional optics often struggle to pick out players concealed in shadows, vegetation, or uneven terrain.

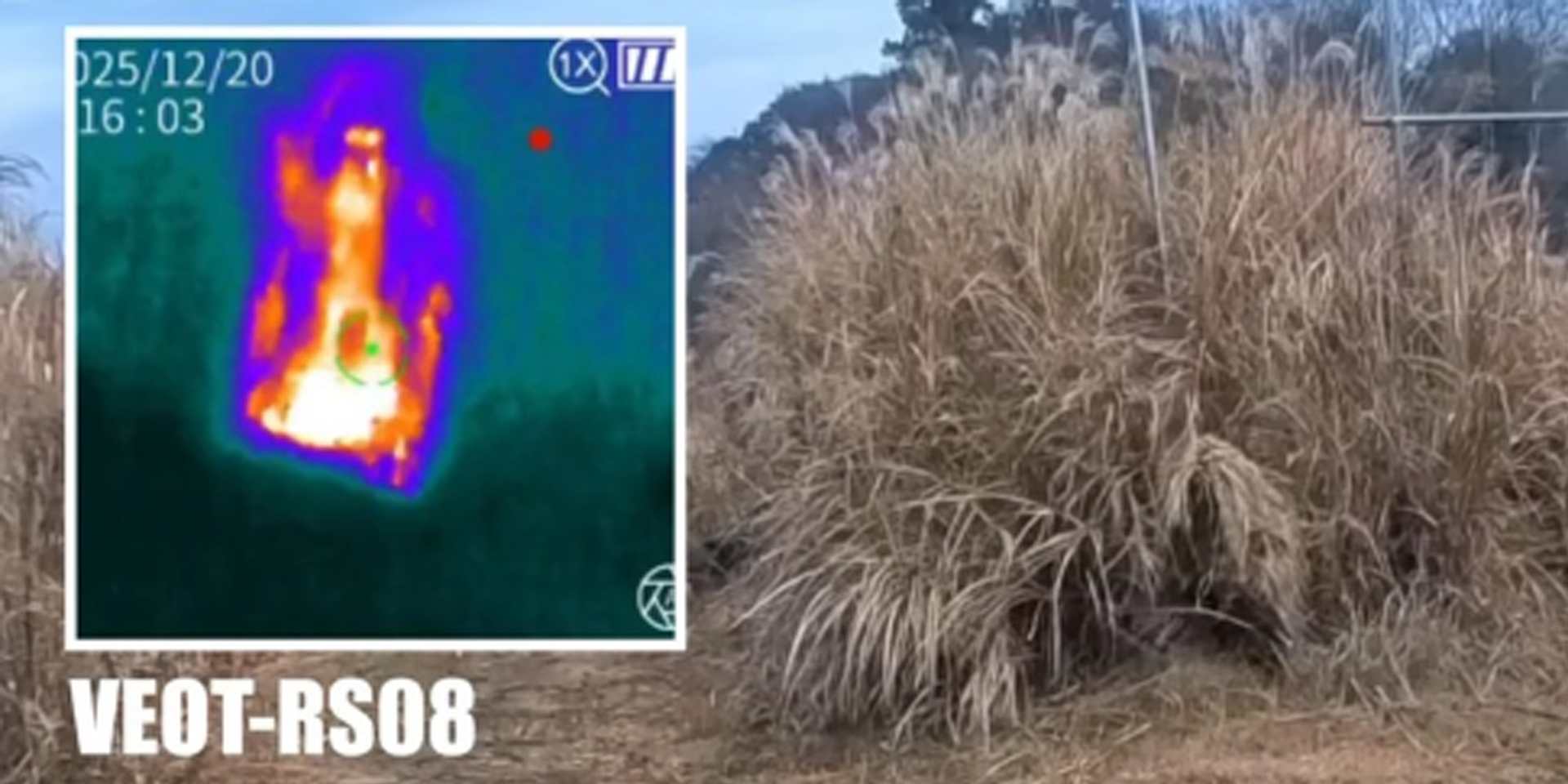

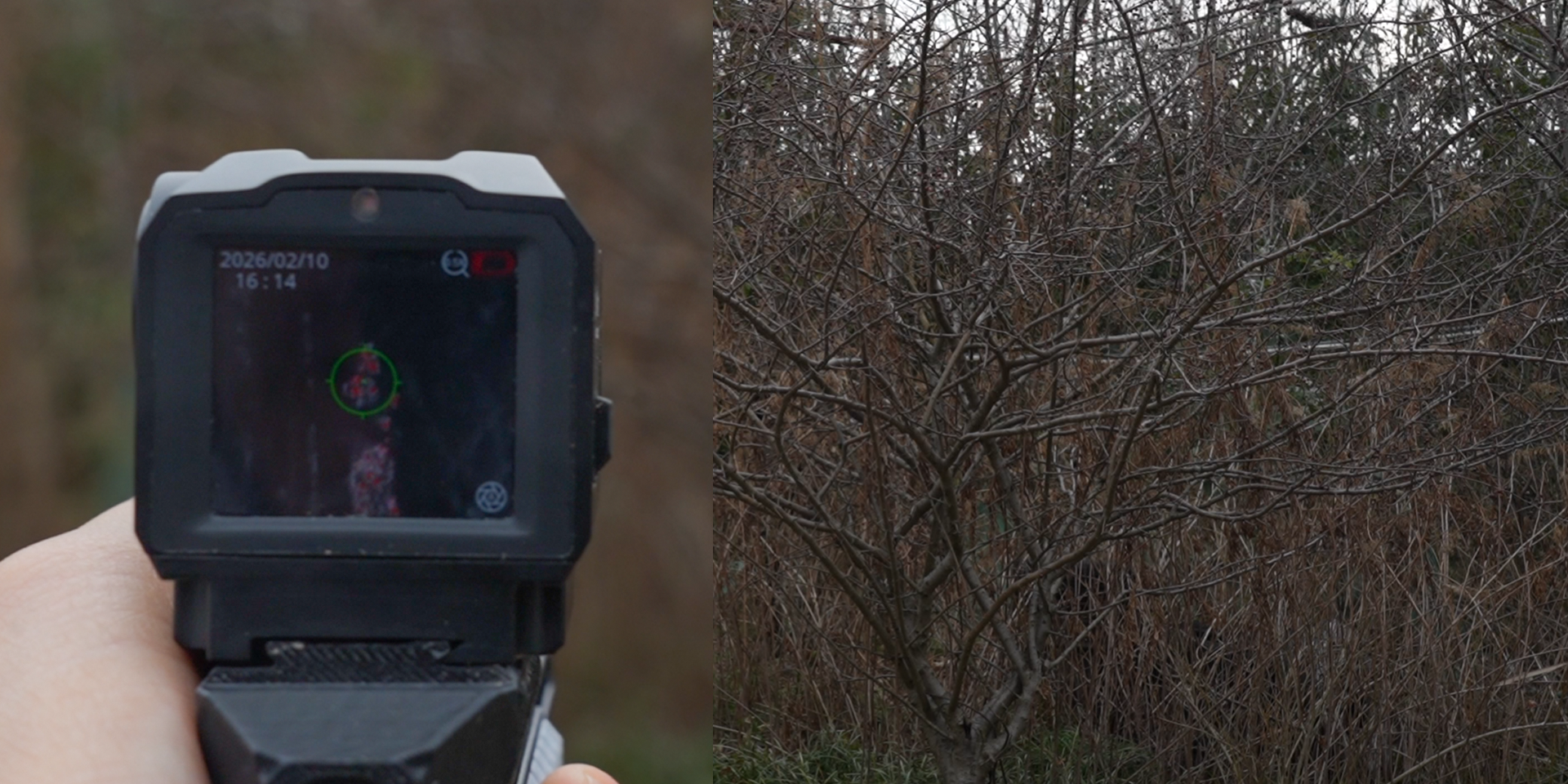

The ES X-Nano series helps users spot heat signatures that would otherwise remain hidden. Opponents moving through brush, hiding behind cover, or blending into dark areas can often be detected much faster through thermal contrast.
Its compact size also fits well with the lightweight setups typically used in airsoft and simulation platforms. Mounted on a pistol or rifle, the small footprint keeps the system balanced while adding thermal detection capability.
The WiFi Edition (VEOT-RSS08) also allows players to connect a smartphone for live viewing and video recording. This makes it possible to capture thermal footage during matches or training sessions.
By combining compact size with practical thermal detection, the ES X-Nano series adds a new layer of visibility and tactical awareness to nighttime wargame environments.
The ES X-Nano series brings thermal imaging into a compact format designed for modern pistol and rifle platforms, helping users detect heat signatures in low-visibility environments. With both Standard and WiFi editions available, it offers a practical thermal solution for observation, hunting, and nighttime wargame use.
