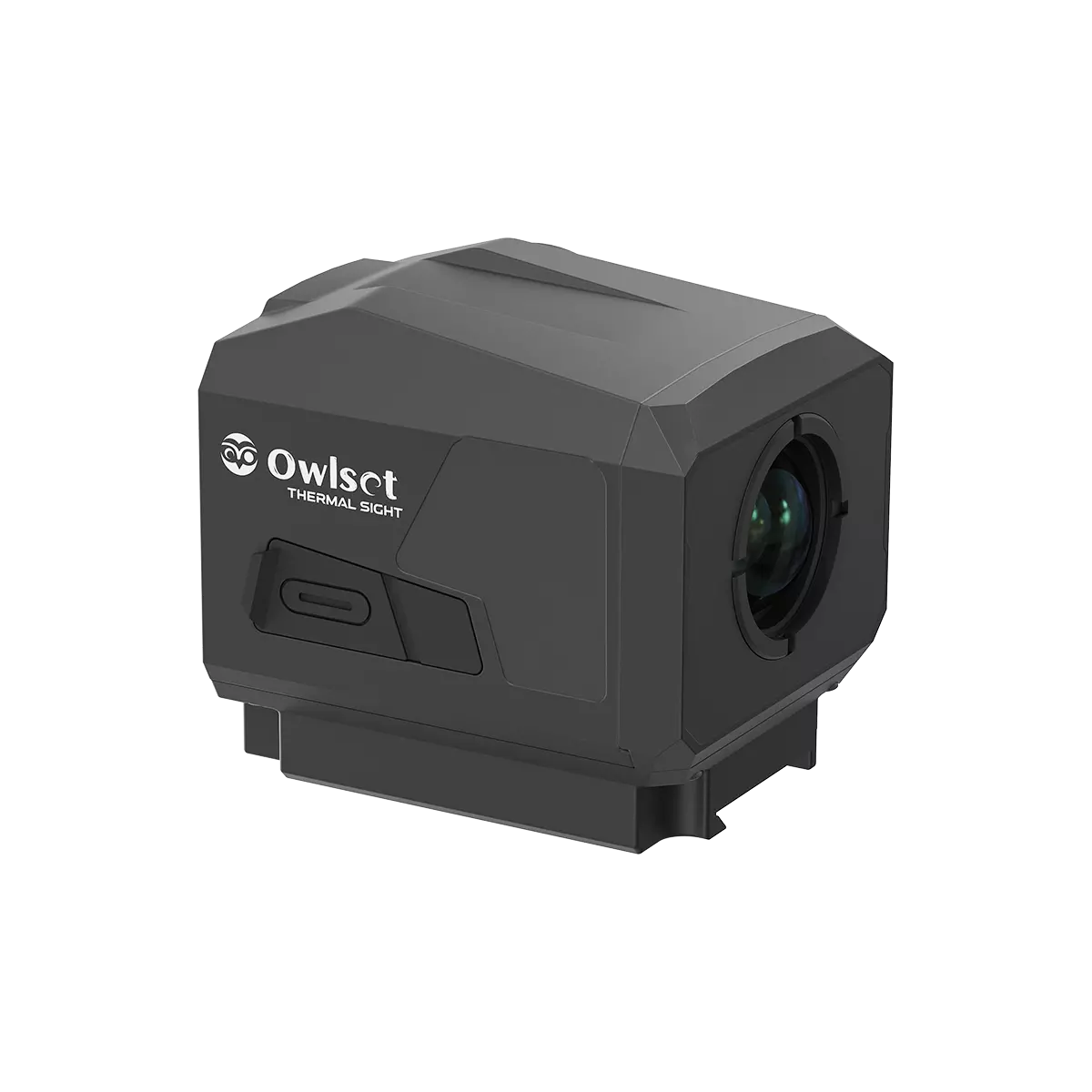

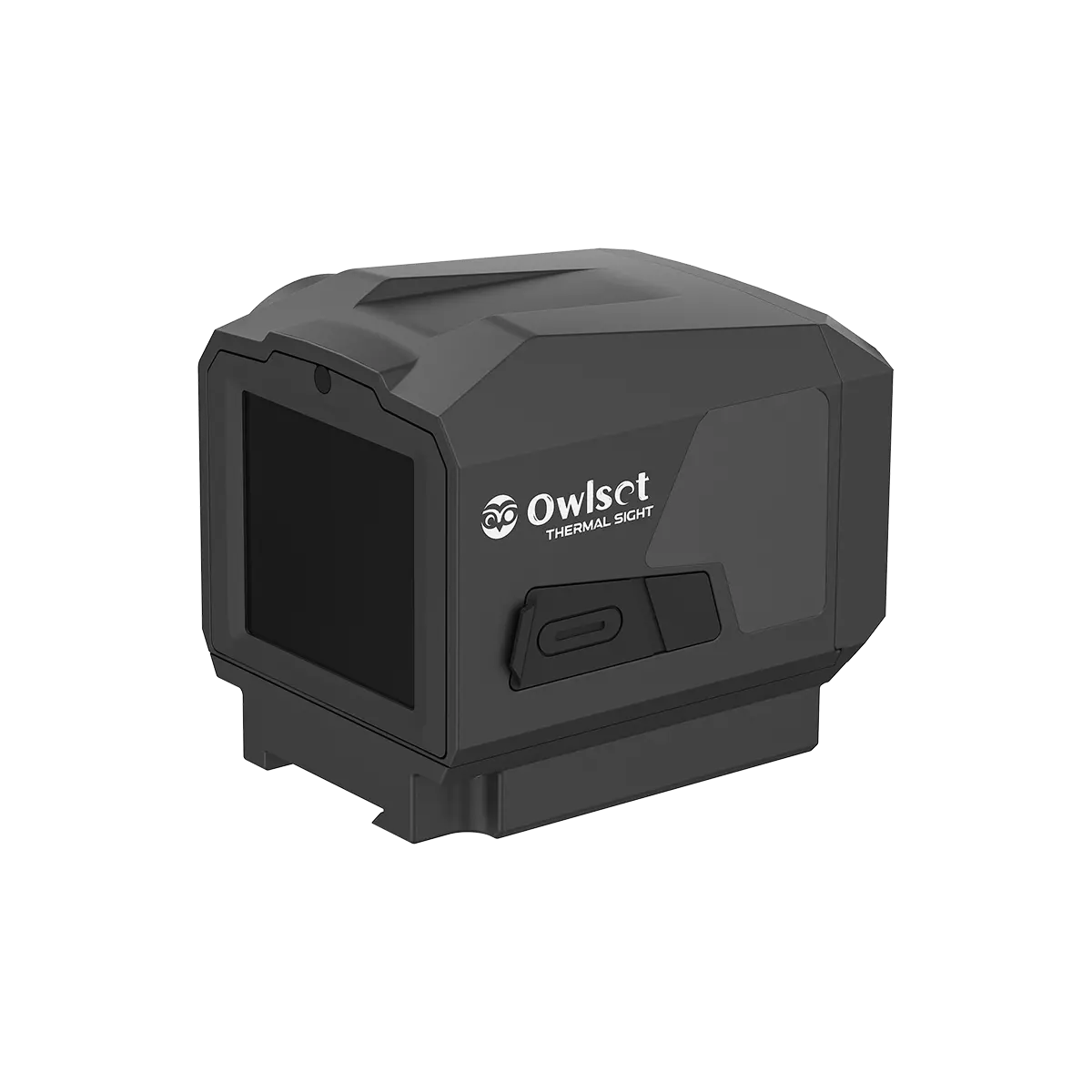

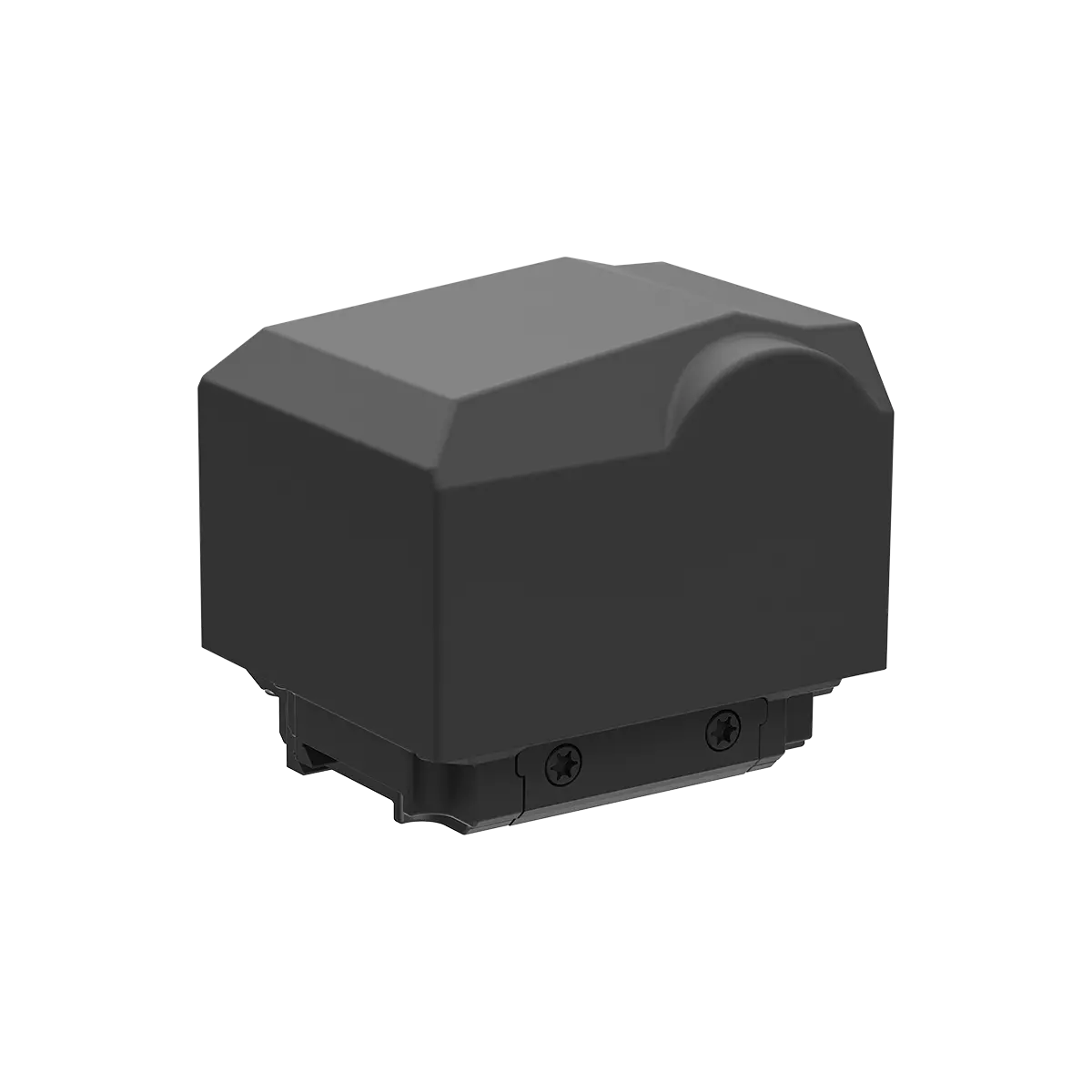

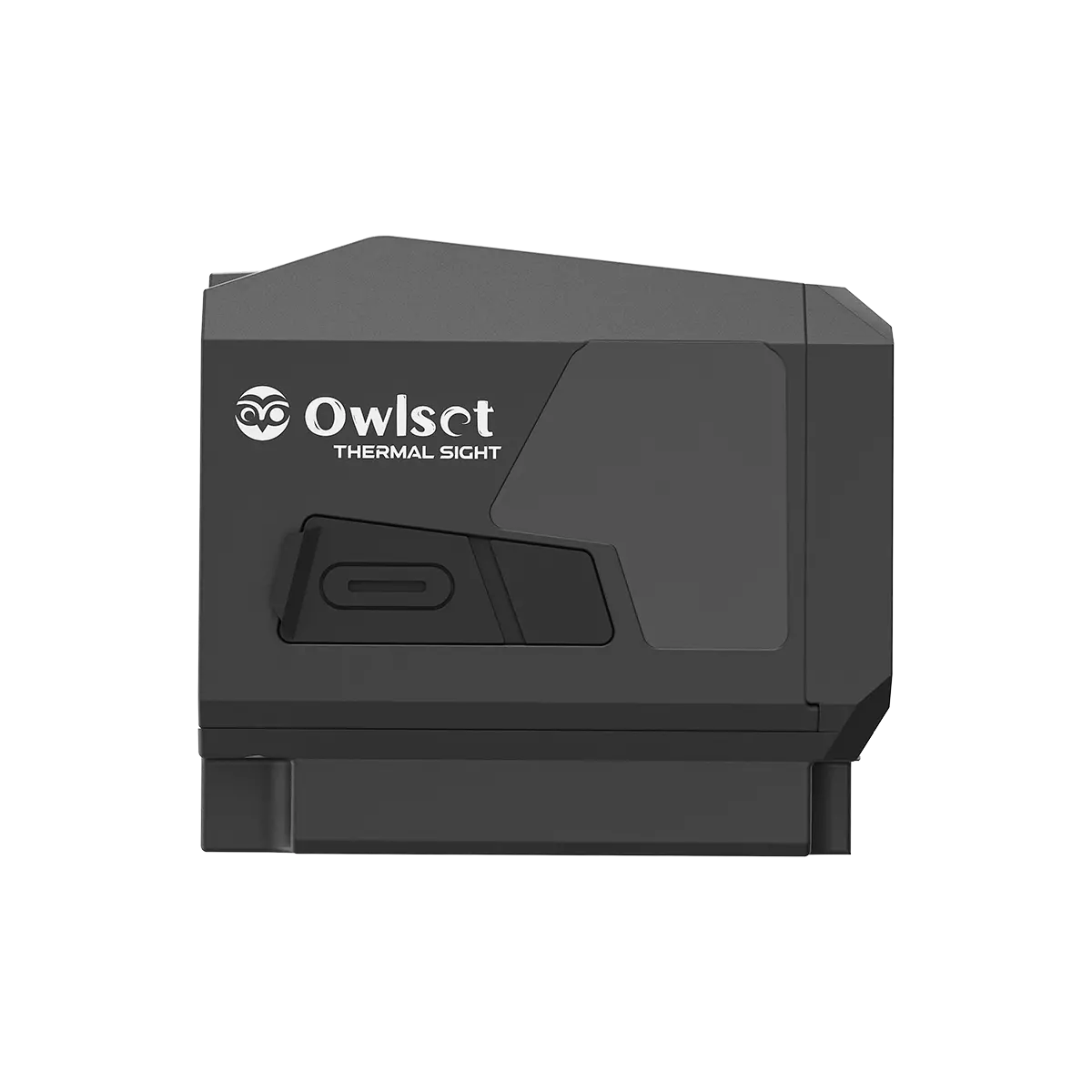

Owlset HEIM ES X-Nano STD Mini Thermal Sight

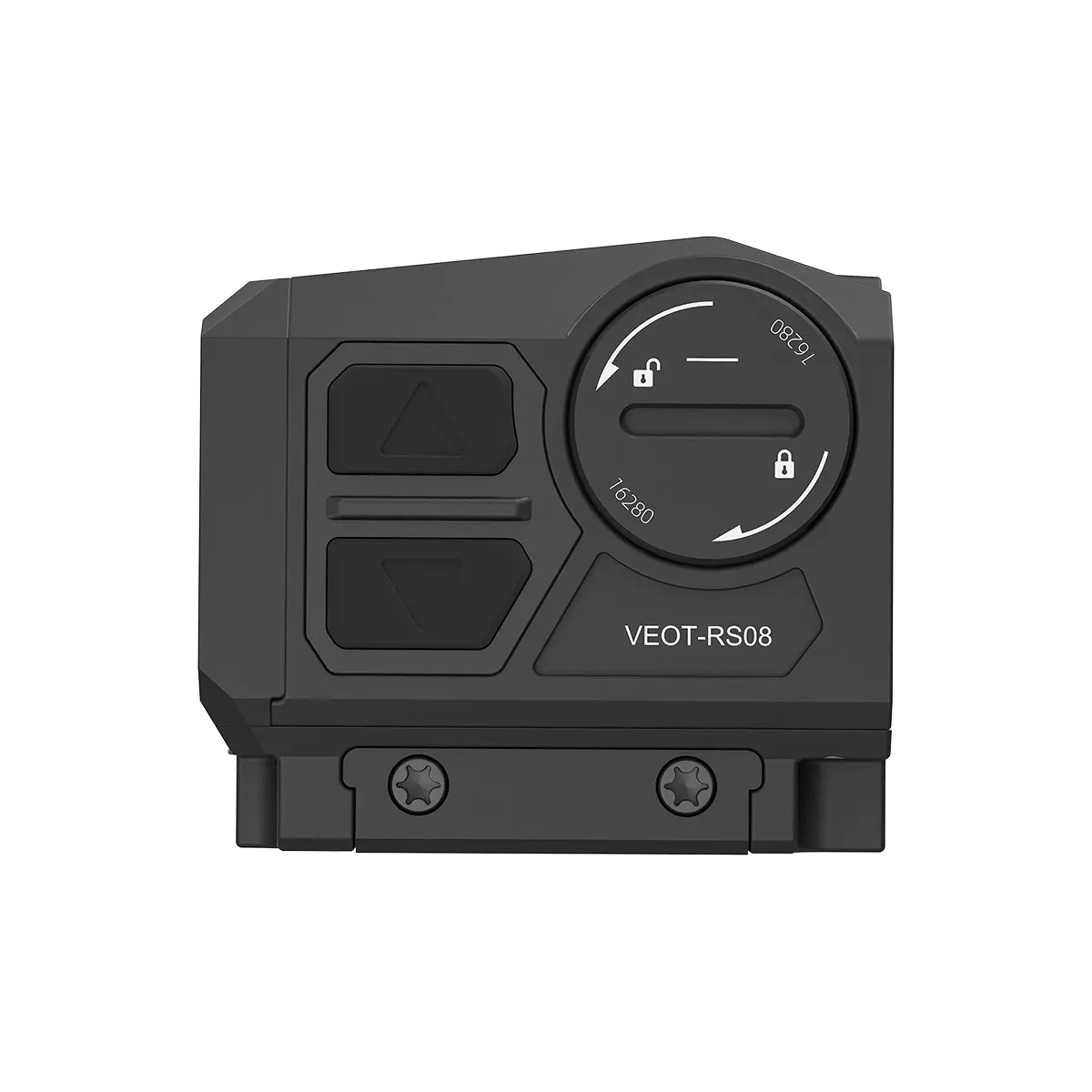

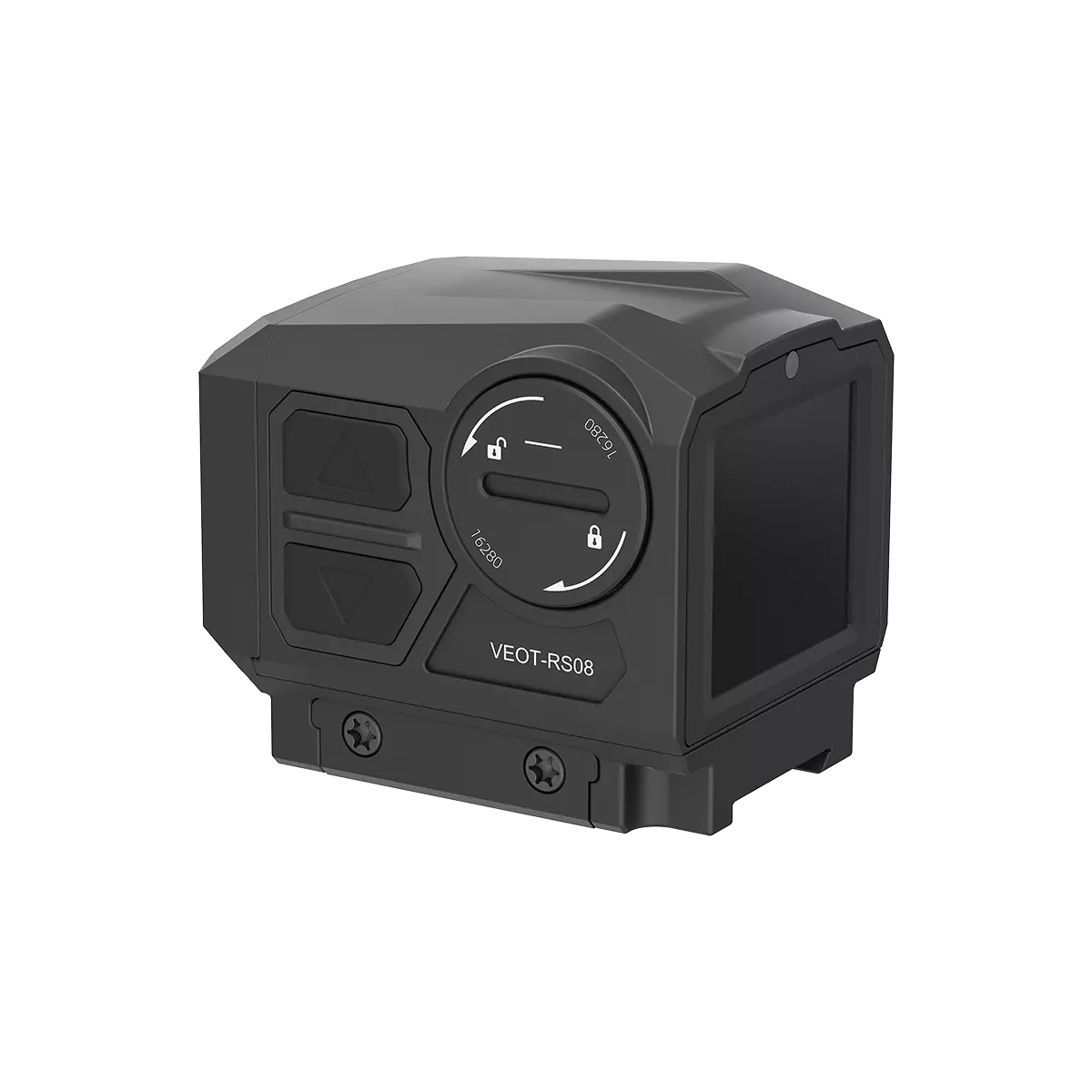

Model: VEOT-RS08
Night Defense Wargame

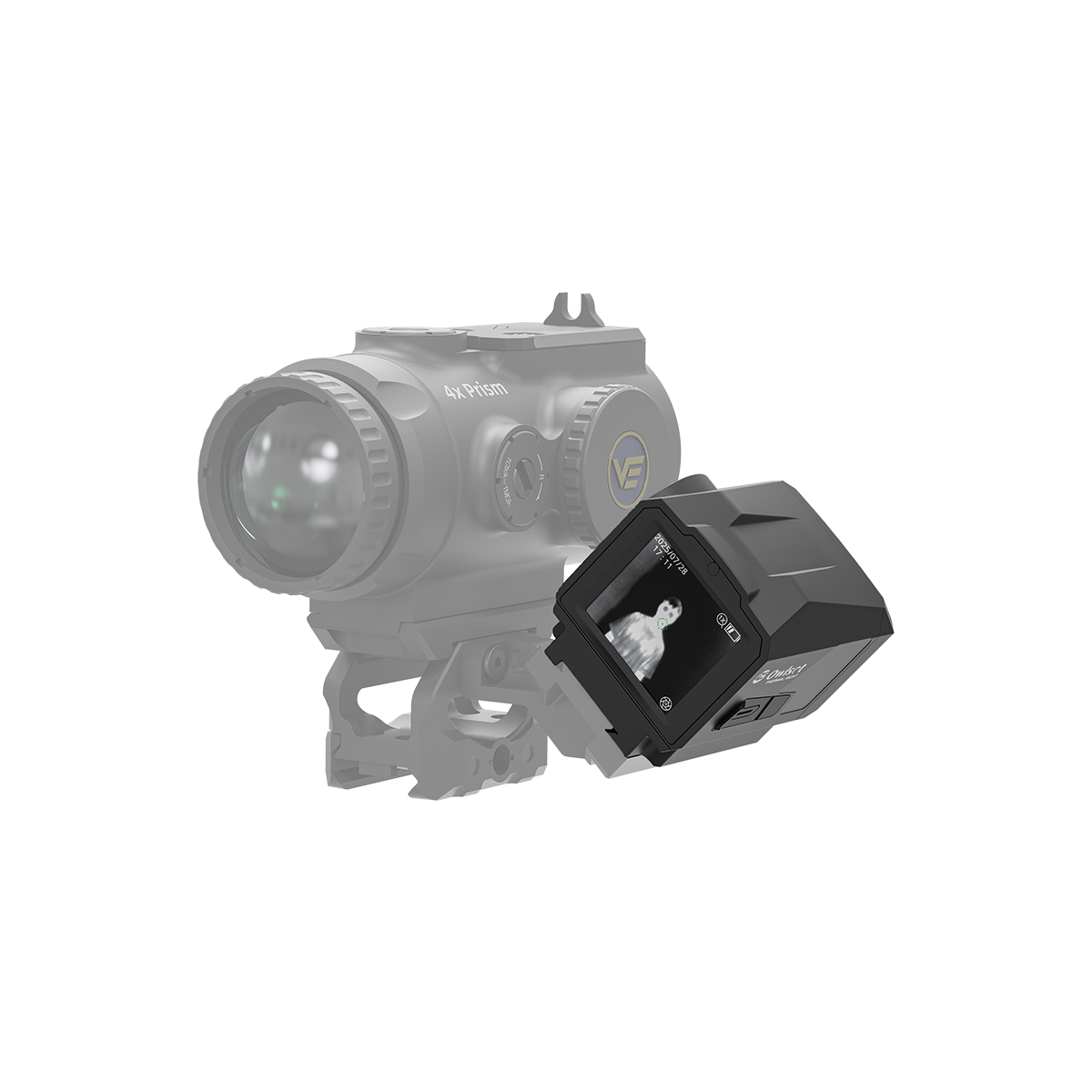

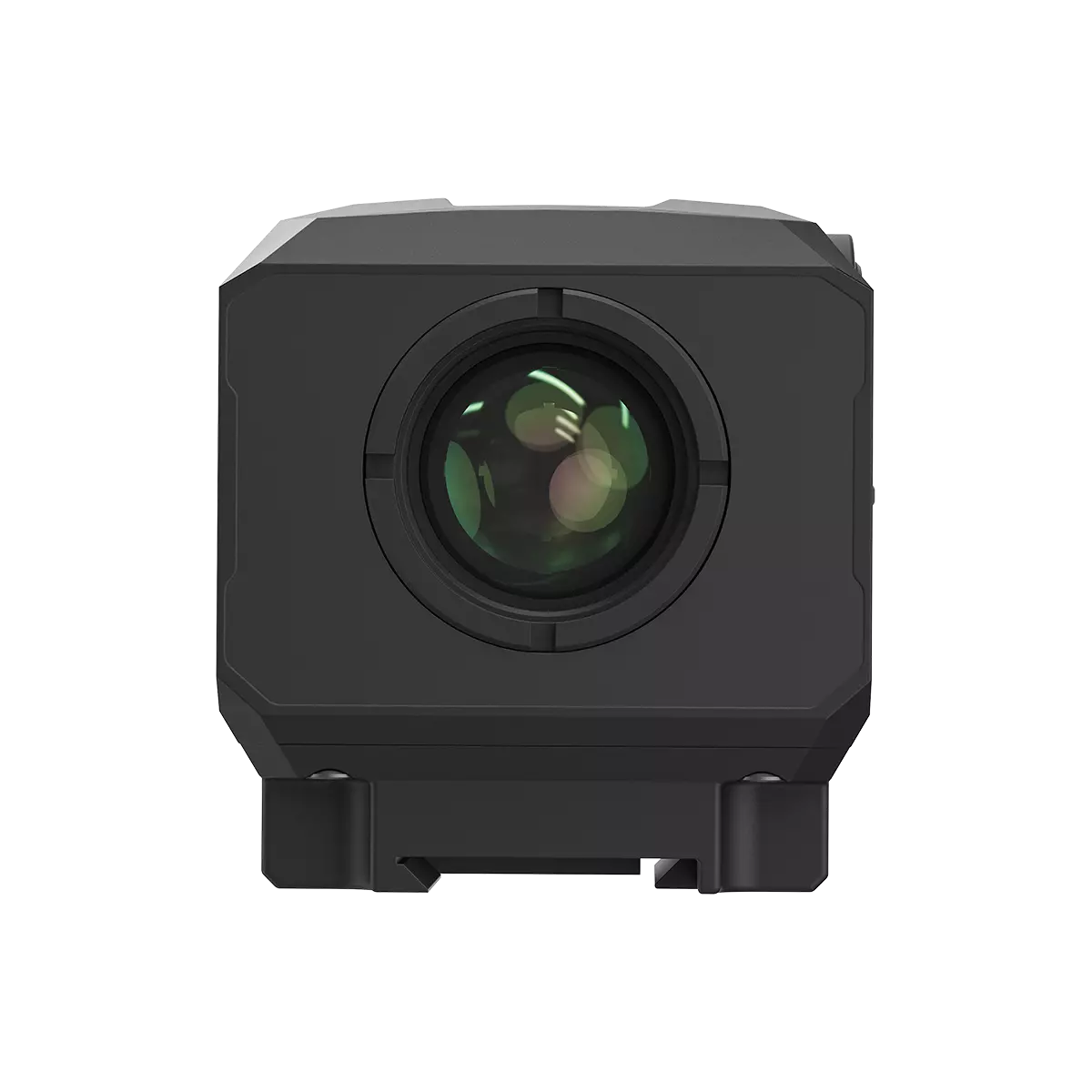

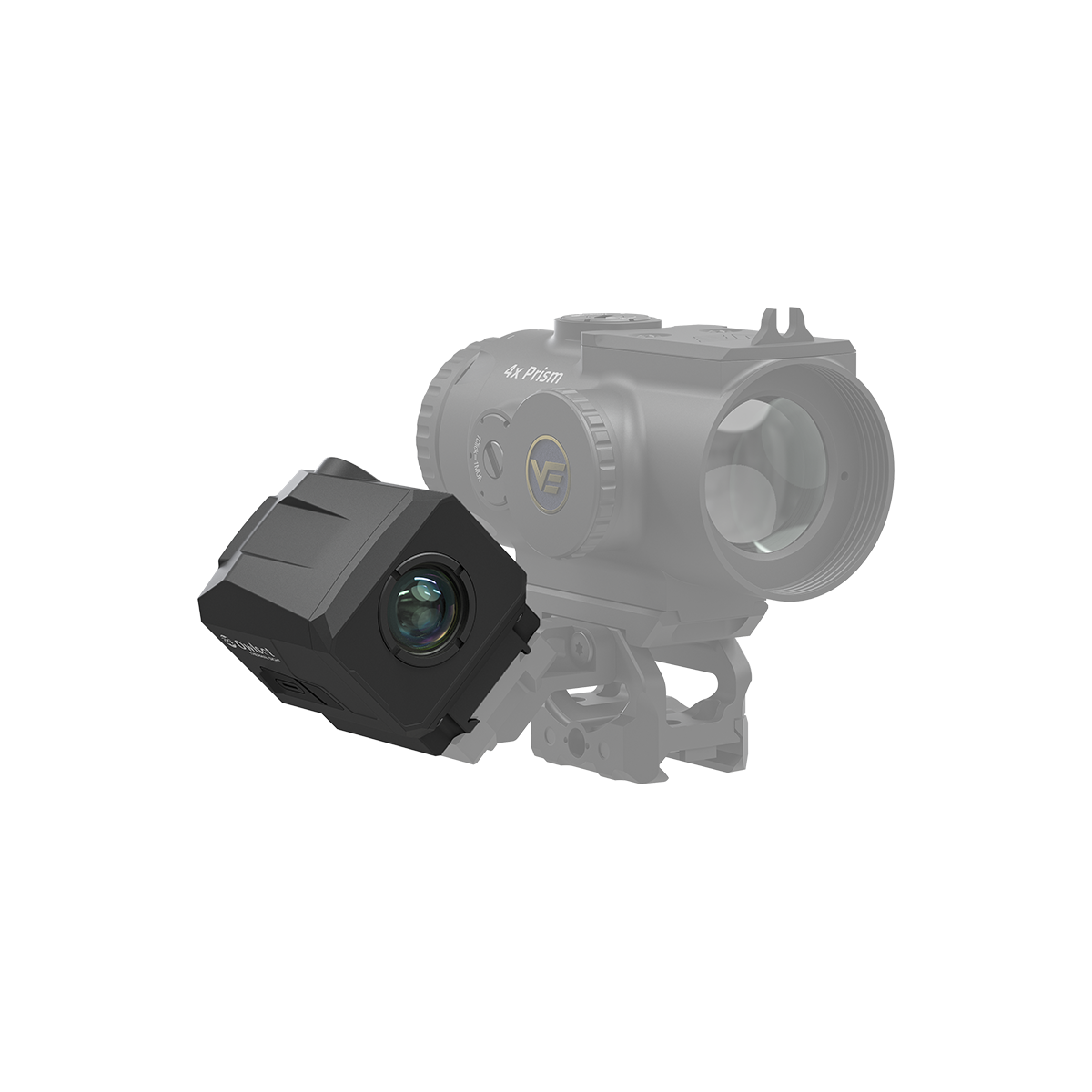

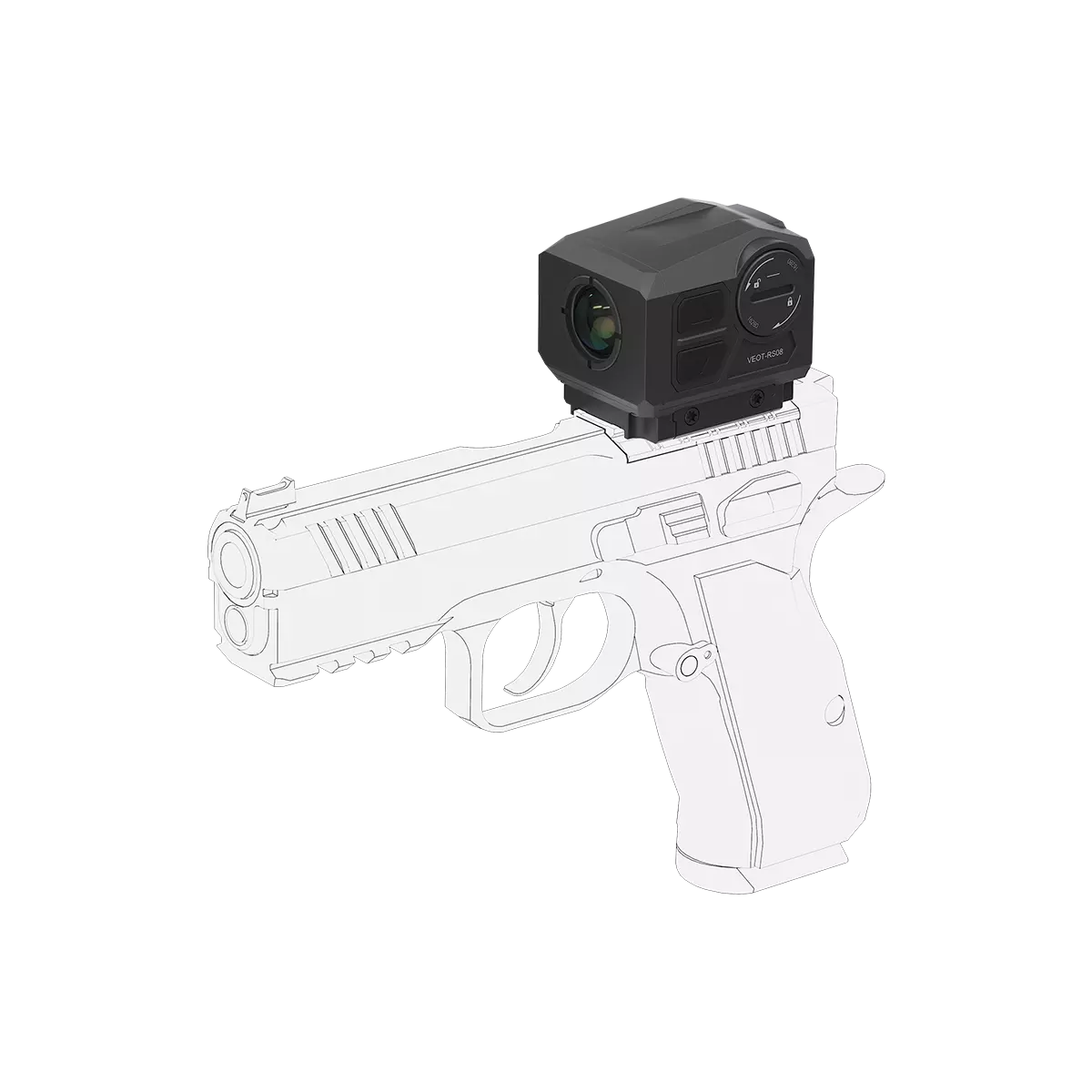

Light 123g (4.34oz) Compact Body Supports Pistol & AR-15 Platform LPVO Top Mounting for Night Defense & Wargame Use Real-Time Hot Spot Tracking Automatically Detects and Tracks the Hottest Targets During Night Search and Engagement Clear 256×192 Thermal Imaging with 12 μm Sensor, 50 Hz Smooth Refresh, 19 mm Lens, and 1.4" Touchscreen Display Six Selectable Pseudo-Color Modes Improve Target Recognition and Visual Contrast in Complex Nighttime Environments 1000 G Shock Resistance and IP66 Waterproof Rating Ensure Reliable Performance in Harsh All-Weather Field Conditions

Specification

  • Infrared Resolution 256x192 / 12μm
    Frame Rate 50Hz
    Basic Magnification 0.5x
    Digital Zoom 1x/2x
    NETD ≤40 mK
    Detection Range up to 600m (656.17yds)
    Recognition Range up to 150m (164.04yds)
    Angular Field of View 13.5° × 10.1°
    Focus Range 5m – ∞
    Display Screen 1.4
    Pseudo-Color Modes White Hot, Black Hot, Hot Iron, Rainbow, Iron Red, Cold Color

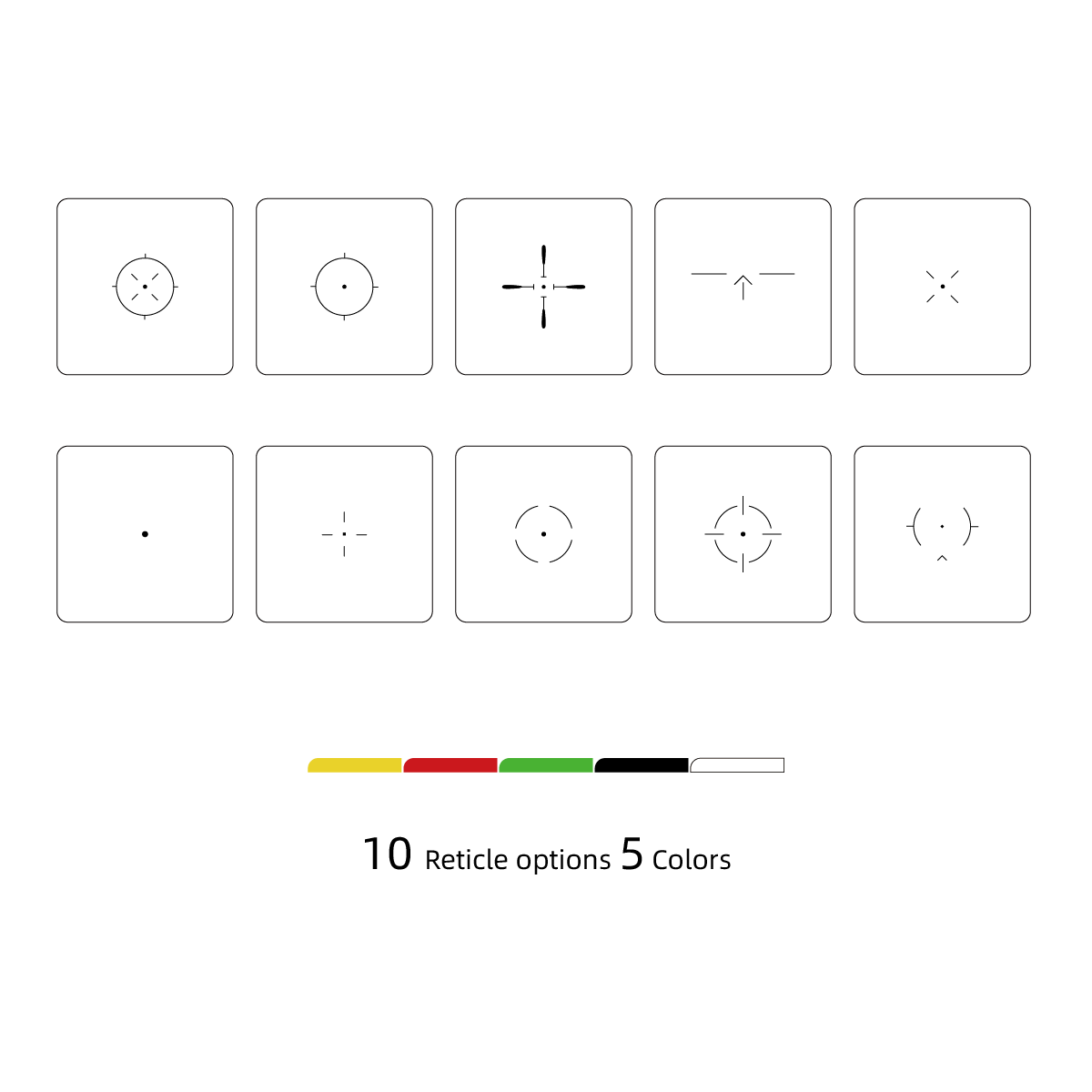

    Reticle 10 Reticle Options with 5 Color Modes (Black / White / Red / Green / Yellow)
  • Weight 123 g / 4.34 oz

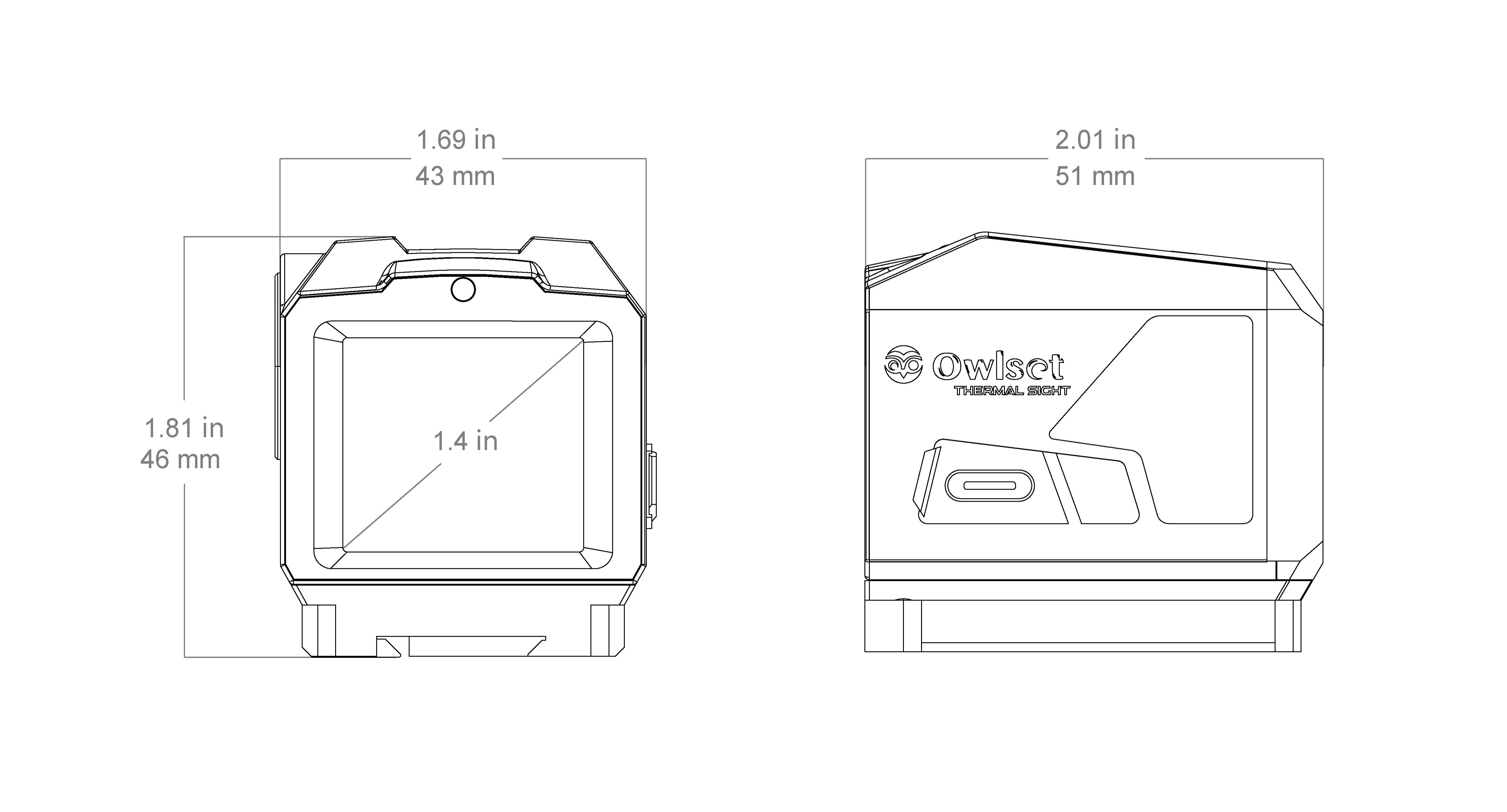

    Dimension 51×43×46 mm / 2.01x1.69x1.81 in
    Wi-Fi & App Support No
    Waterproof IP66
    Shockproof 1000 G
    Battery Type 16280, 900 mAh
    Operating Duration 3.5h
    Charging Interface USB Type-C, 5 V
    Operating Temperature -20°C to 60°C / -4°F to +140°F

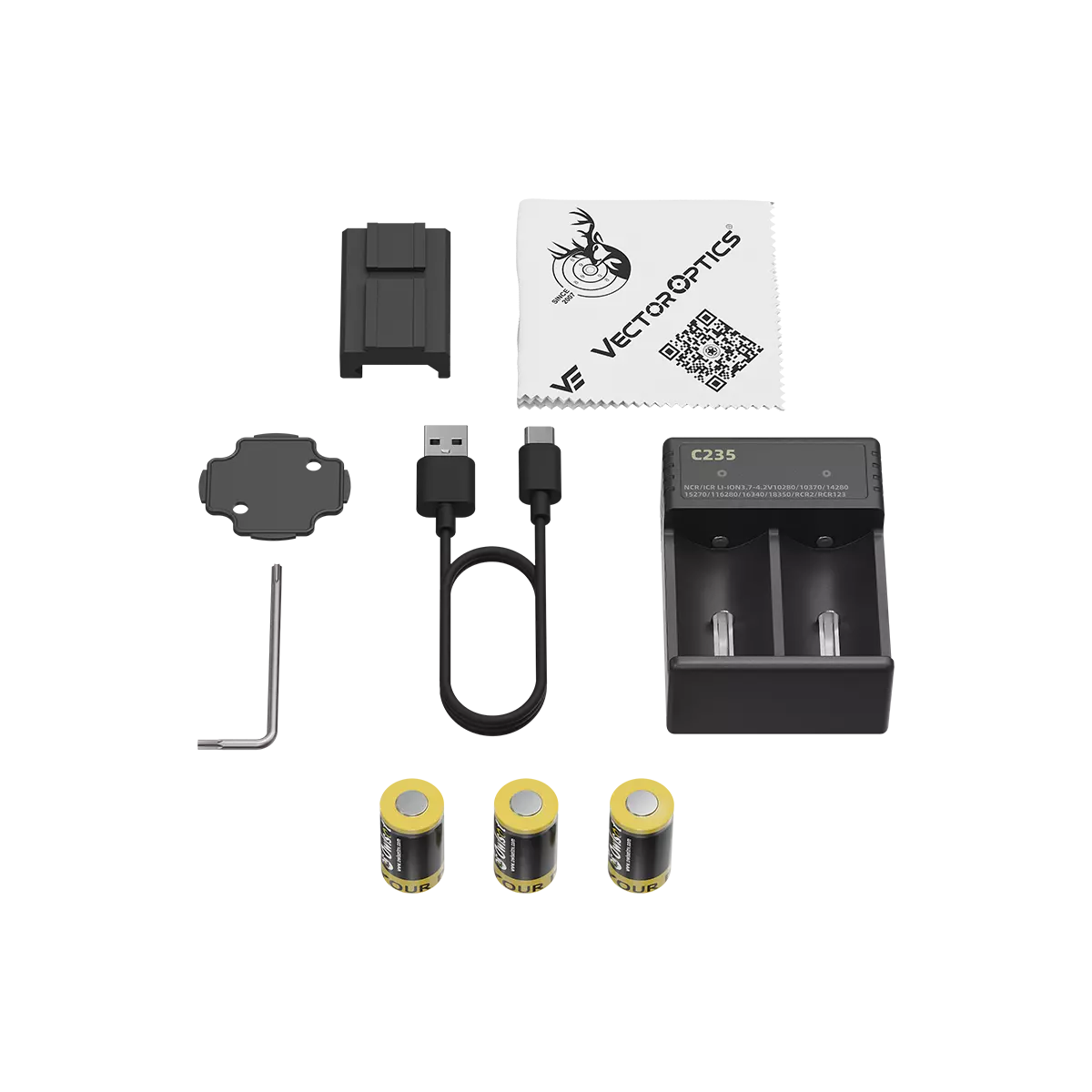

    Items in the Package Mounting Base, Plastic Wrench, Torx Wrench, USB Chargin Cable, Dual-Slot Battery Charger, Batteries*3, etc.

Reticle

Download

  • VEOT-RS08 & RSS08 Owlset HEIM ES X-NANO Mini Thermal Sight User Manual
  • HEIM ES X-NANO Thermal Sight Flyer (VEOT-RS08 & RSS08)

Warranty

This product comes with a 2-year warranty.
