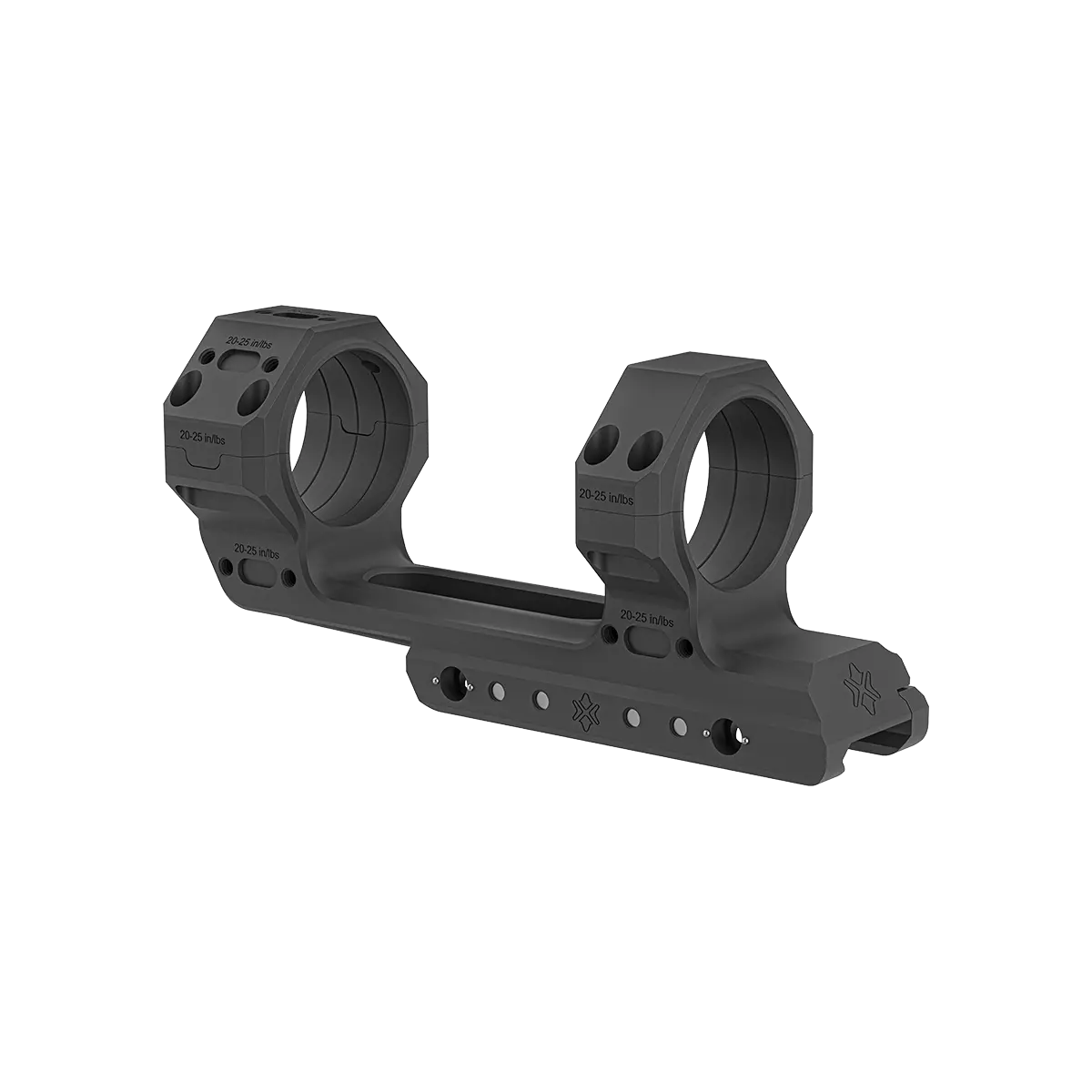

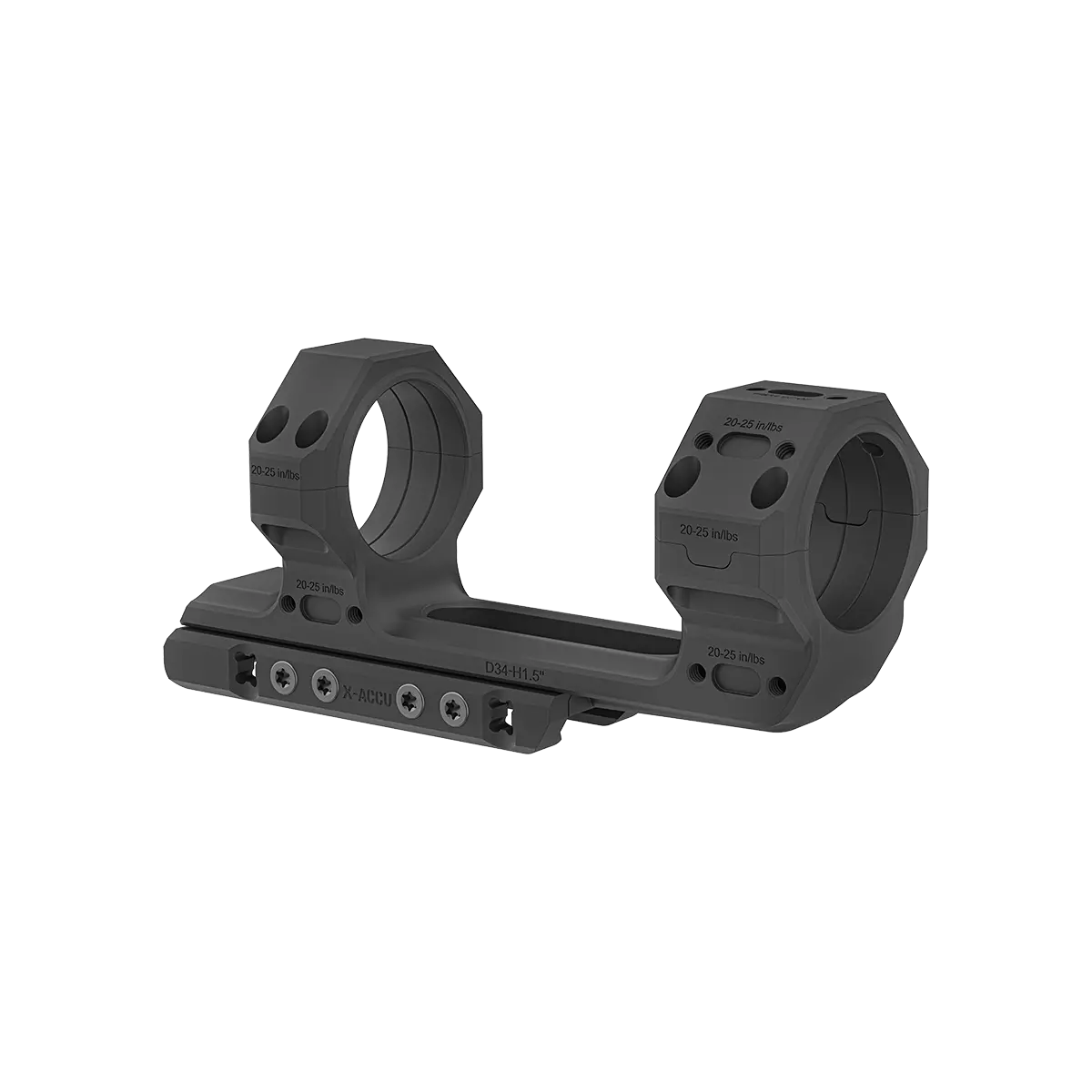

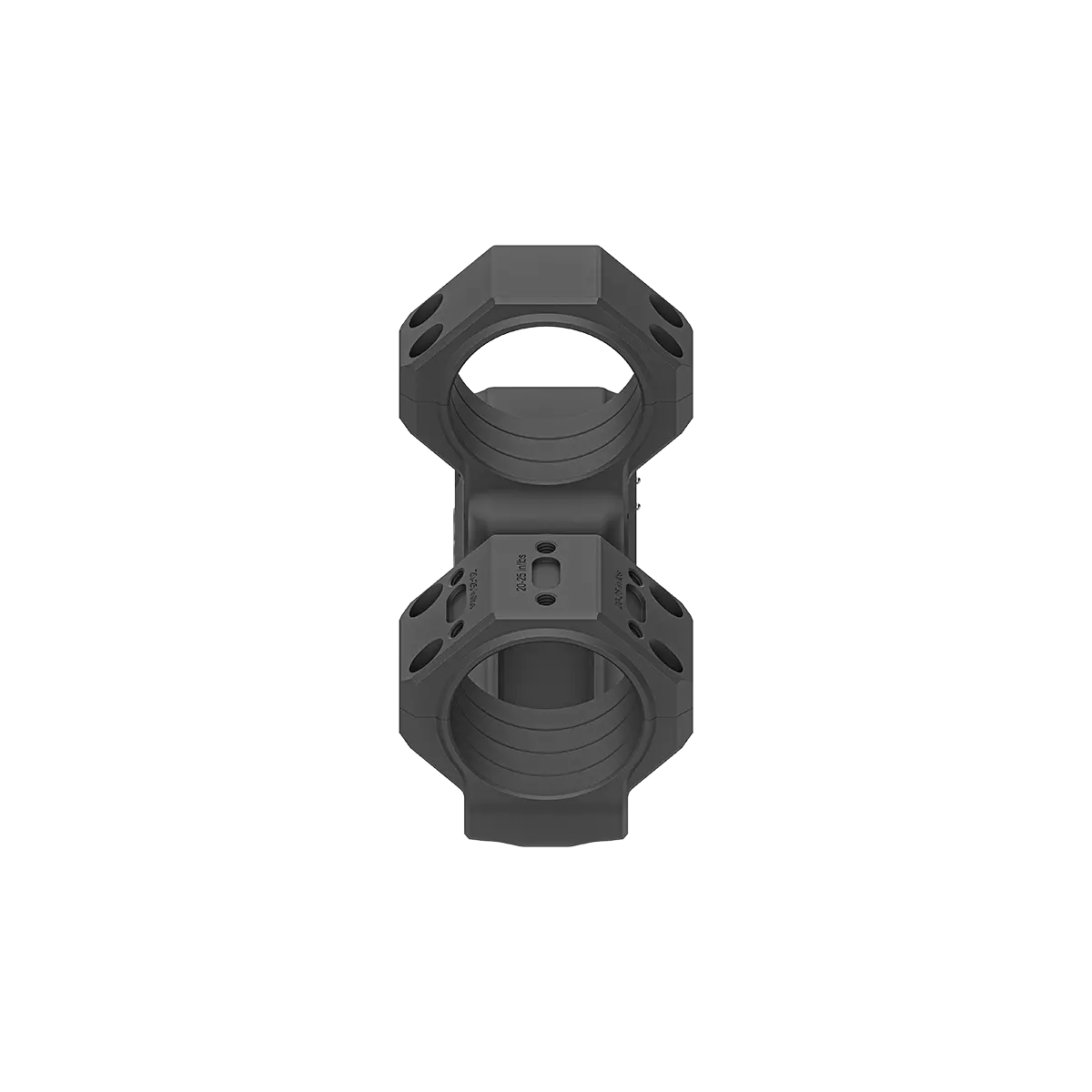

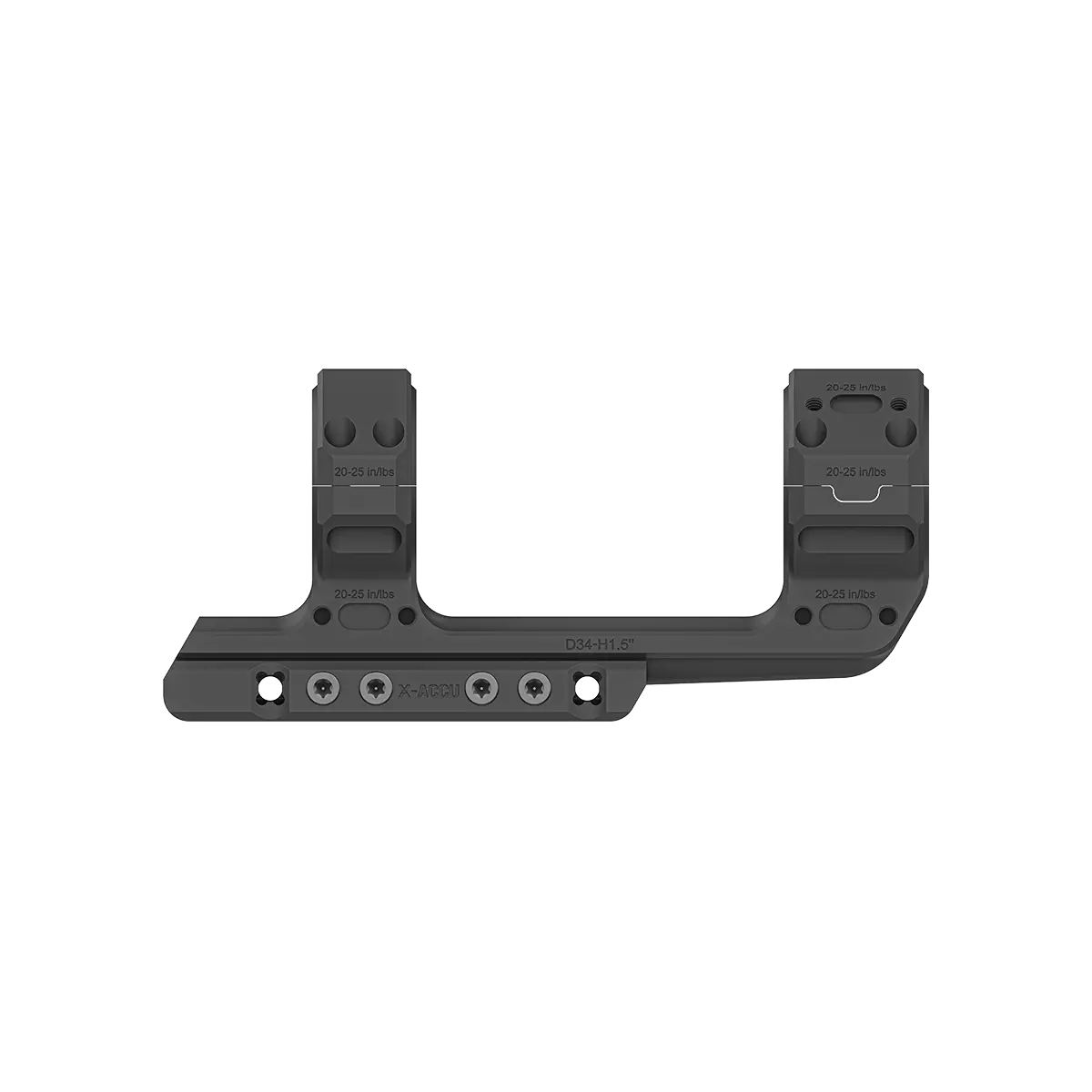

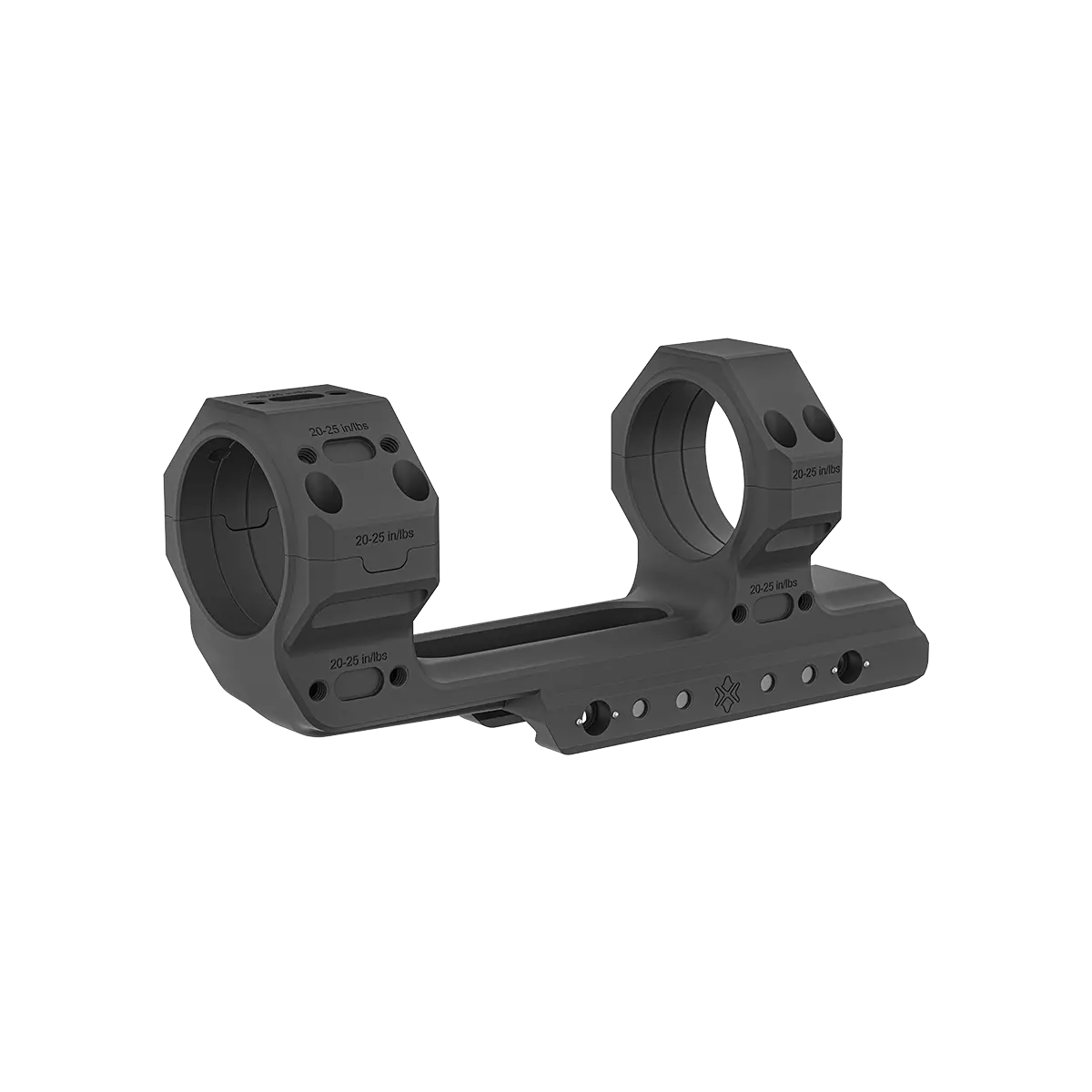

34mm X-MOD 1.5'' One Piece Extended Picatinny Mount

Model: XASR-3476

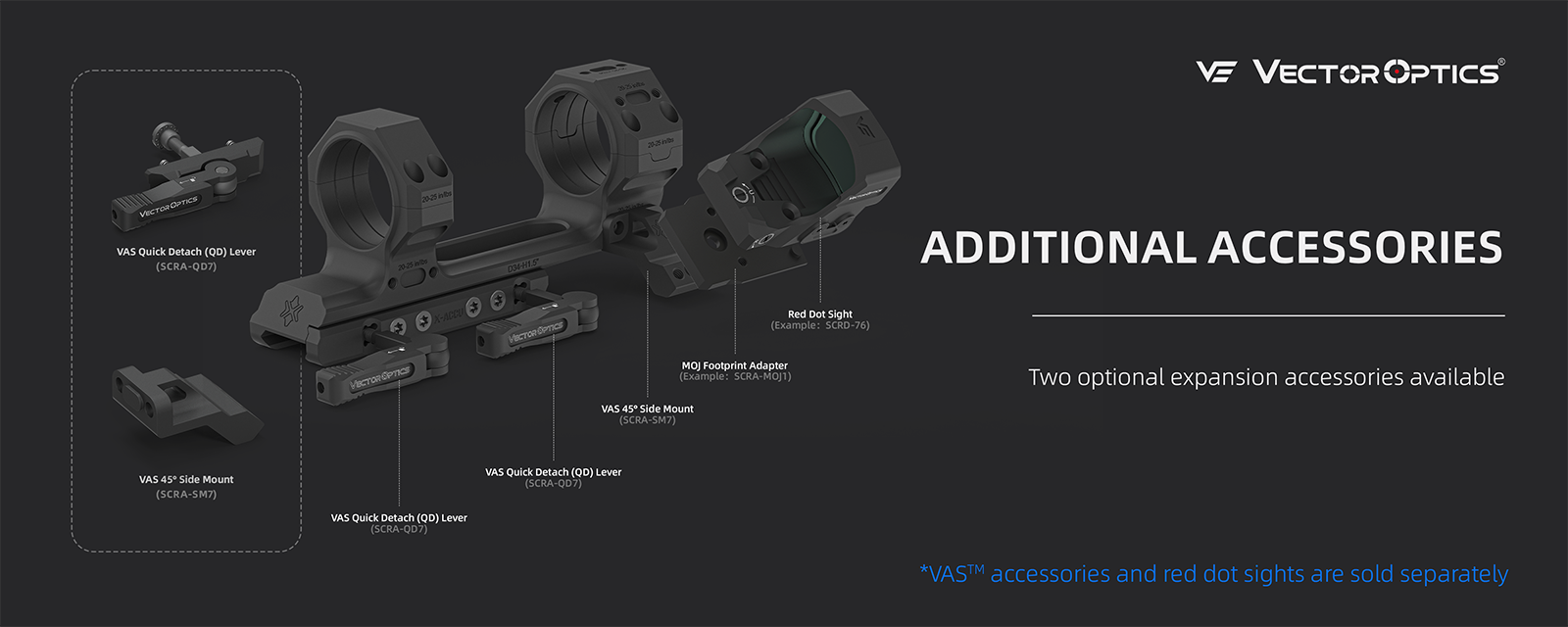

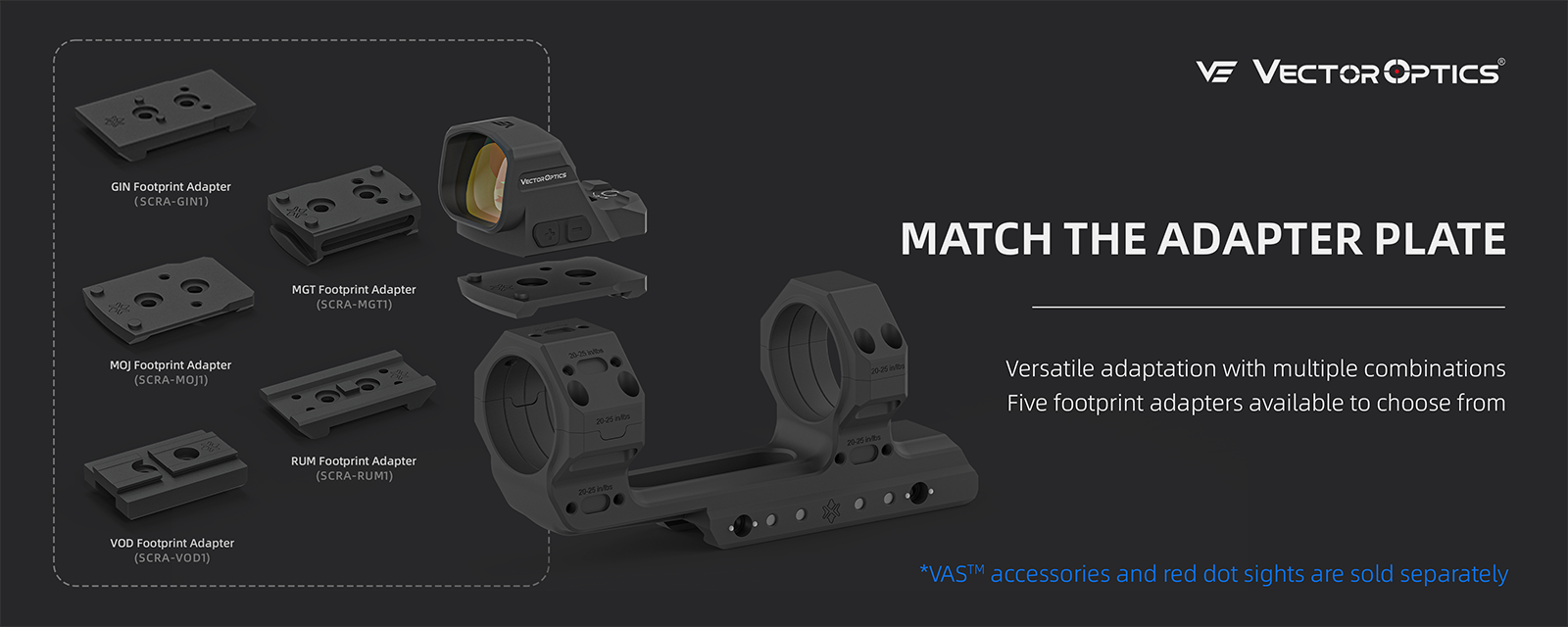

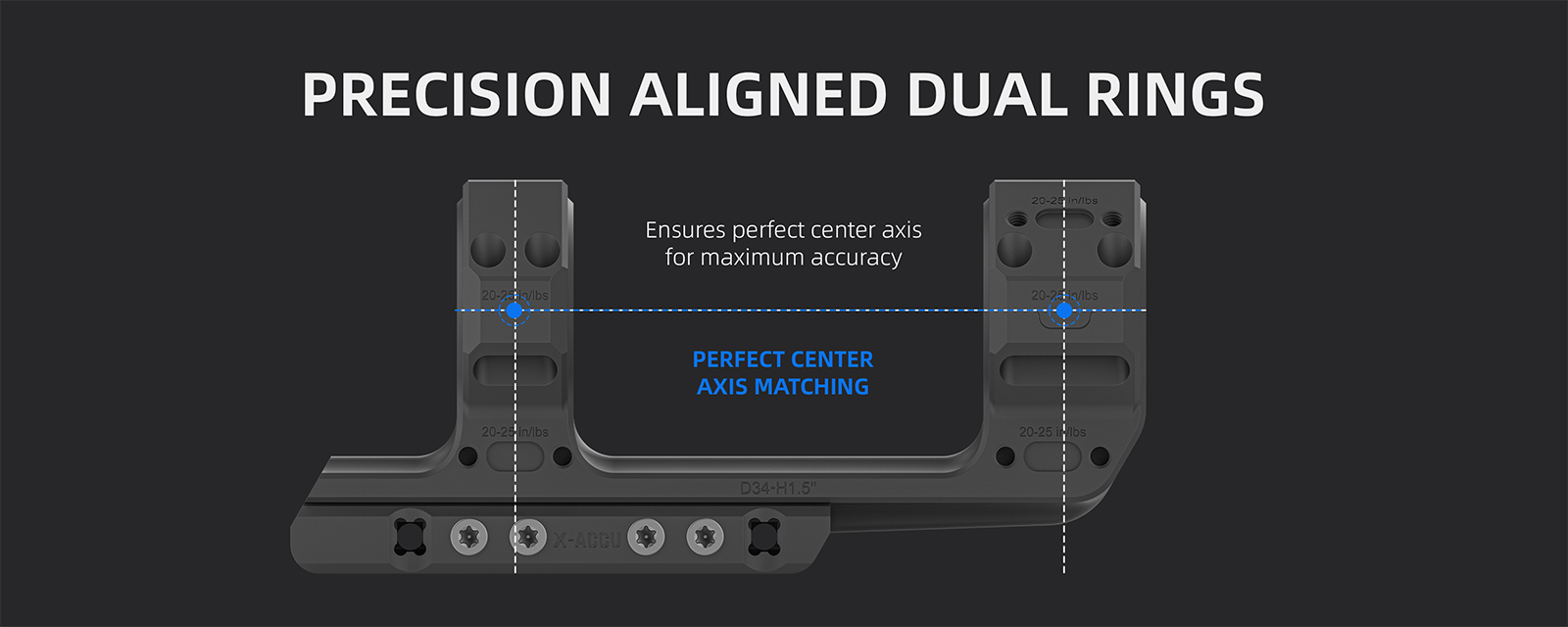

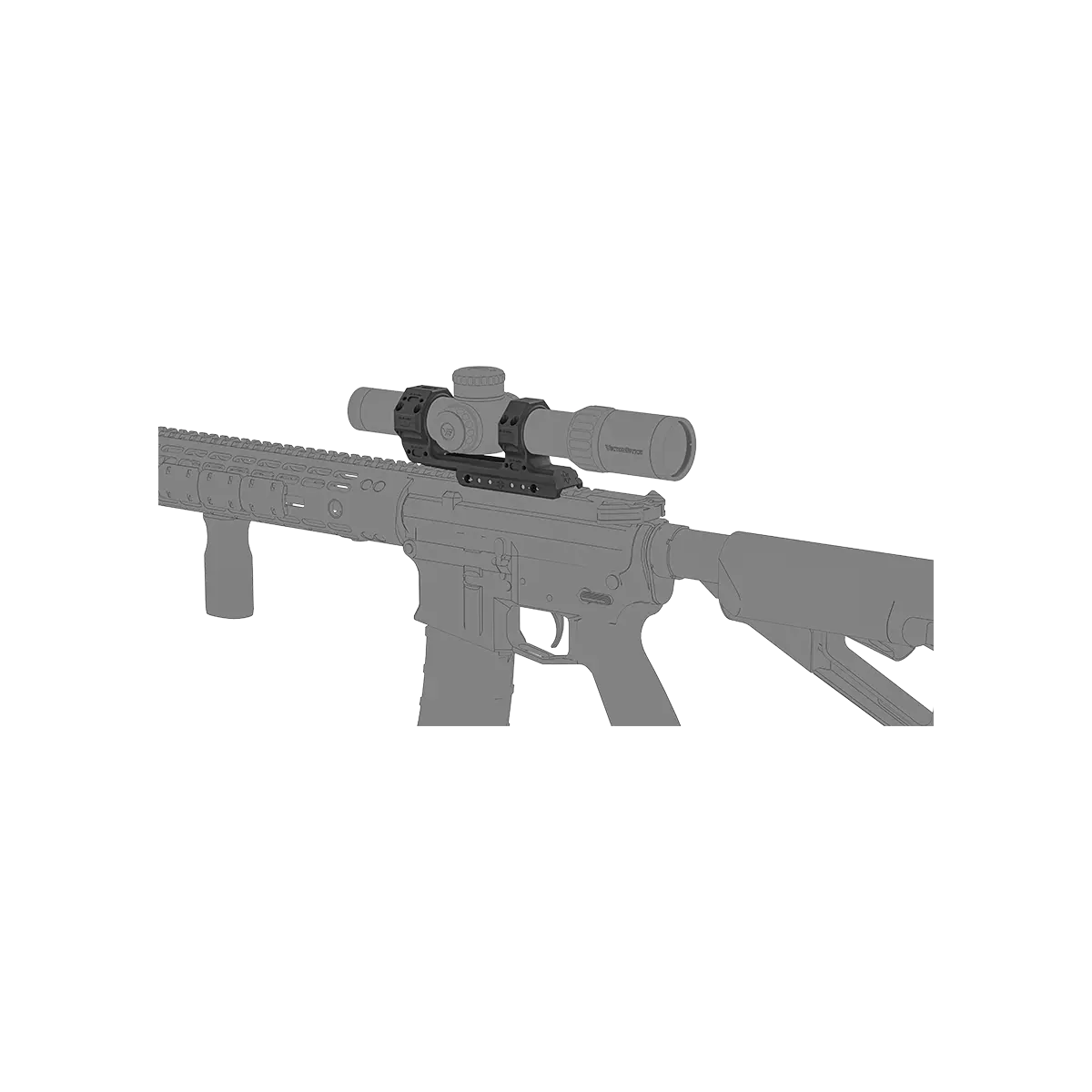

Features VAS™ Series X-MOD Interface Supporting Red Dot Plates, Picatinny Rails and Modular Attachments with Full System Compatibility 34mm Dia. Rings, 38.1 mm / 1.50 in Center Height, Optimized for Stable Optical Alignment, Balanced Rifle Setup, and Consistent Shooting Performance 5-Axis CNC Machined 7075-T6 Aluminum Delivers Maximum Rigidity, Precise Dual-Ring Alignment, and Reliable Recoil Resistance Up to .50 BMG 20μm Black Anodized Finish Provides Enhanced Scratch Resistance, Corrosion Protection, and Long-Term Durability in Harsh Environments Cantilever Mount w/ Offset for Comfortable Eye Relief, Light & Precision-Machined One-Piece Design Enabling Quick Rifle Mount & Removal Without Re-Zero

Specifications

  • Ring Dia 34 mm /1.3 in
    Height 67.5 mm /2.66 in
    Central Height 38.1 mm / 1.50 in (Bottom to Center)
    Width 52 mm / 2.0 in

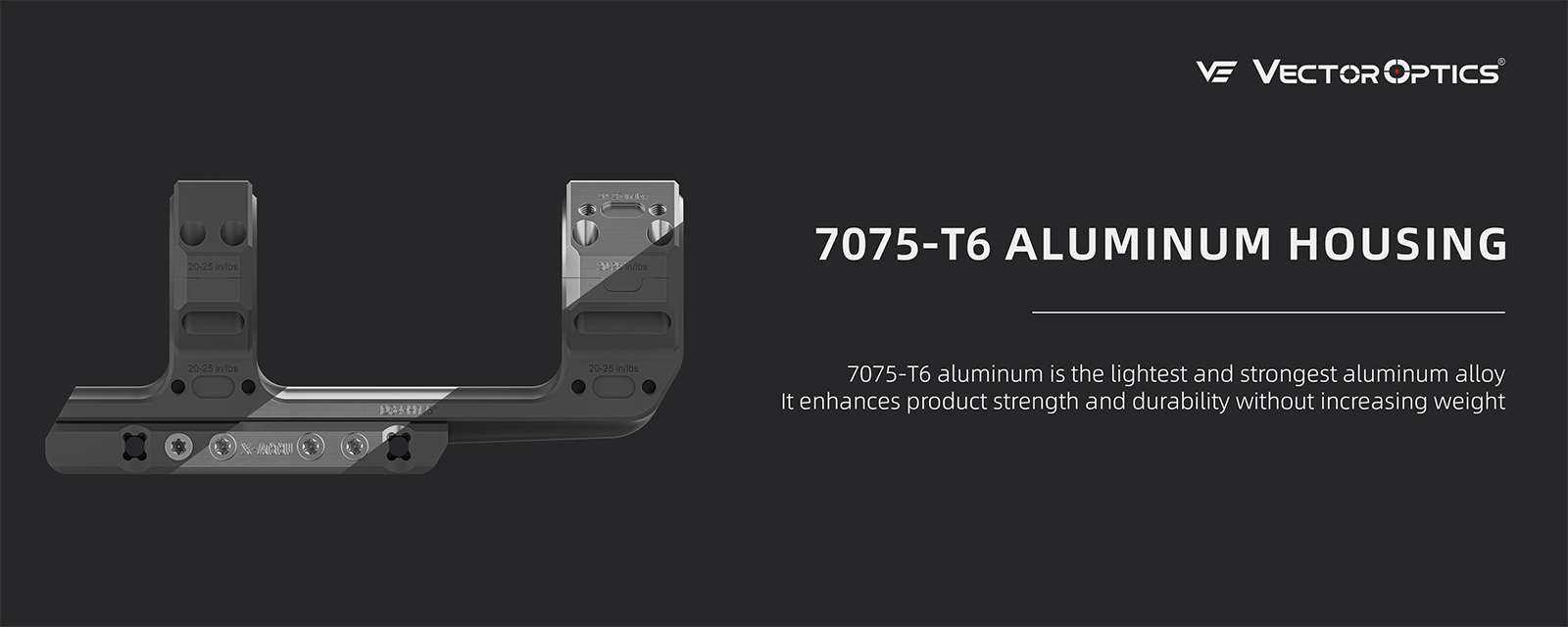

    Material 7075-T6 Aluminum Alloy
    Weight 232 g / 8.18 oz
    Torque 20-25 in /lbs (2.3–2.8 N·m)
    Mount Picatinny
    Finish Matte Black
    Items in the Package T15 Torx Wrench

Download

  • X-MOD Modular Picatinny Mount & Rings System User Manual
