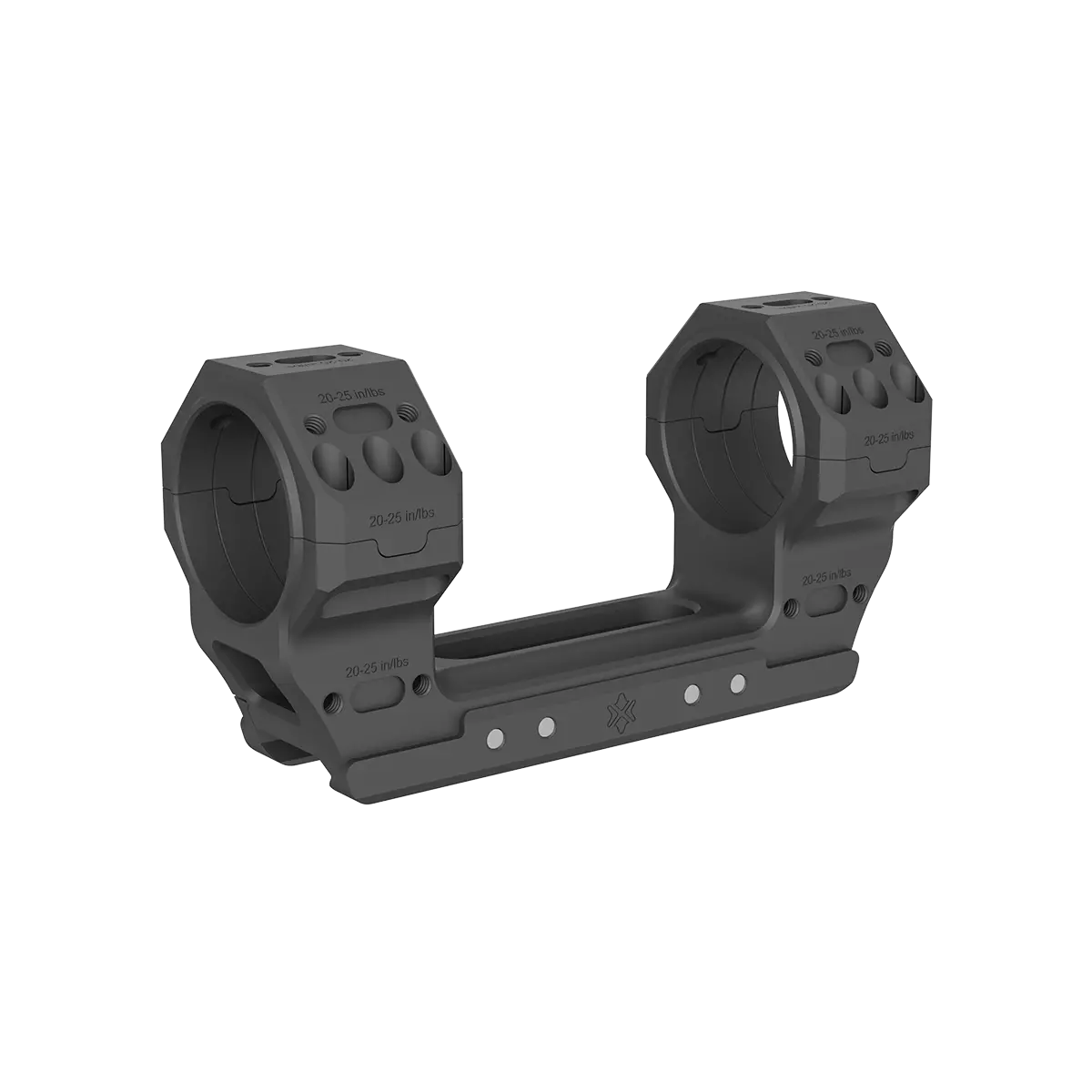

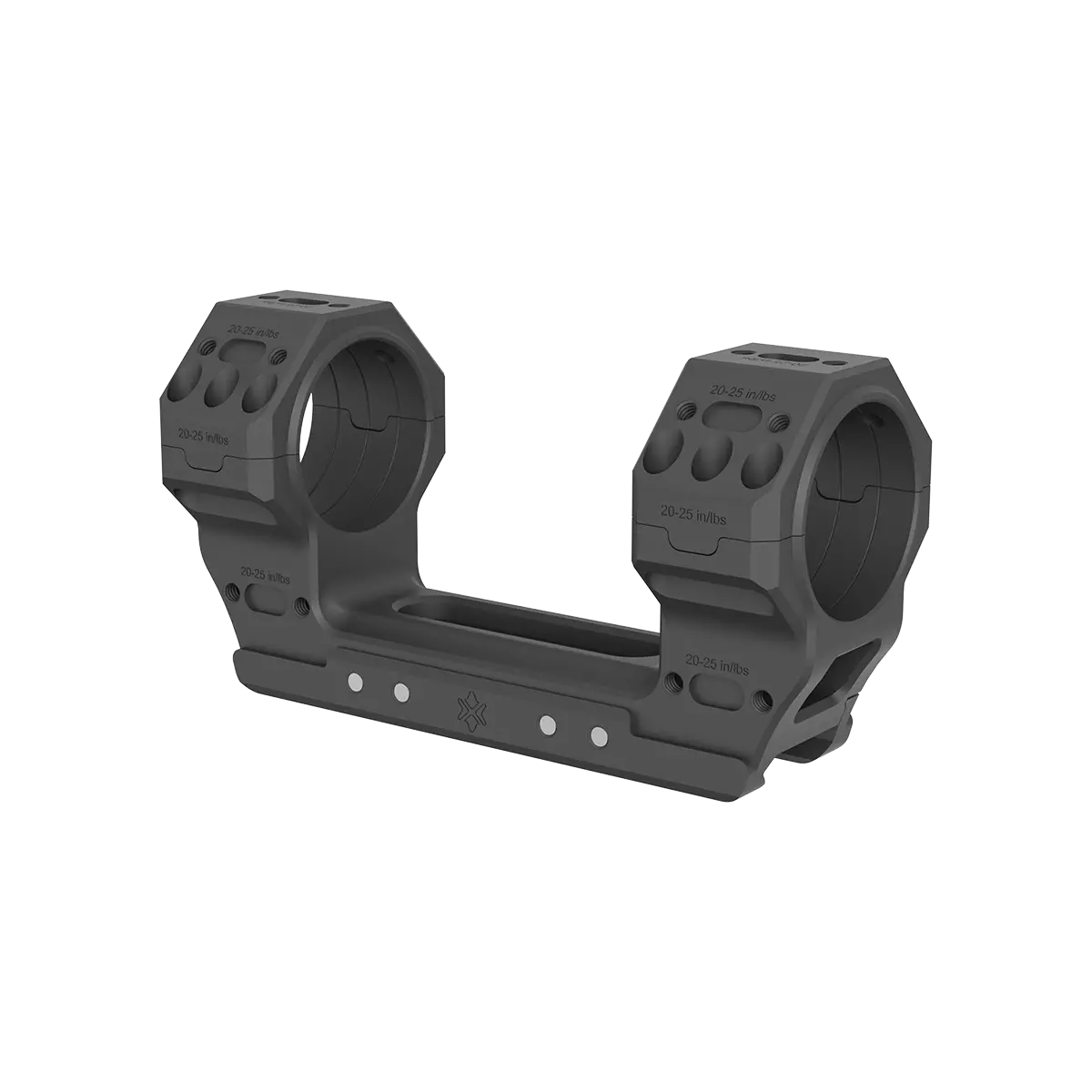

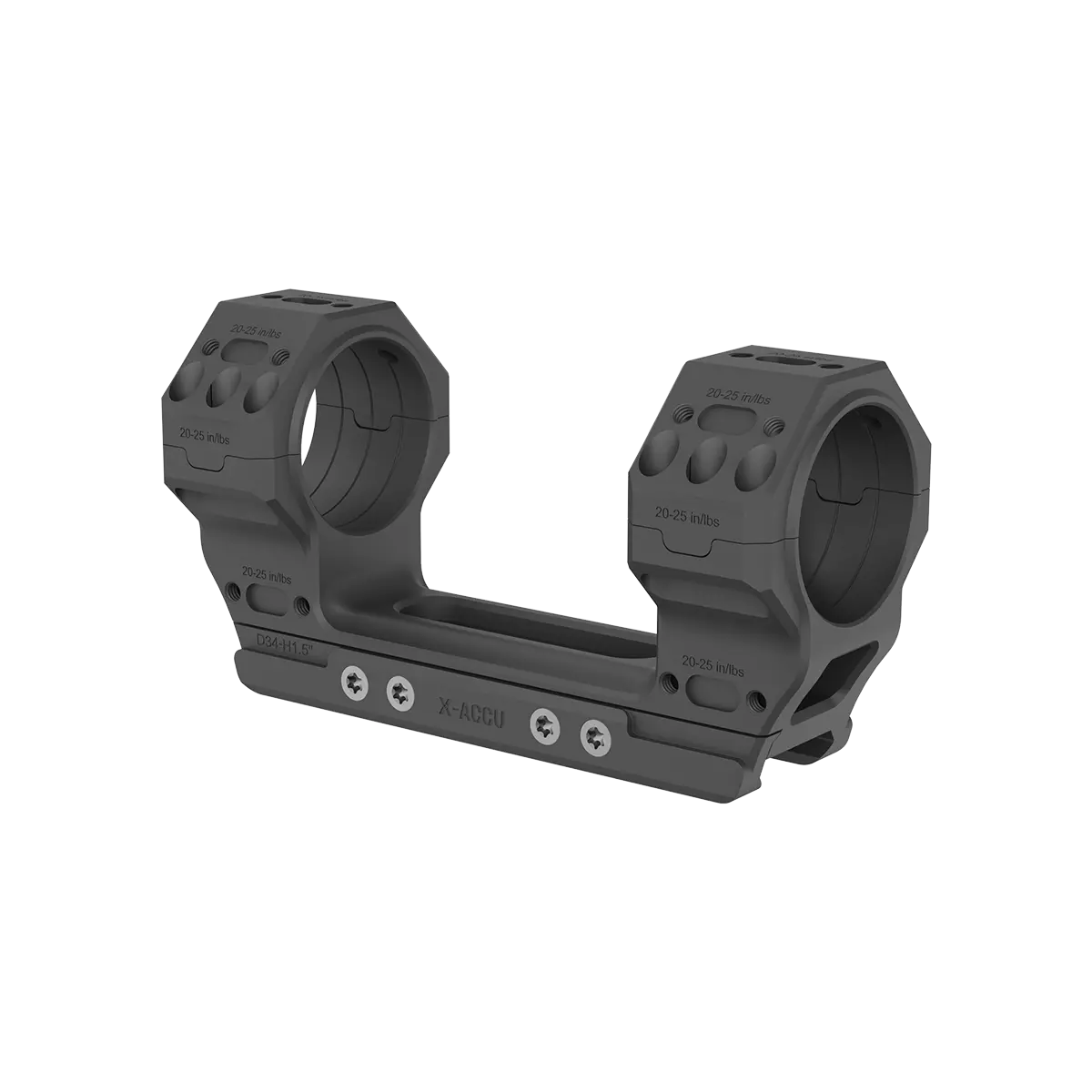

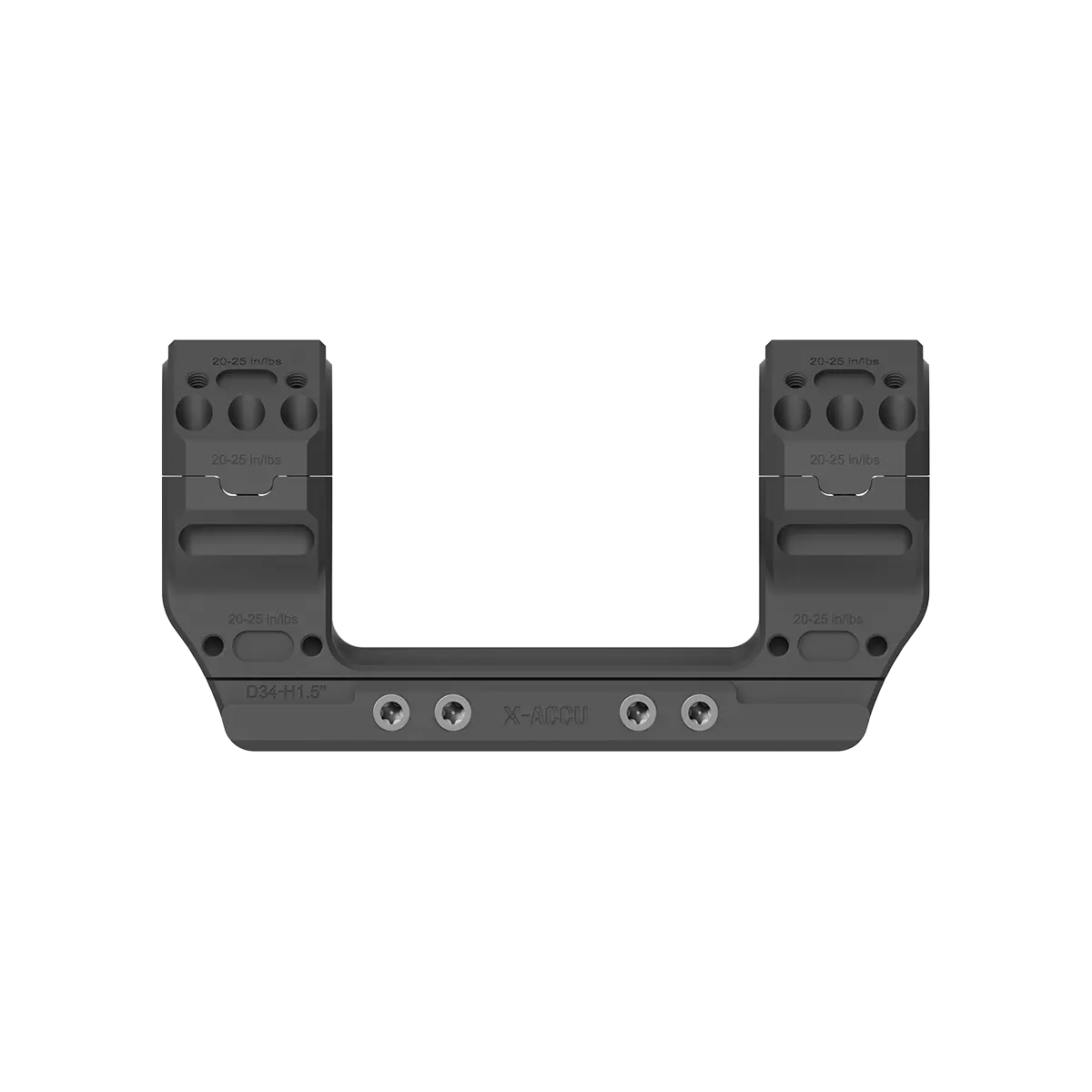

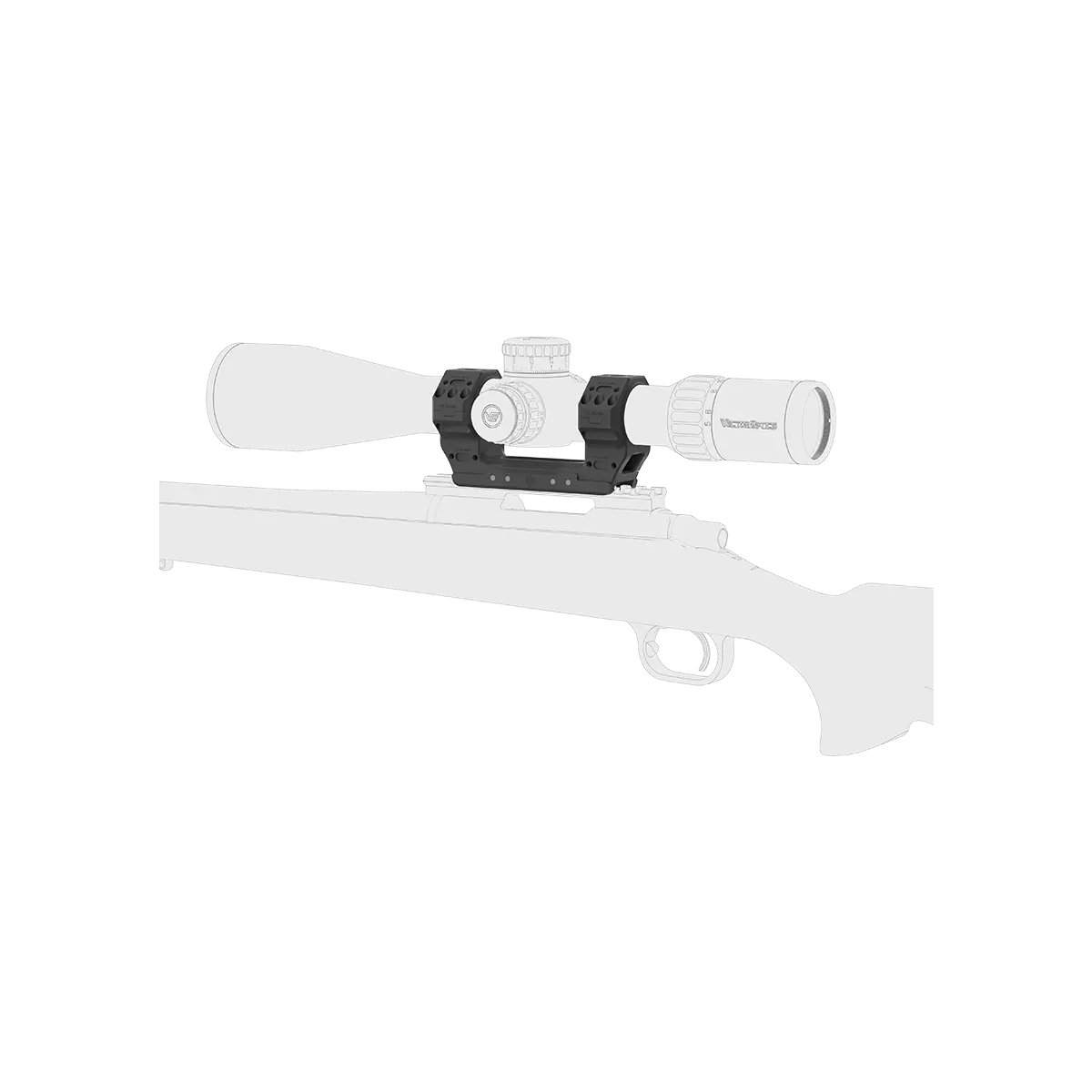

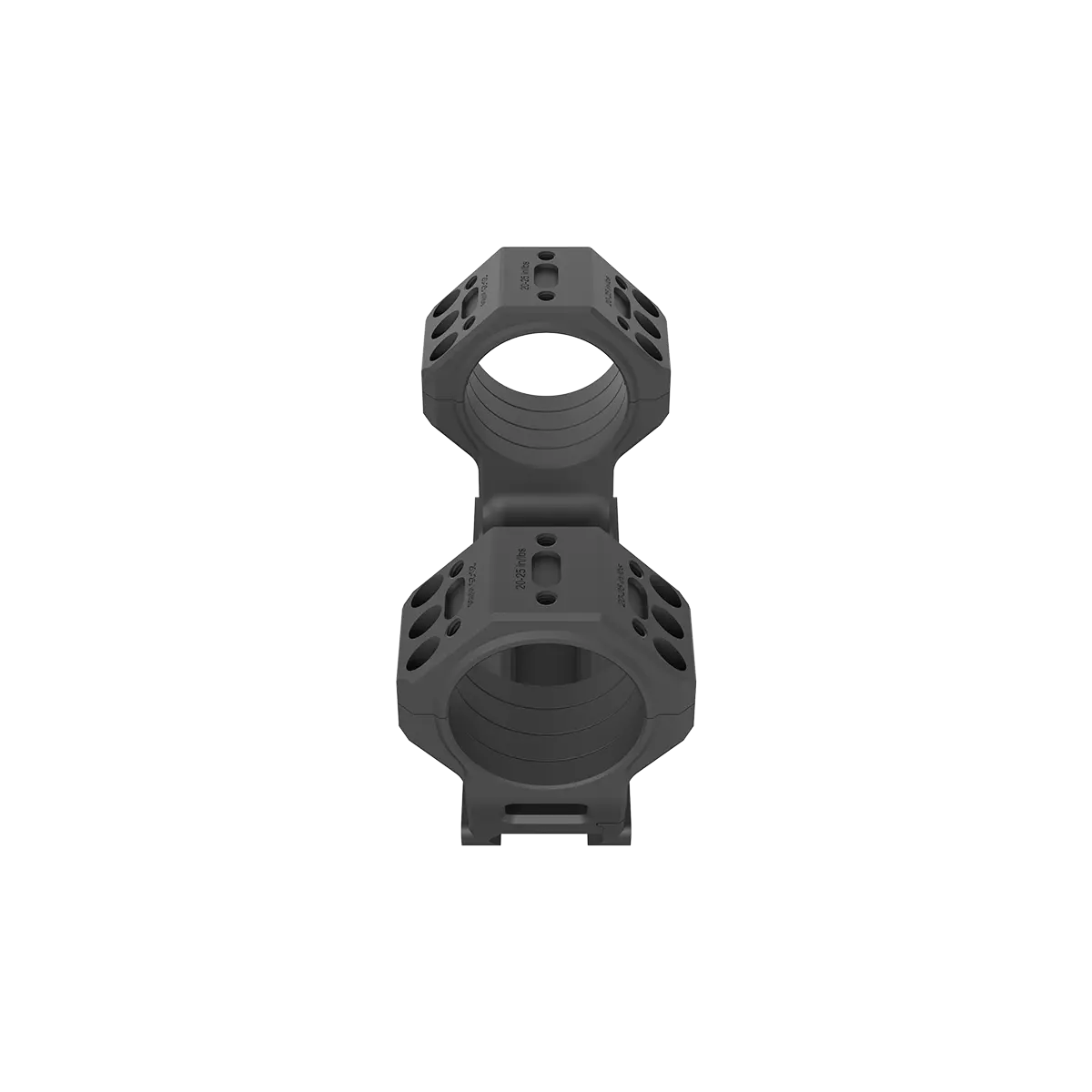

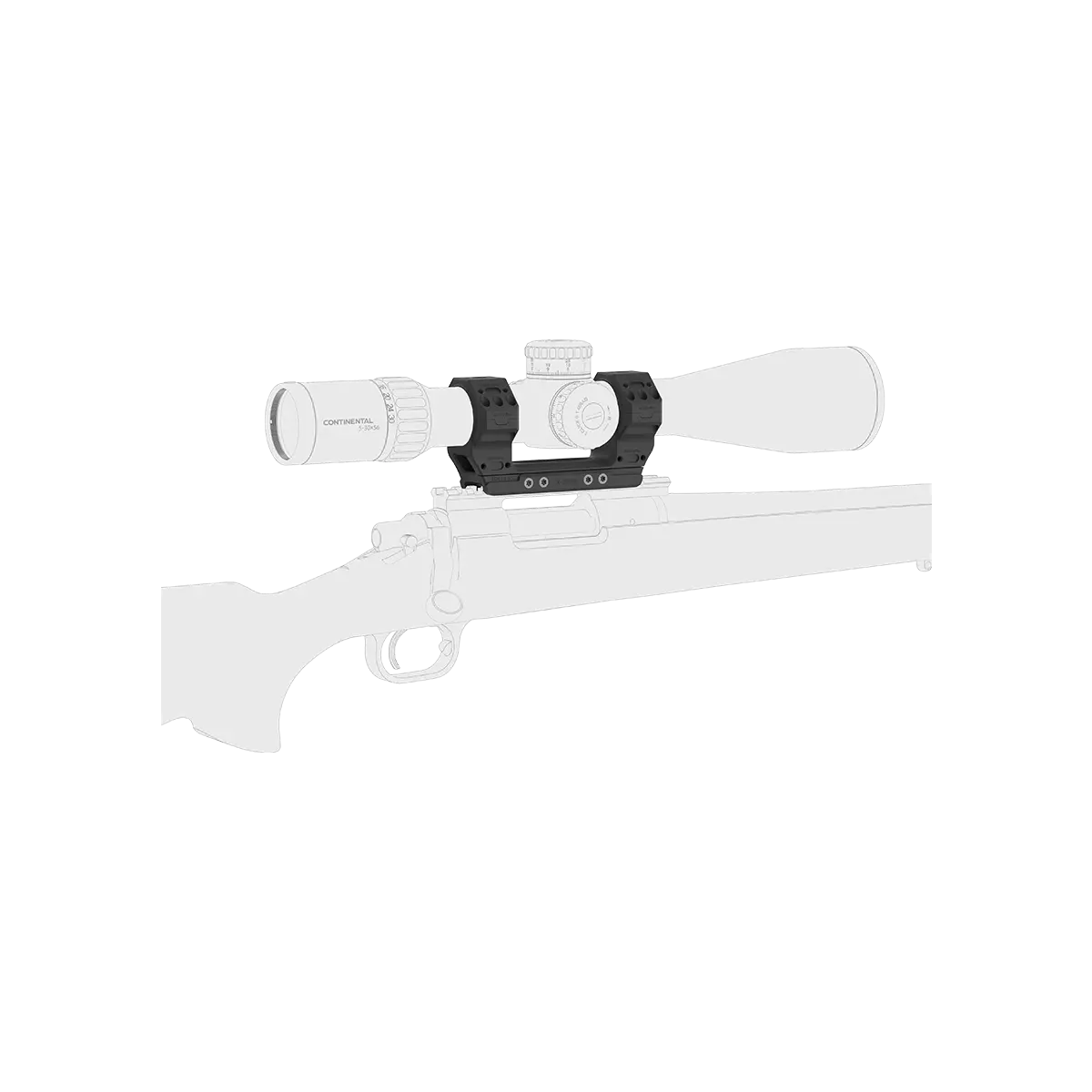

34mm X-MOD 1.5'' One Piece Heavy-Duty Picatinny Mount

Model: XASR-3474

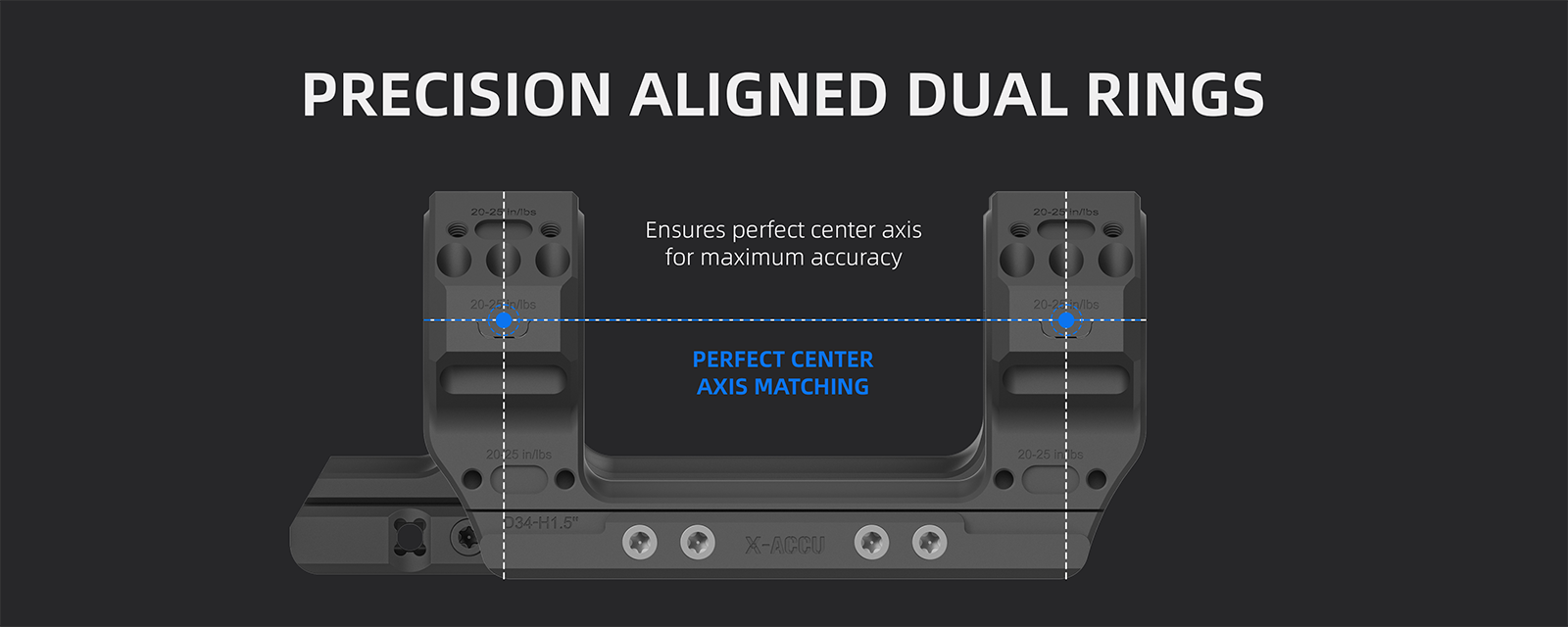

Features VAS™ Series X-MOD Interface Supporting Red Dot Plates, Picatinny Rails and Modular Attachments with Full System Compatibility 34mm Dia. Rings, 38 mm / 1.50 in Center Height, Optimized for Stable Optical Alignment, Balanced Rifle Setup, and Consistent Shooting Performance 5-Axis CNC Machined 7075-T6 Aluminum Delivers Maximum Rigidity, Precise Dual-Ring Alignment, and Reliable Recoil Resistance Up to .50 BMG 20μm Black Anodized Finish Provides Enhanced Scratch Resistance, Corrosion Protection, and Long-Term Durability in Harsh Environments One Piece Heavy-Duty Clamping System with Integrated Recoil Lug Offers Rock-Solid Stability and Repeatable Long-Range Precision Performance

Specifications

  • Ring Dia 34 mm /1.3 in
    Height 67.5 mm / 2.66 in
    Central Height 38 mm / 1.50 in (Bottom to Center)
    Width 52 mm / 2.0 in
    Material 7075-T6 Aluminum Alloy
    Weight 240 g / 8.46 oz
    Torque 20-25 in /lbs (2.3–2.8 N·m)
    Mount Picatinny
    Finish Matte Black
    Items in the Package T15 Torx Wrench

Download

  • X-MOD Modular Picatinny Mount & Rings System User Manual
