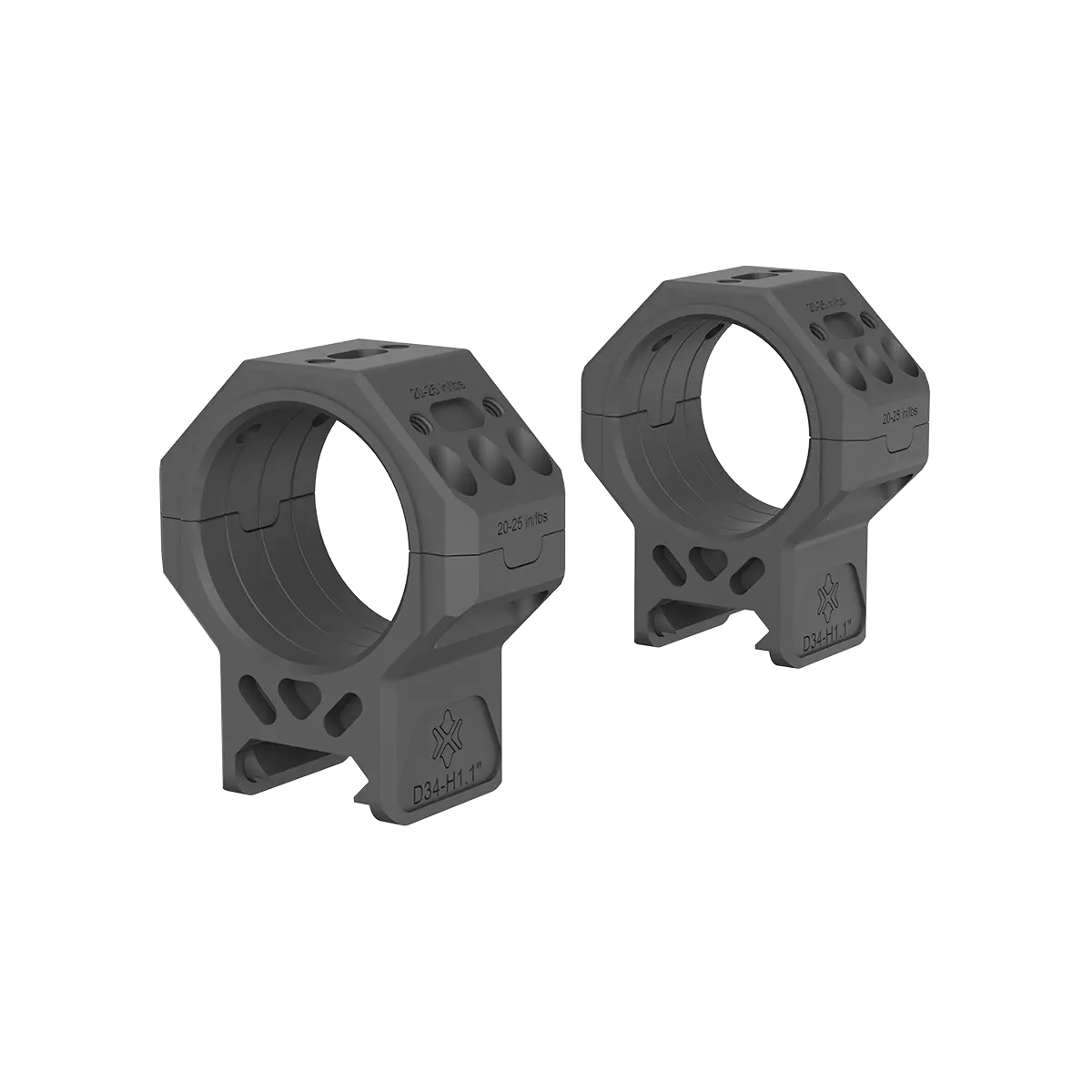

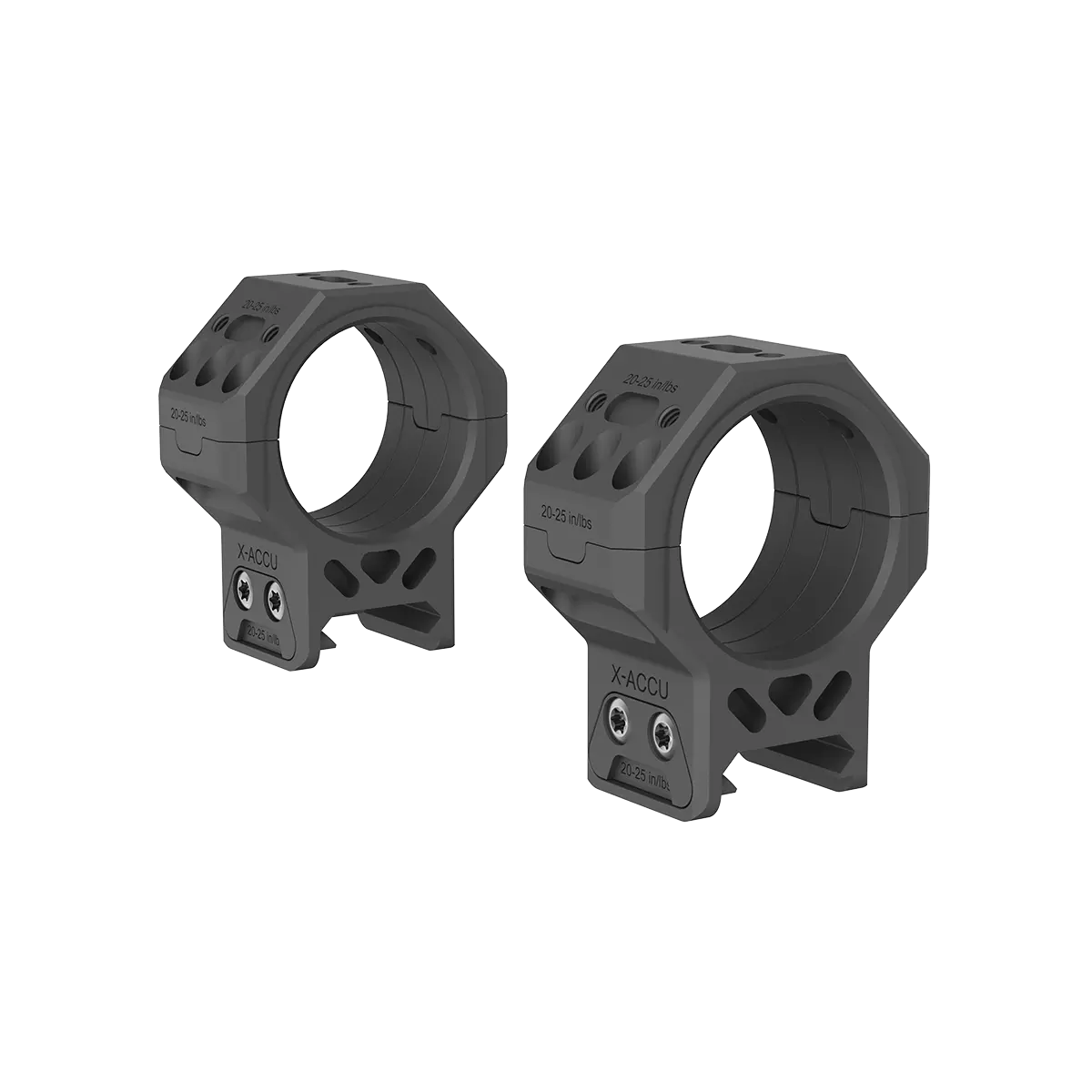

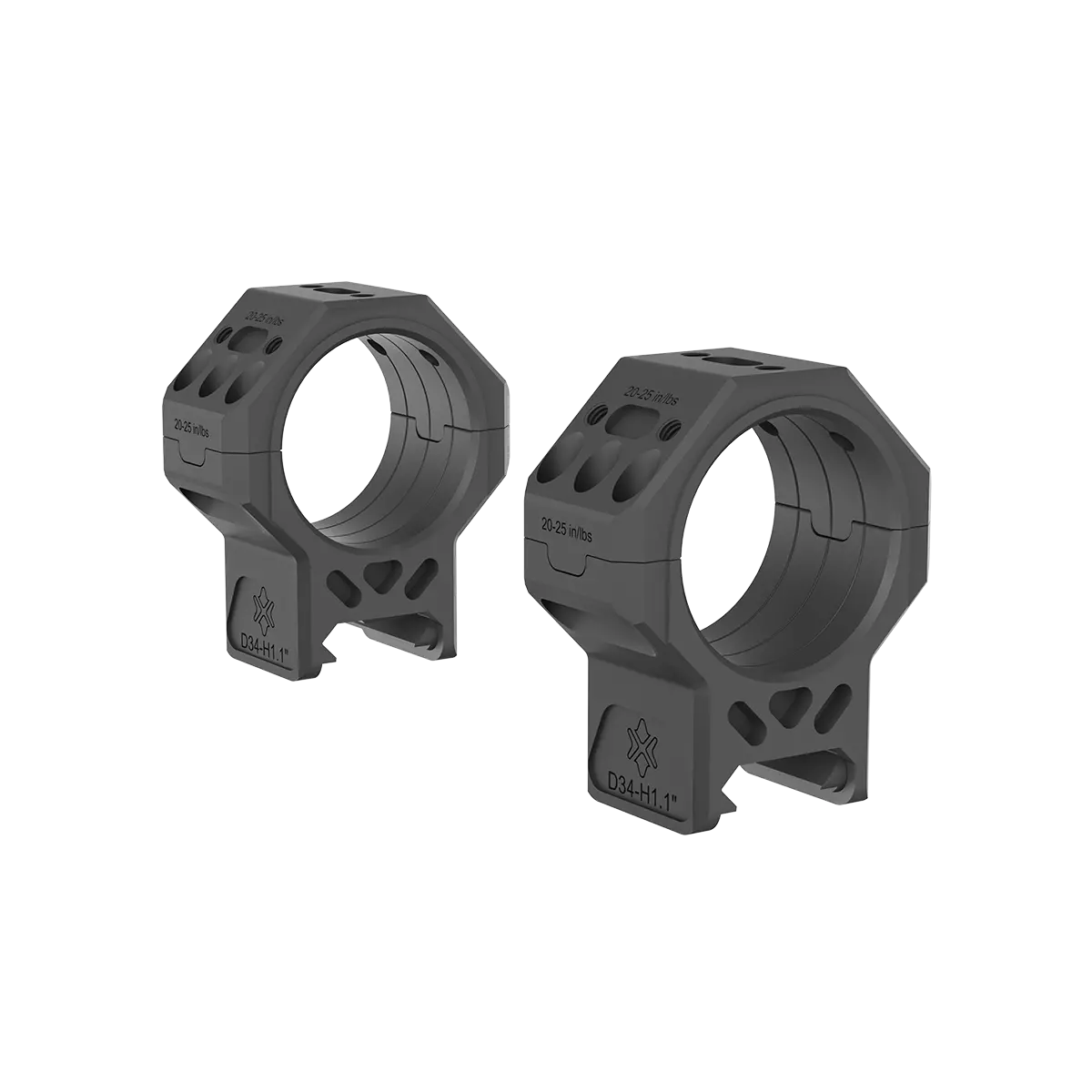

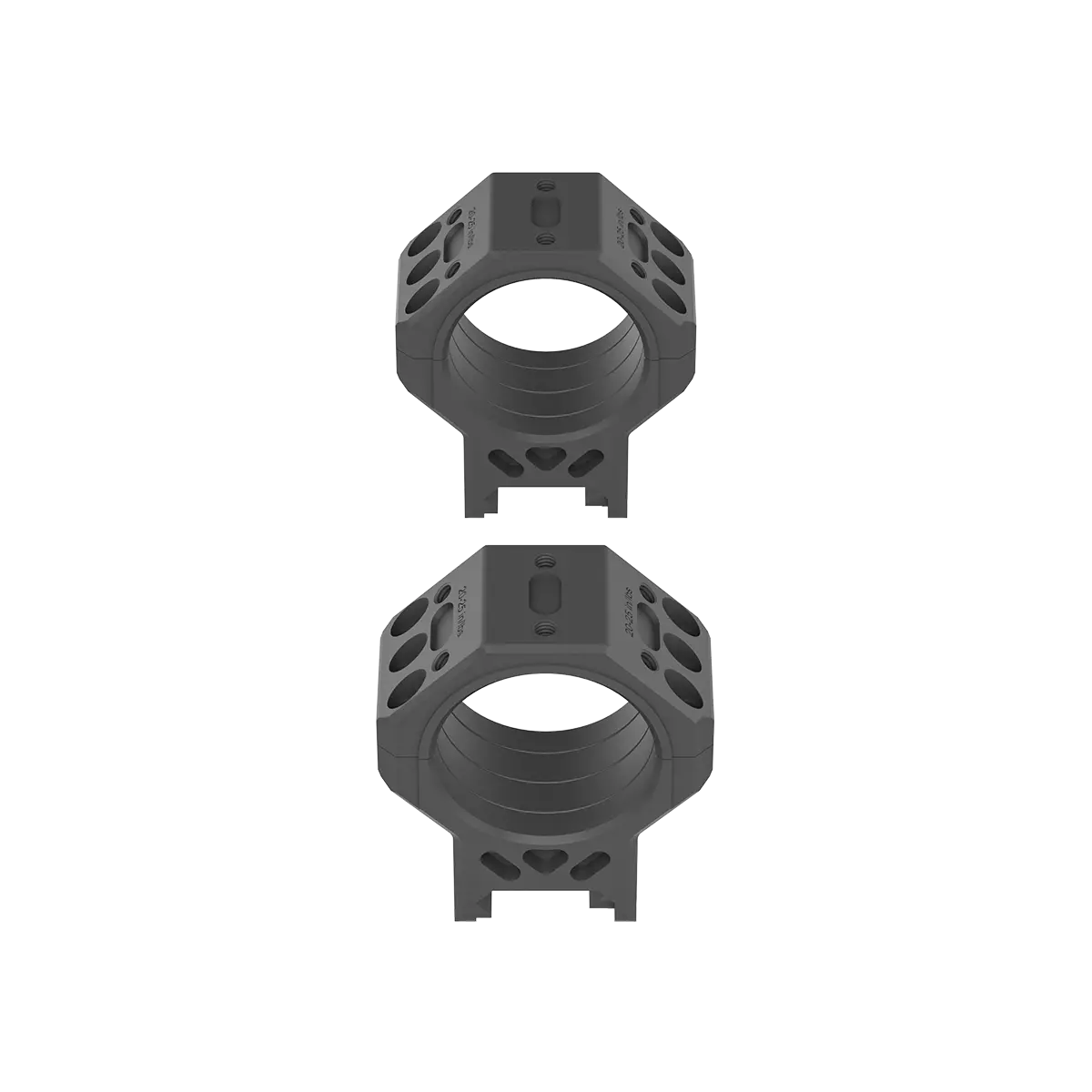

34mm X-MOD 1.1'' Modular Picatinny Rings System

Model: XASR-3472

Features VAS™ Series X-MOD Interface Supporting Red Dot Plates, Picatinny Rails and Modular Attachments with Full System Compatibility 34mm Dia. Rings, 28 mm / 1.10 in Center Height, Optimized for Stable Optical Alignment, Balanced Rifle Setup, and Consistent Shooting Performance 5-Axis CNC Machined 7075-T6 Aluminum Delivers Maximum Rigidity, Precise Dual-Ring Alignment, and Reliable Recoil Resistance Up to .50 BMG 20μm Black Anodized Finish Provides Enhanced Scratch Resistance, Corrosion Protection, and Long-Term Durability in Harsh Environments

Specifications

  • Ring Dia 34 mm / 1.3 in
    Height 59.4 mm / 2.3 in

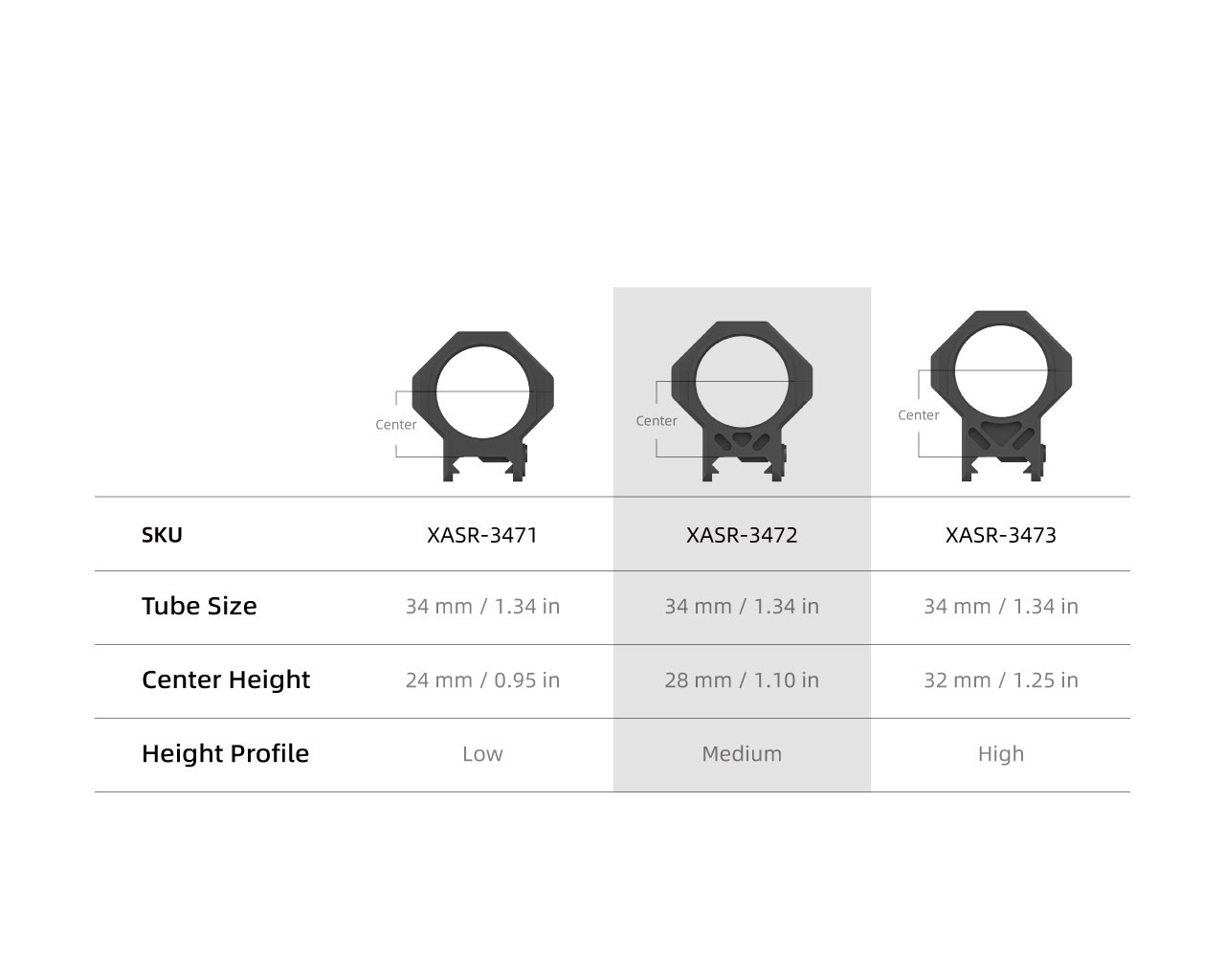

    Central Height 28 mm / 1.10 in (Bottom to Center)
    Width 52 mm / 2.0 in
    Material 7075-T6 Aluminum Alloy
    Weight 77 g / 2.7 oz

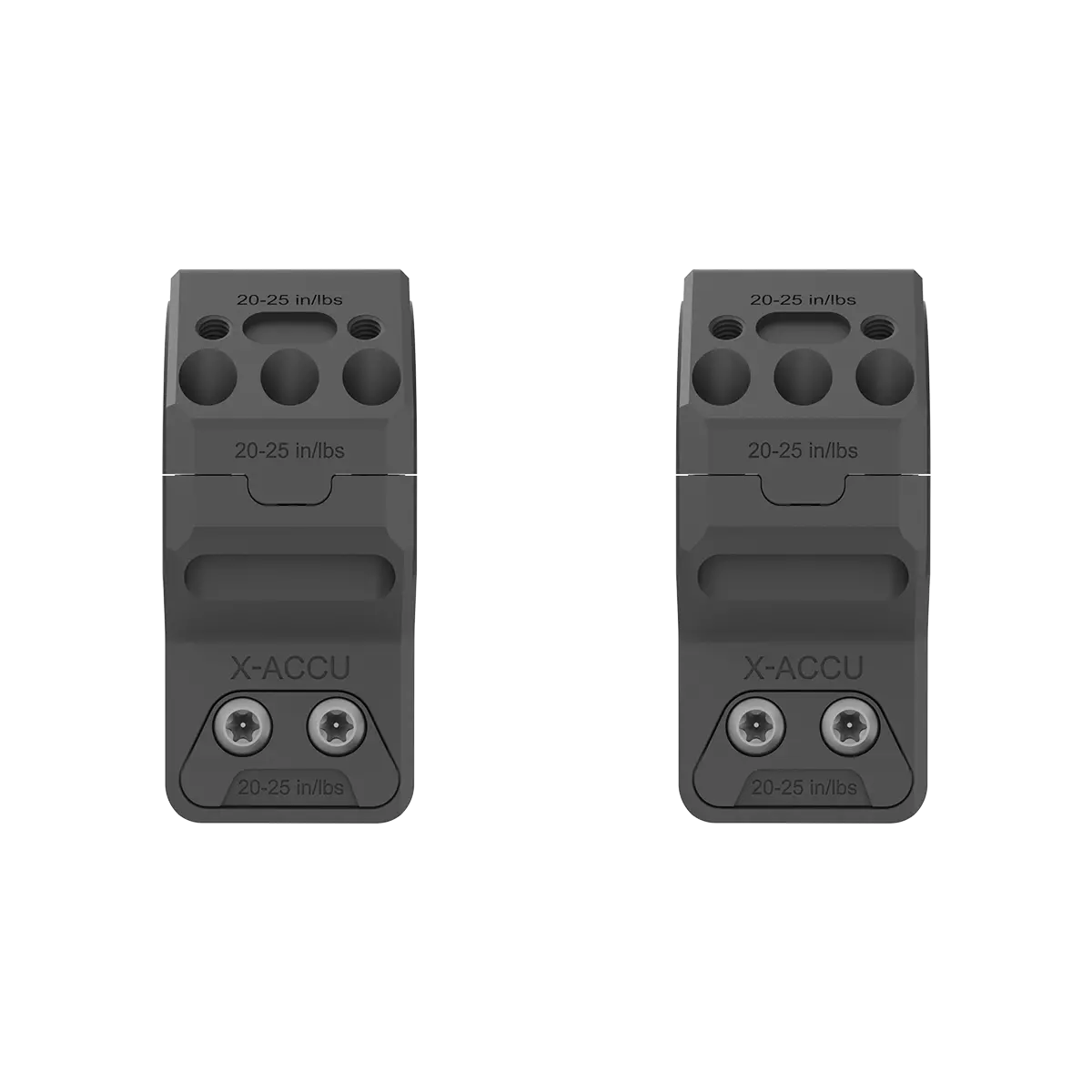

    Torque 20-25 in /lbs (2.3–2.8 N·m)
    Mount Picatinny
    Finish Black Matte
    Items in the Package T15 Torx Wrench

Download

  • X-MOD Modular Picatinny Mount & Rings System User Manual
