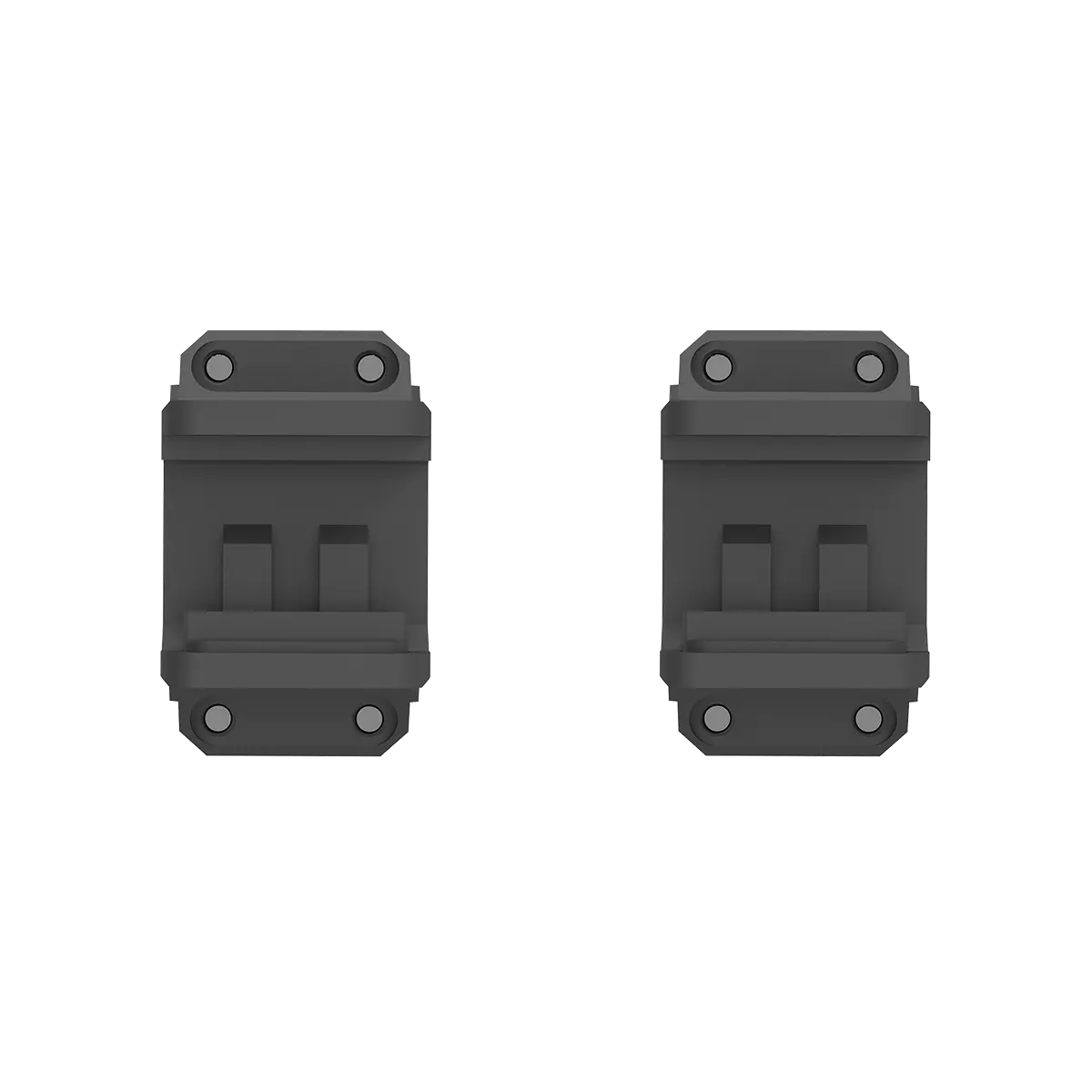

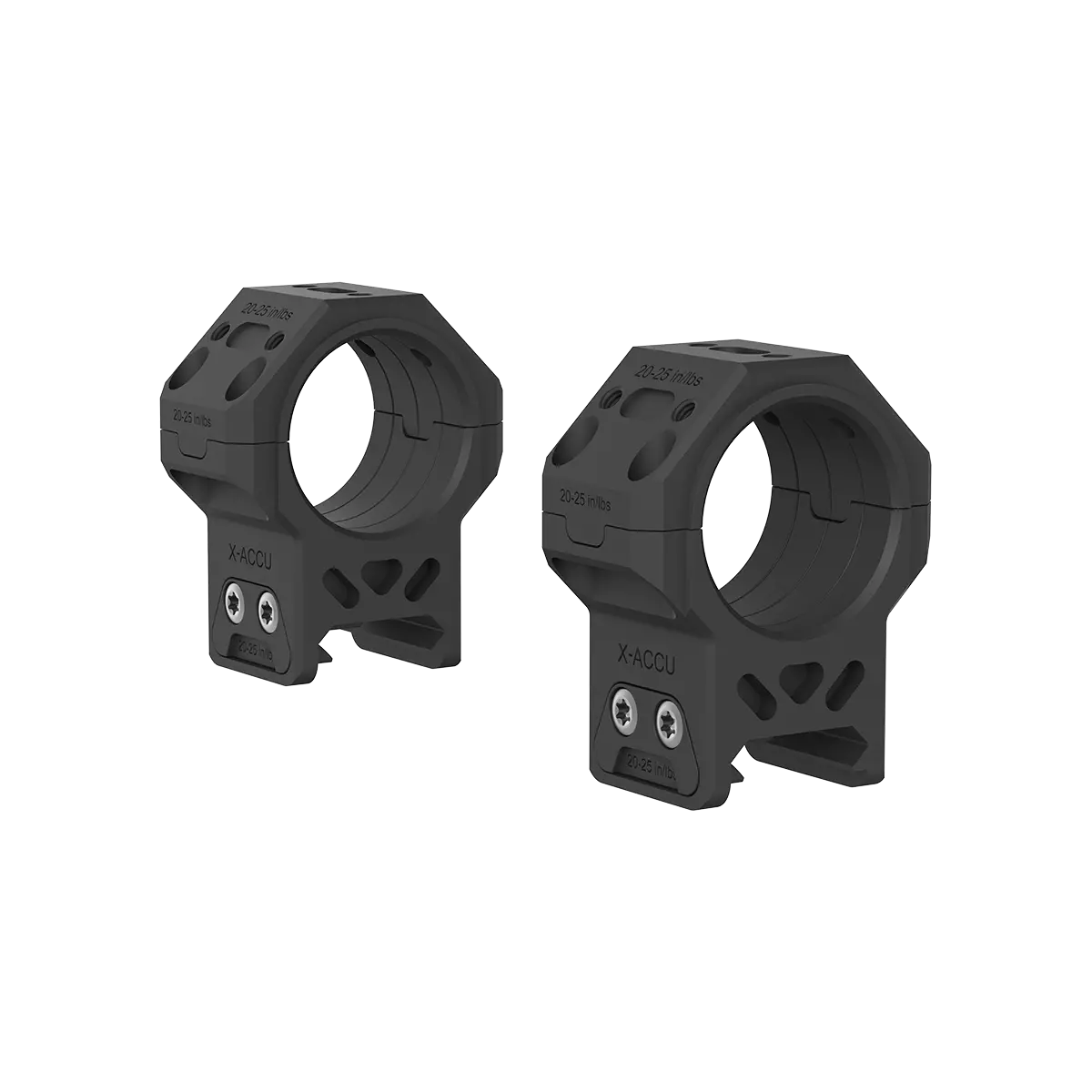

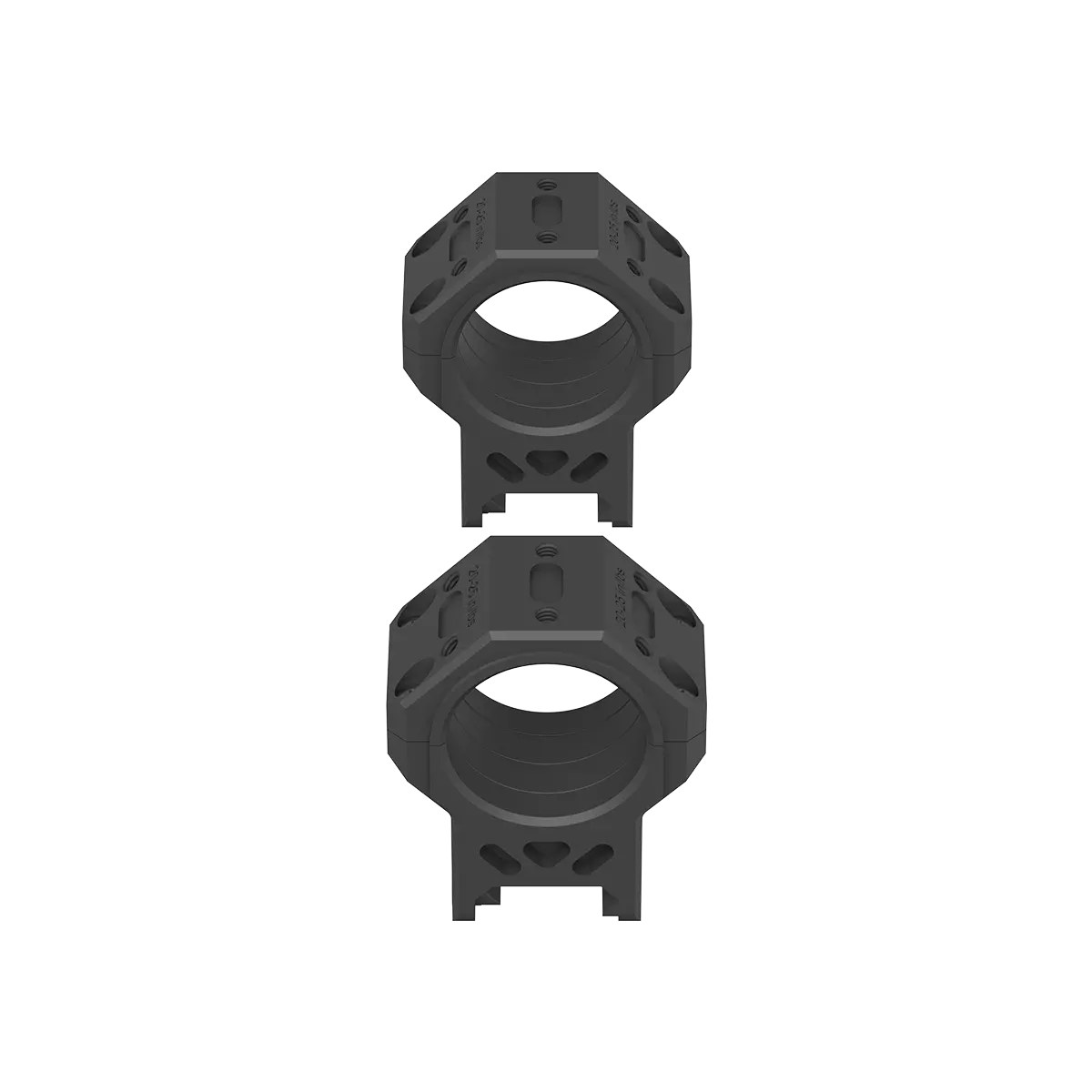

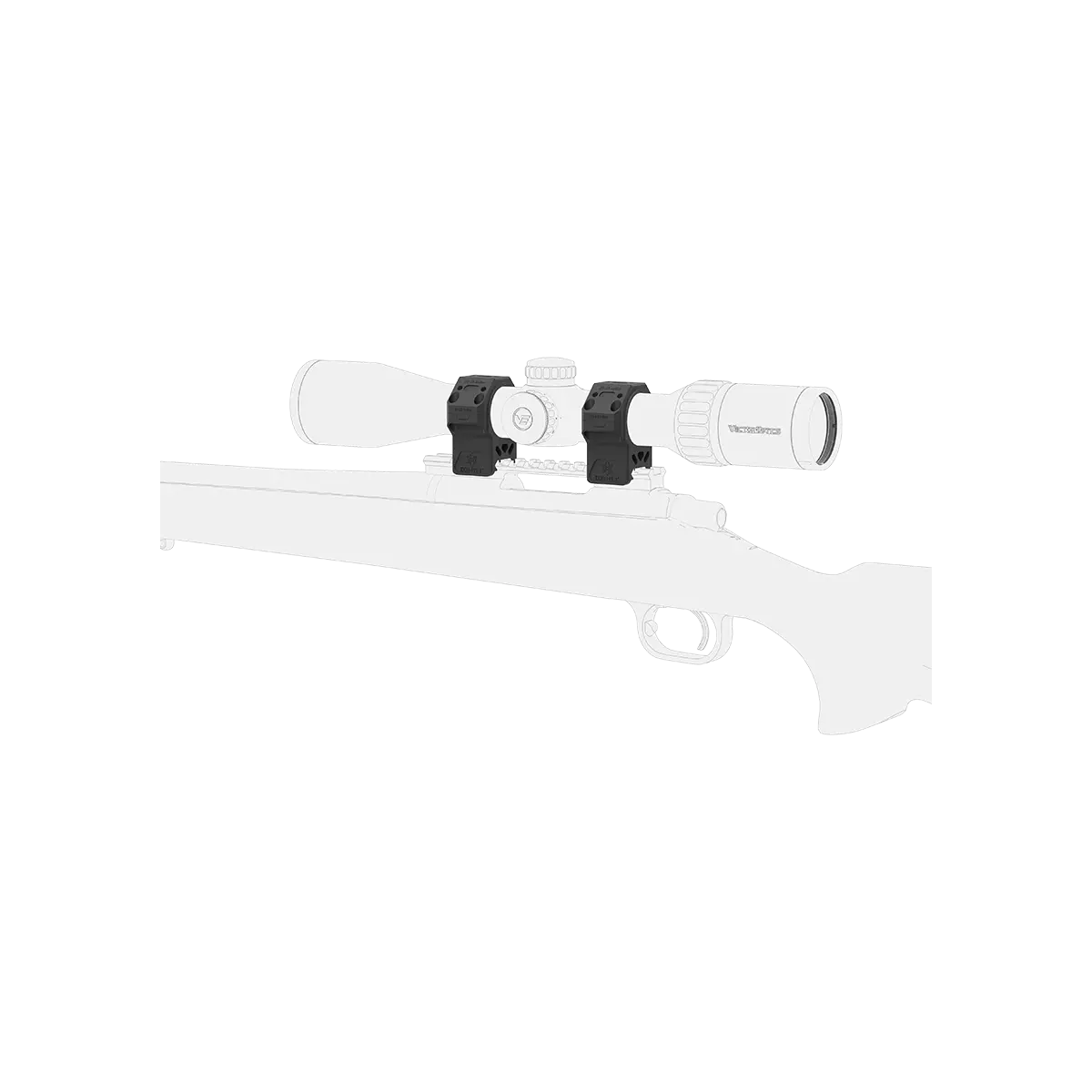

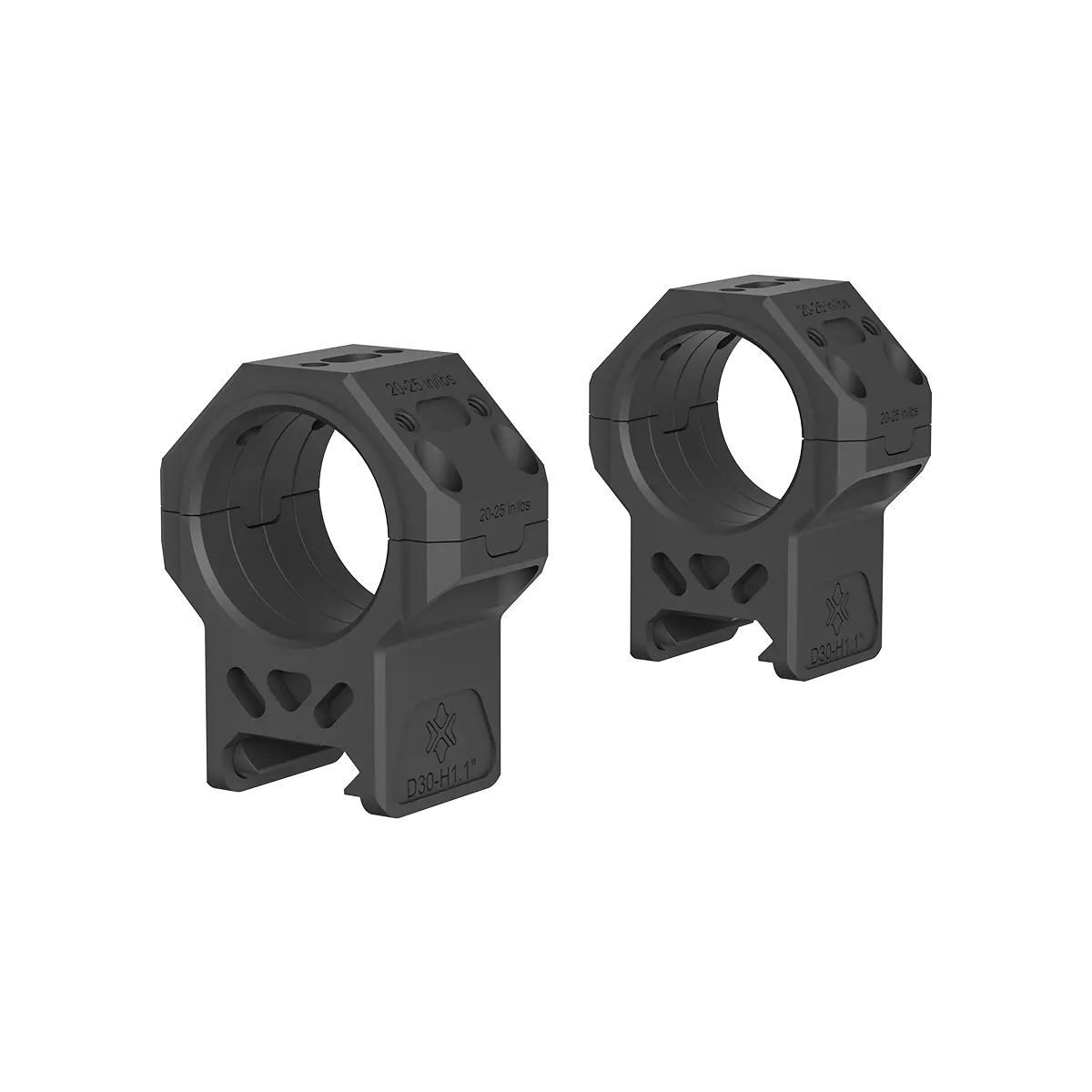

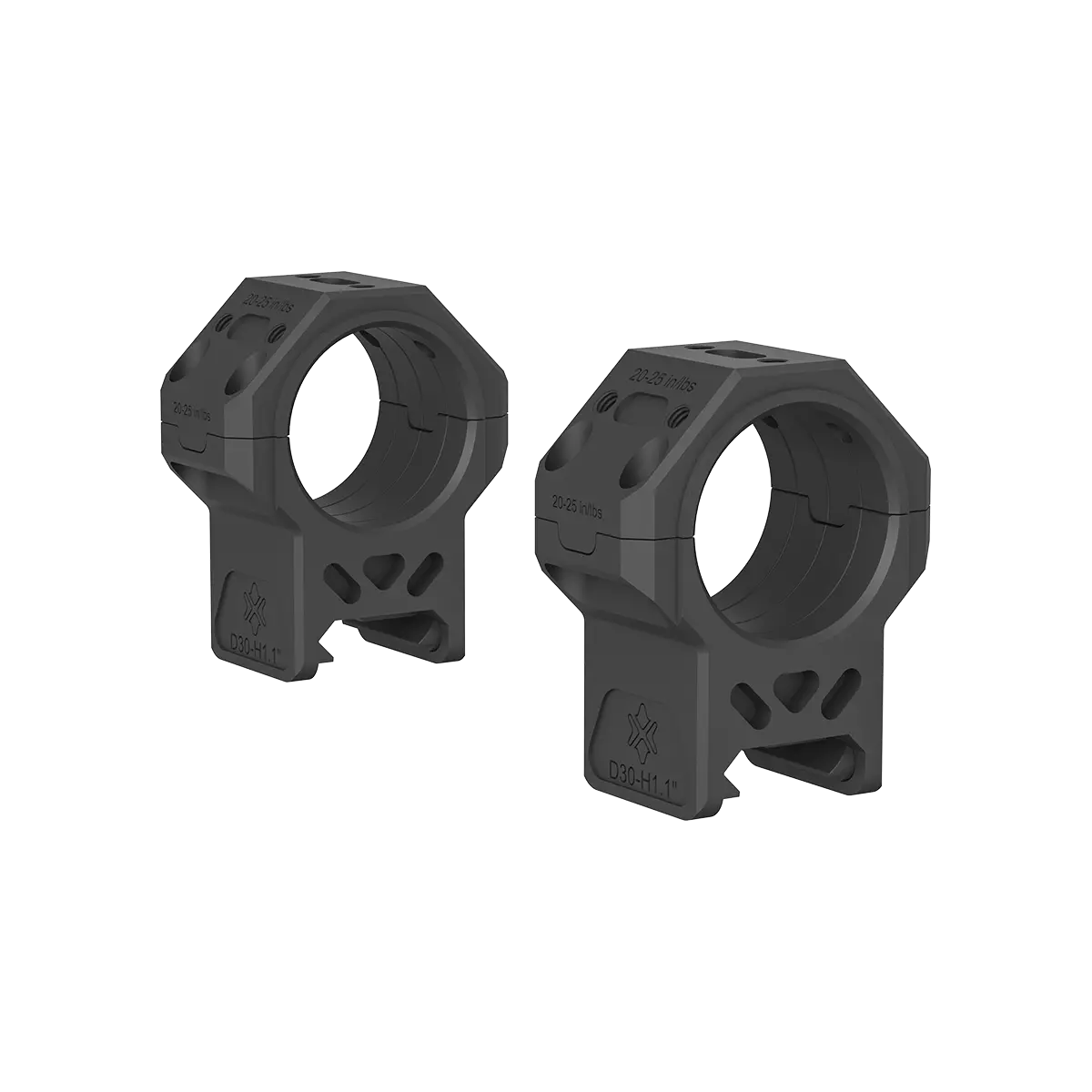

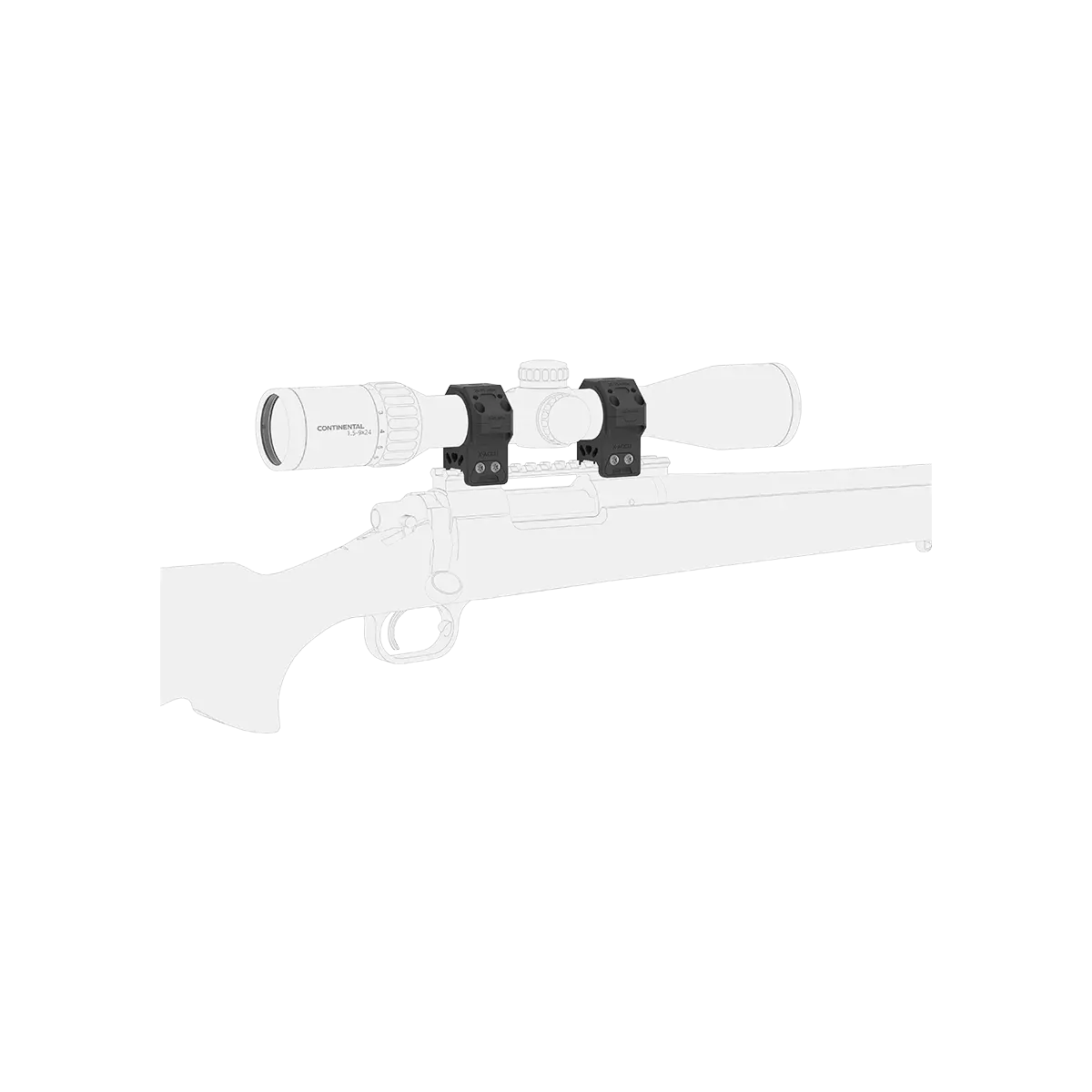

30mm X-MOD 1.1'' Modular Picatinny Rings System

Model: XASR-3072

Features VAS™ Series X-MOD Interface Supporting Red Dot Plates, Picatinny Rails and Modular Attachments with Full System Compatibility 30mm Dia. Rings, 28 mm / 1.10 in Center Height, Optimized for Stable Optical Alignment, Balanced Rifle Setup, and Consistent Shooting Performance 5-Axis CNC Machined 7075-T6 Aluminum Delivers Maximum Rigidity, Precise Dual-Ring Alignment, and Reliable Recoil Resistance Up to .50 BMG 20μm Black Anodized Finish Provides Enhanced Scratch Resistance, Corrosion Protection, and Long-Term Durability in Harsh Environments

Specifications

  • Ring Dia 30 mm / 1.2 in
    Height 57.5 mm / 2.2 in

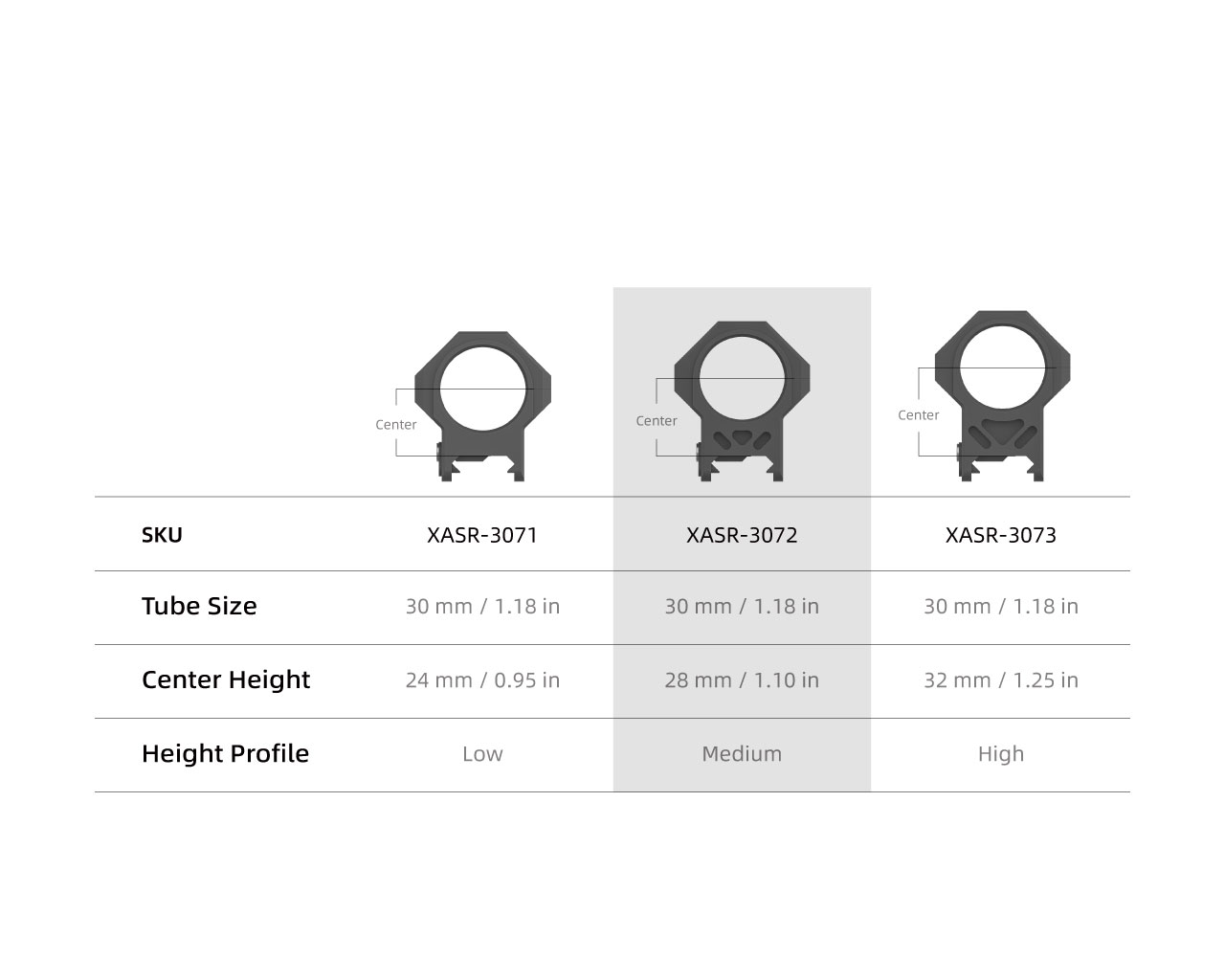

    Central Height 28 mm / 1.10 in (Bottom to Center)
    Width 48 mm / 1.9 in
    Material 7075-T6 Aluminum Alloy
    Weight 78 g / 2.8 oz

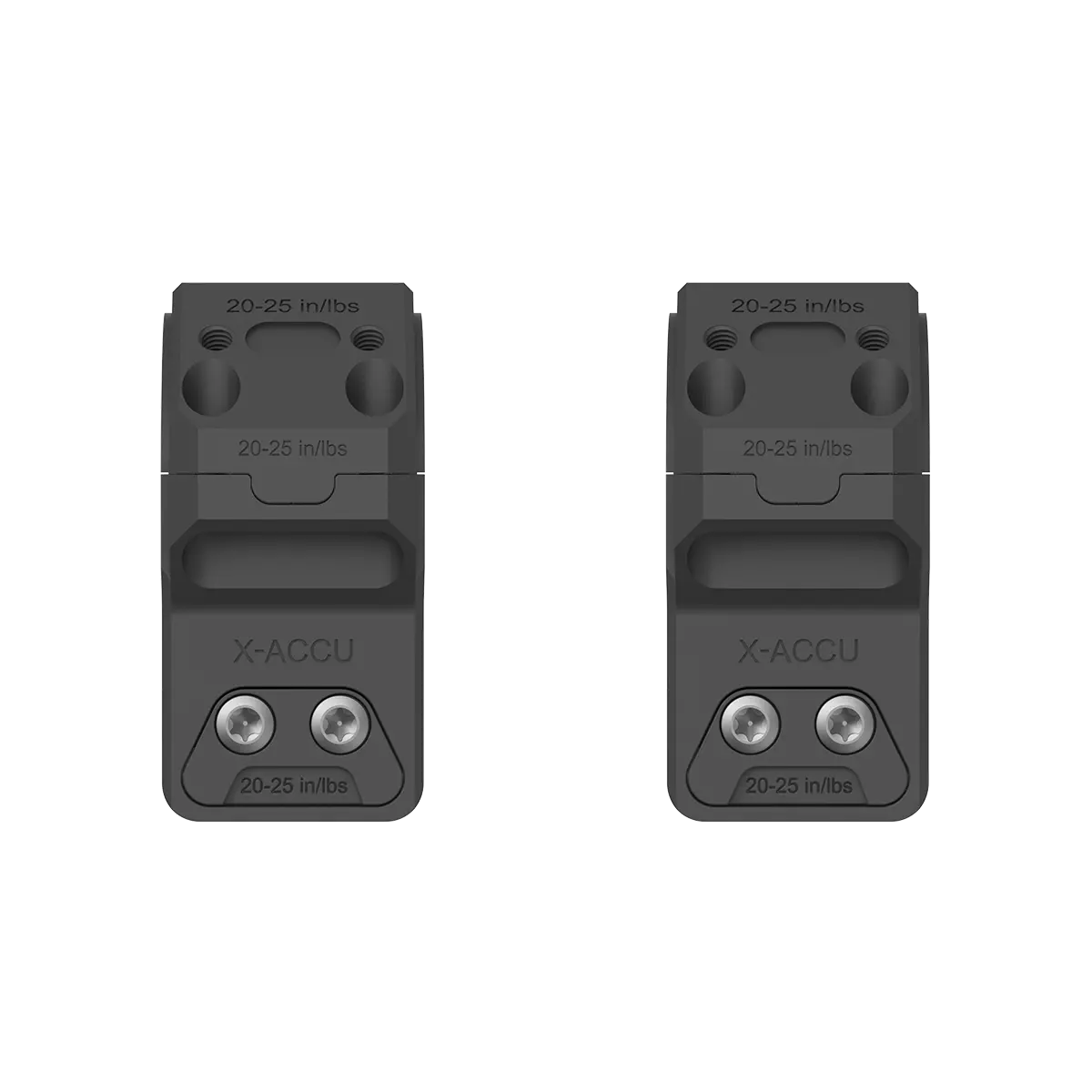

    Torque 20-25 in /lbs (2.3–2.8 N·m)
    Mount Picatinny
    Finish Black Matte
    Items in the Package T15 Torx Wrench

Download

  • X-MOD Modular Picatinny Mount & Rings System User Manual
