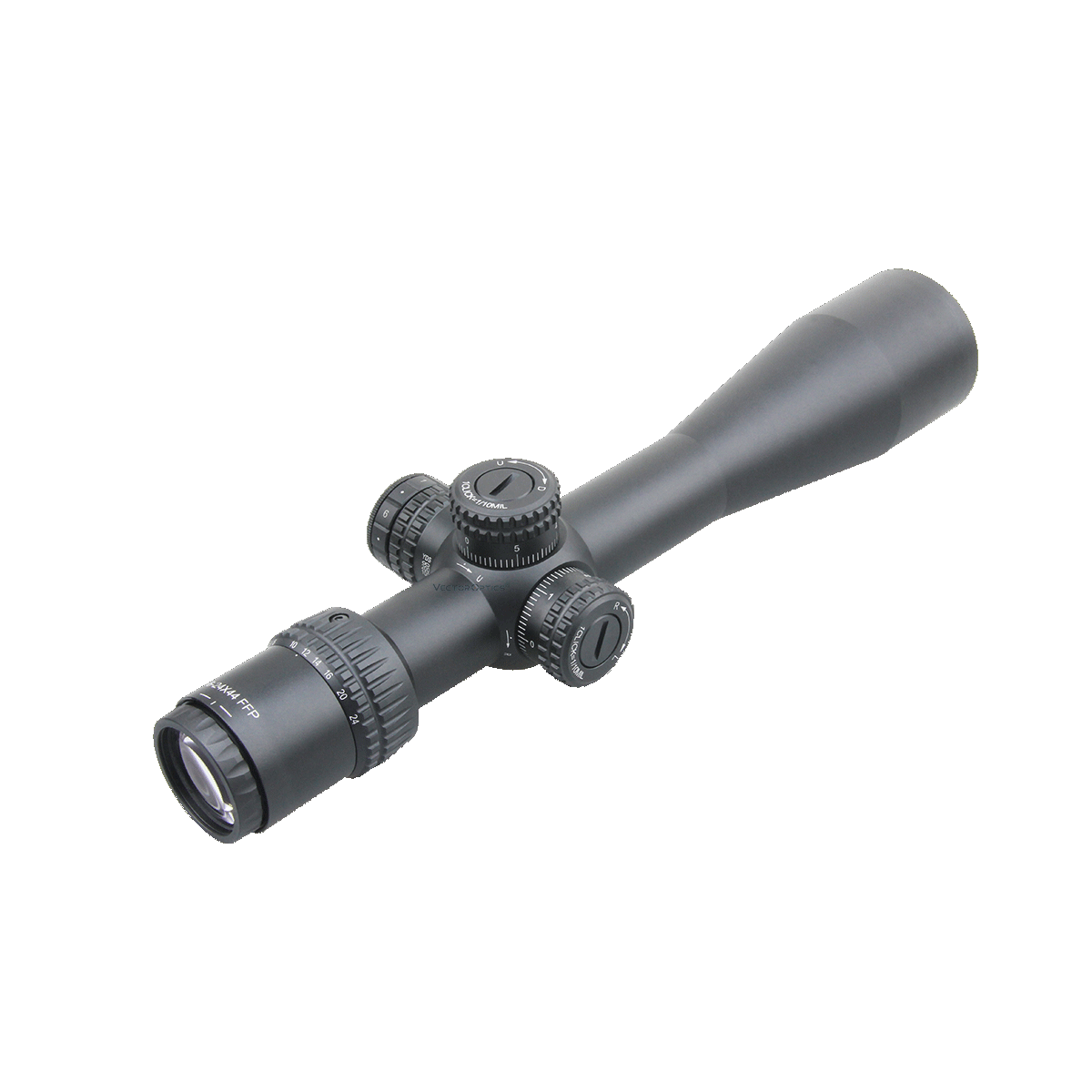

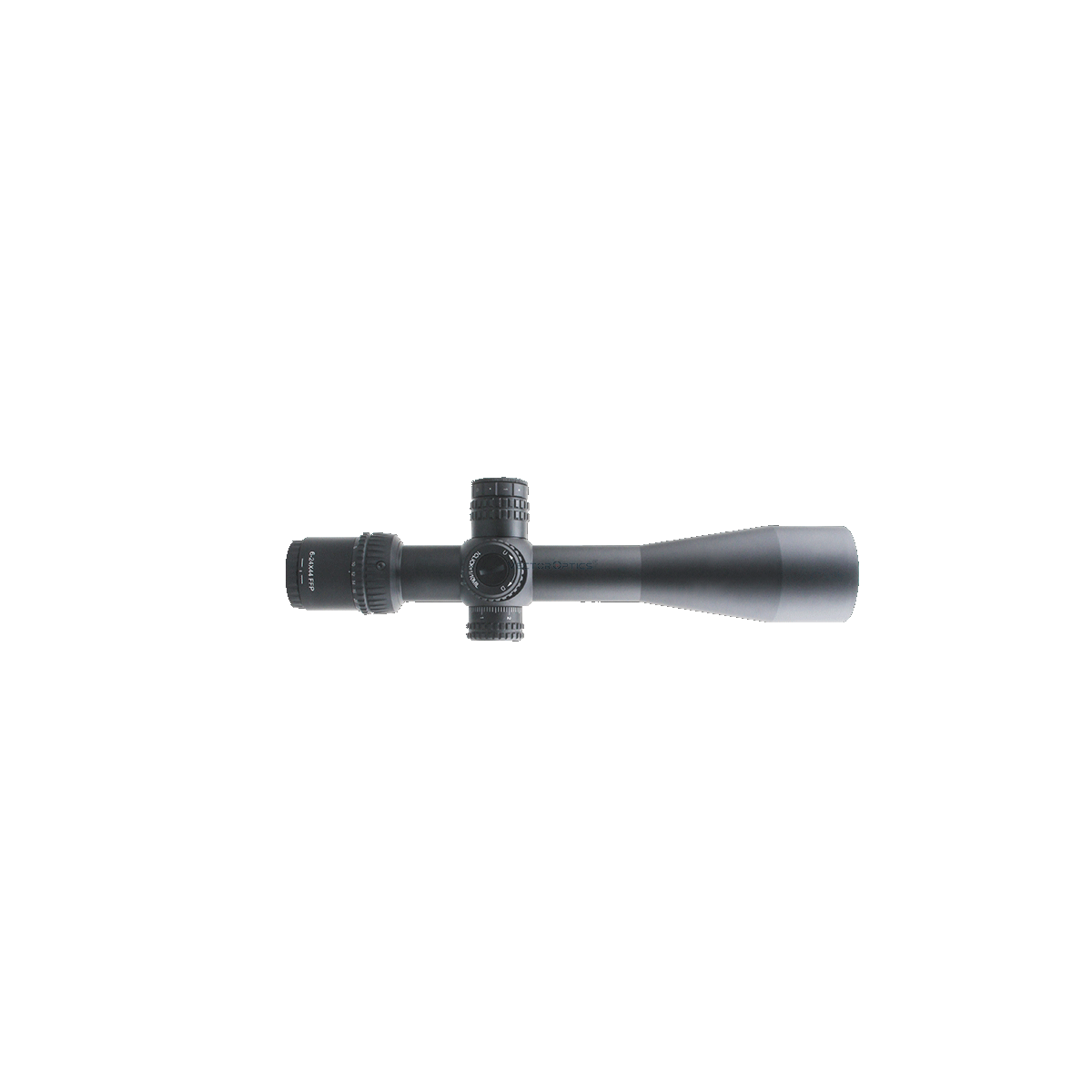

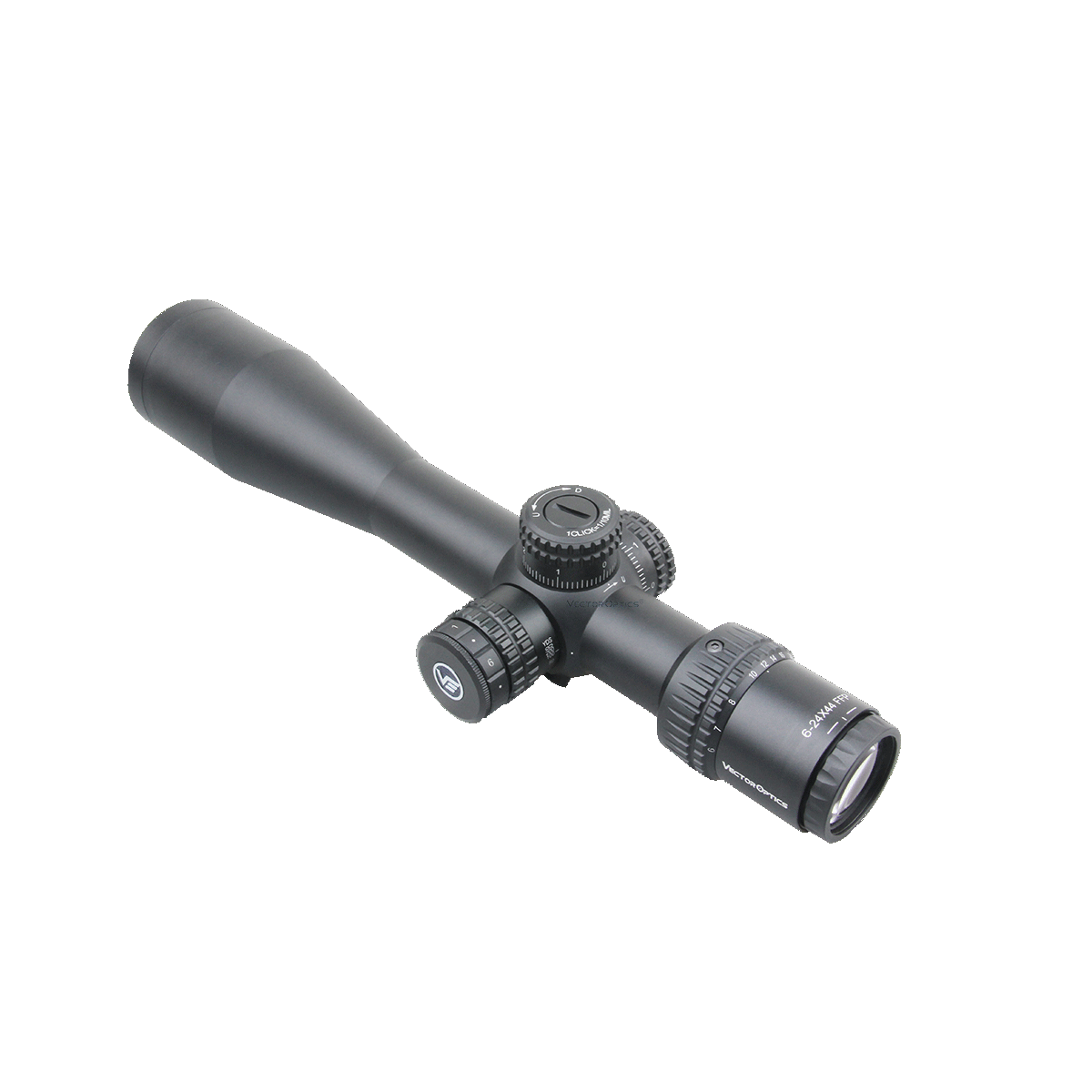

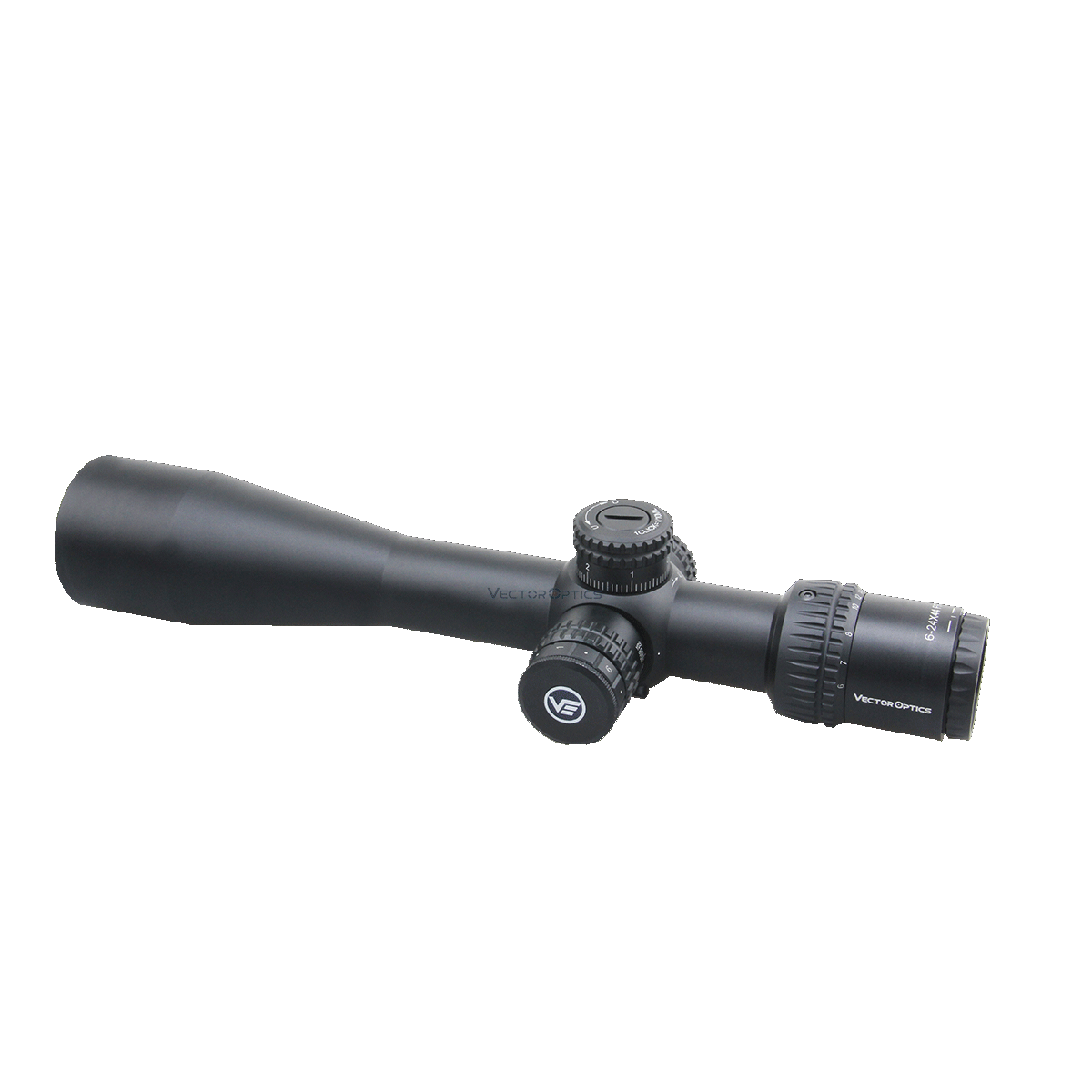

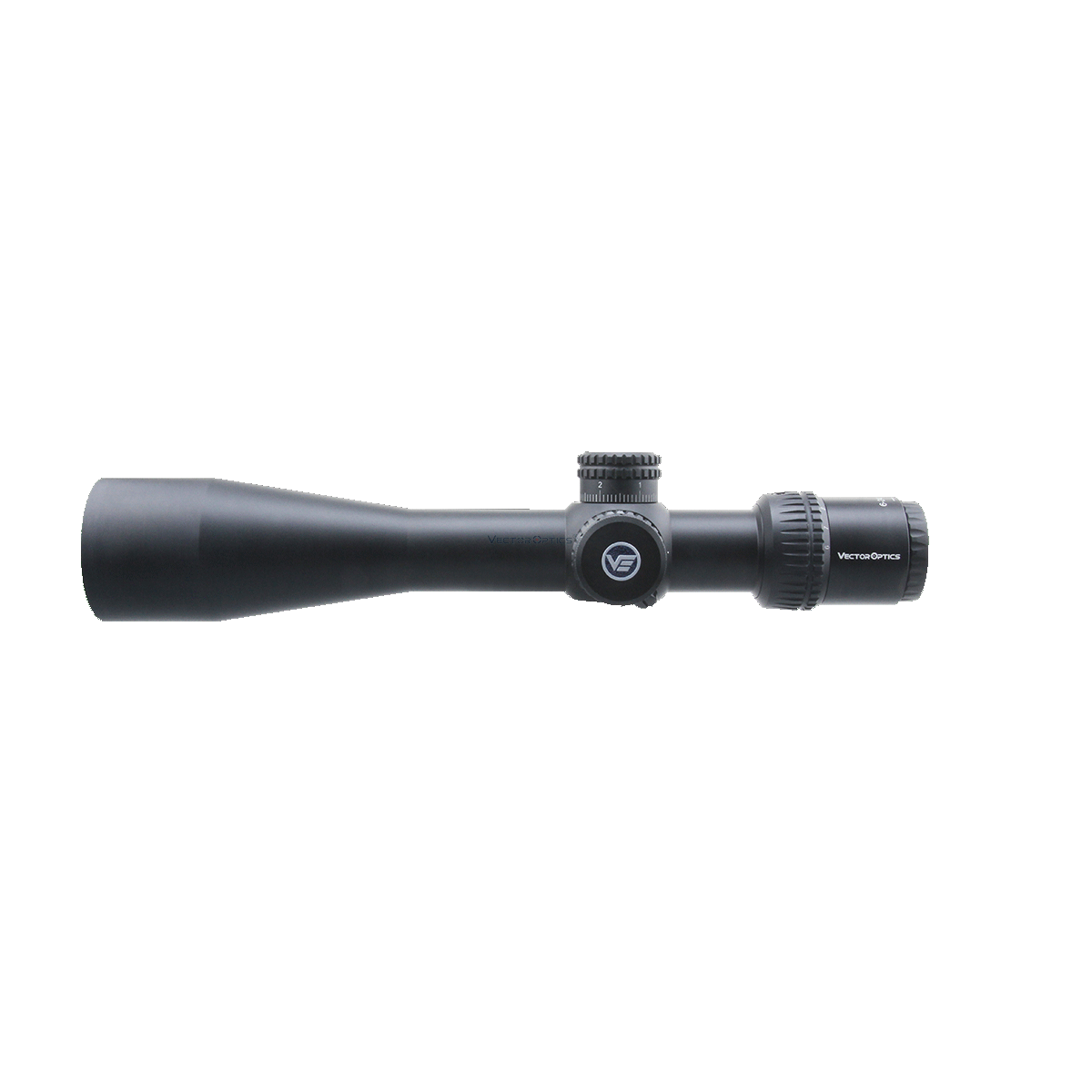

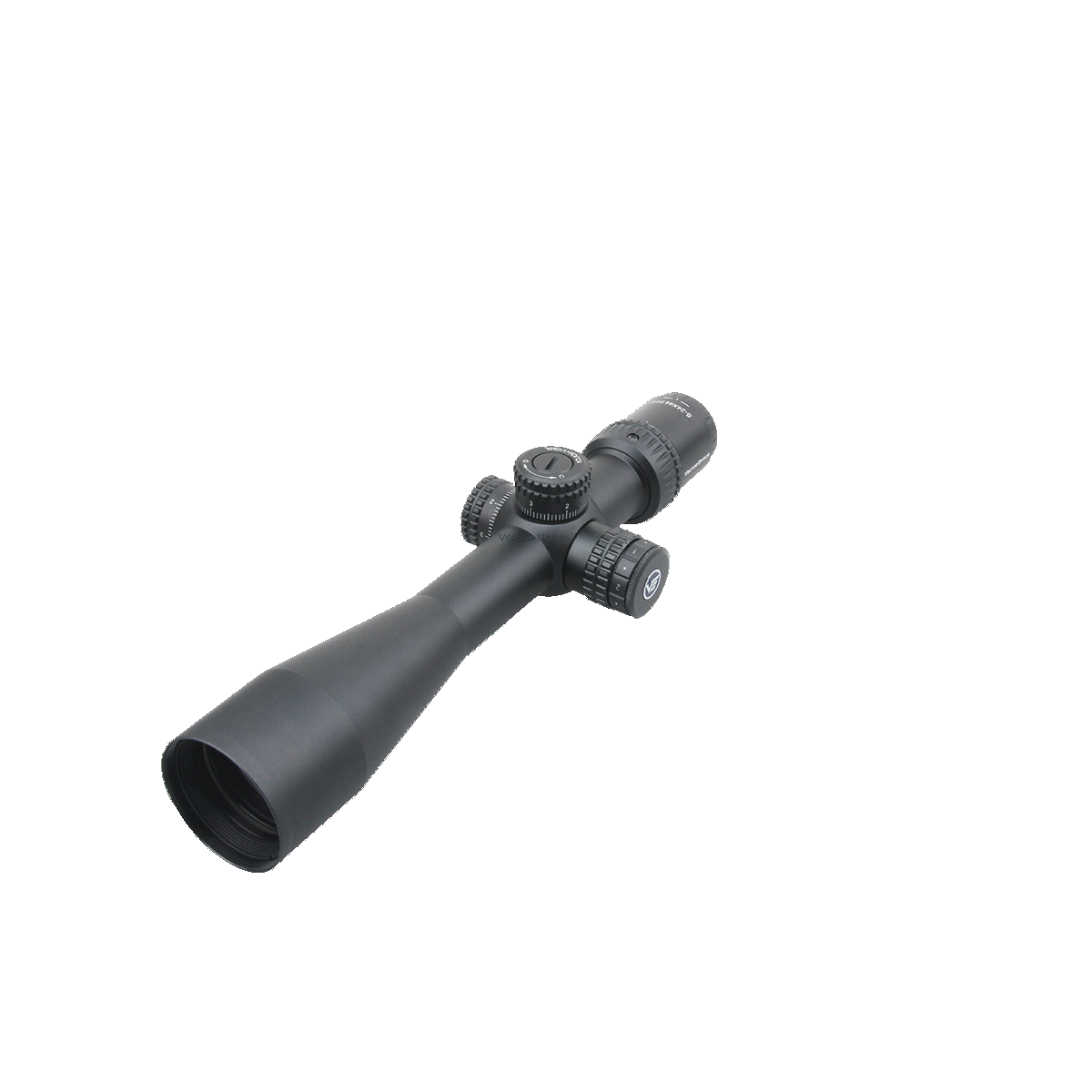

Veyron 6-24x44 IR FFP Rifle Scope Illuminated

Model: SCFF-37

MPR-V5 Etched Reticle for Ranging and Fast Target Acquisition, 0.1 MIL Center Dot for Precise Aiming Ultra Compact Design 294 mm / 11.6 in, Ideal for Use on Light Firearms, without Adding Extra Bulk 30mm Monotube to Enhance Adjustment Range to 14.5 MIL, 1/10 MIL Turret to Improve Accuracy Full Multi-Coated Lens Delivers Bright and Crisp Images, Side Focus from 10 m for Close-Range Shooting Zero Stop to Easily Return to a Pre-Set Zero Point, Turret Lock to Prevent Unwanted Changes

Features

  • 30mm Tube Size

    Large to Increase the Adjustment Range
  • First Focal Plane

    Reticle Changes Along with Magnification

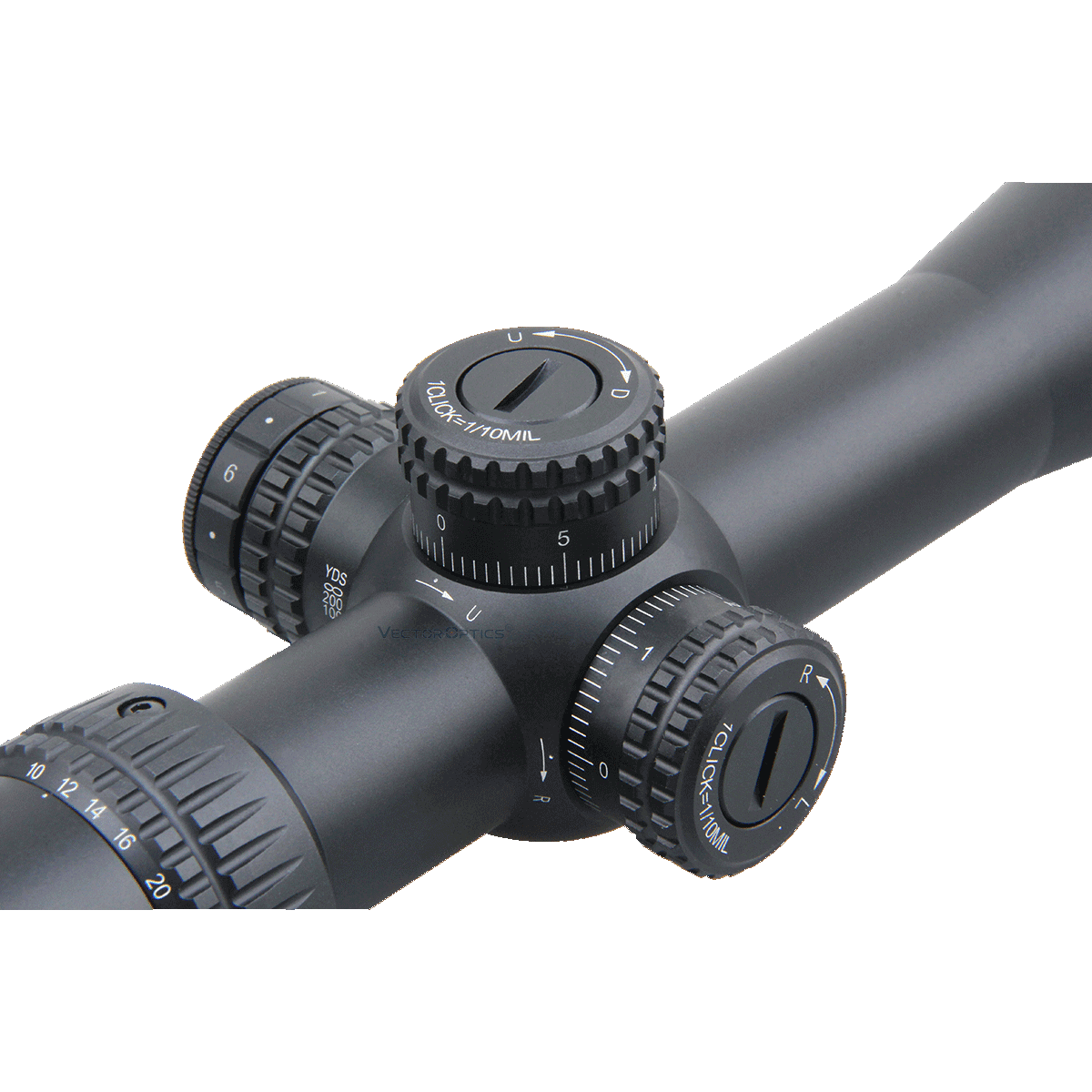

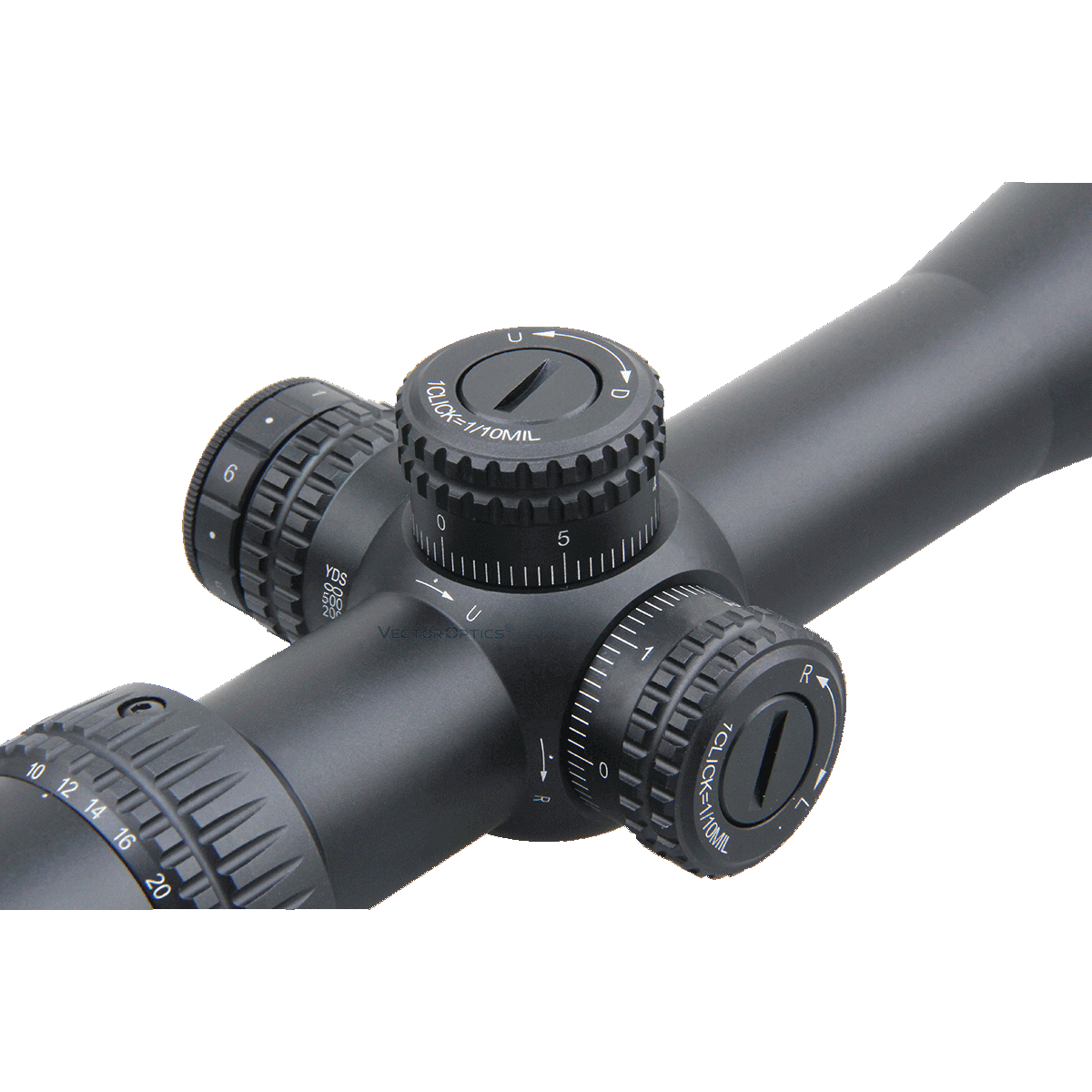

  • Turret Lock

    Prevent Unwanted Adjustments
  • Zero Stop

    Effortlessly Return to Pre-set Zero
  • Fully Multi-Coated

    Deliver Bright & Crisp Images
  • Nitrogen Purged

    Prevent Internal Fogging for Clear Visibility
  • Compact Design

    Easy Handling and Portability
  • AR-15

    Recommend for AR

Specifications

  • Magnification 6-24x
    Objective Lens Dia 44 mm
    Focal Plane First Focal Plane
    Eye Relief 90-85 mm
    Lens Coating Fully Multi-Coated
    Linear Field of View @ 100 yd 17.5-4.3 ft @ 100 yards
    Linear Field of View @ 100 m 5.8-1.4 m @ 100 meters
    Angular Field of View 3.3-0.8°
    Reticle MPR-V5
  • Tube Dia 30 mm
    Side Focus 10 m to Infinity
    Click Value 1/10 MIL
    Turret Function Zero Reset, Turret Lock
    Elevation Adjustment Range 15 MIL
    Windage Adjustment Range 14.5 MIL
    Diopter Compensation -2 to +2
    Illumination Setting 6-Gear
    Battery Type CR2032
    Waterproof IPX4
    Fogproof Nitrogen Filled
    Shockproof 750 G
    Housing Material 6061-T6 Aluminum Alloy
    Finish Matte Black

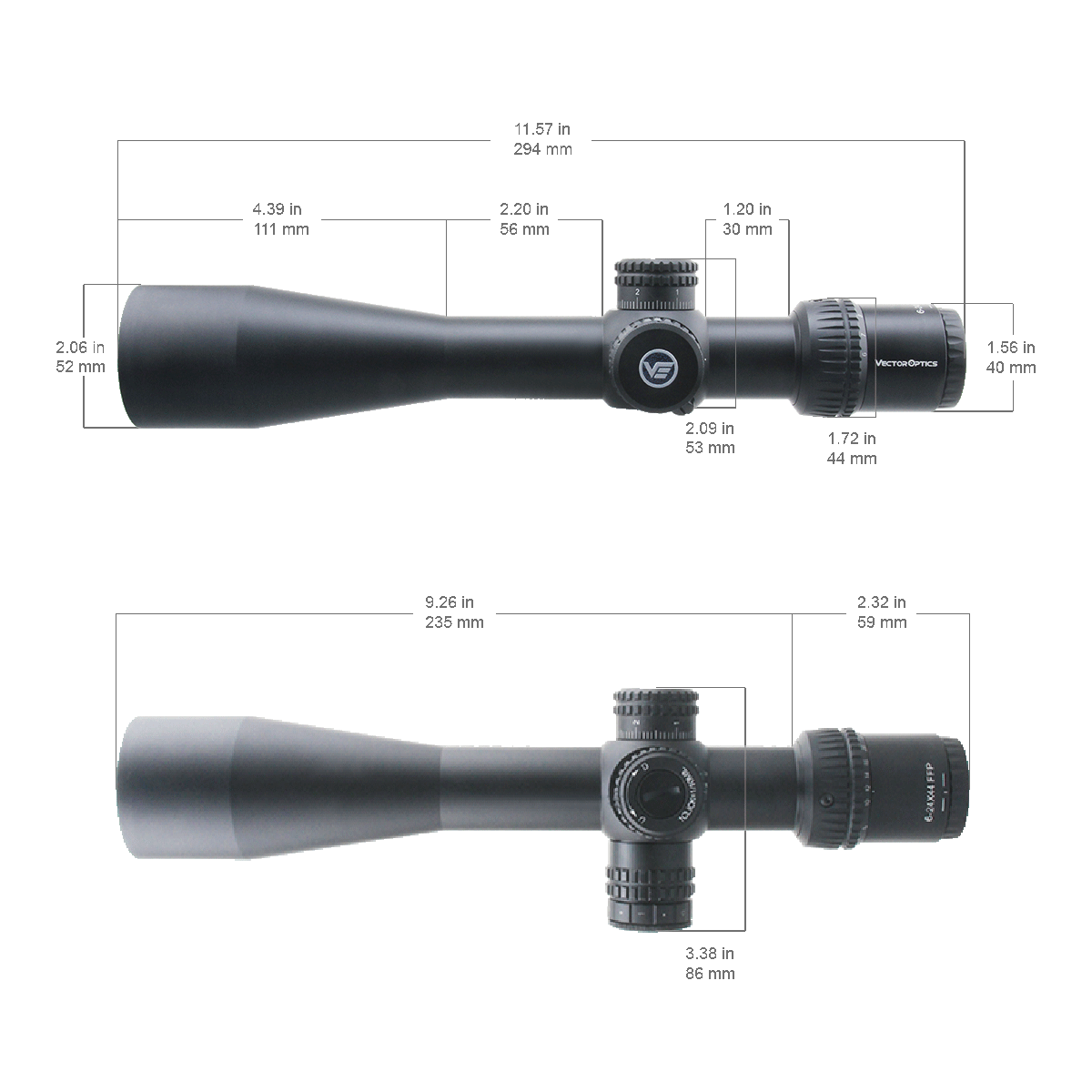

    Length 294 mm / 11.6 in
    Weight 585 g / 20.6 oz
    Items in the Package One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Honeycomb Shade & Cleaning Cloth, etc.

Reticle

  • MPR-V5

    For ranging and fast target acquisition

    Cascading dot for a 10 m.p.h crosswind
  • MPR-V5 at 16x

    FFP for long-range shooting
  • MPR-V5 Subtension

    0.1 MIL center dot for precise aiming

    0.5 MIL hashmark increment

    BDC for .223 zero @ 200yds and .308 zero @100yds

Download

  • Veyron FFP IR User Manual
  • MPR-V5 FFP Reticle User Manual

Warranty Policy

The product supports a 5-year warranty policy.
