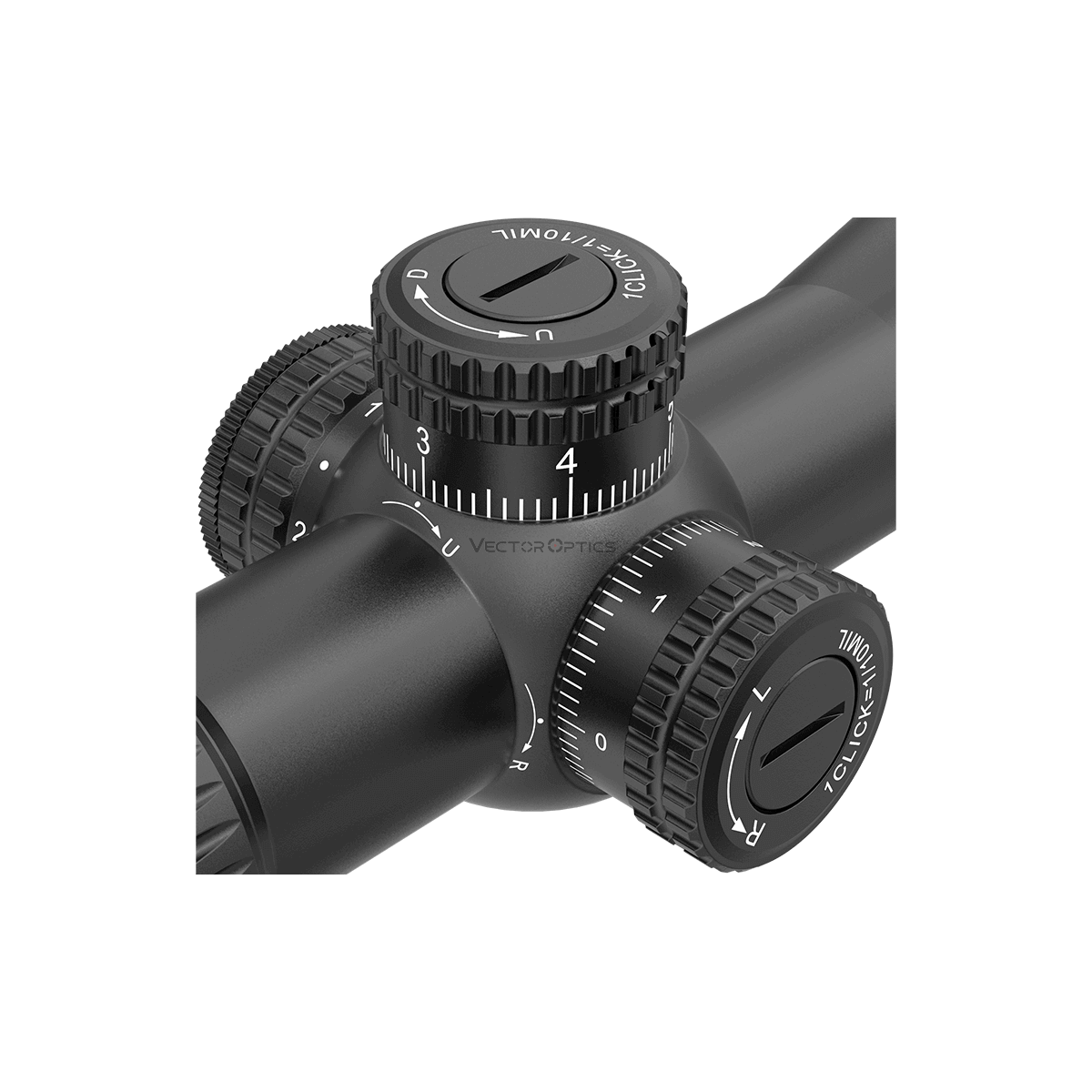

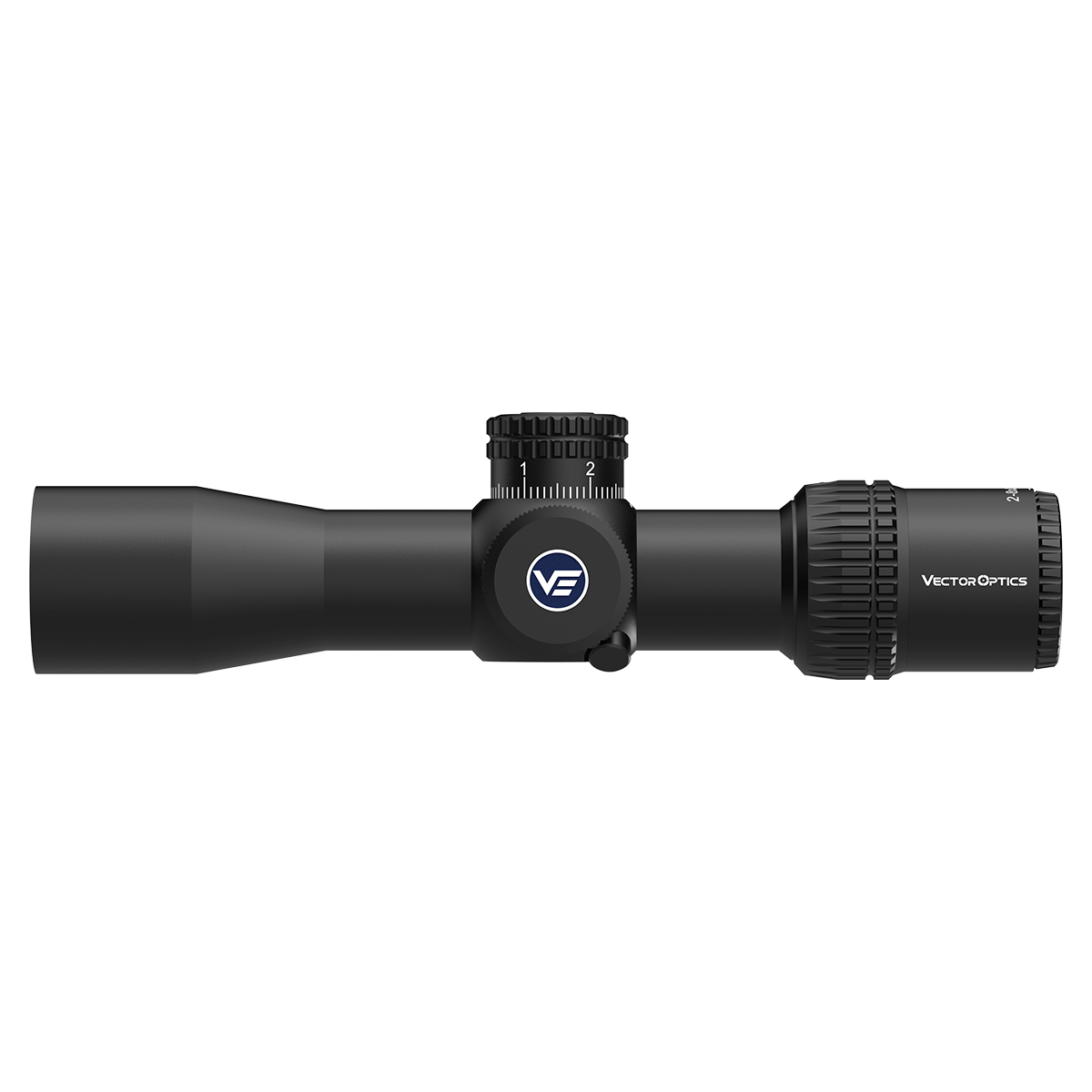

Ultra Compact Design 218mm / 8.6 in Length, Ideal for Use on Light Firearms, without Adding Extra Bulk 30mm Monotube Enlarges the Elevation & Windage Adjustment to 23.5 MIL, 1/10 MIL Click Value Side Focus from 10 yards for Close Range Shooting, Turret Lock Prevents Unwanted Adjustment MPR-V5 Etched Reticle for Ranging and Fast Target Acquisition, BDC for .223 and .308 Bullet
| Magnification | 2-8x |
| Objective Lens Dia | 32 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 52.4-13.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 17.4-4.35 m @ 100 meters |
| Angular Field of View | 10-2.5° |
| Reticle | MPR-V5 |
| Tube Dia | 30 mm |
| Parallax Setting | 100 yards |
| Click Value | 1/10 MIL |

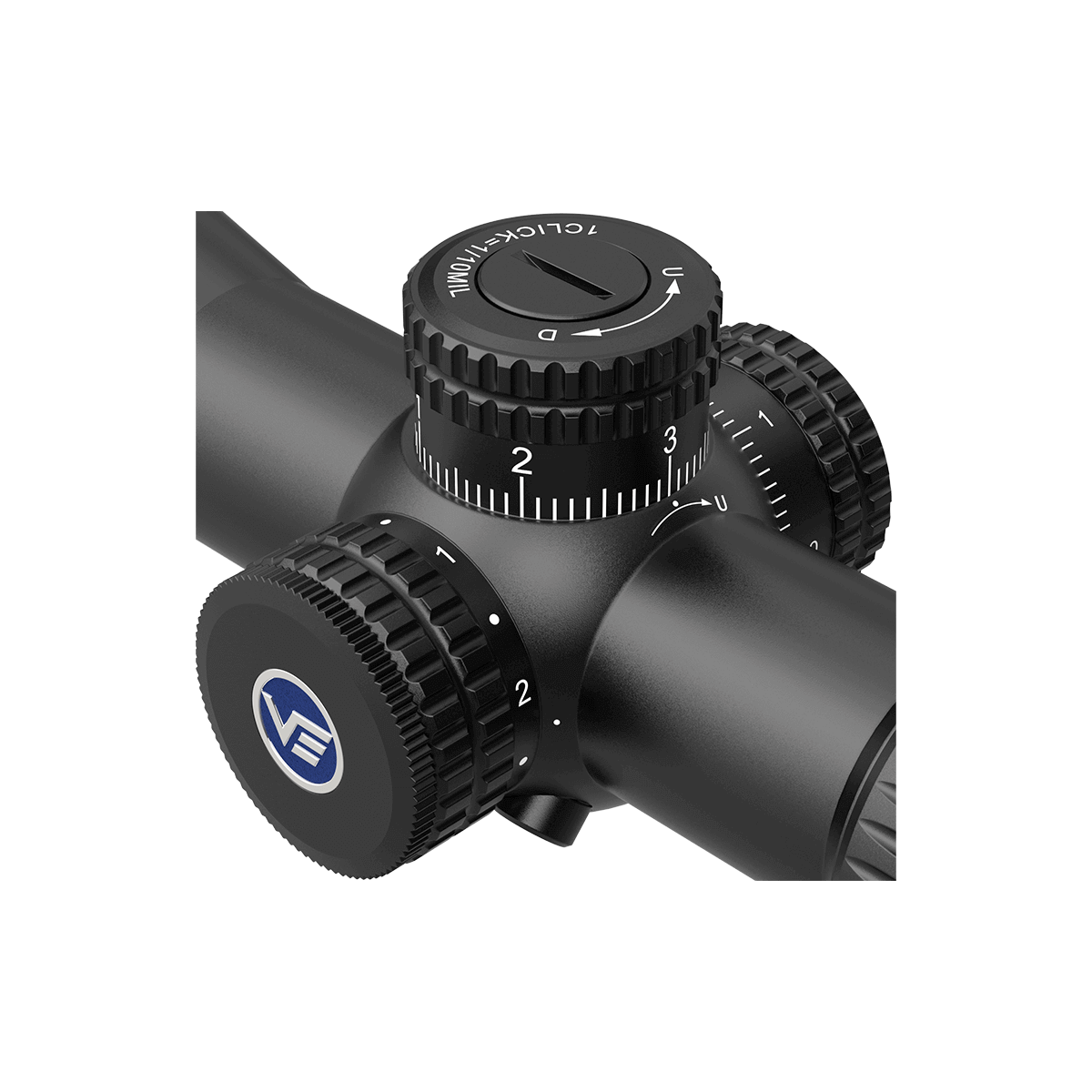

| Turret Function | Turret Lock |
| Elevation Adjustment Range | 23.5 MIL |
| Windage Adjustment Range | 23.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

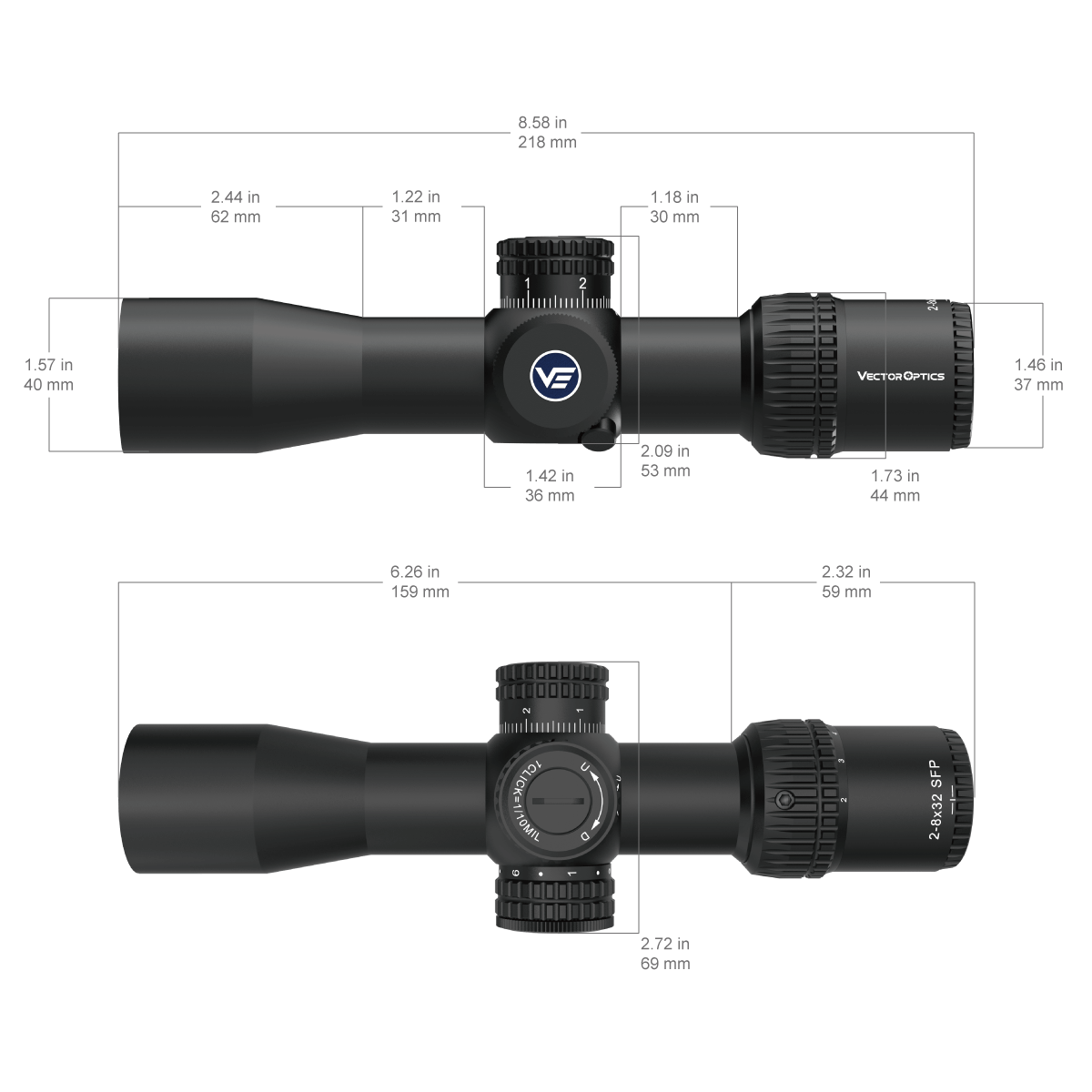

| Length | 218 mm / 8.58 in |
| Weight | 420 g / 14.8 oz |

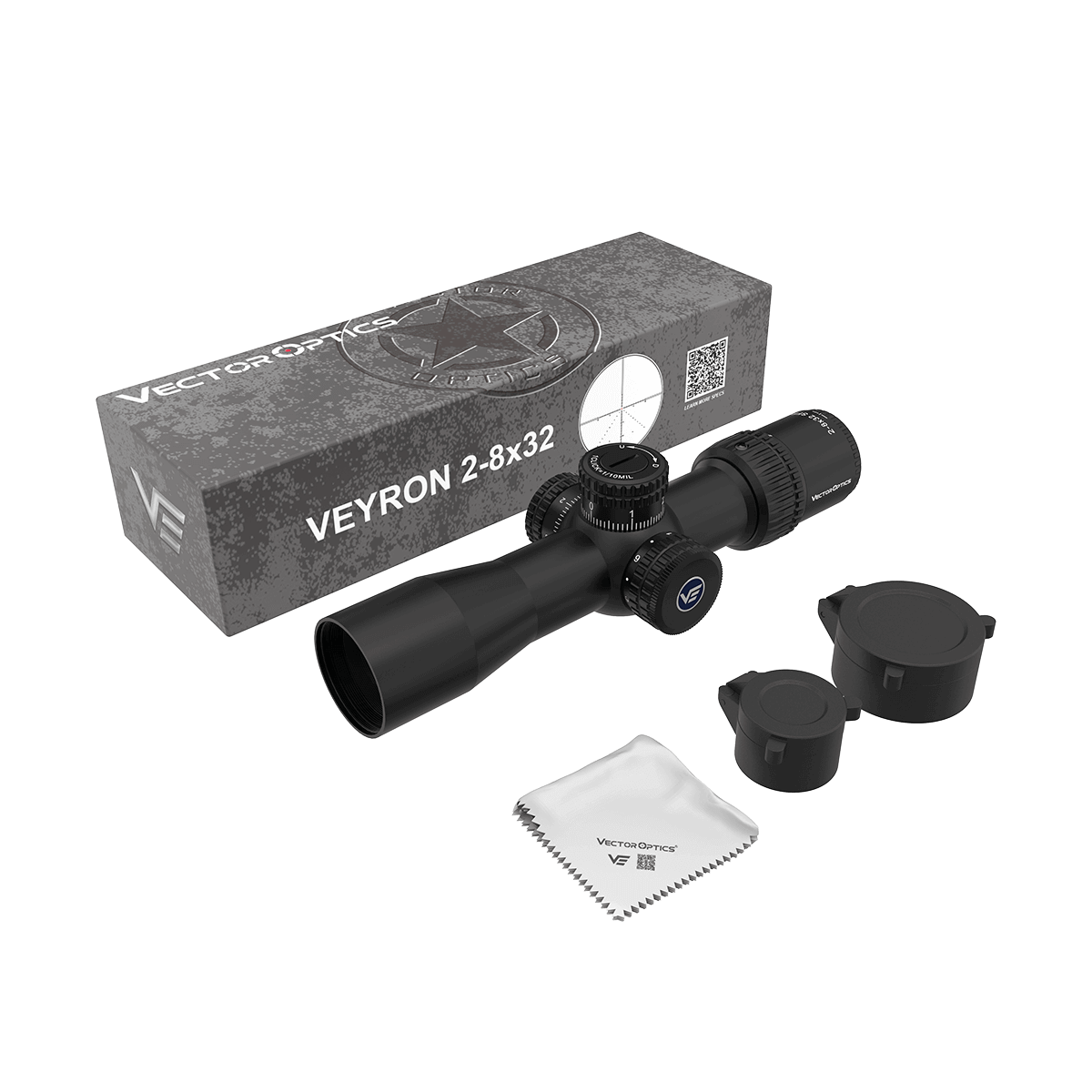

| Items in the Package | One Pair of 30 mm Weaver Scope Rings, Cleaning Cloth, Instruction, Lens Cap, Flip-up Caps, etc. |
