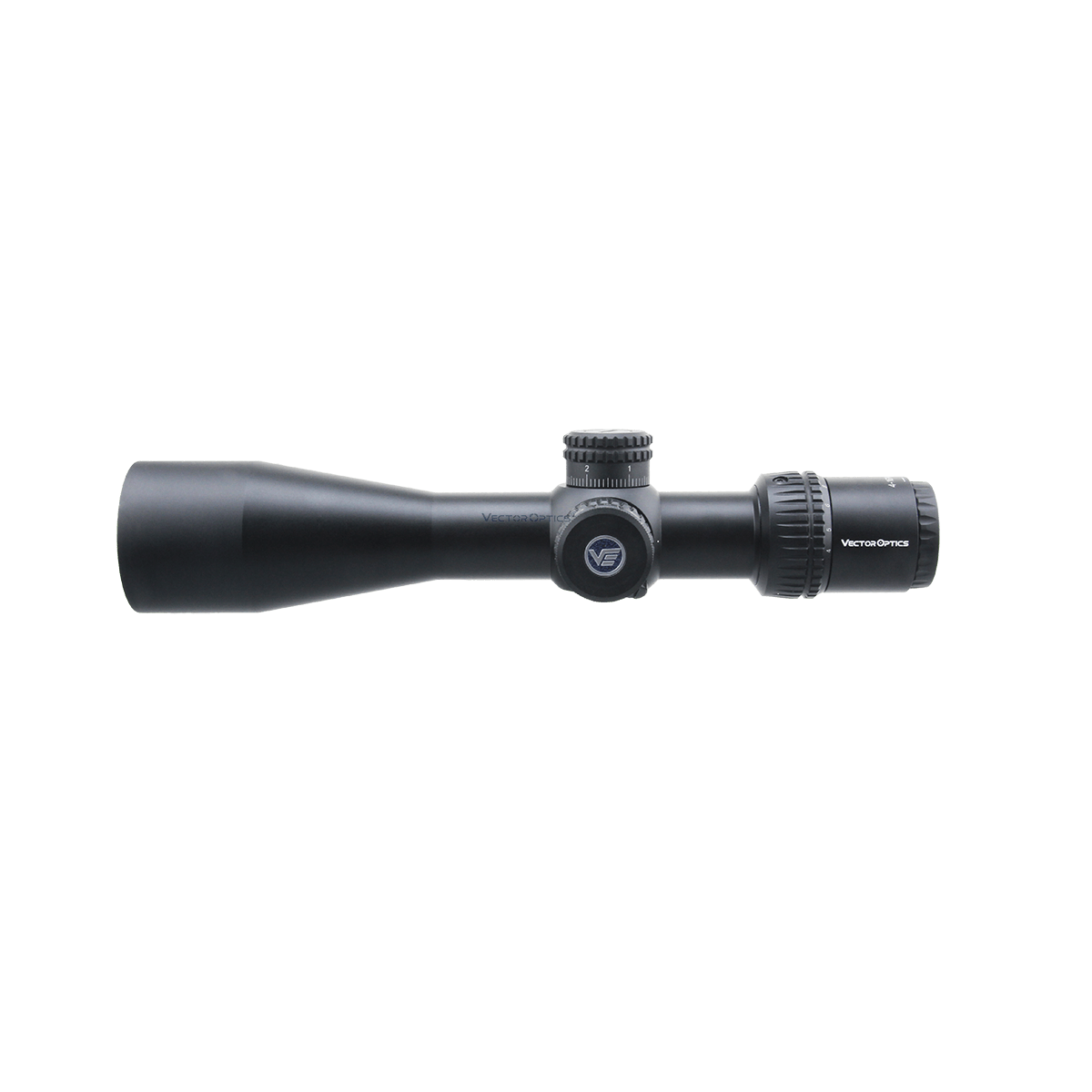

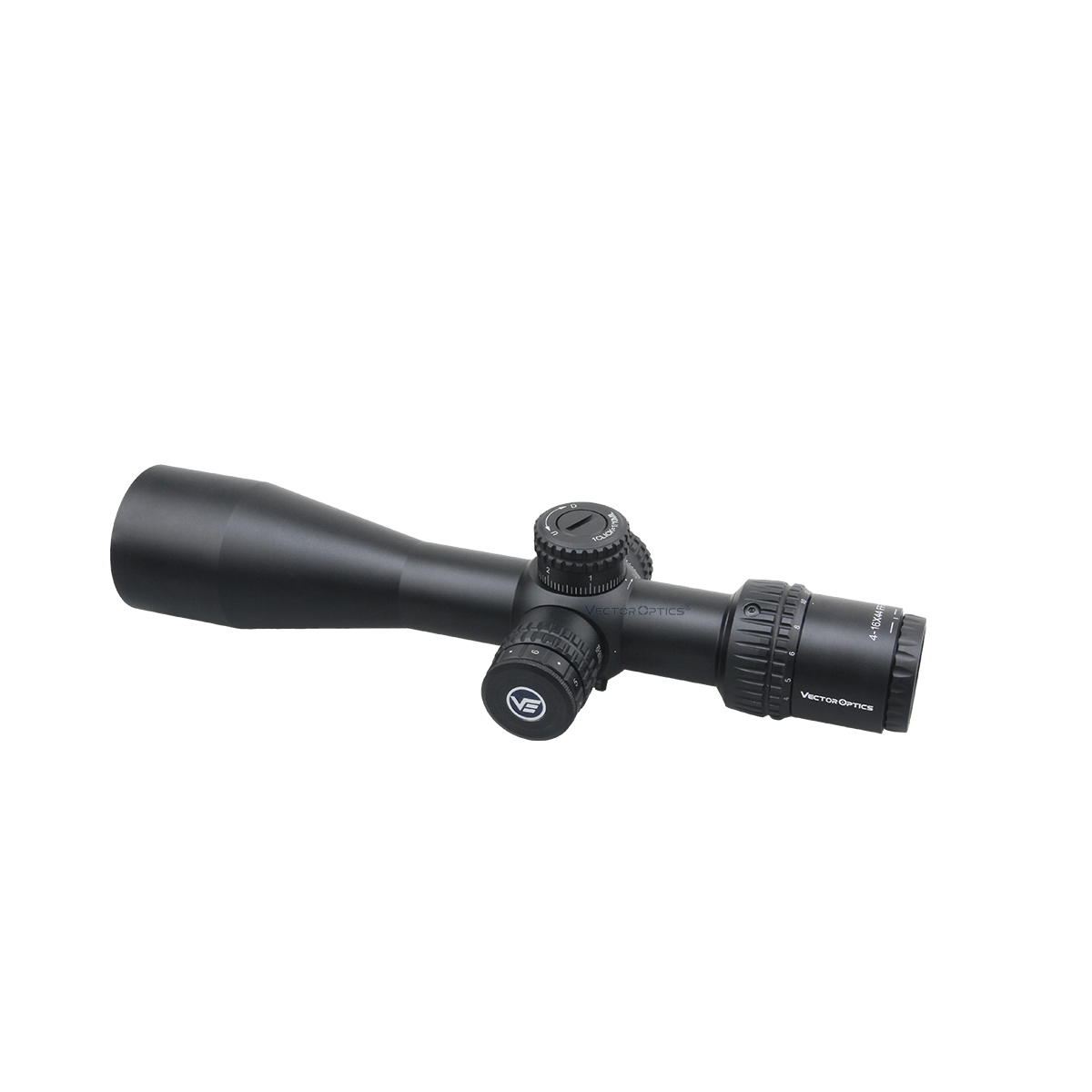

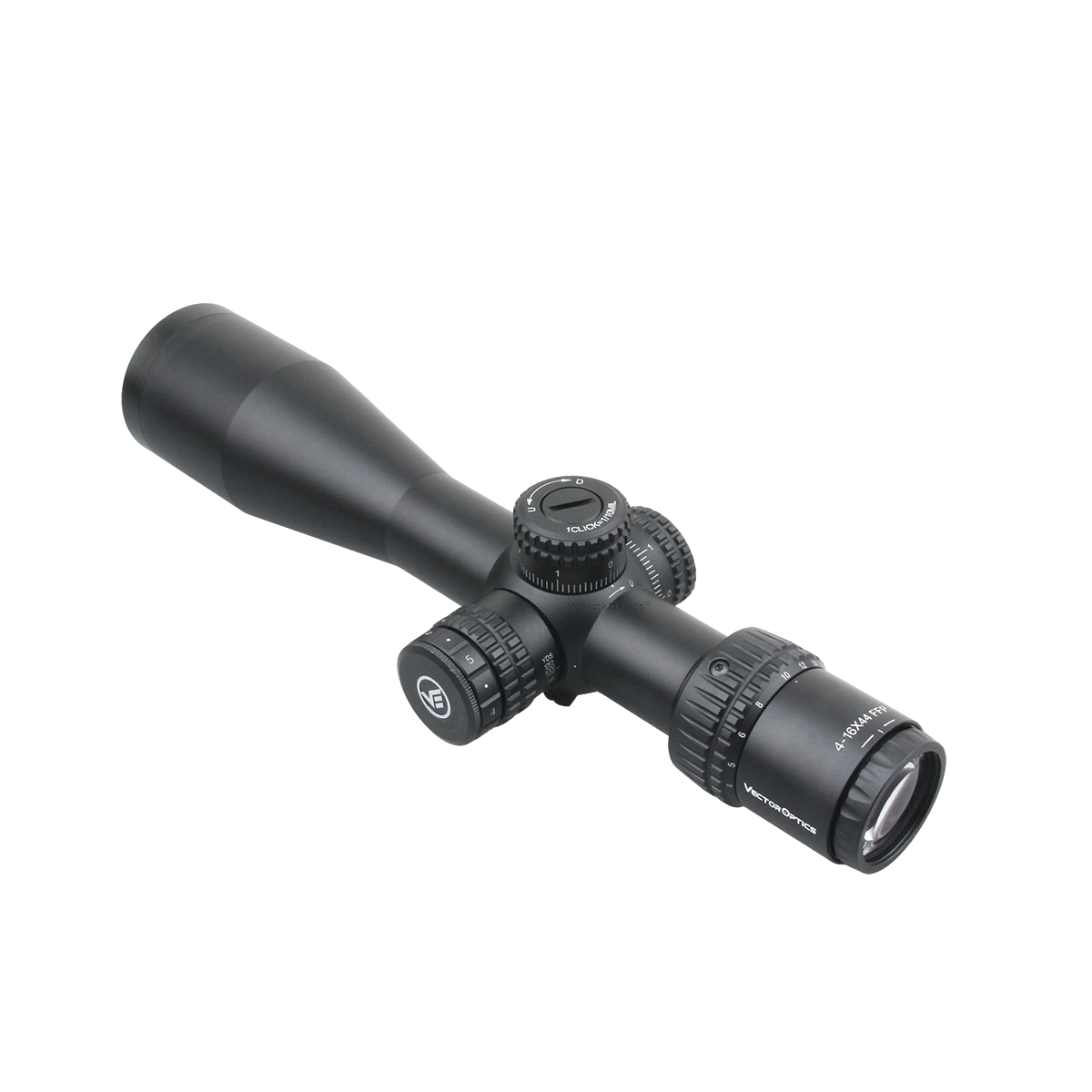

Ultra Compact 270mm / 10.3in Length, Ideal for Use on Light Firearms, without Adding Extra Bulk 30mm Monotube Enlarges the Elevation & Windage Adjustment to 17.5 MIL, 1/10 MIL Click Value Side Focus from 10 yards for Close Range Shooting, Turret Lock Prevents Unwanted Adjustment MPR-V5 Etched Reticle for Ranging and Fast Target Acquisition, BDC for .223 and .308 Bullet
| Magnification | 4-16x |
| Objective Lens Dia | 44 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 26.2-6.55 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.7-2.18 m @ 100 meters |
| Angular Field of View | 5-1.25° |
| Reticle | MPR-V5 |
| Tube Dia | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |

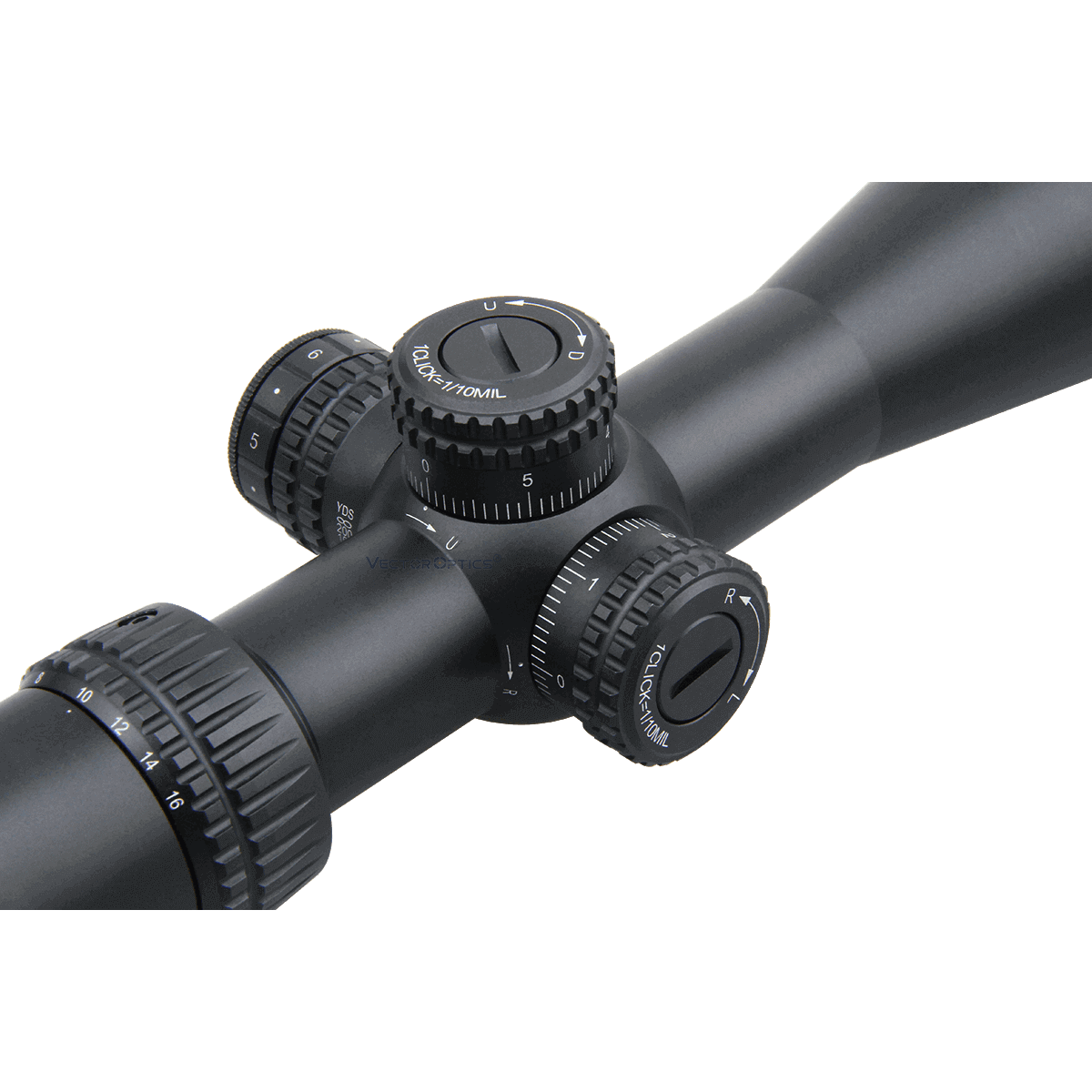

| Turret Function | Zero Reset, Turret Lock |
| Elevation Adjustment Range | 17.5 MIL |
| Windage Adjustment Range | 17.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | N/A |
| Battery Life | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

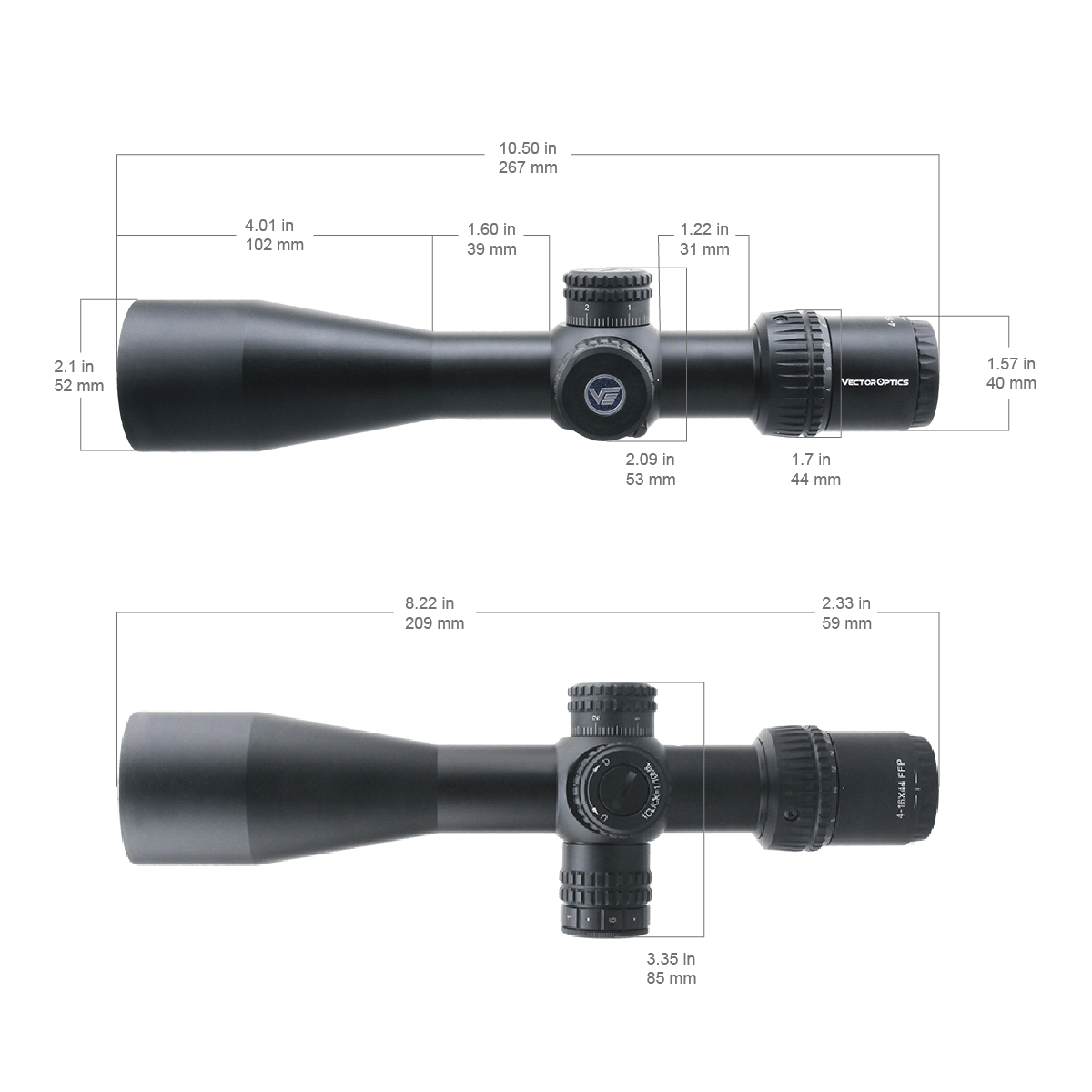

| Length | 265 mm / 10.5 in |
| Weight | 530 g / 18.7 oz |

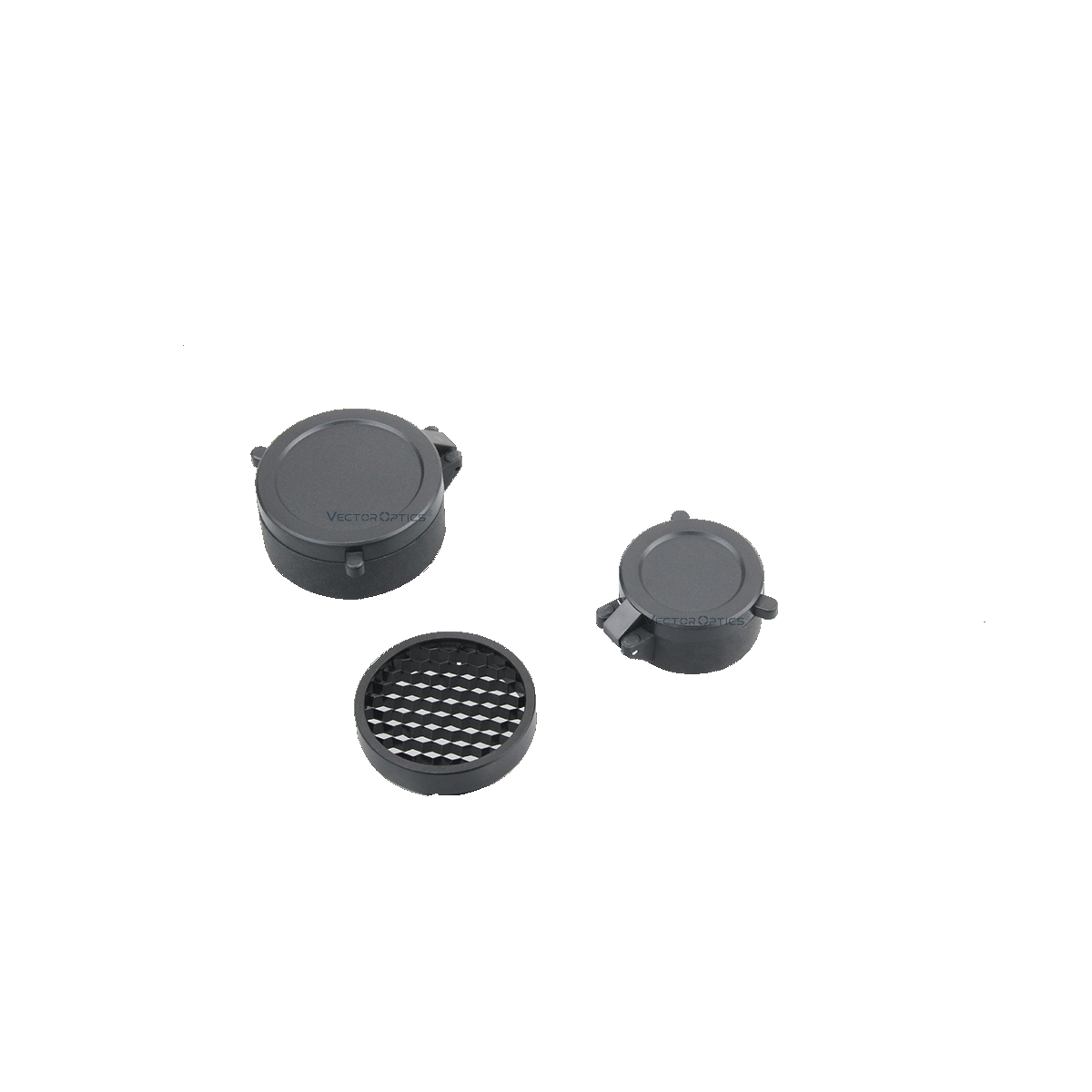

| Items in the Package | One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Honeycomb Sunshade & Cleaning Cloth, etc. |
