Orion Pro MAX 5-30x56 HD FFP Rifle Scope

Model: SCFF-75
Long-Range Benchrest Shooting

First Focal Plane Reticle Maintains Accurate Subtensions for Mid to Long-Range Holdovers and Ranging LaREE HD Lens System with FMC Optics Delivers Edge-to-Edge Clarity and Strong Low-Light Performance Versatile 5-30x Magnification Range Adapts from Benchrest Load Development to Extended-Range Shooting 34mm Maintube Provides an Impressive 30 MIL Elevation Adjustment Range with Precise 1/10 MIL Click Value Heavy-Duty Steel Windage and Elevation Turrets Offer Crisp Tactile Feedback and Long-Term Durability Integrated Zero Stop System Enables Fast and Confident Return to Pre-Set Zero After Elevation Adjustments

Find Online Stores Send Inquiry

Features

  • 34mm Tube Size

    Extra Large to Maximize the Adjustment Range

  • First Focal Plane

    Reticle Changes Along with Magnification

  • FMC/ Fully Multi-Coated Lens

    Deliver Bright & Crisp Images

  • LaREE HD Lens

    LaREE High Definition Glass

  • Side Focus

    Easy & Rapid Parallax Adjustment

  • Zero Stop

    Effortlessly Return to Pre-set Zero

  • IP56 Waterproof

    Dust-Tight and Protected Against Powerful Water Jets

  • Long Range Shooting / Long Range Target

    Precision Targeting for Long-Range Engagement

Specifications

  • Optical Parameter
  • Mechanical Parameter
  • Magnification 5-30x
    Objective Lens Dia 56 mm
    Focal Plane First Focal Plane
    Eye Relief 100 mm / 3.9 in
    Lens Coating Fully Multi-Coated
    Linear Field of View @ 100 yd 24.0-3.9 ft @ 100 yards
    Linear Field of View @ 100 m 8-1.2 m @ 100 meters
    Angular Field of View ° 4.6-0.7 °
    Reticle VOR-8 MIL
  • Tube Dia 34 mm
    Side Focus 10 yards to Infinity
    Click Value 1/10 MIL
    Turret Function Zero Stop
    Elevation Adjustment Range 30 MIL
    Windage Adjustment Range 16 MIL
    Diopter Compensation -2 to +2
    Illumination Setting 6 Gears, On/off Switch
    Battery Type CR2032
    Waterproof IP56
    Fogproof Nitrogen Filled
    Shockproof 750 G
    Housing Material 6061-T6 Aluminum Alloy
    Turret Material Steel
    Finish Matte Black
    Length 348 mm / 13.7 in
    Weight 943 g / 37.1 oz
    Items in the Package Cleaning Cloth, Lens Caps, Sunshade,etc.

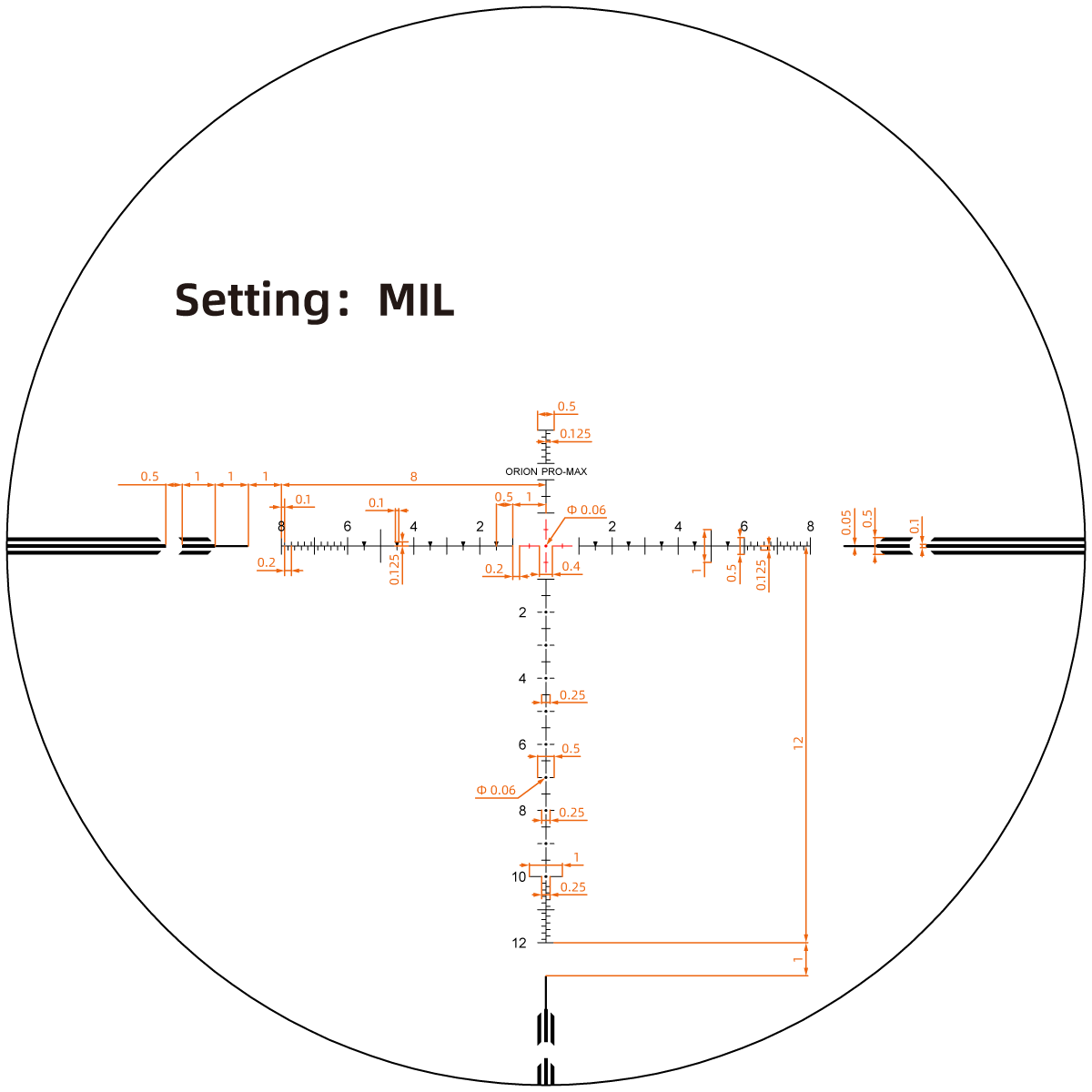

Reticle

  • VOR-8 MIL

    Designed for mid to long-range shooting

    Could be used for hunting and target shooting

  • VOR-8 MIL Subtension

    0.06 MIL illuminated center dot with 6 brightness levels for precise aiming during long-range shooting

    MIL dot for range estimation and BDC

Download

  • Orion User Manual
