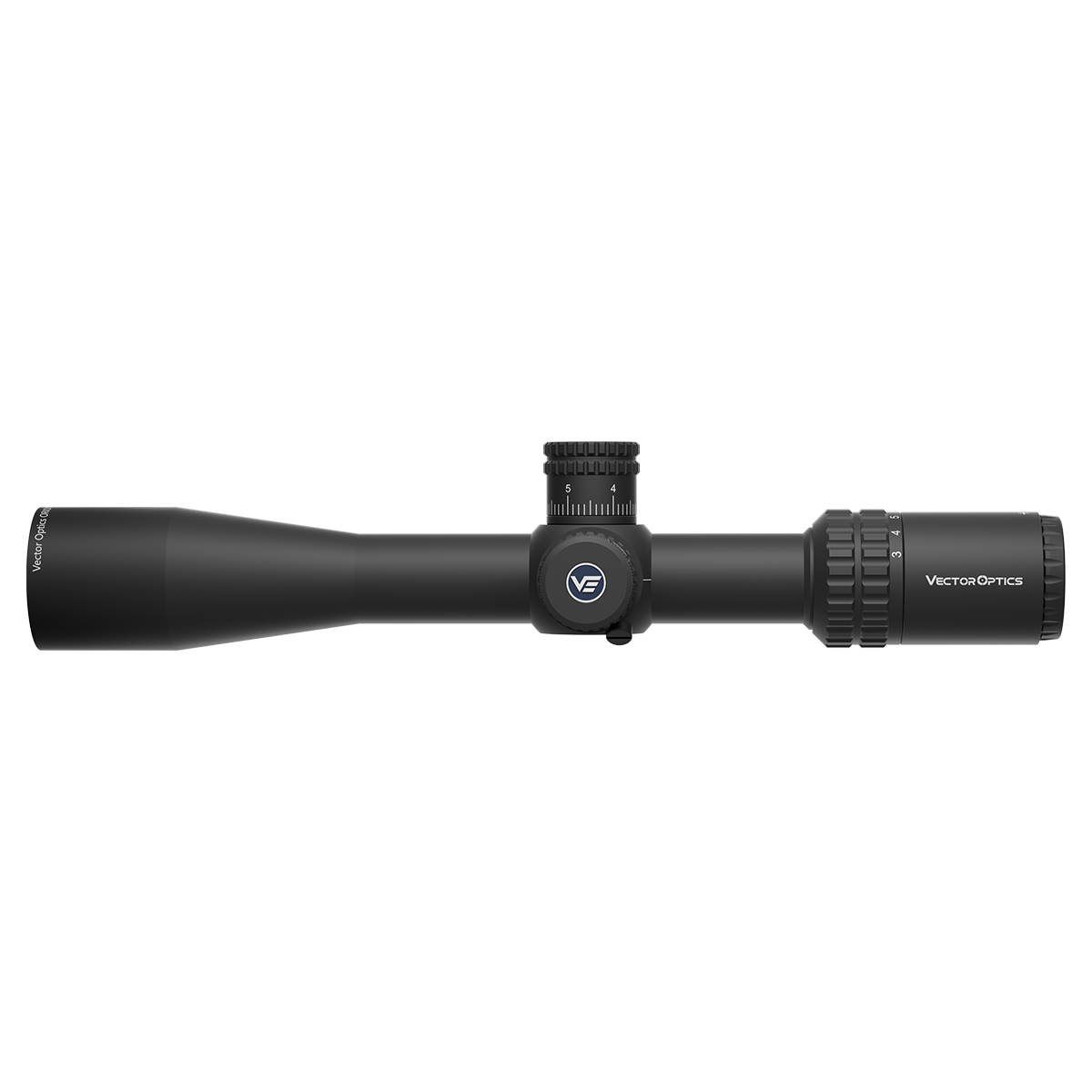

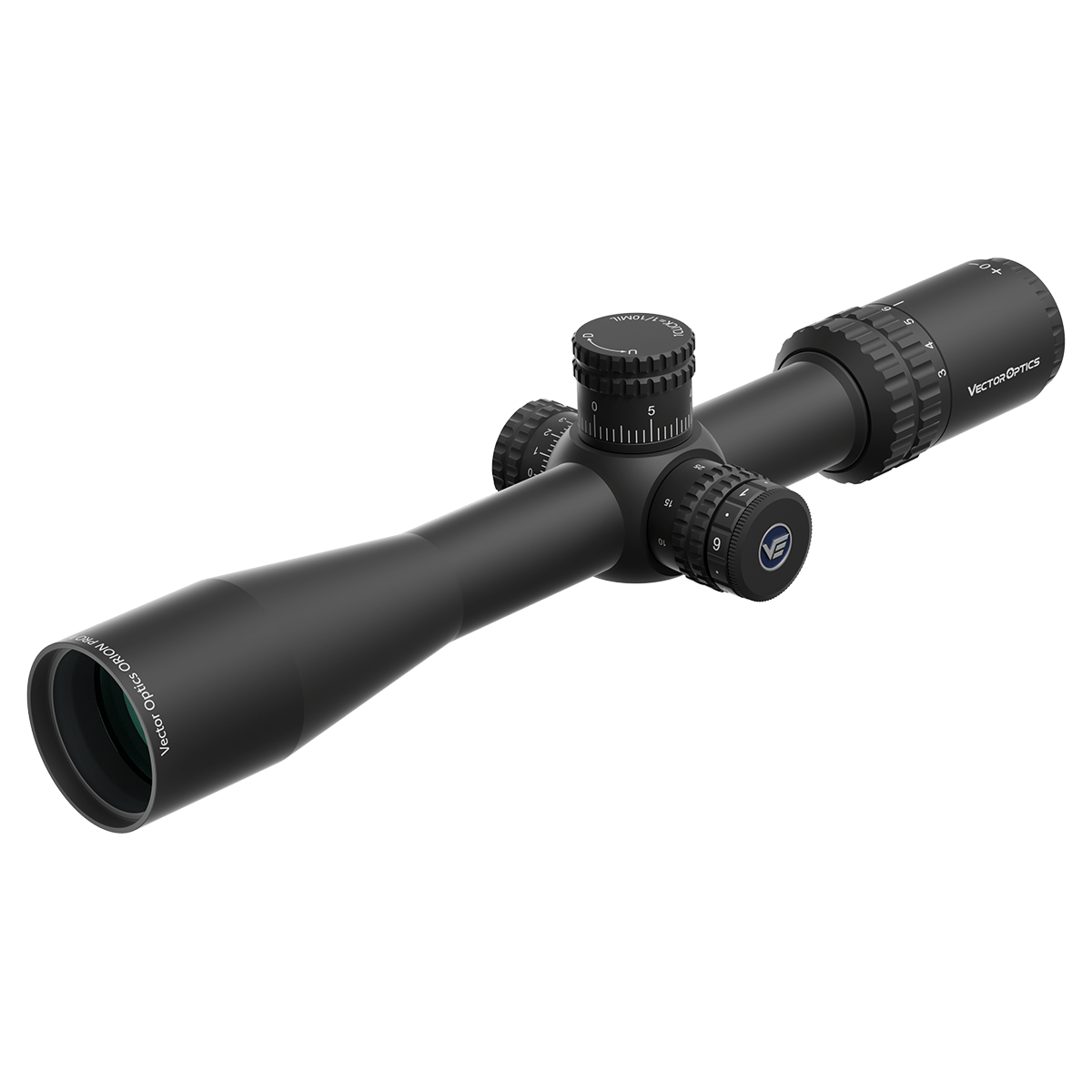

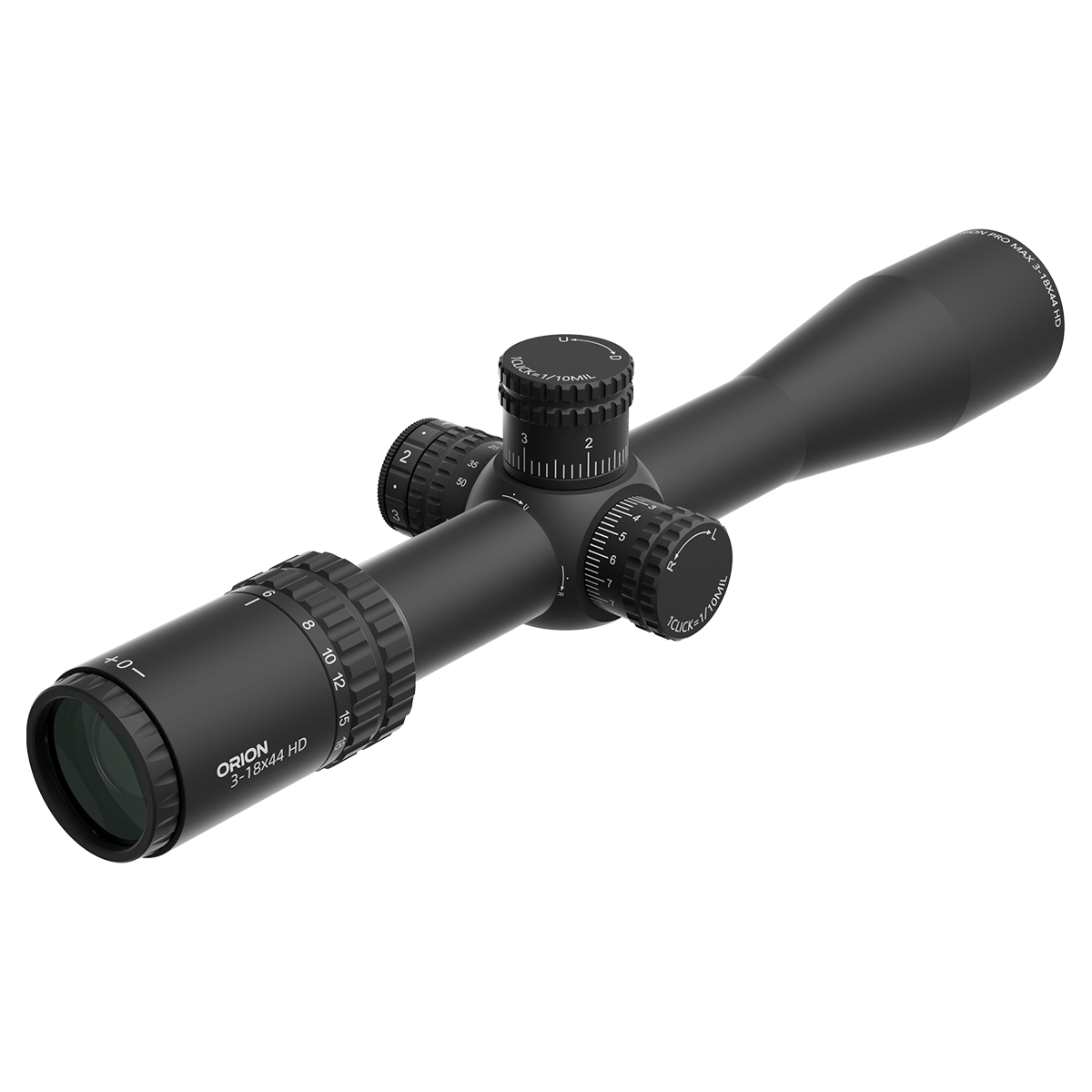

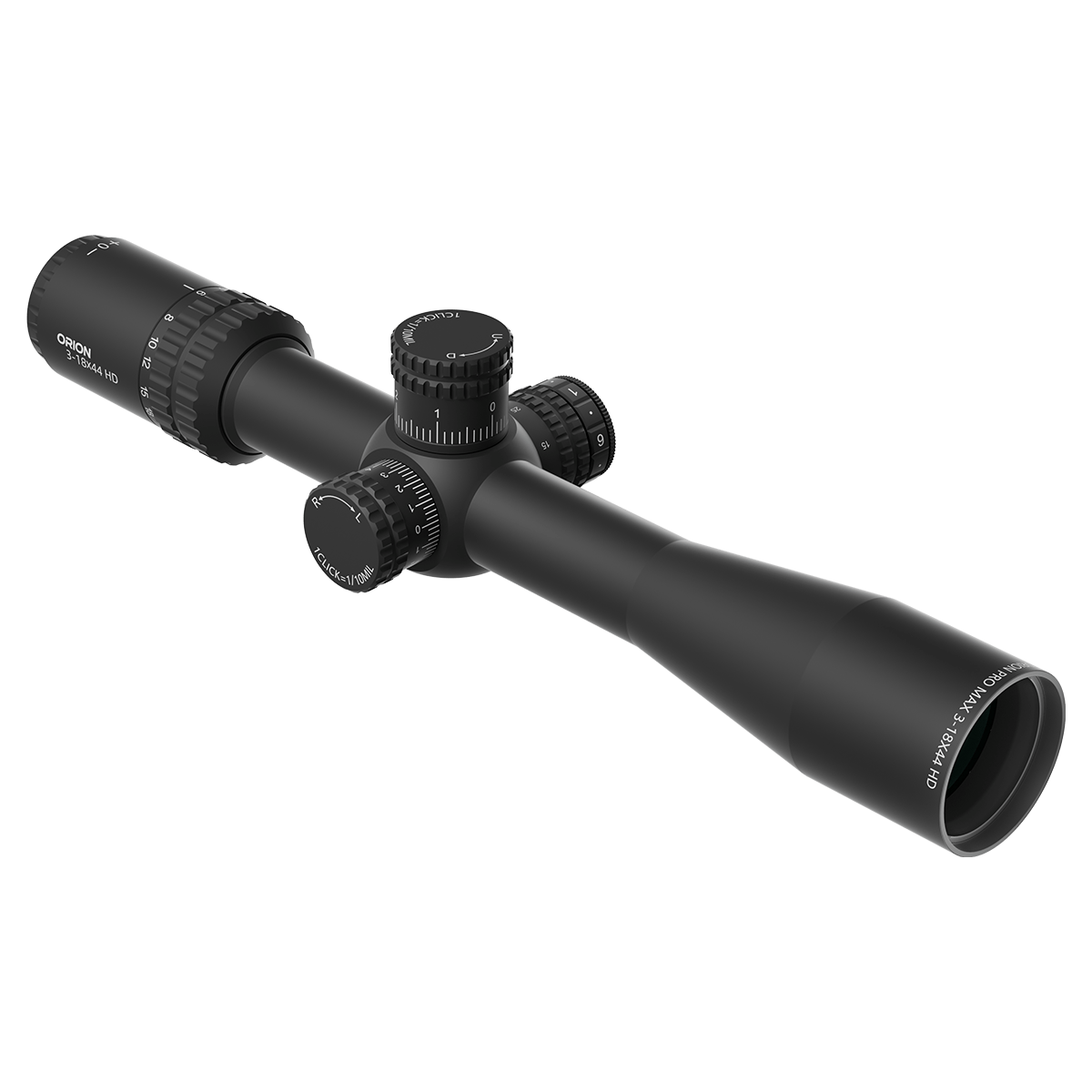

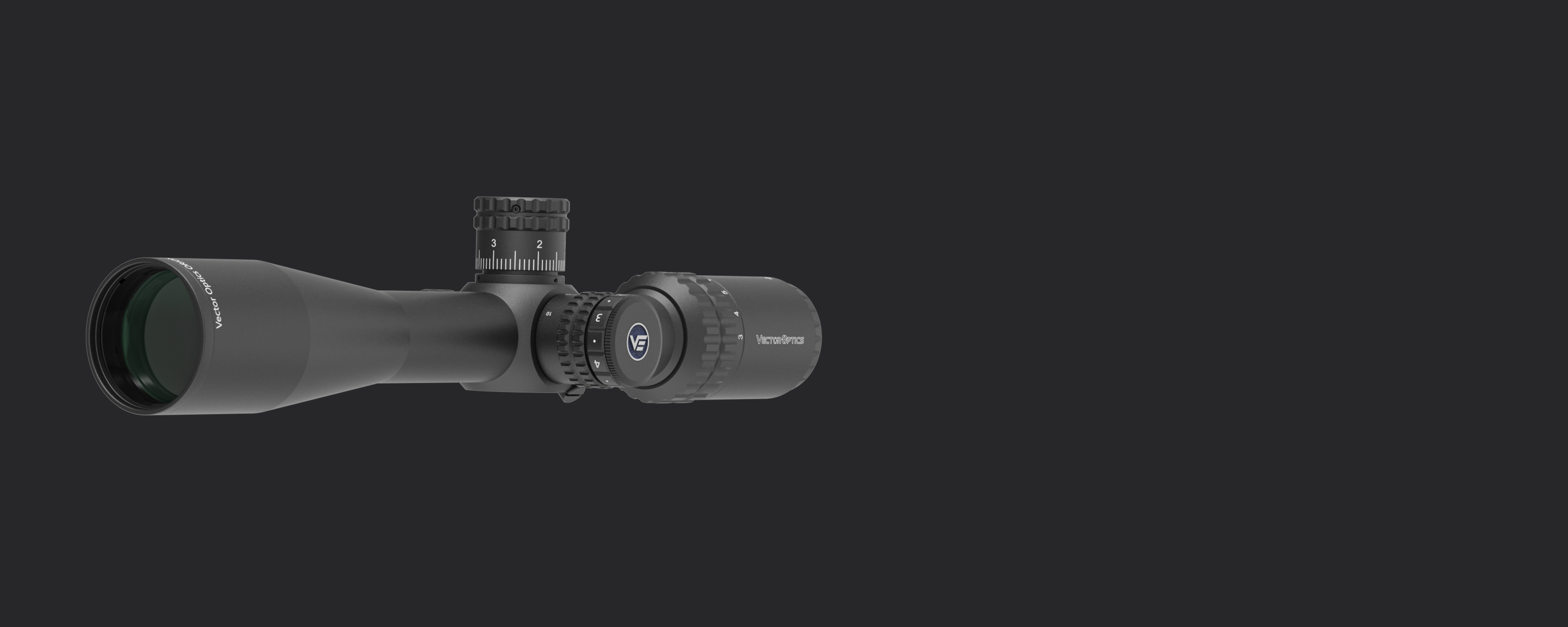

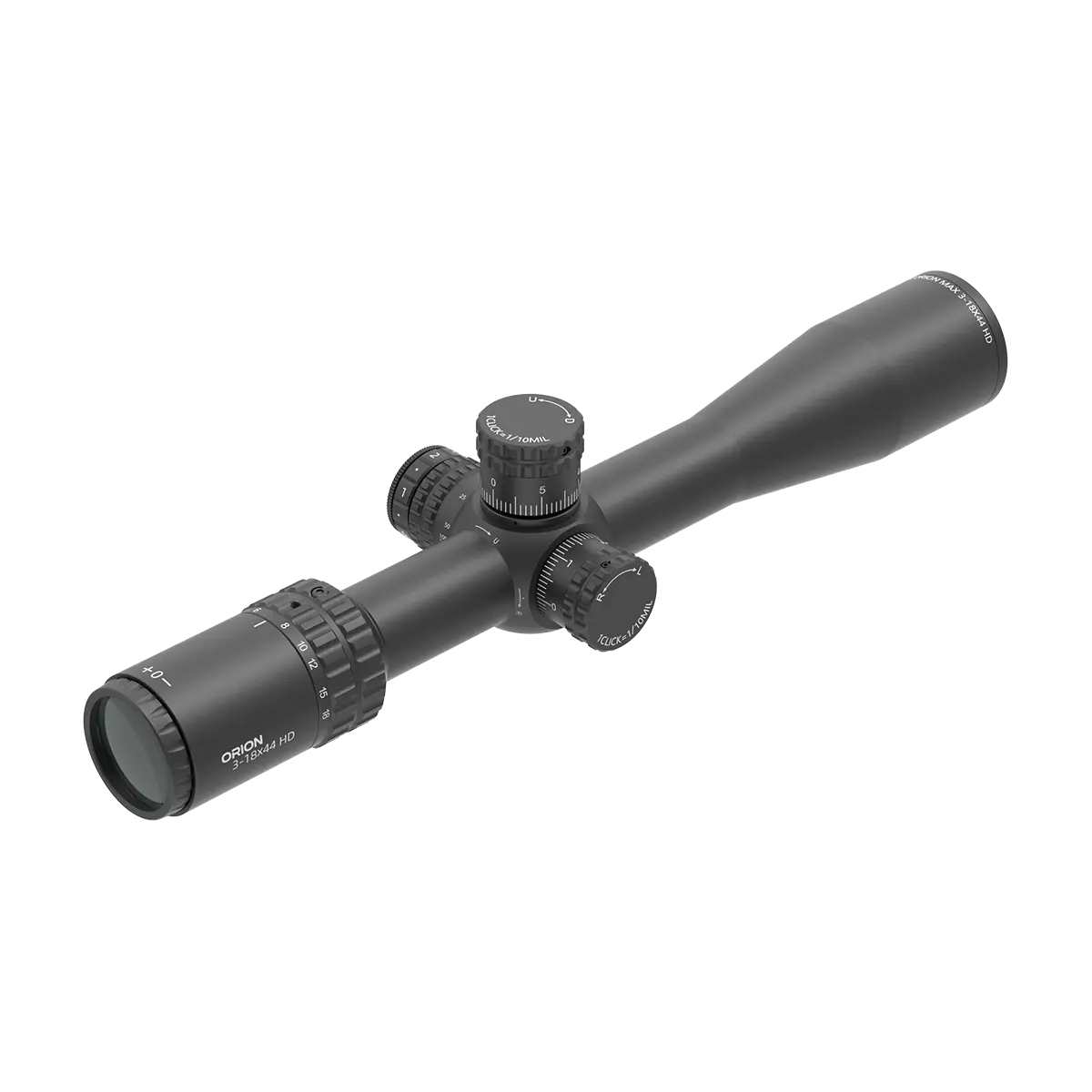

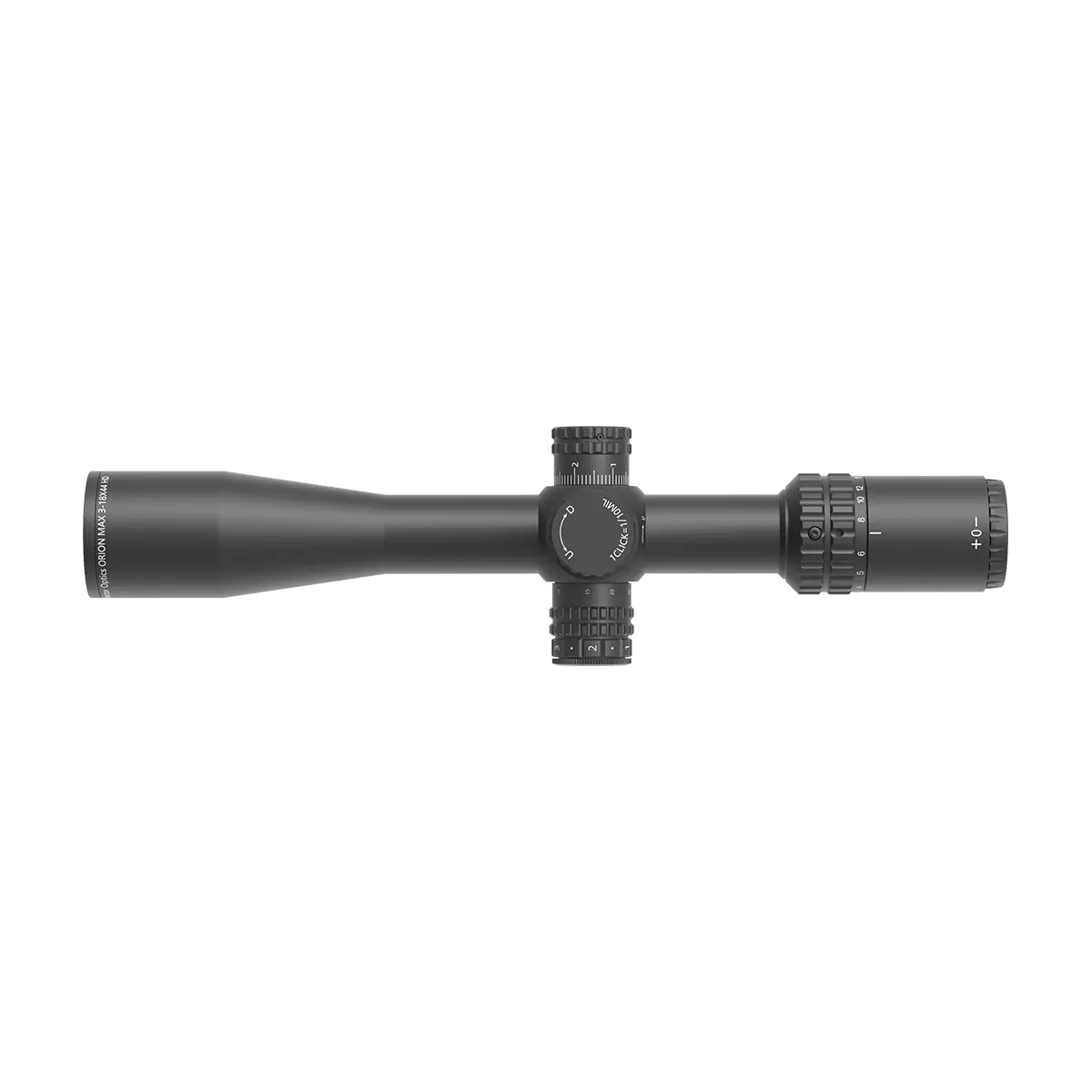

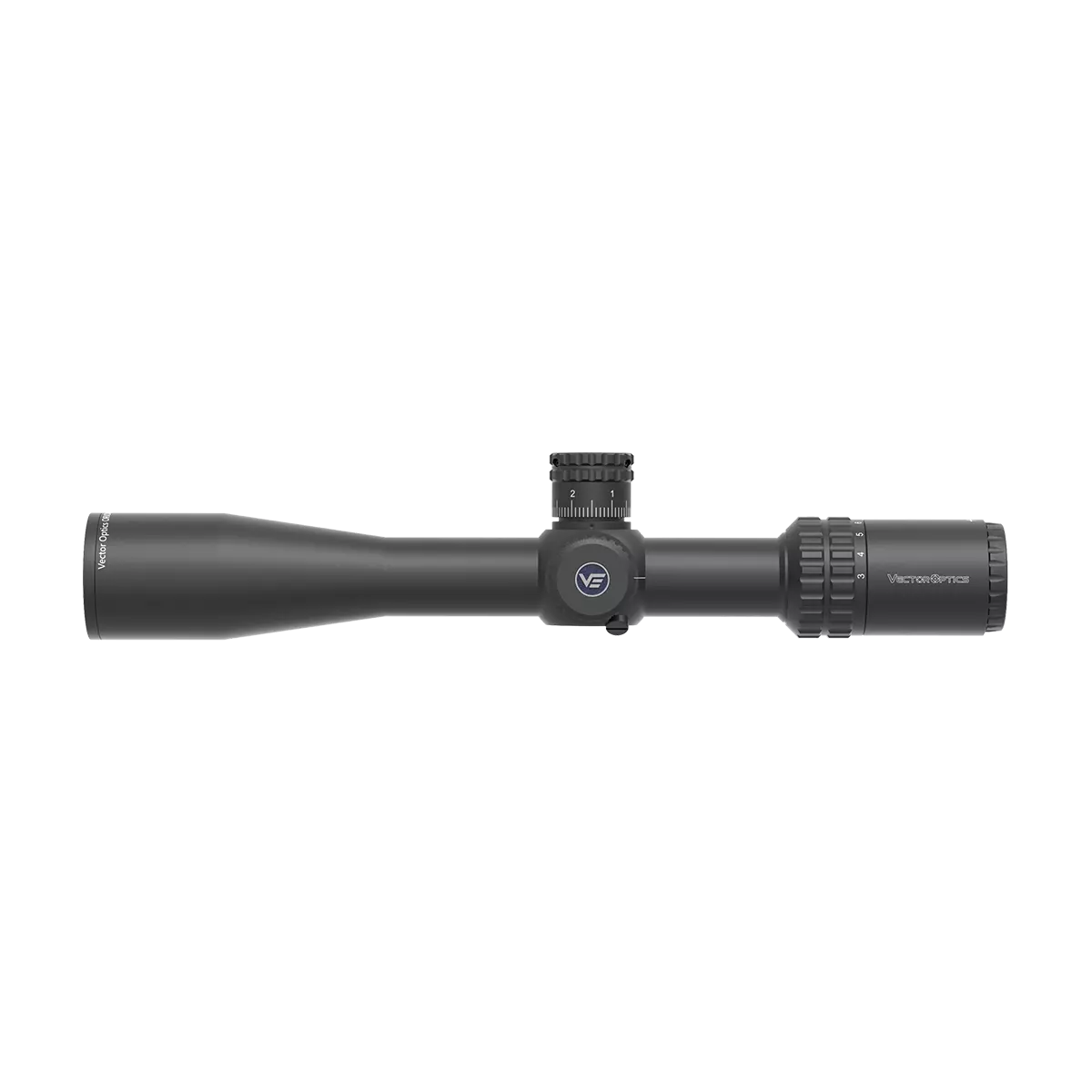

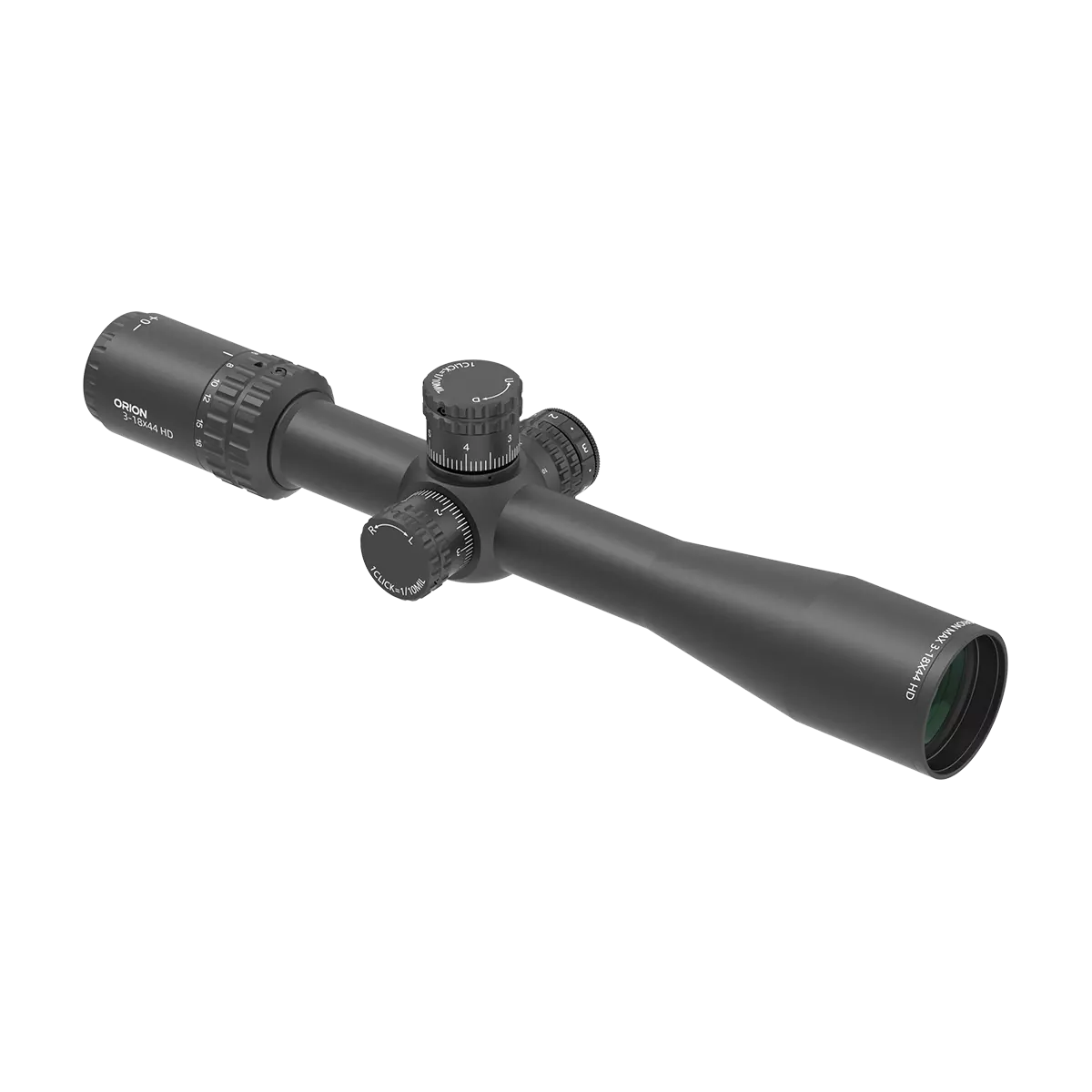

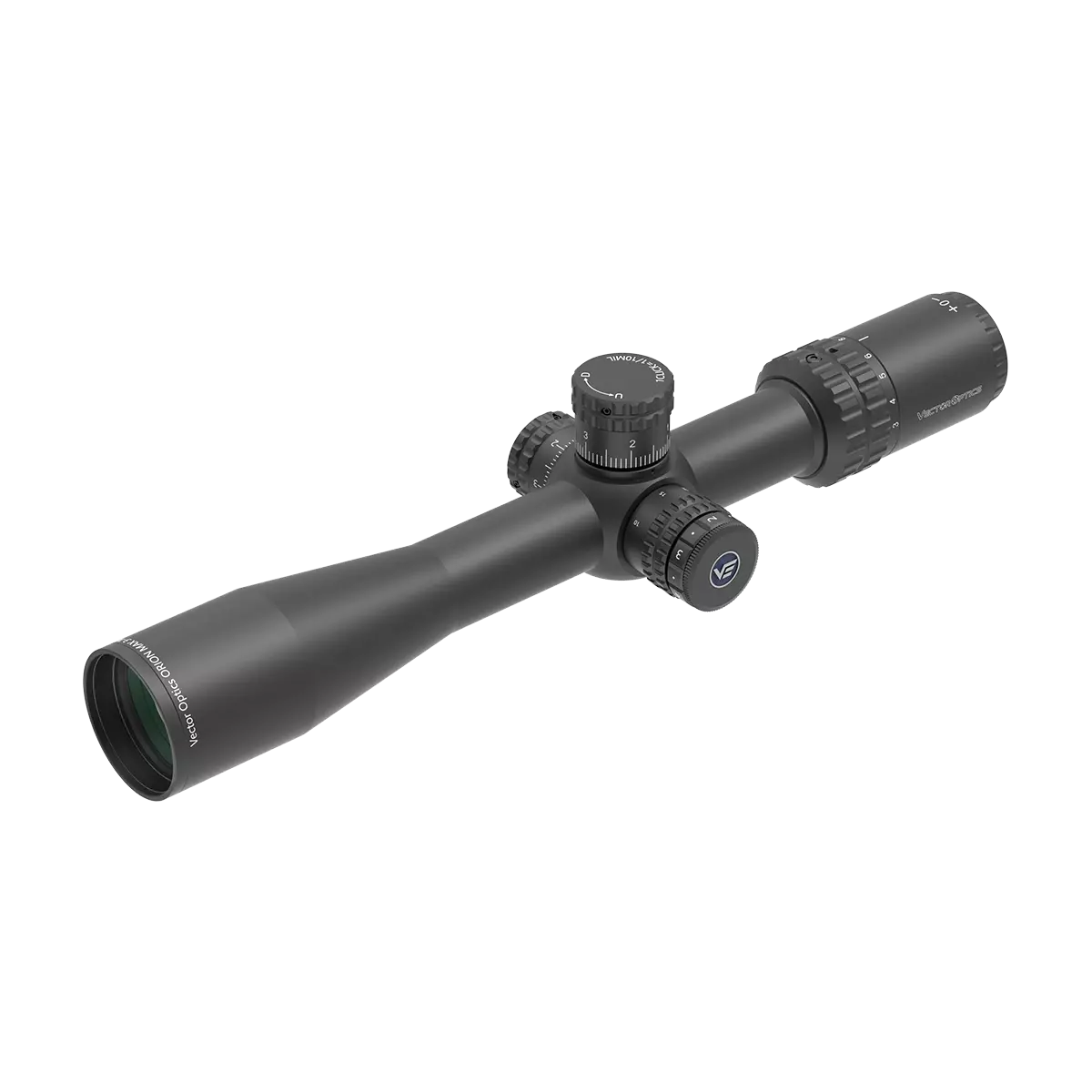

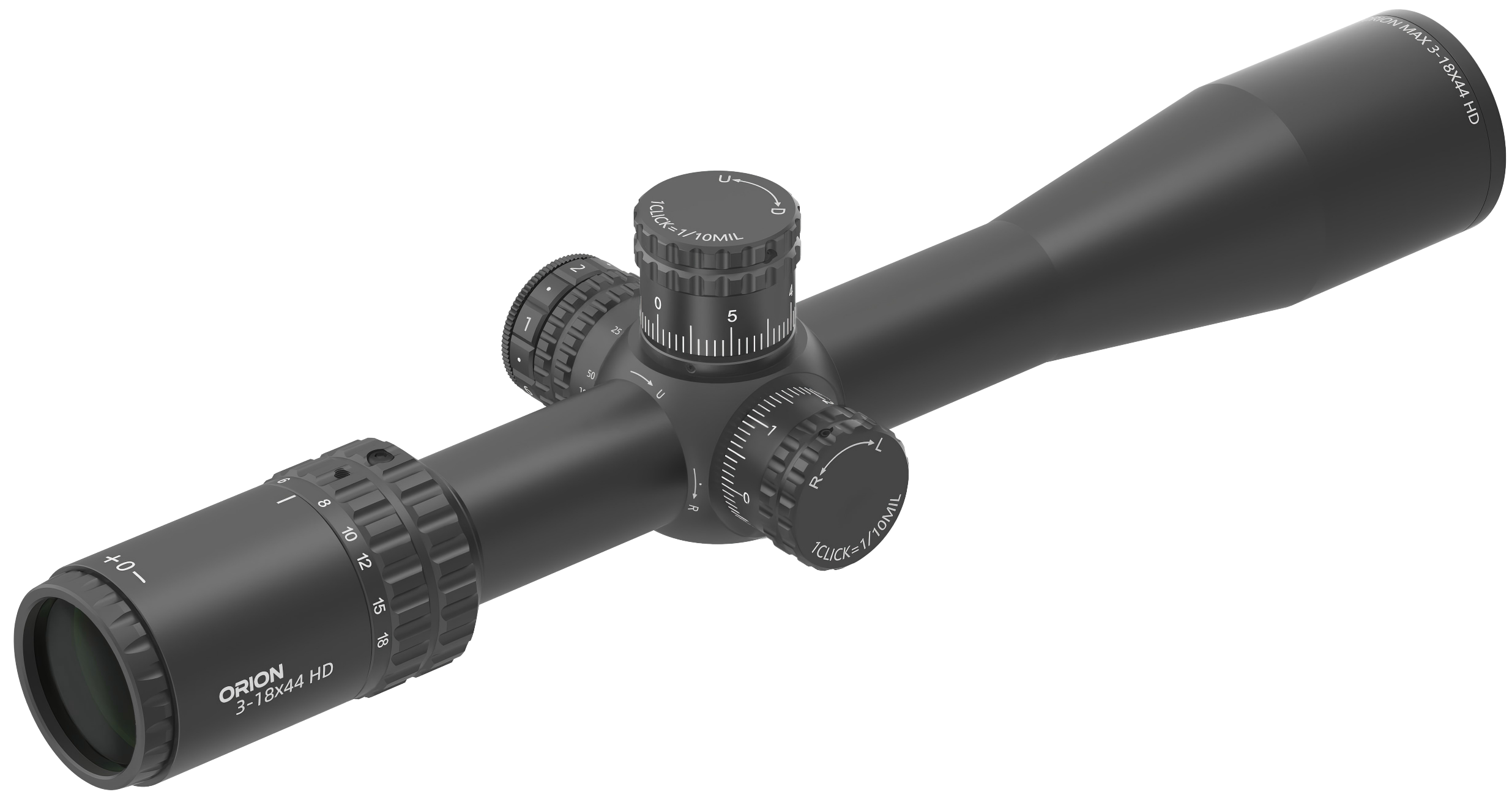

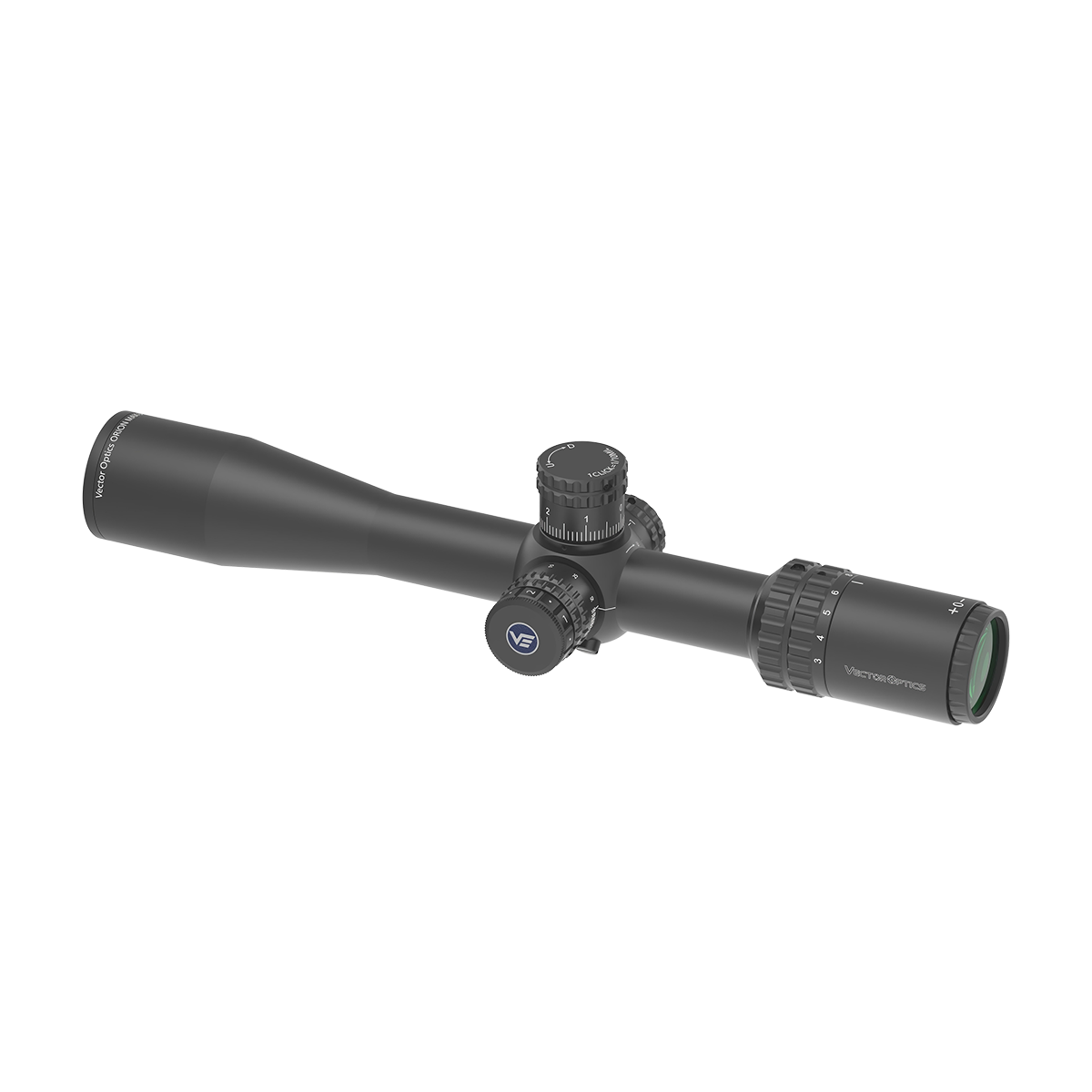

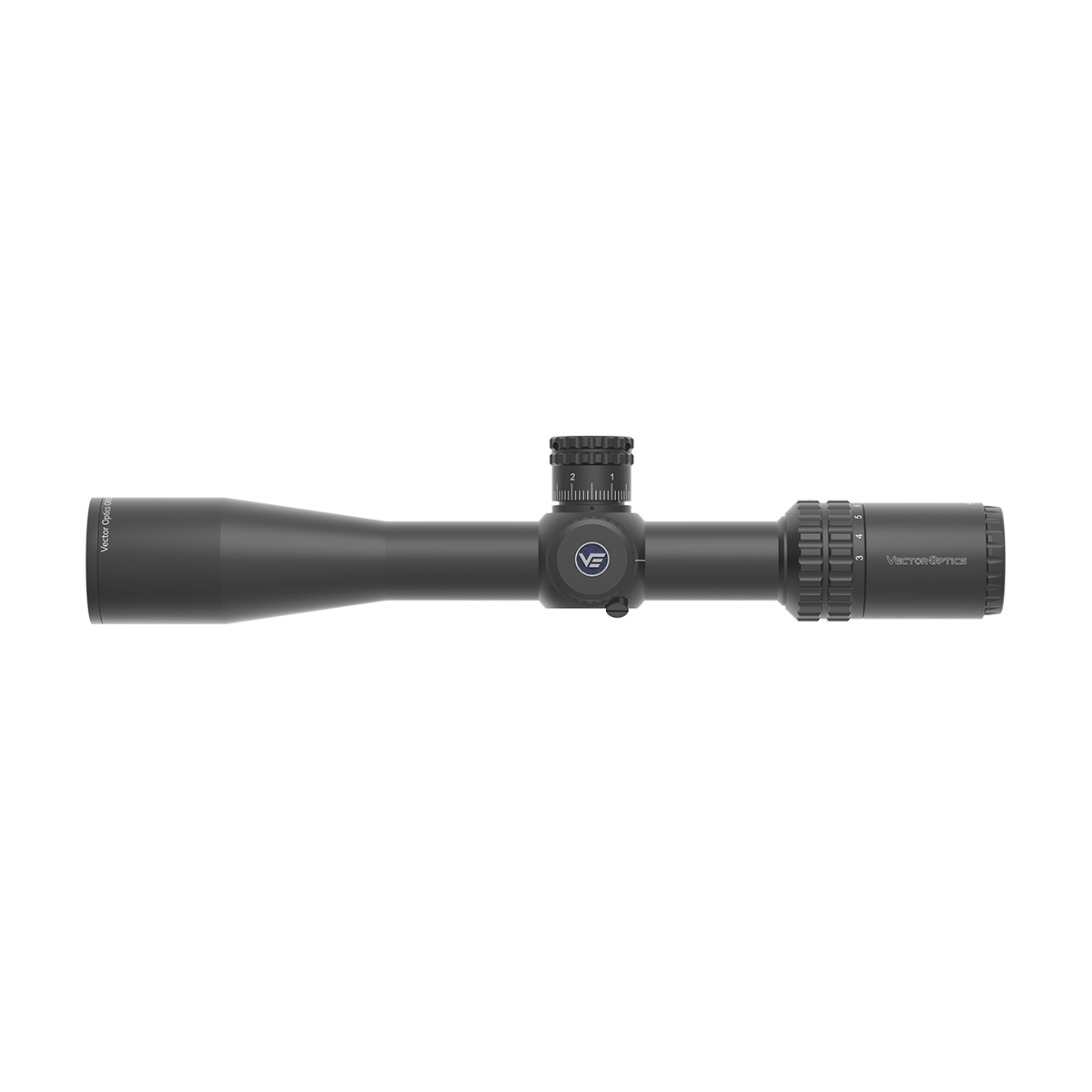

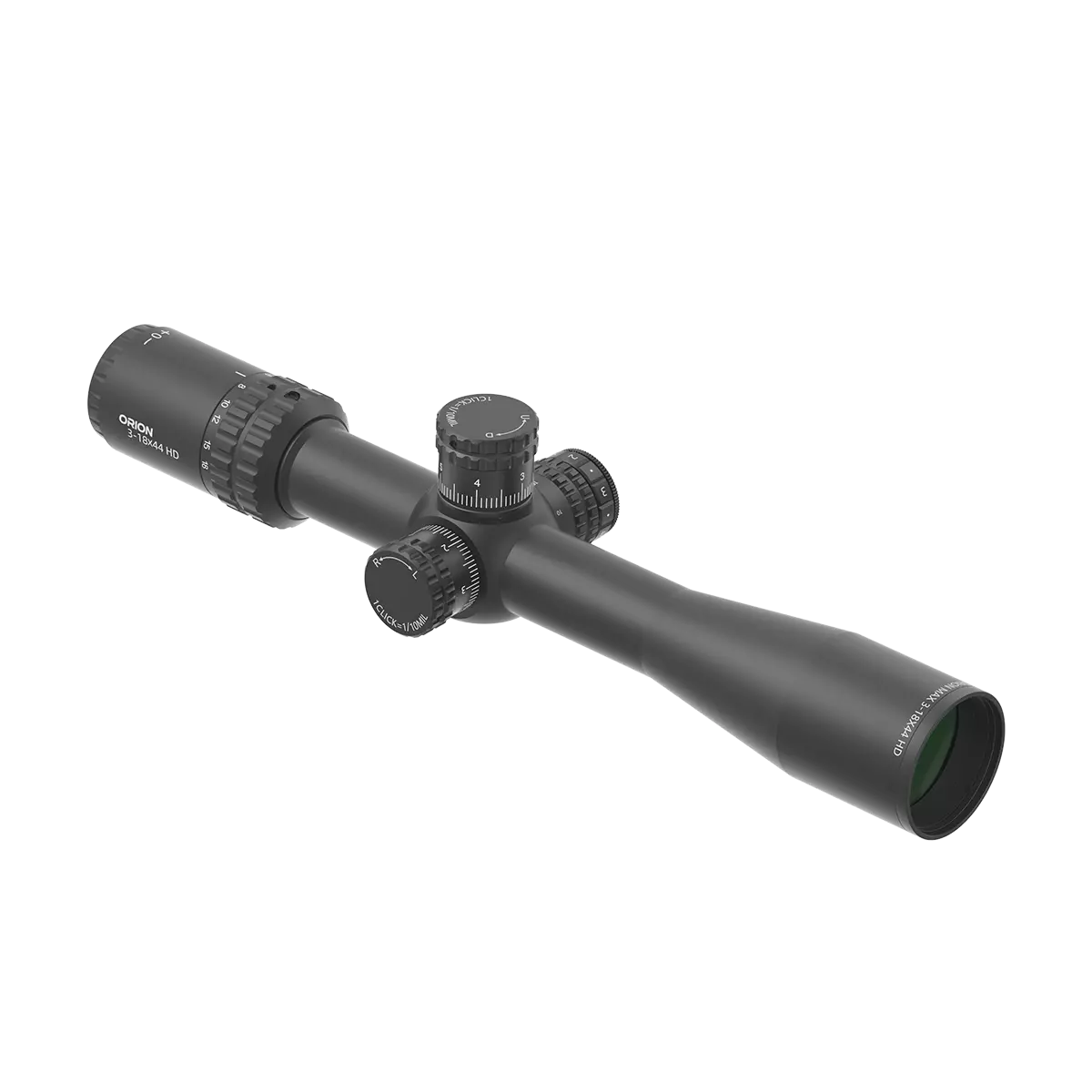

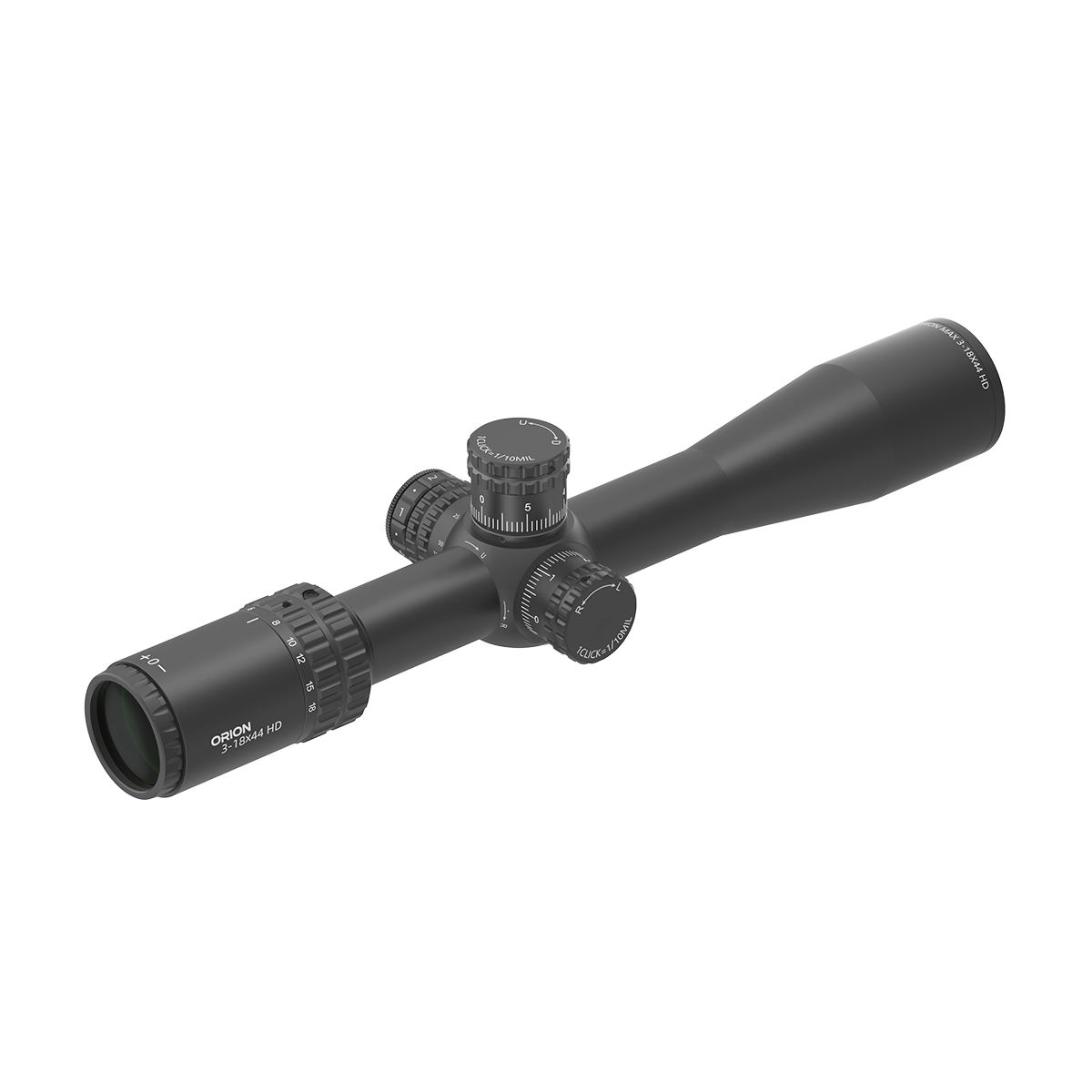

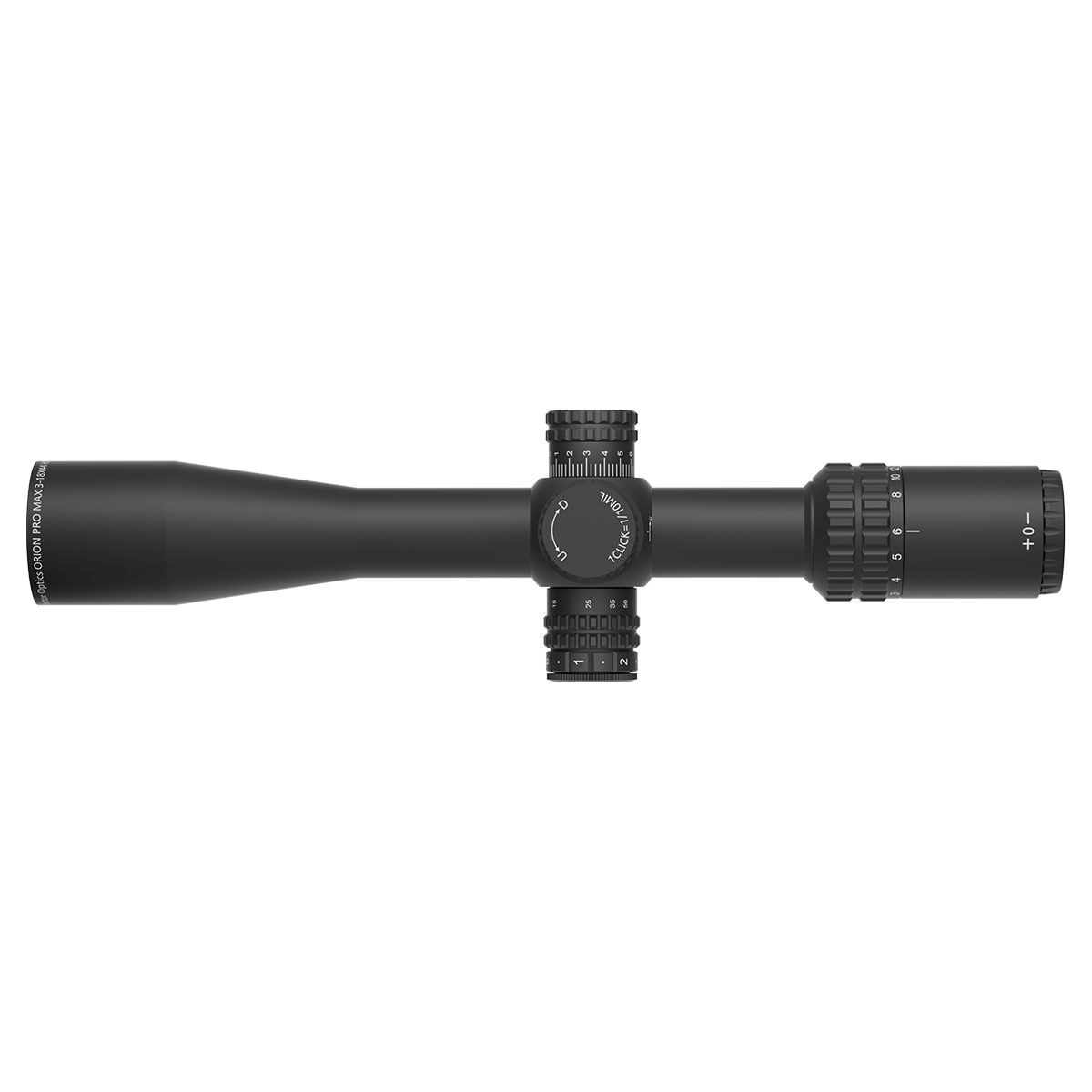

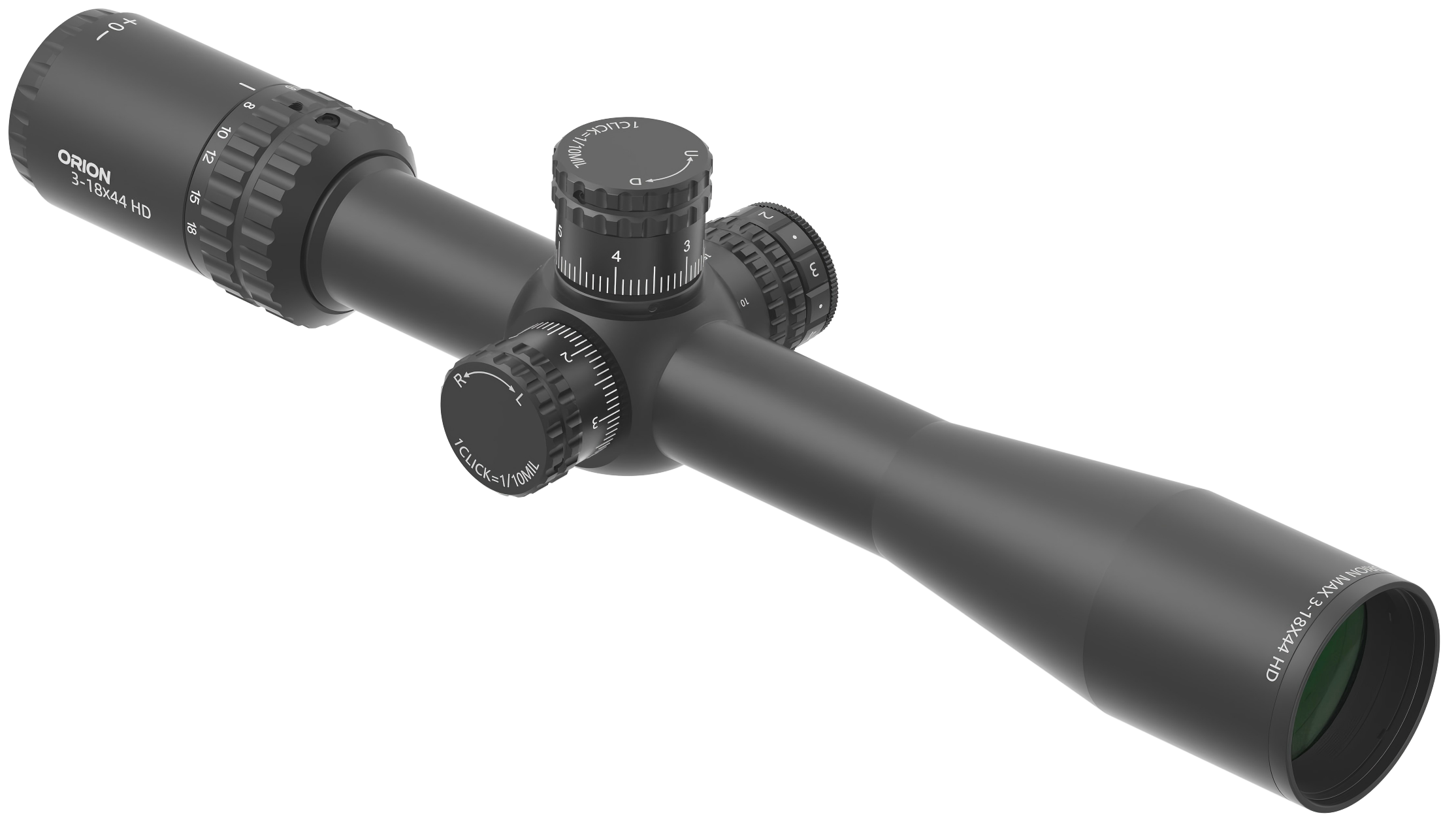

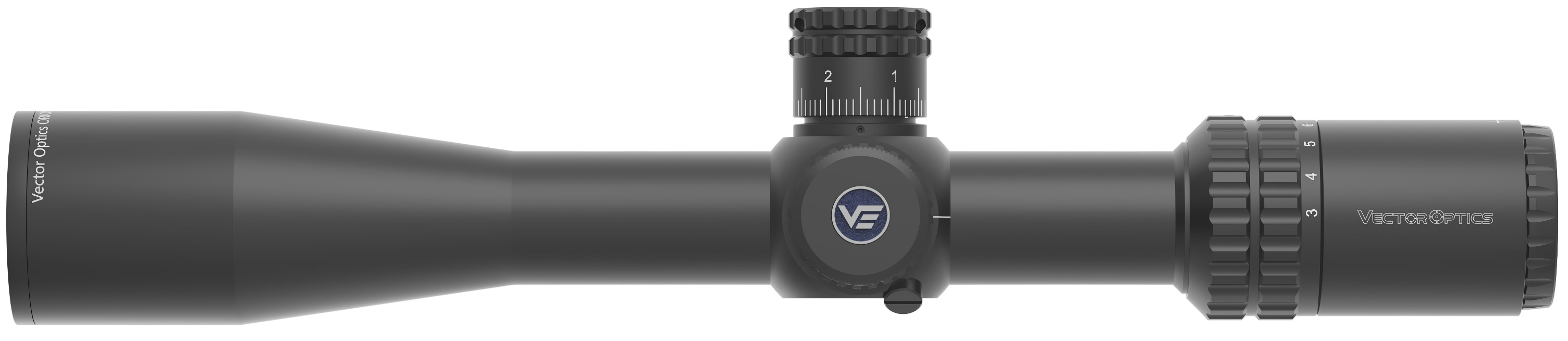

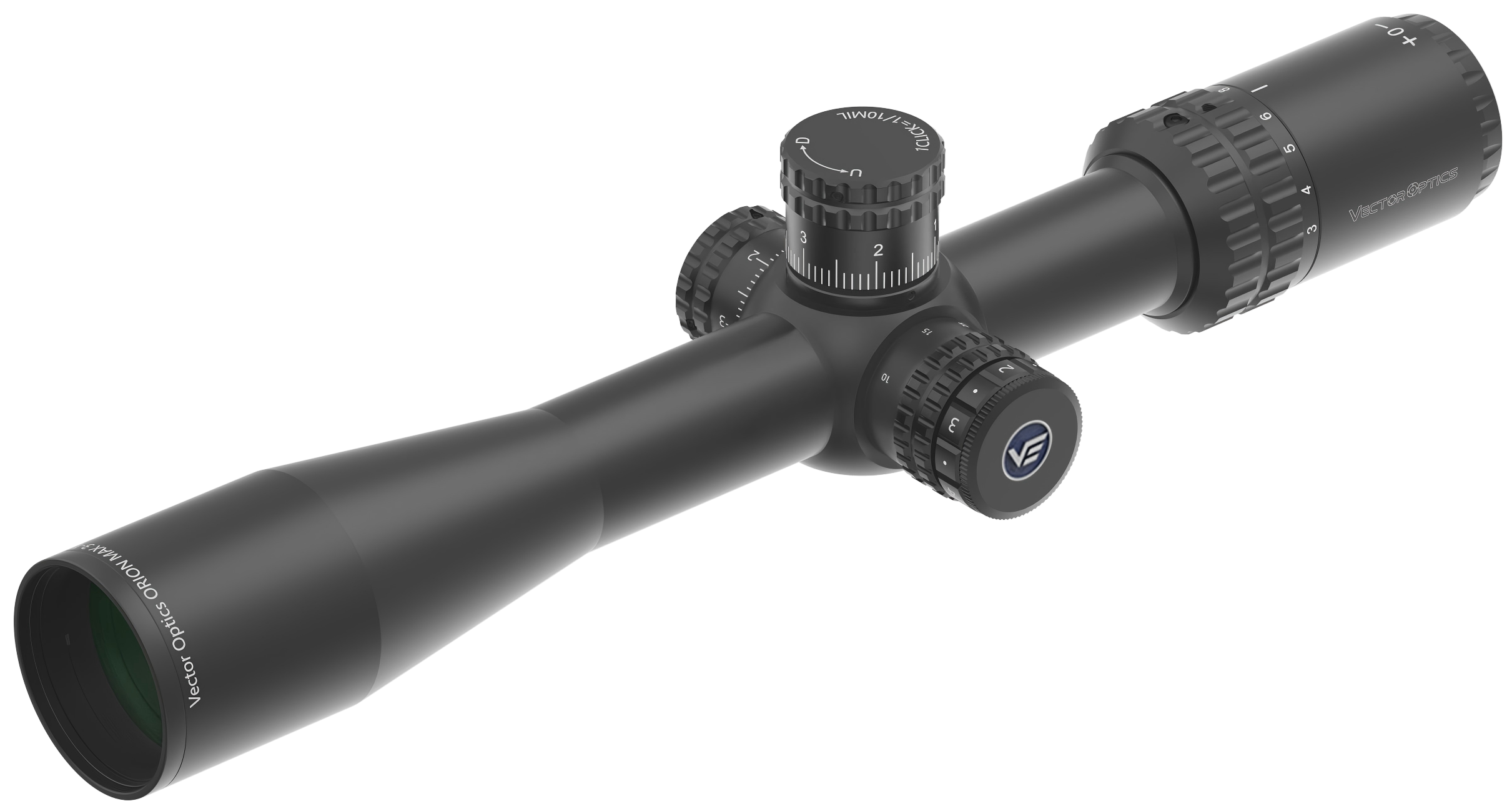

Orion MAX 3-18x44 HD FFP Rifle Scope

Model: SCFF-49

FFP VOR-4 MIL Reticle Pattern for Mid to Long-range Shooting, 0.08MIL Center Dot for Precise Aiming LaREE HD Lens Presents Bright and Clear Image, Fully Multi-coated Lens Increases Light Transmission 30mm Tube Dia Enhances Elevation Ranges to 30 MIL, 1/10 MIL Click Value for Precise Adjustment Zero Stop Easily Return to Pre-set Zero Point, 6 Gear Illuminations Adaptable to Various Light Conditions

Fully Multi-coated

Fully multi-coated lens reduce glare & reflection and improve light transmission & color contrast. It makes the image appear sharp and bright even in low-light conditions.

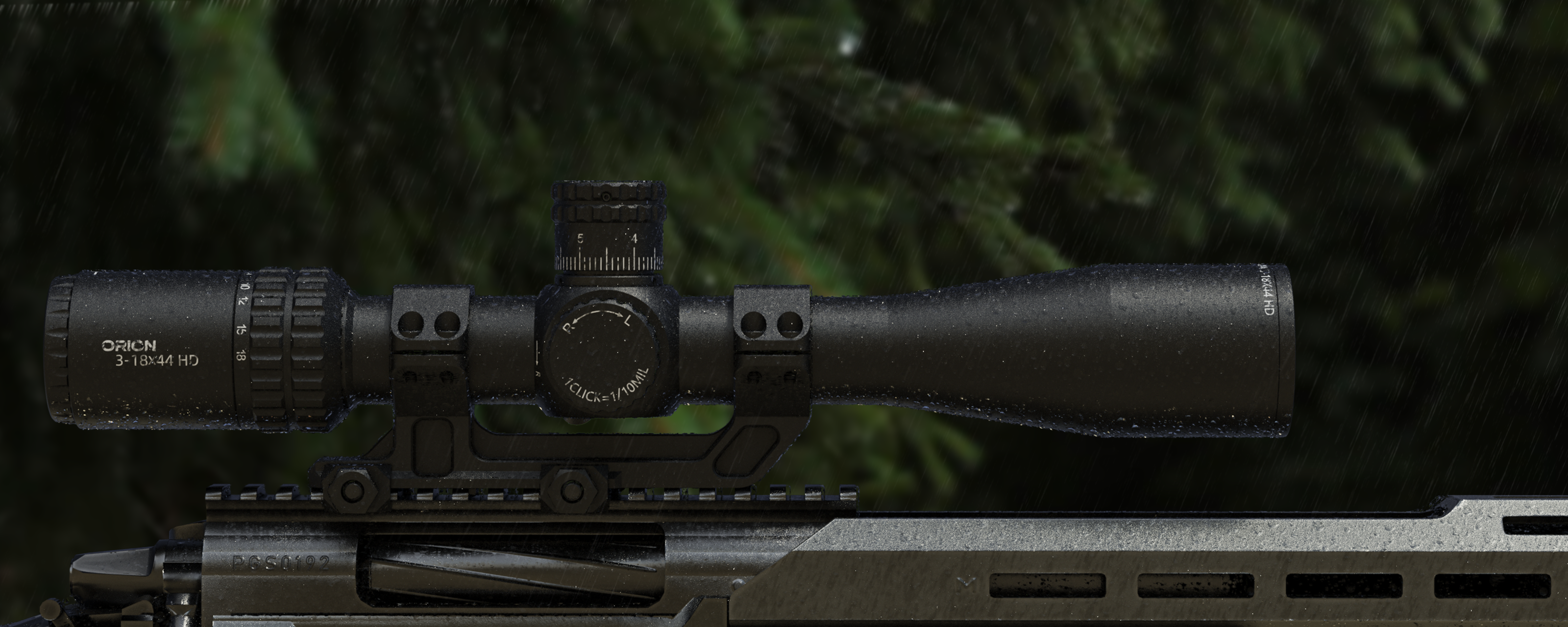

IPX4 Waterproof

IPX4 ensures a scope can withstand splashing water from any direction, functioning well even in light rain or accidental spills, making it suitable for all-weather performance.

750G Shockproof

750G shockproof is a rating that allows a scope can withstand impacts and drops from high altitudes, ensuring reliability in rugged outdoor use.

Features

  • First Focal Plane

    Reticle Changes Along with Magnification
  • 30mm Tube Size

    Large to Increase the Adjustment Range
  • Fully Multi-Coated

    Deliver Bright & Crisp Images
  • LaREE HD Lens

    LaREE High Definition Glass

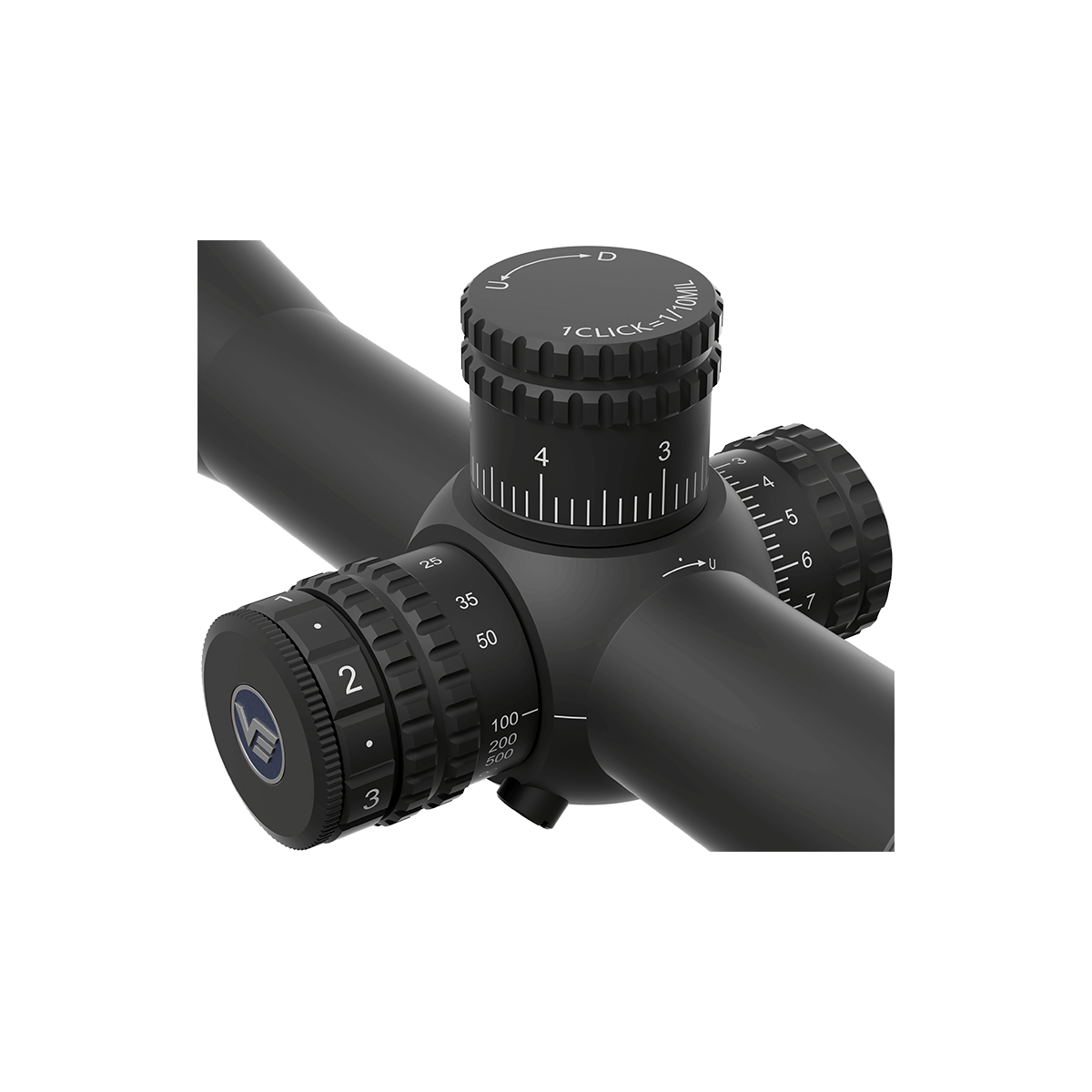

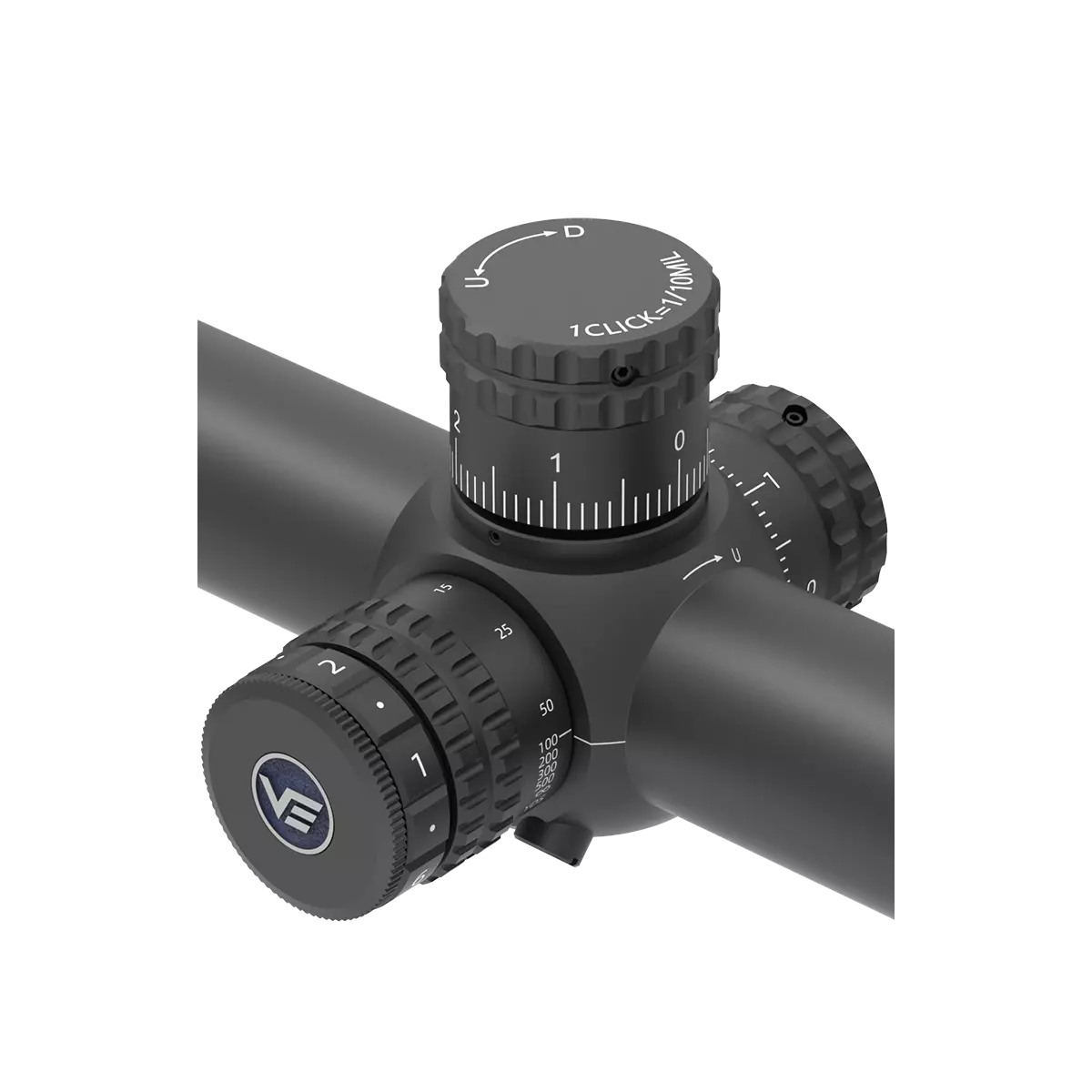

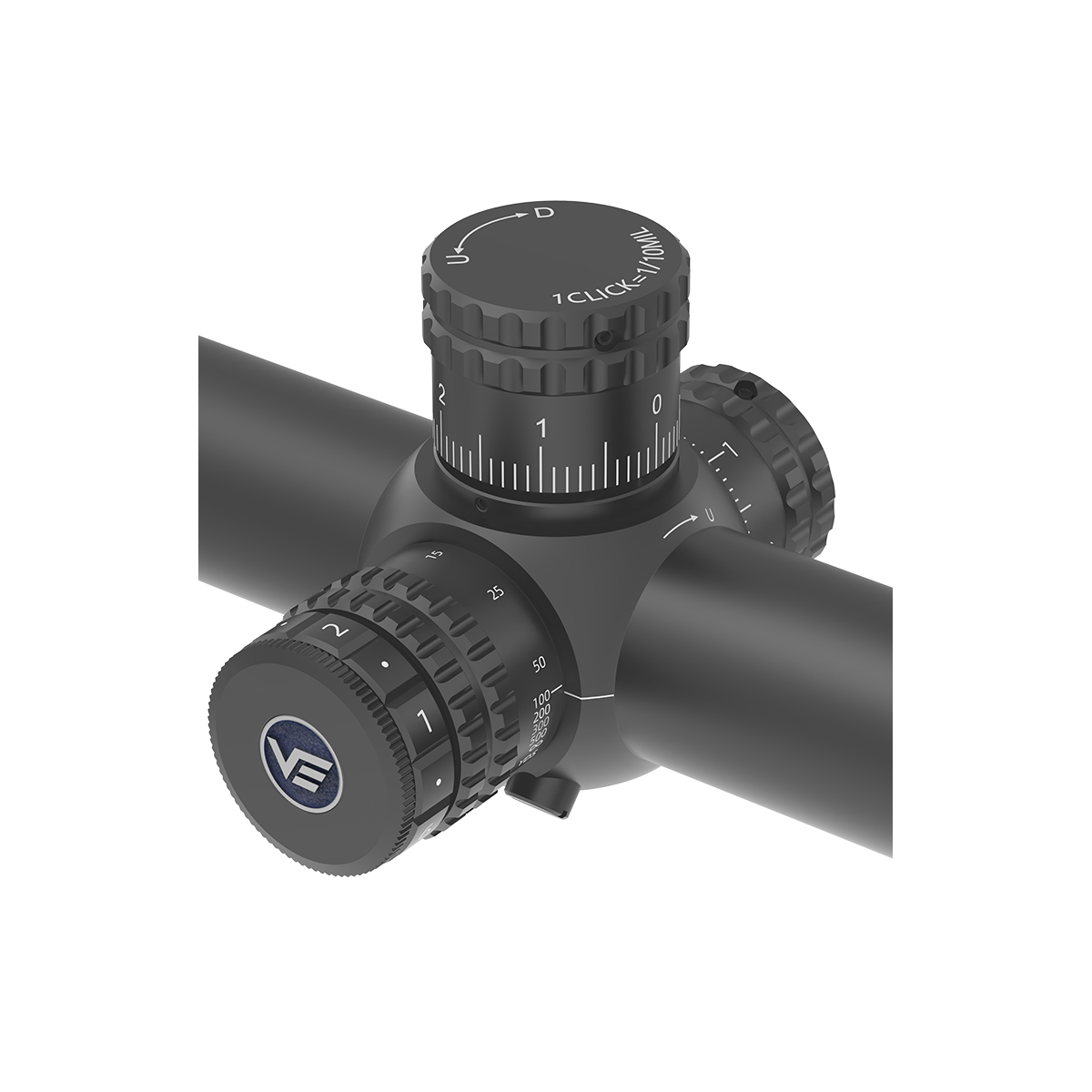

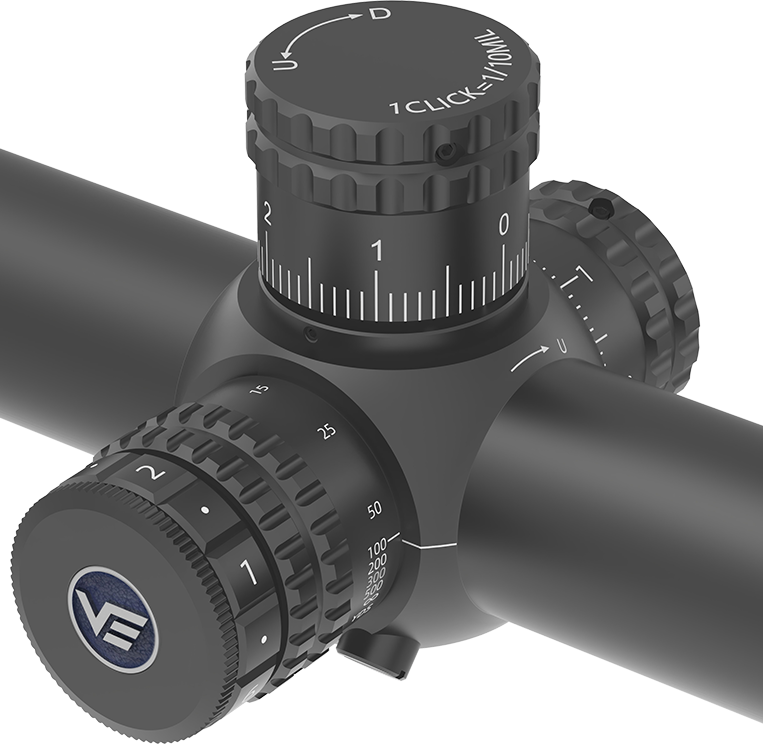

  • Side Focus

    Easy & Rapid Parallax Adjustment
  • Zero Stop

    Effortlessly Return to Pre-set Zero
  • IPX4 Water Resistance

    It can withstand water splashes, such as rain or accidental spills

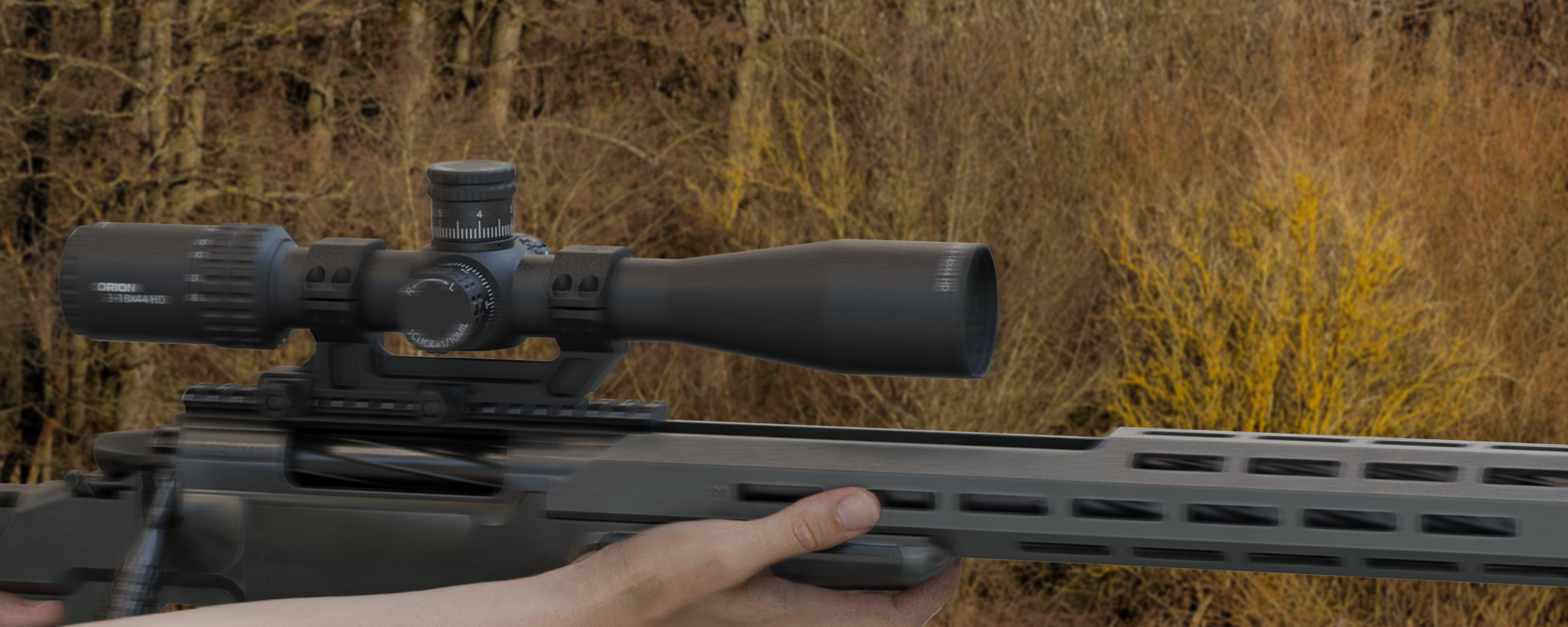

  • Long Range Target

    Precision Targeting for Long-range Engagement

Specifications

  • Magnification 3-18x
    Objective Lens Dia 44 mm
    Focal Plane First Focal Plane
    Eye Relief 95 mm / 3.8 in
    Lens Coating Fully Multi-coated
    Linear Field of View @ 100 yd 38.3-6.3 ft @ 100 yards
    Linear Field of View @ 100 m 12.8-2.1 m @ 100 meters
    Angular Field of View ° 7.28-1.2 °
    Reticle VOR-4 MIL
  • Tube Dia 30 mm
    Side Focus 10 yards to Infinity

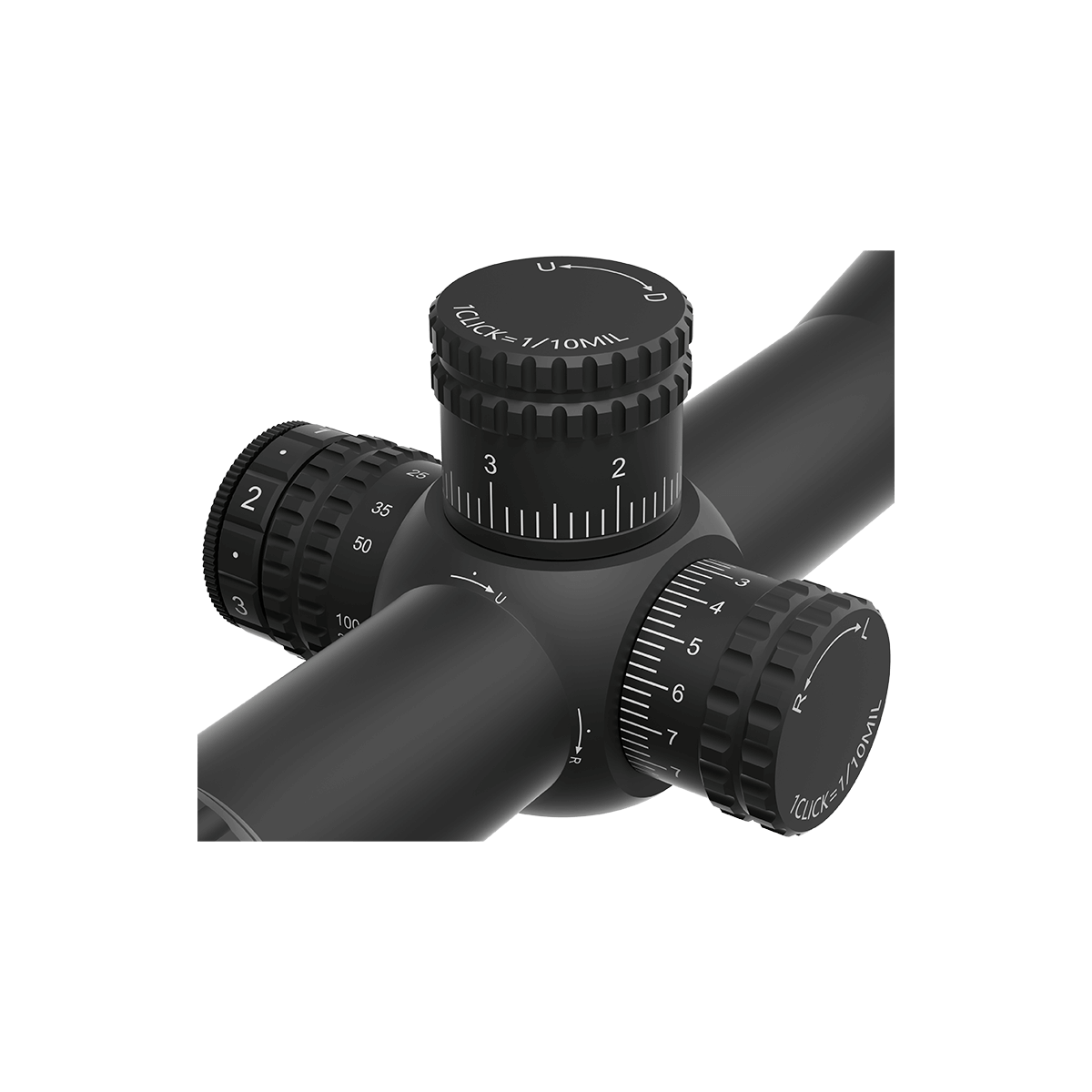

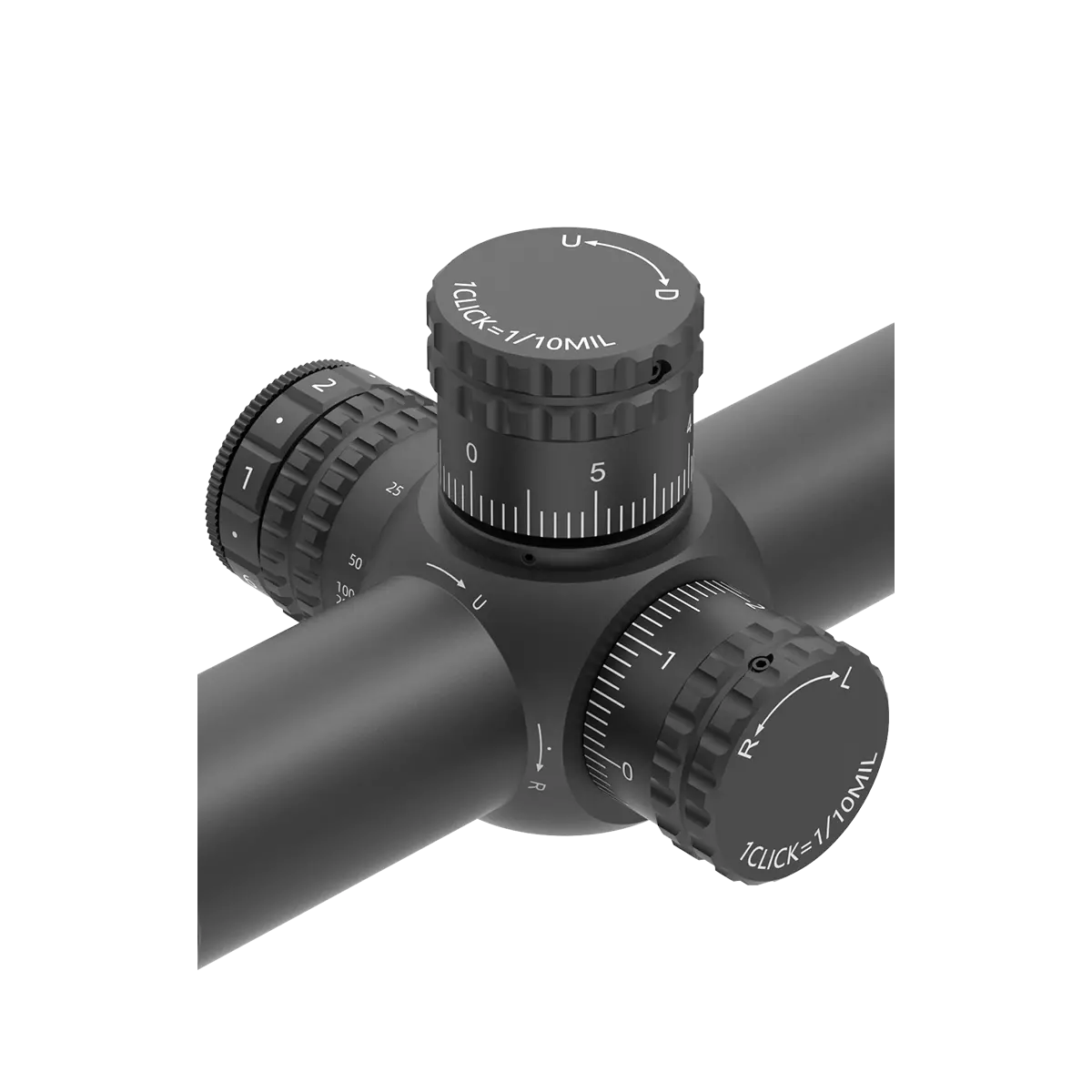

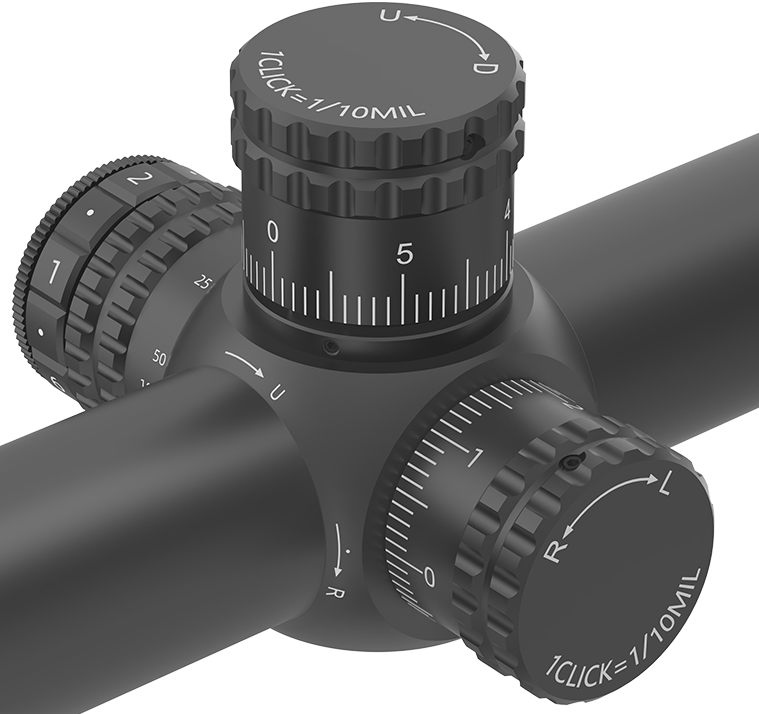

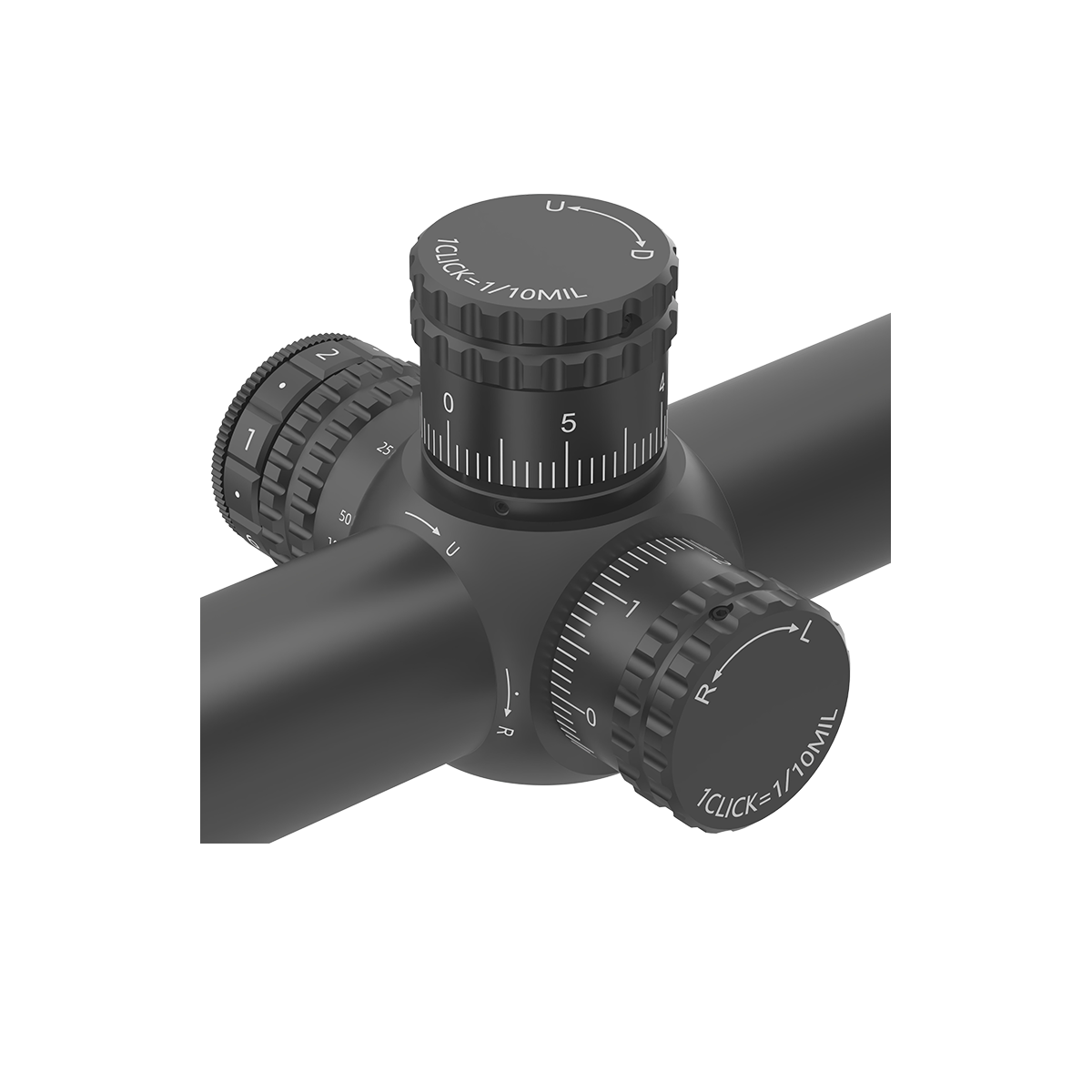

    Click Value 1/10 MIL
    Turret Function Zero Stop
    Elevation Adjustment Range 30 MIL
    Windage Adjustment Range 16 MIL
    Diopter Compensation -2 to +2
    Illumination Setting 6 Gears, On/off Switch
    Battery Type CR2032
    Waterproof IPX4
    Fogproof Nitrogen Filled
    Shockproof 750 G
    Housing Material 6061-T6 Aluminum Alloy
    Finish Matte Black
    Length 340 mm / 13.4 in
    Weight 798 g / 28.1 oz

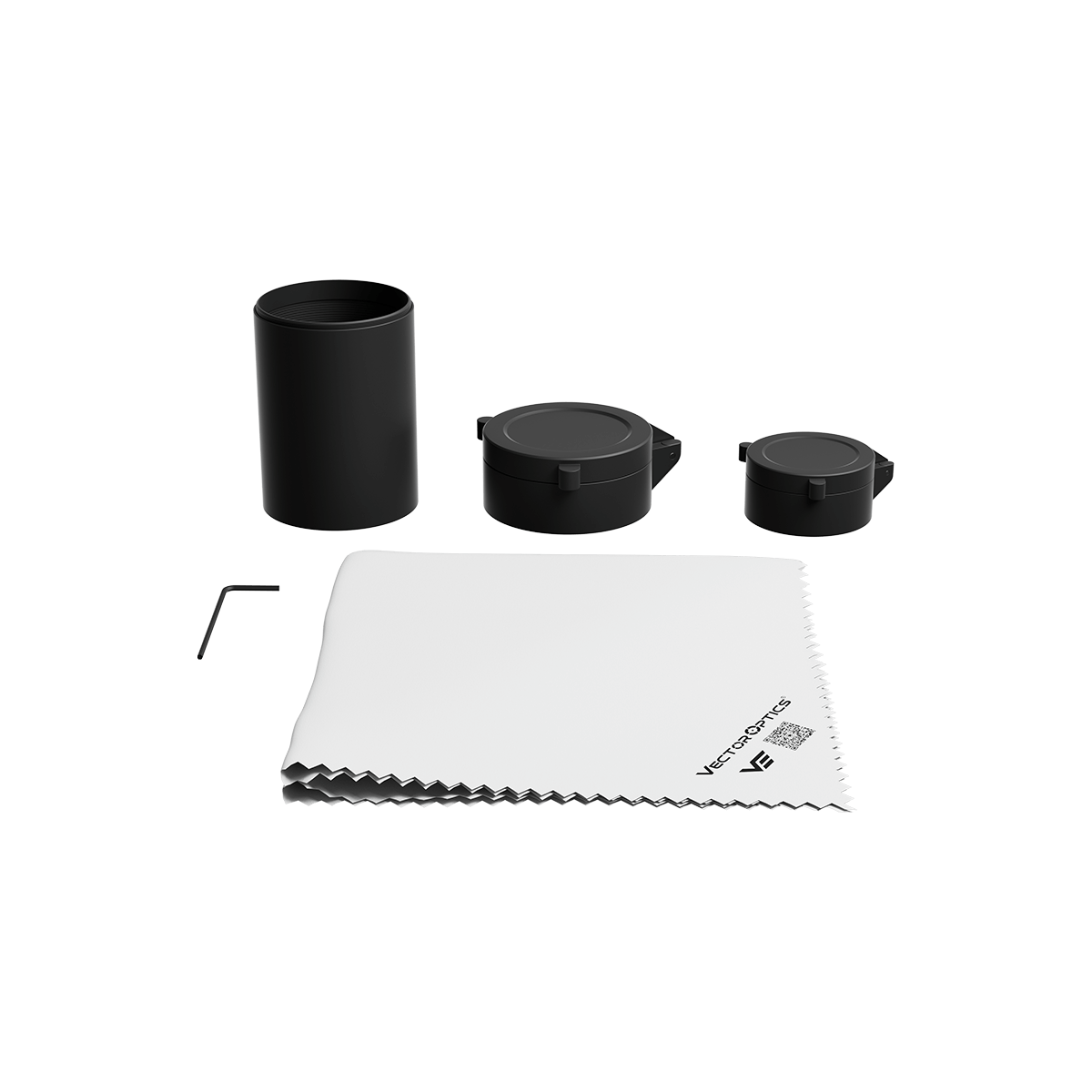

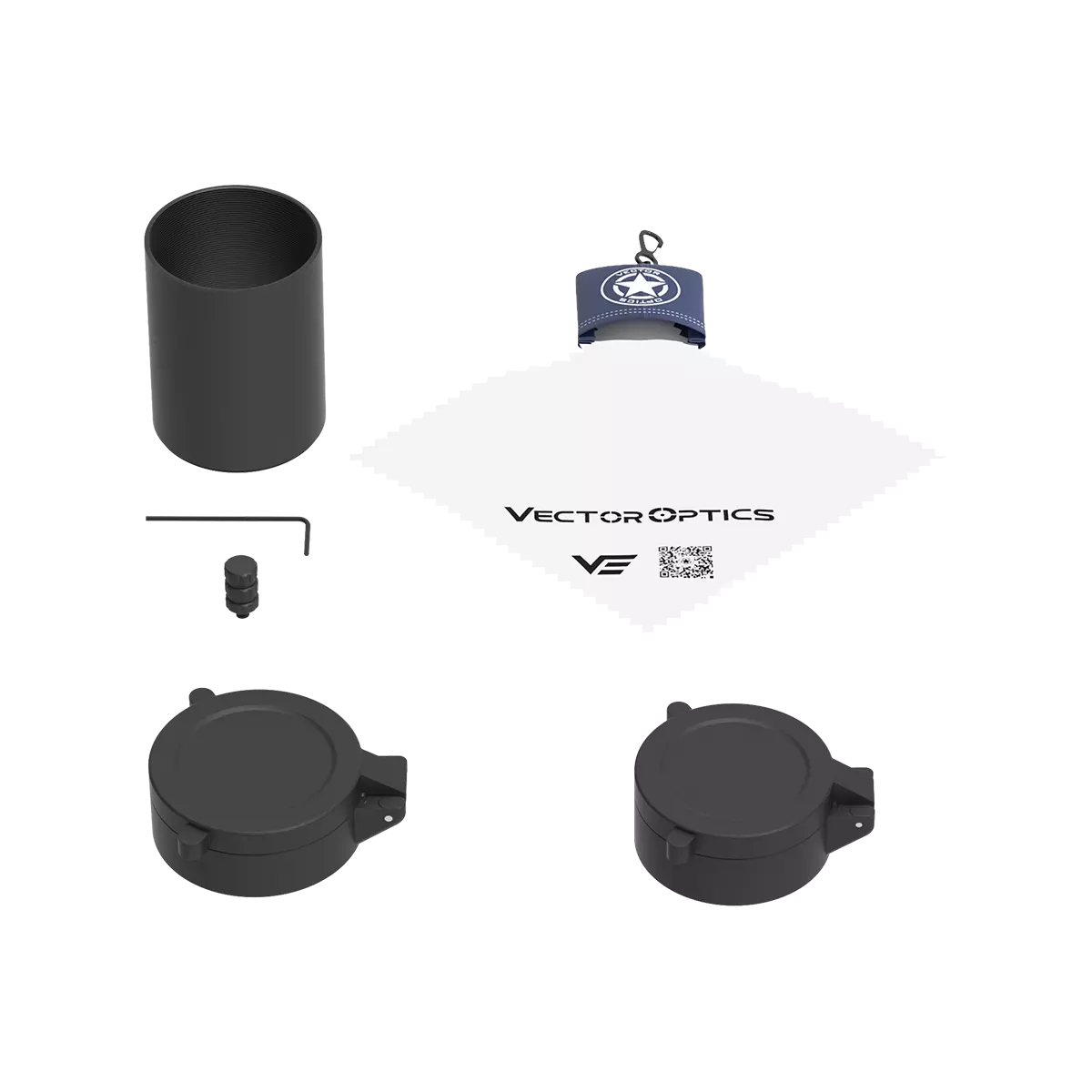

    Items in the Package Cleaning Cloth, Lens Caps, Sunshade,etc.

Reticle

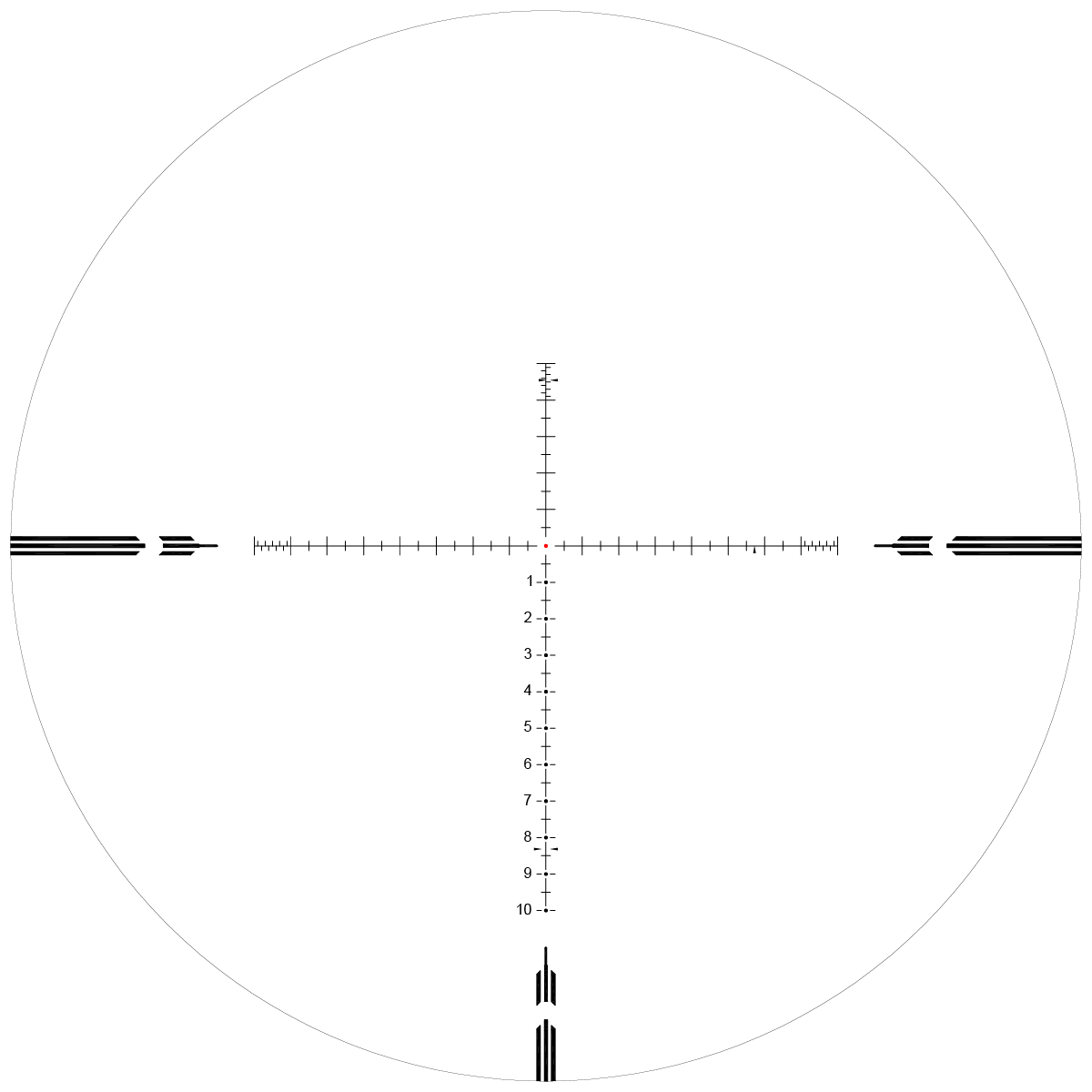

  • VOR-4 MIL

    Design for mid to long-range shooting

    Could be used for hunting and benchrest shooting
  • VOR-4 MIL Subtension

    0.08 Mil center dot and 0.5 Mil circle for precise aiming during long-range shooting

    Mil dot for range estimation and BDC

Download

  • Orion User Manual
  • VOR-4 MIL FFP Reticle Single Page

Warranty Policy

The product comes with a 5-year warranty.
