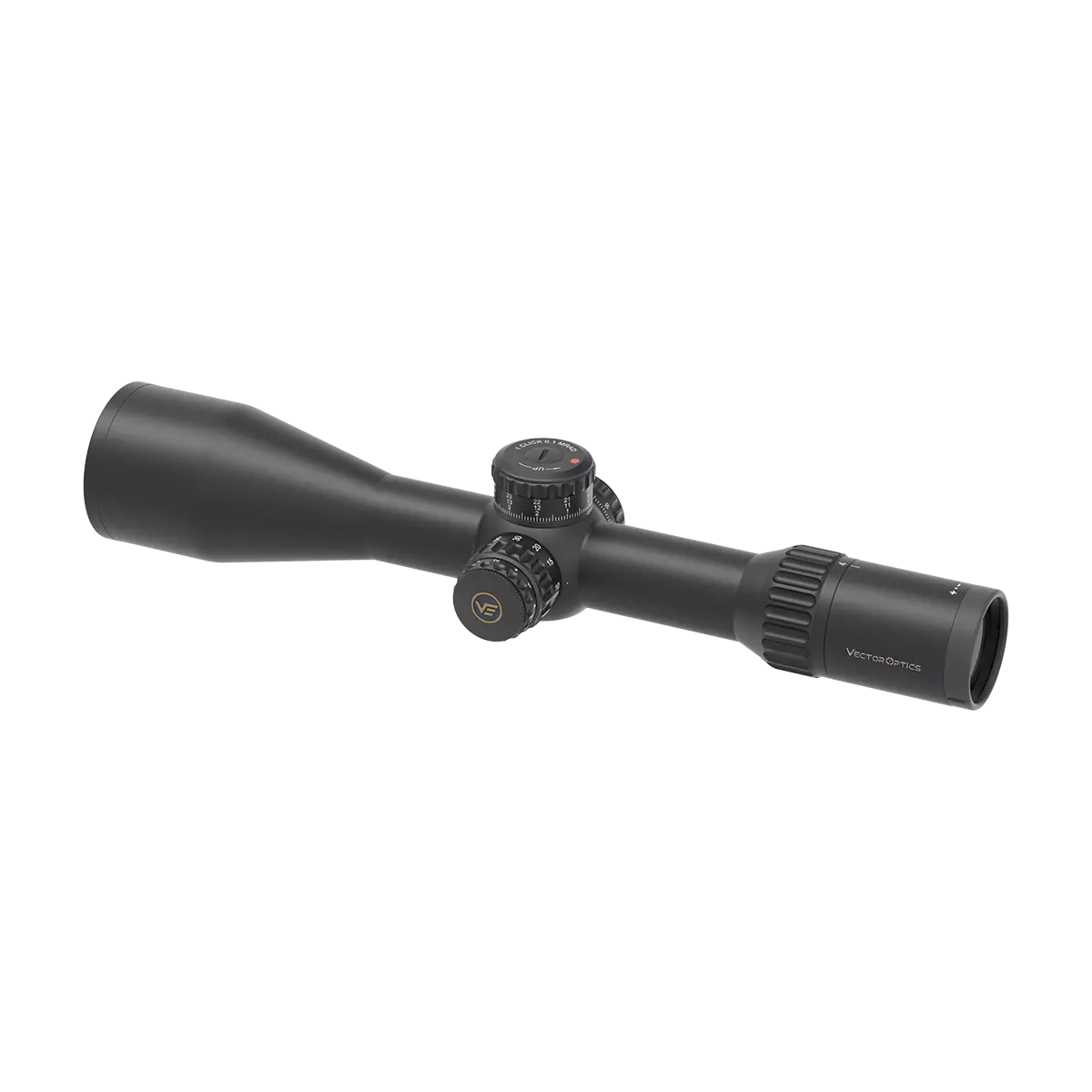

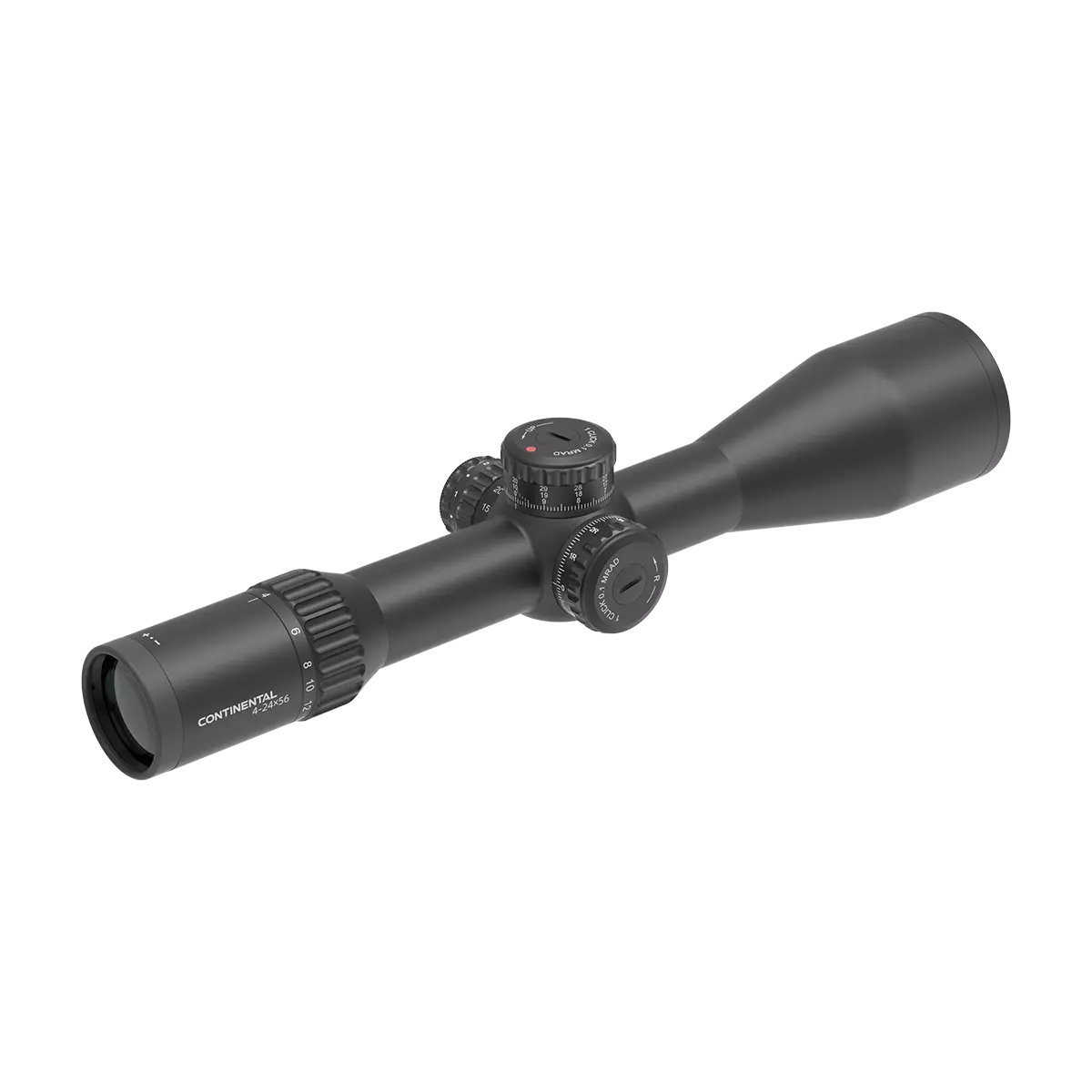

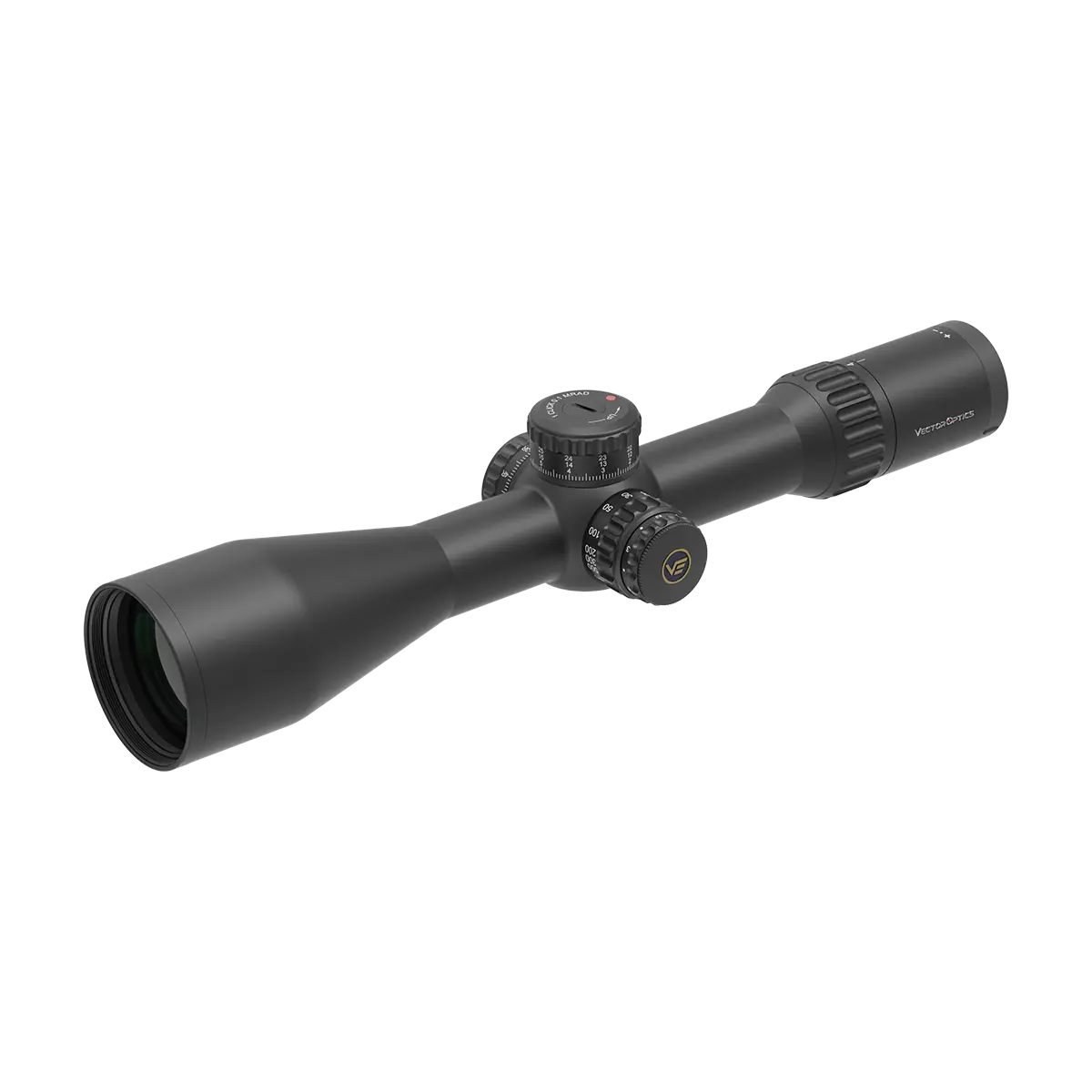

34mm Monotube to Maximize Elevation and Windage Adjustment Range, 56mm Large Objective Lens for Bright Images German Schott HT Glass with VePRO FMC Guarantees 90% Light Transmission for Crystal Clear and Bright Images Etched Glass VCT-34 FFP Reticle to Compensate for Bullet Drop for Precise Shooting, Ideal for Competition Zero Stop to Return to a Pre-Set Zero Point without Additional Adjustments, Turret Lock to Prevent Unwanted Changes
| Magnification | 4-24x |
| Objective Lens Dia | 56 mm |
| Focal Plane | Firs Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 30.6-5.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 10.2-1.7 m @ 100 meters |
| Angular Field of View ° | 5.9-1.0° |

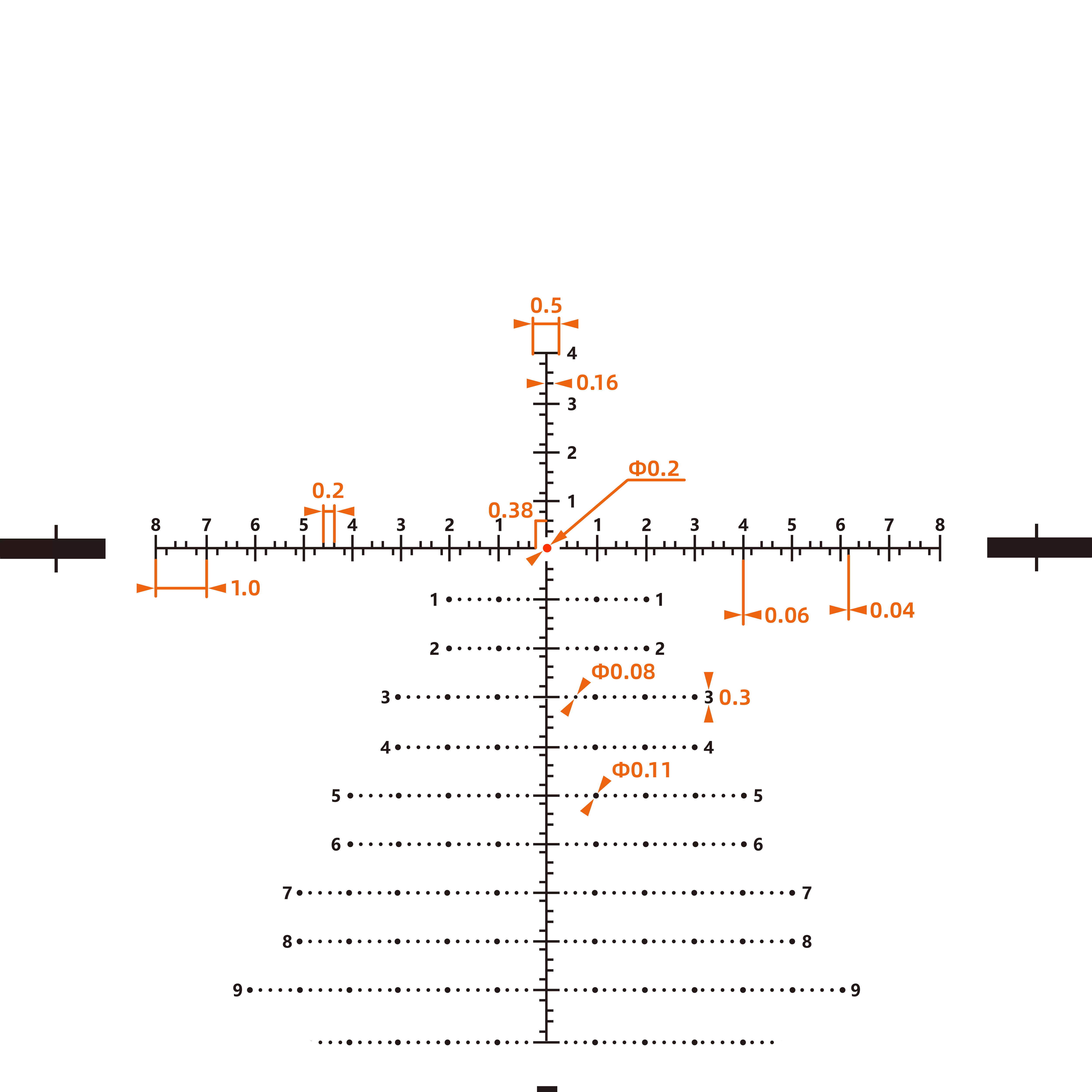

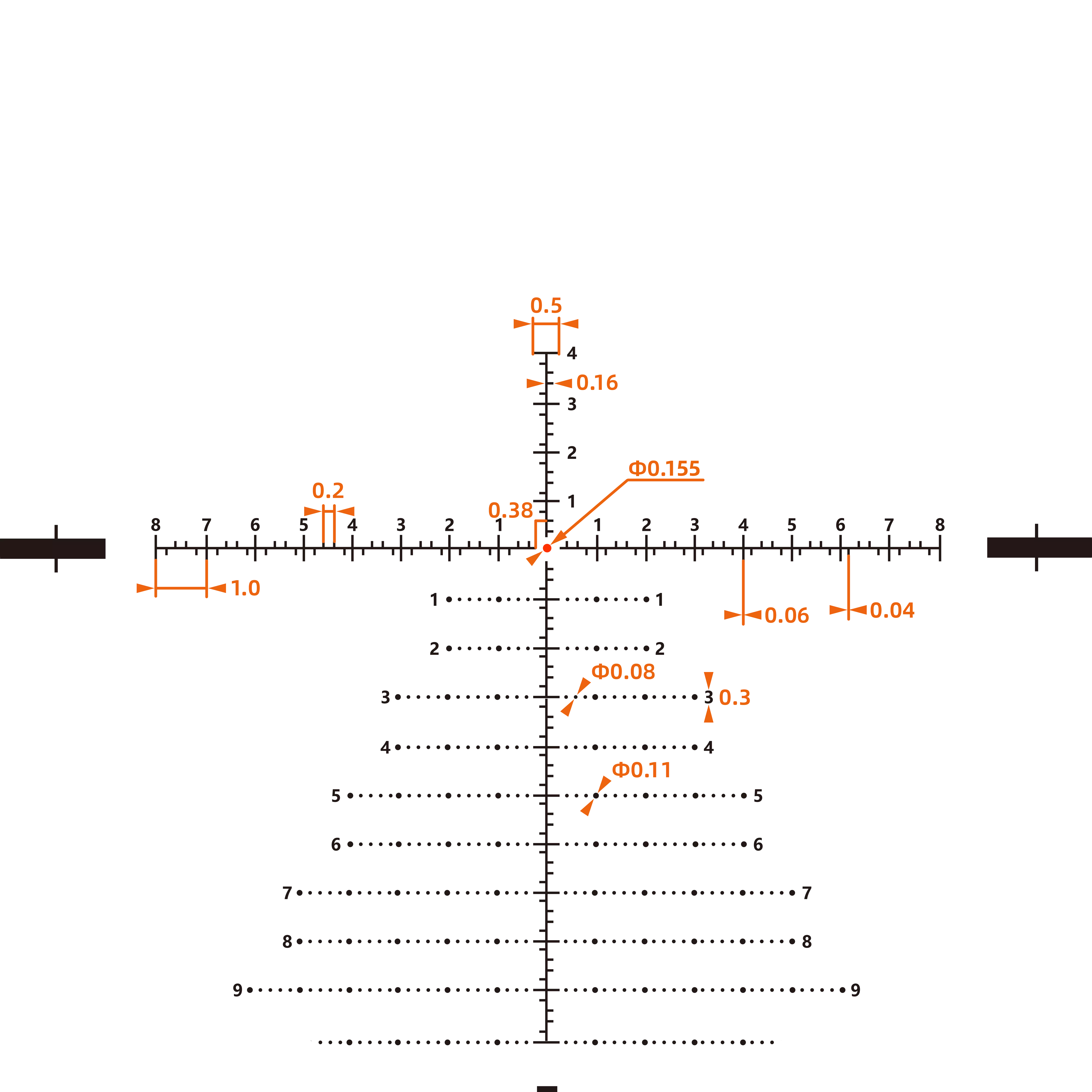

| Reticle | VCT-34FFP |
| Tube Dia | 34 mm |

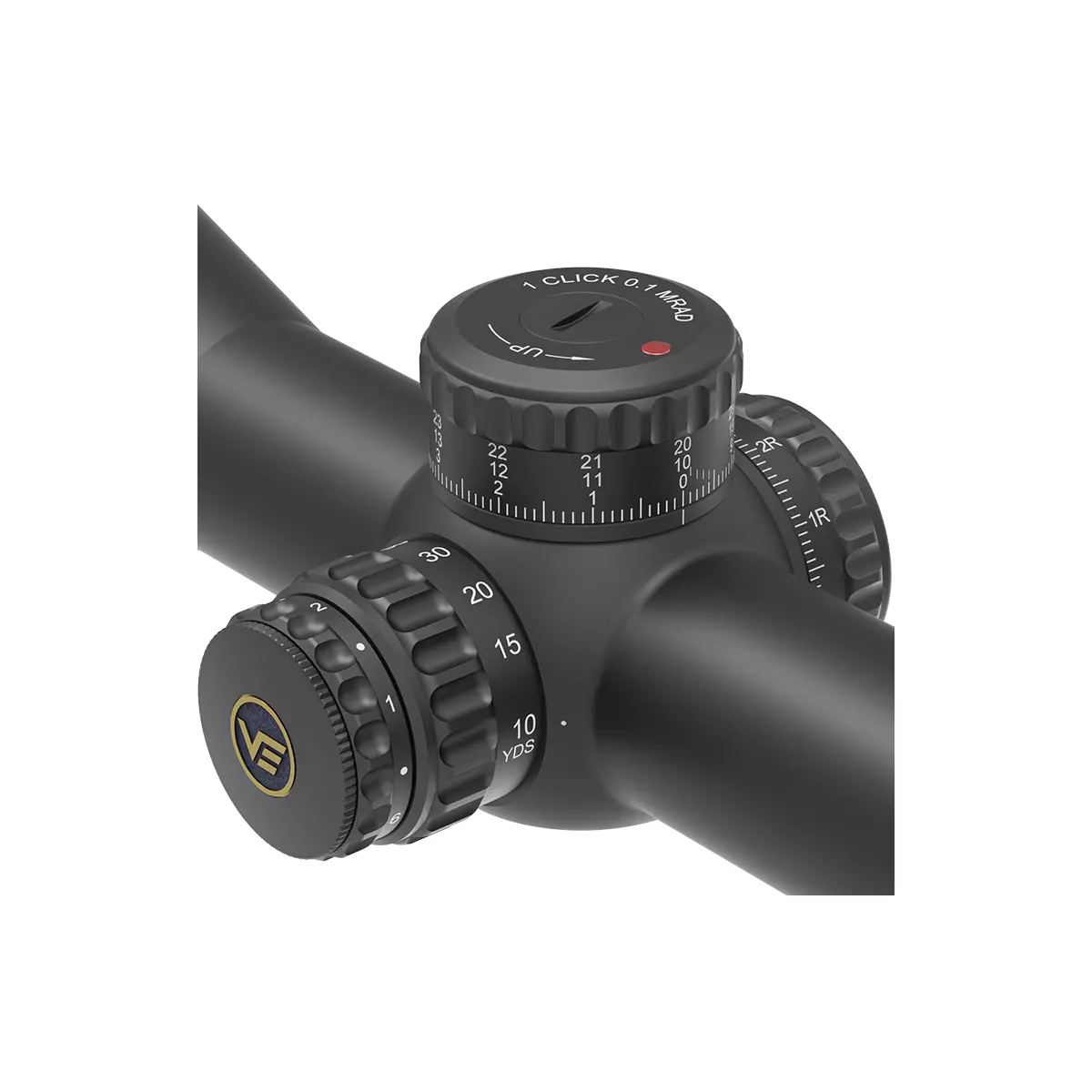

| Side Focus | 10 yards to Infinity |

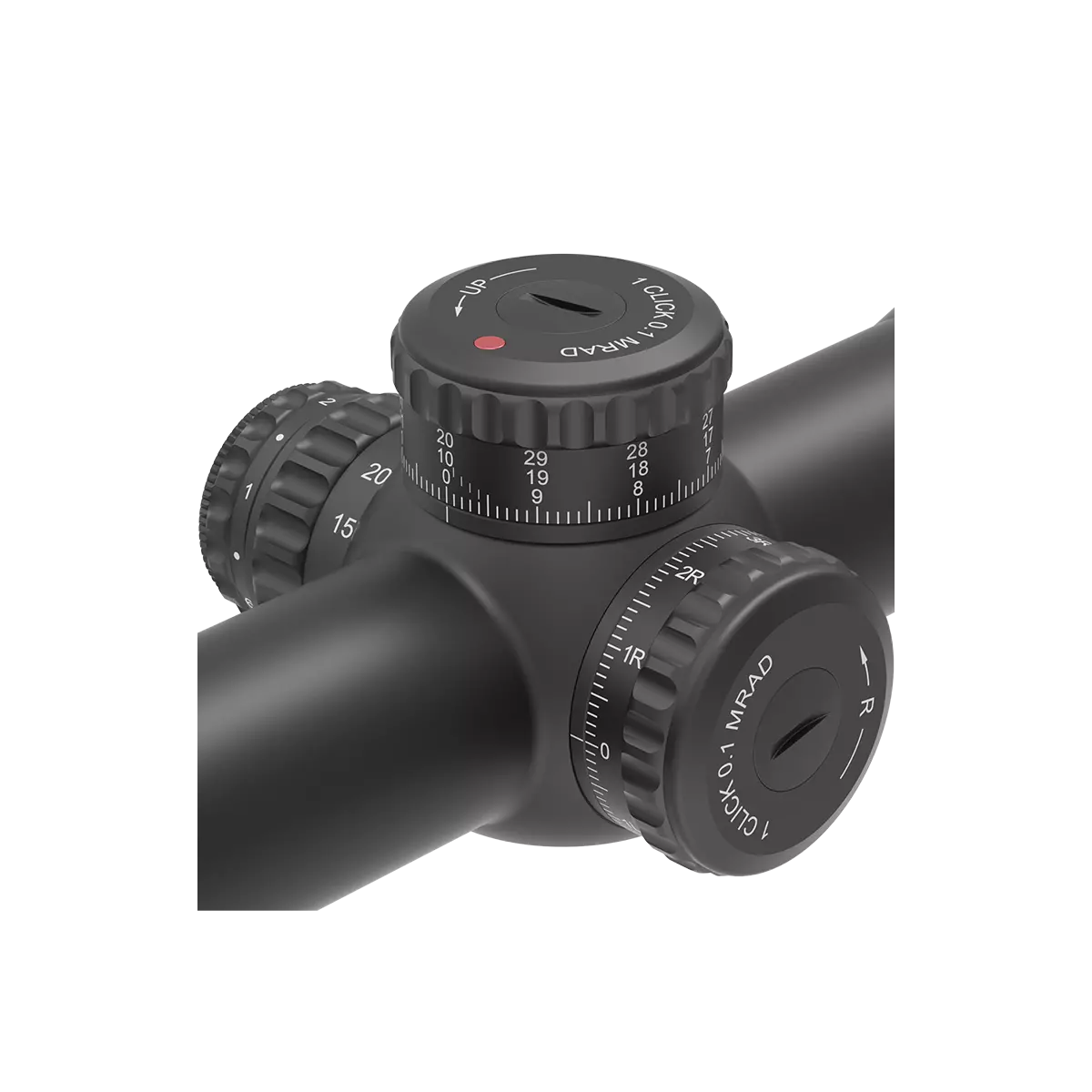

| Click Value | 1/10 MIL |
| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | 34 MIL |
| Windage Adjustment Range | 16 MIL |
| Diopter Compensation | -3 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 362 mm / 14.3 in |
| Weight | 850 g / 30.0 oz |

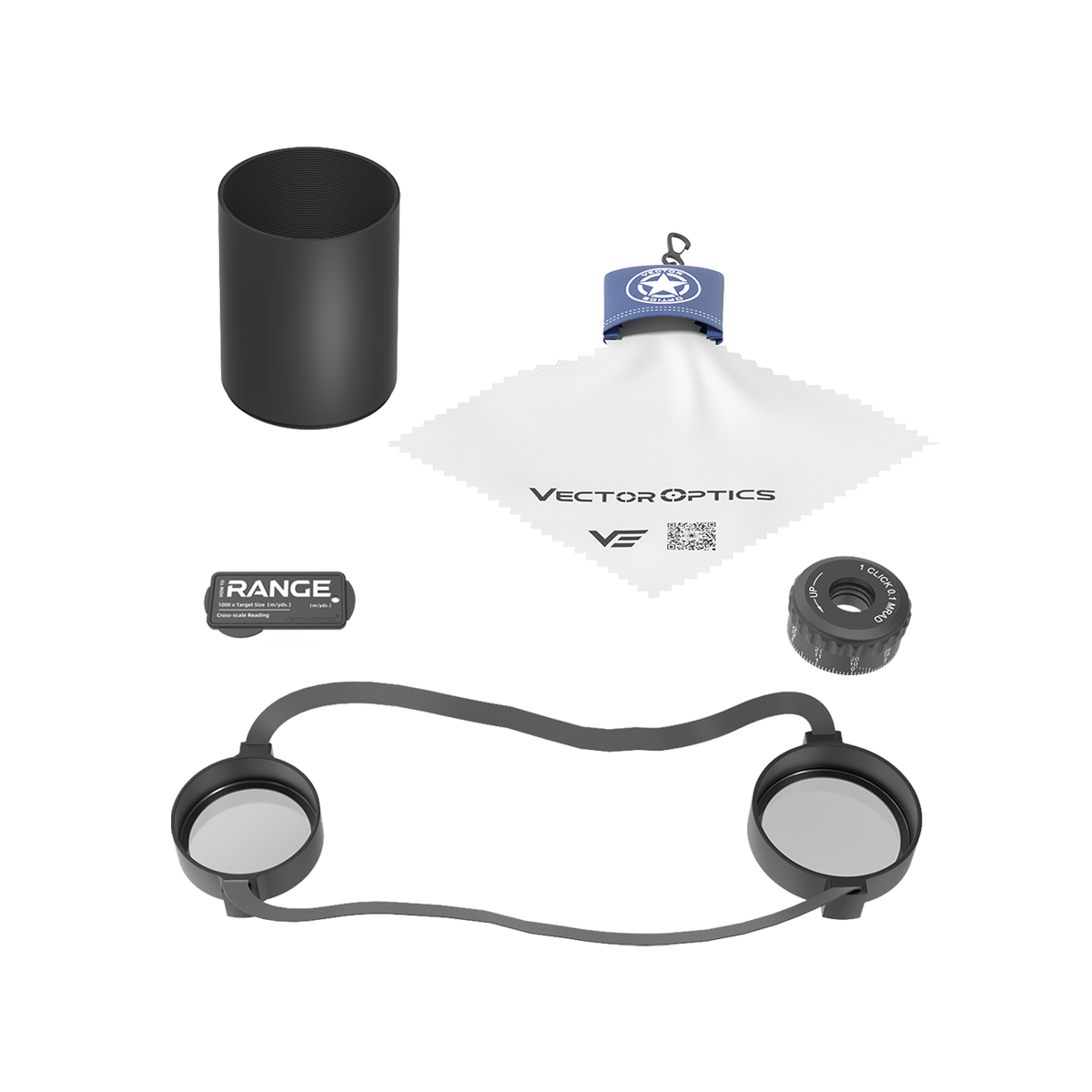

| Items in the Package | One Pair of 34mm Picatinny Scope Rings, Spare Elevation Turret (without zero stop feature), Sunshade, Instruction, Lens Caps and Cleaning Cloth |
