VEC-MBR Reticle, 0.04 MIL Center Dot, 0.2 MIL Hashmark Increment, Design for PRS (Precision Rifle Shooting) 34mm Monotube Maximize Elevation Adjustment Range to 34 MIL, 56mm Large Objective Lens Presents Brighter Images German Schott HT Glass with VePRO FMC Guarantees 90% Light Transmission for Crystal Clear and Bright Images Zero Stop to Return to a Pre-Set Zero Point without Additional Adjustments, Turret Lock to Prevent Unwanted Changes
| Magnification | 4-24x |
| Objective Lens Dia | 56 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 30.6-5.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 10.2-1.7 m @ 100 meters |
| Angular Field of View ° | 5.9-1.0 ° |
| Reticle | VEC-MBR |
| Tube Dia | 34 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | 34 MIL |
| Windage Adjustment Range | 16 MIL |
| Diopter Compensation | -3 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | FDE |
| Length | 362 mm / 14.3 in |
| Weight | 840 g / 29.6 oz |

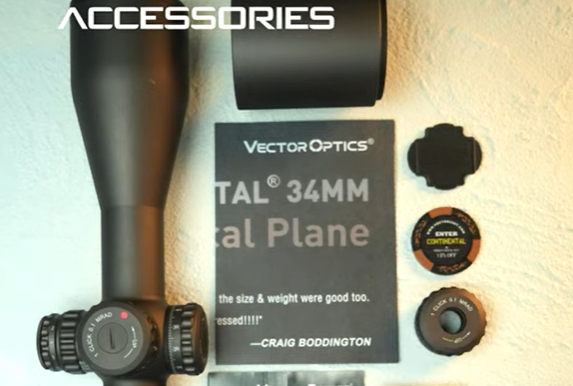

| Items in the Package | One Pair of 34mm Picatinny Scope Rings, Spare Elevation Turret (Without Zero-Stop Feature), Sunshade, Instruction, Lens Caps and Cleaning Cloth, etc. |

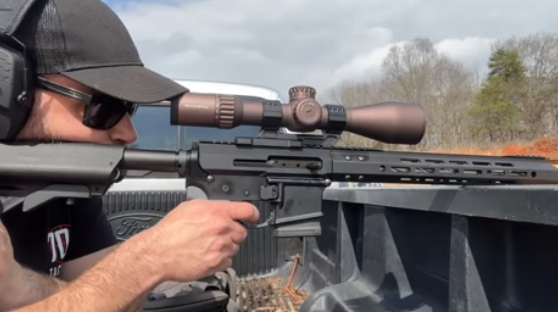

Shooting
