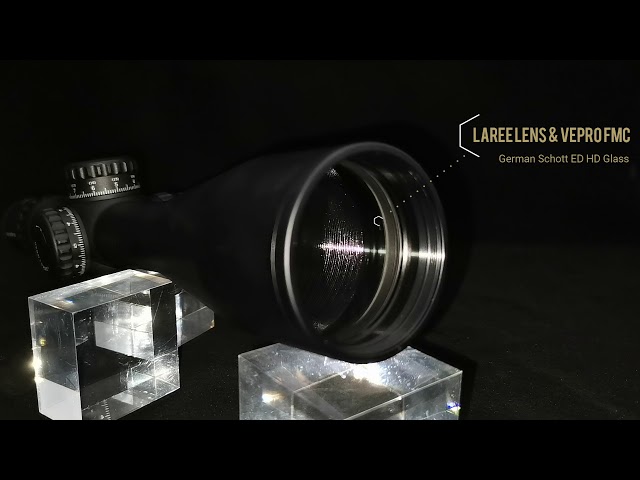

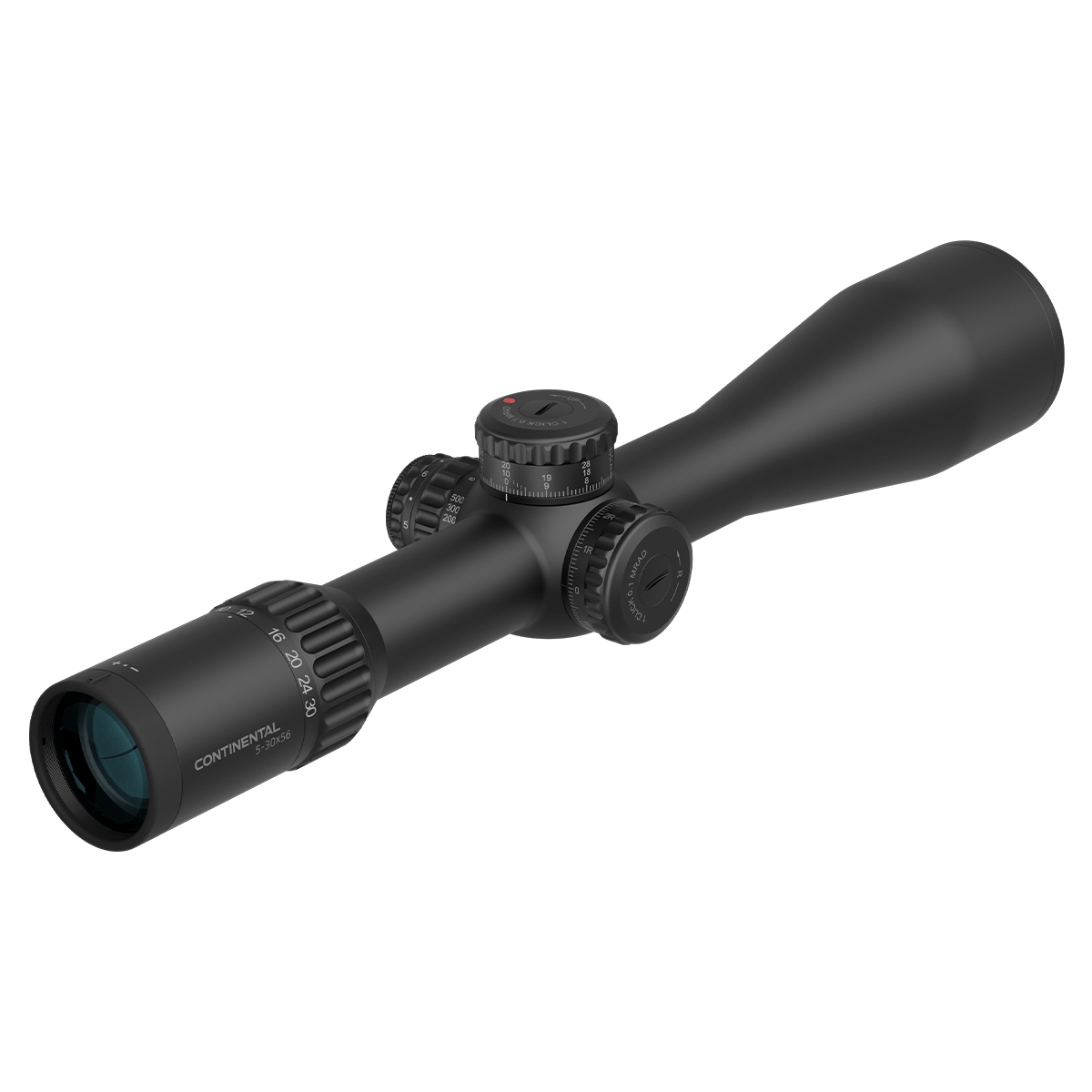

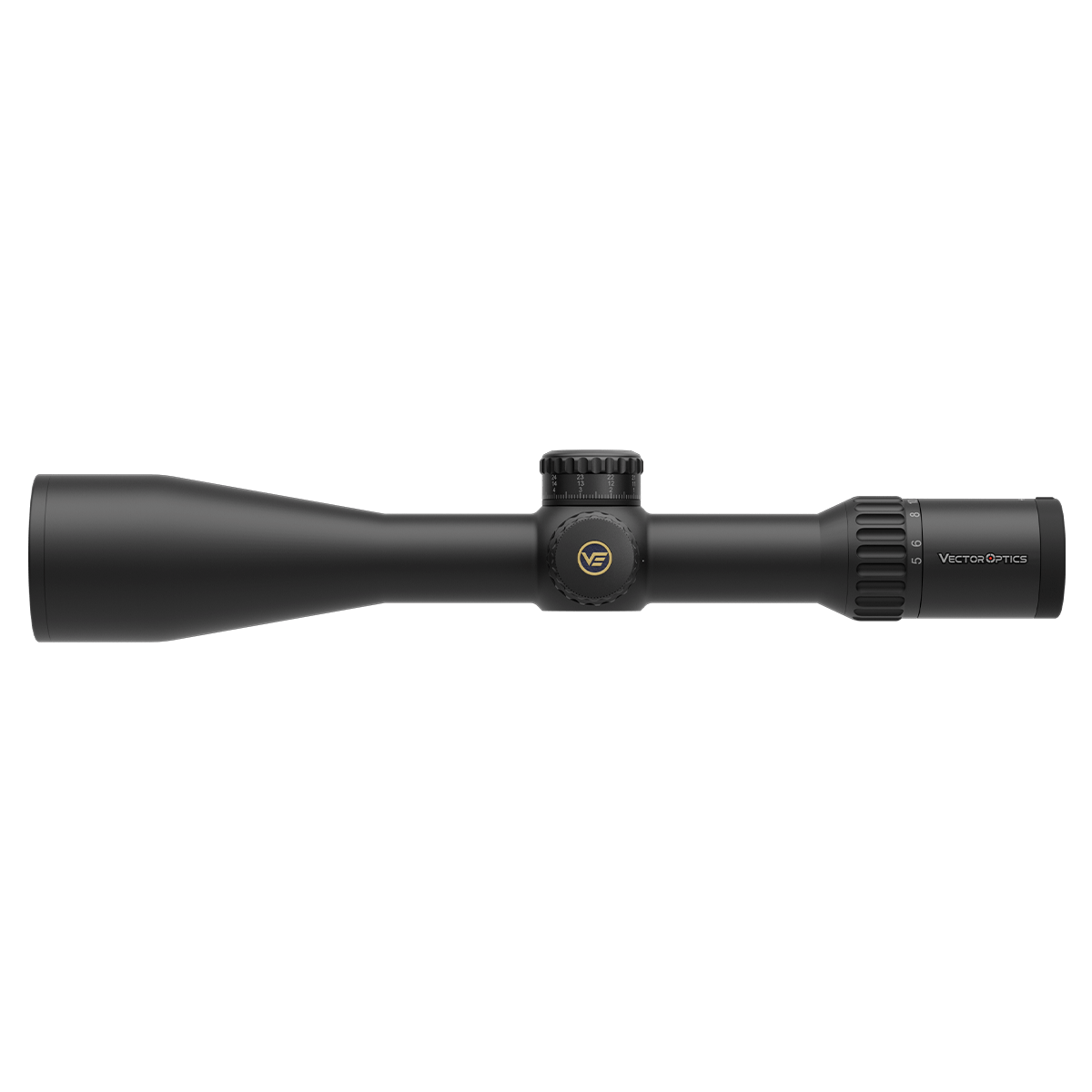

34mm Monotube to Maximize Elevation and Windage Adjustment Range, 56mm Large Objective Lens Presents Brighter Images German Schott HT Glass with VePRO FMC Guarantees 90% Light Transmission for Crystal Clear and Bright Images Zero Stop to Return to a Pre-Set Zero Point without Additional Adjustments, with a Turret Lock to Prevent Unwanted Changes Etched Glass VCT-34FFP Reticle to Compensate for Bullet Drop for Precise Shooting, Ideal for Competition
| Magnification | 5-30x |
| Objective Lens Dia | 56 mm |
| Focal Plane | First Focal Plane |
| Eye Relief | 100 mm / 4.0 in |
| Lens Coating | Fully Multi-coated |
| Linear Field of View @ 100 yd | 24.5-4.1 ft @ 100 yards |
| Linear Field of View @ 100 m | 8.1-1.36 m @ 100 meters |
| Angular Field of View ° | 4.7-0.8° |

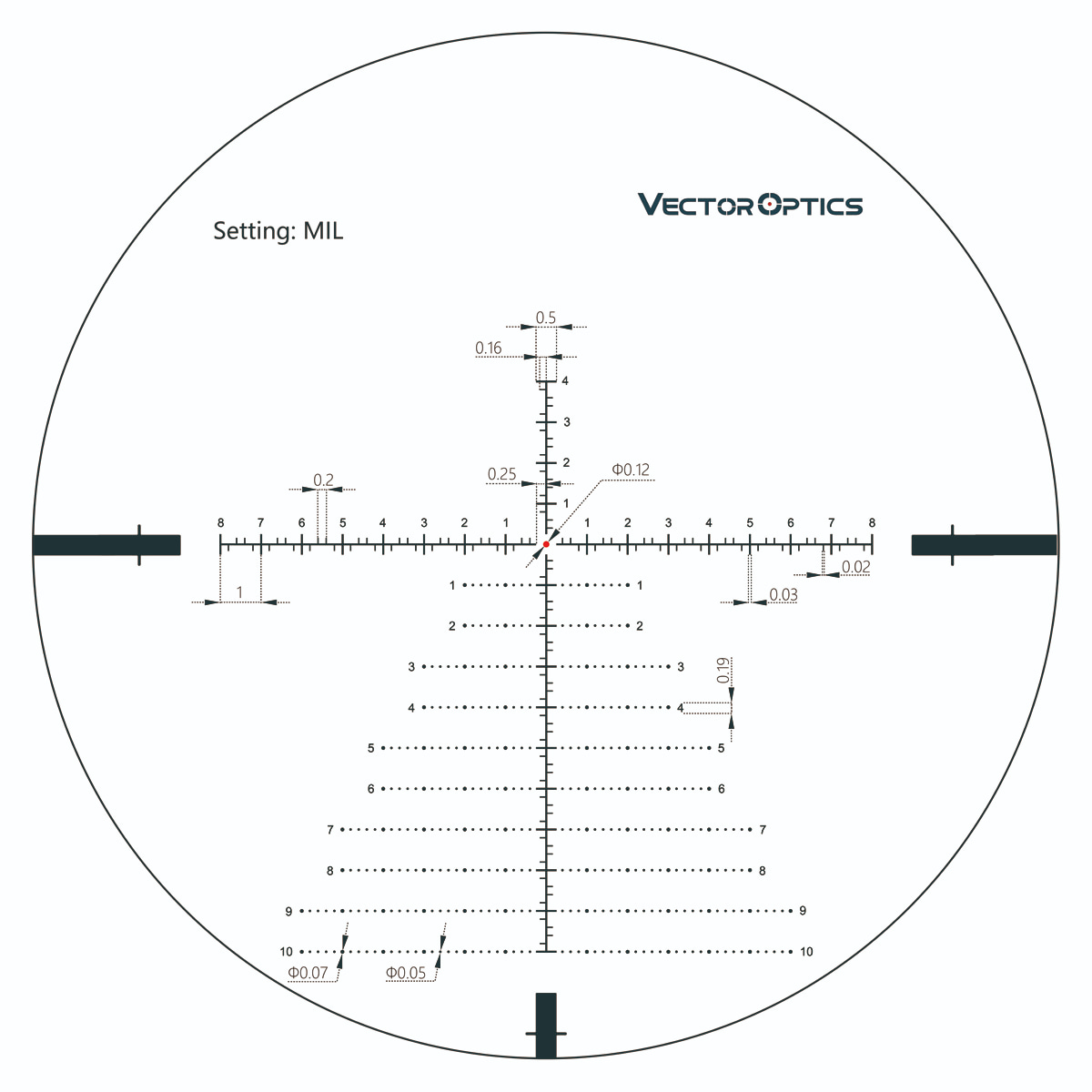

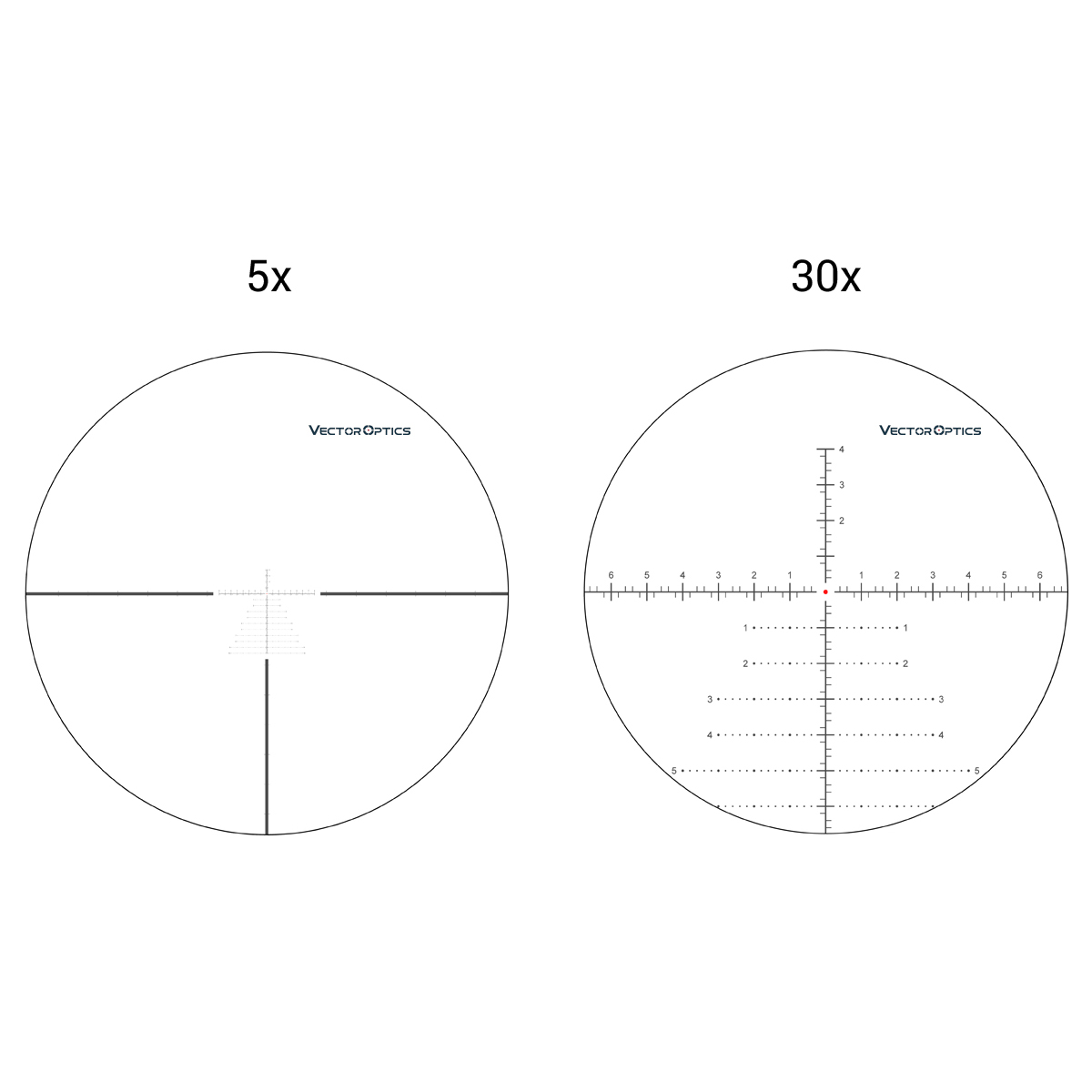

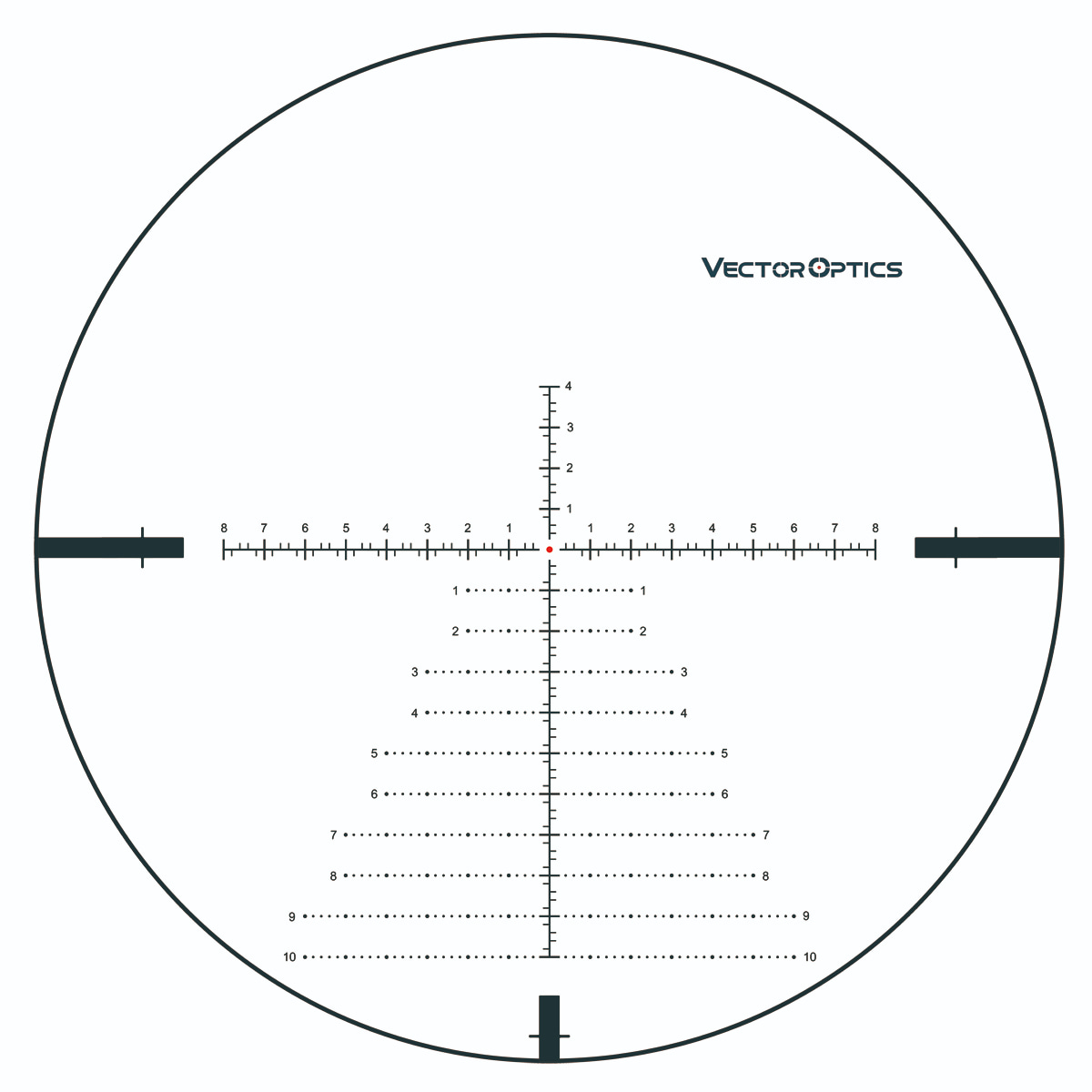

| Reticle | VCT-34 FFP |
| Tube Dia | 34 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |

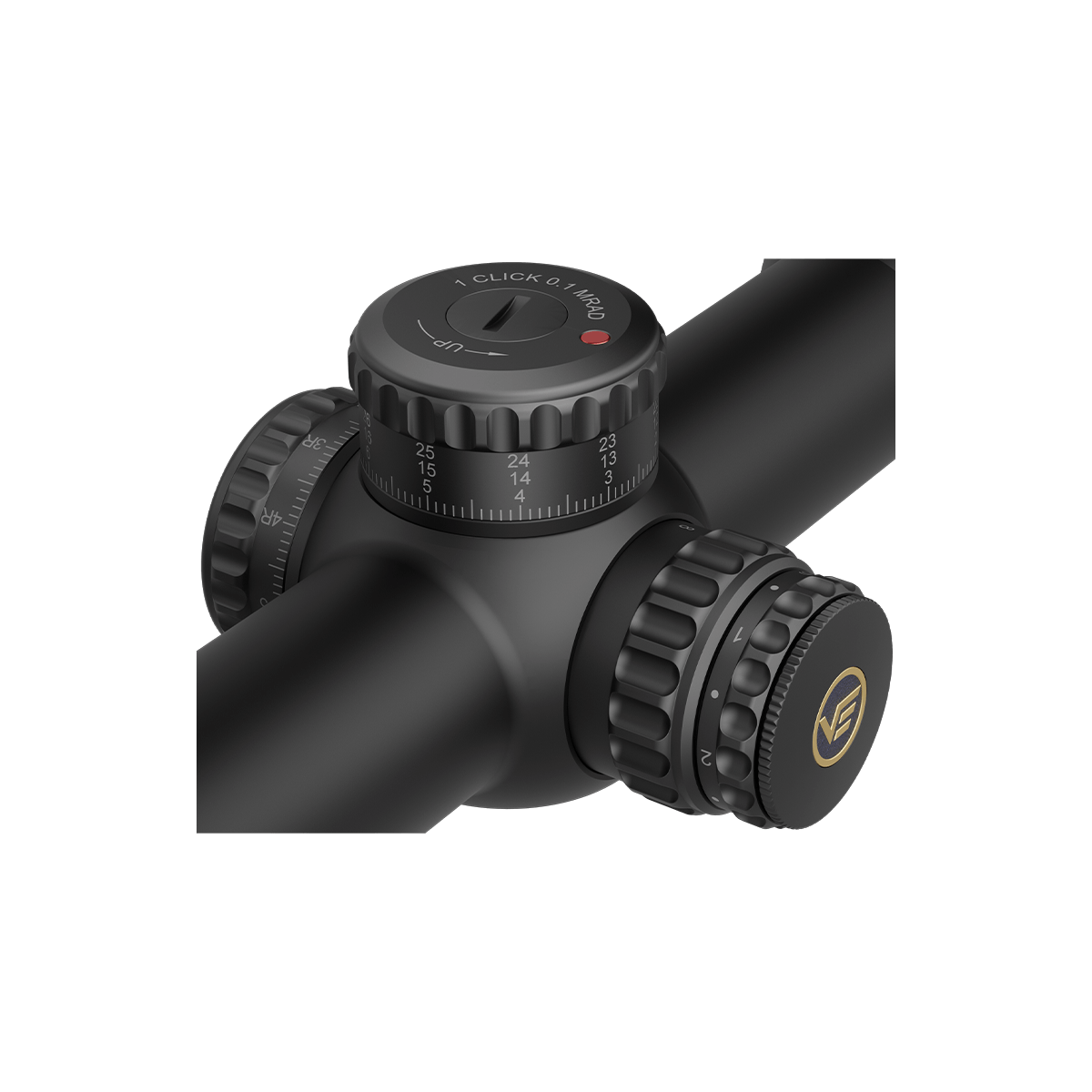

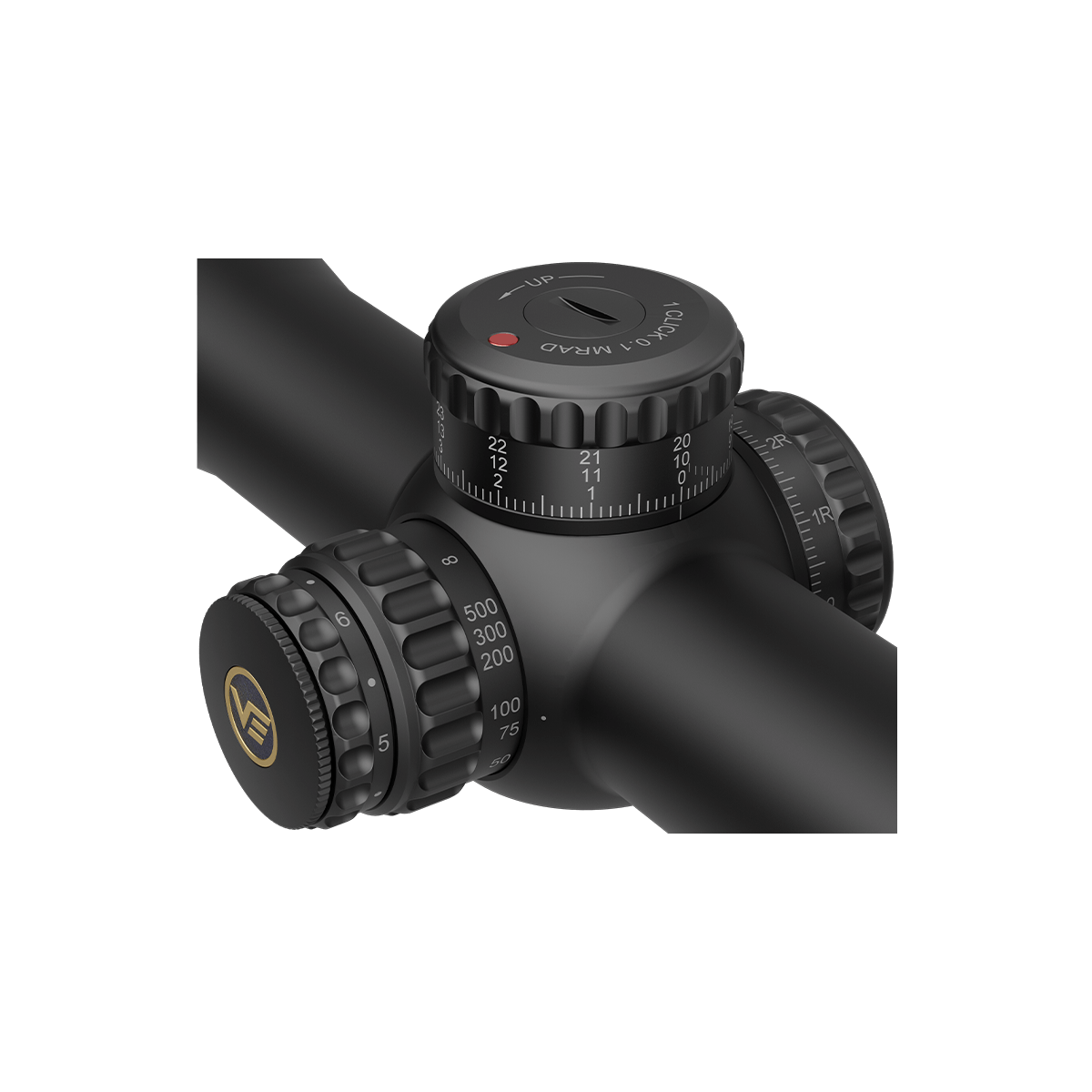

| Turret Function | Zero Stop, Turret Lock |
| Elevation Adjustment Range | 26 MIL |
| Windage Adjustment Range | 16 MIL |
| Diopter Compensation | -3 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 |
| Battery Life | N/A |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 1000 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

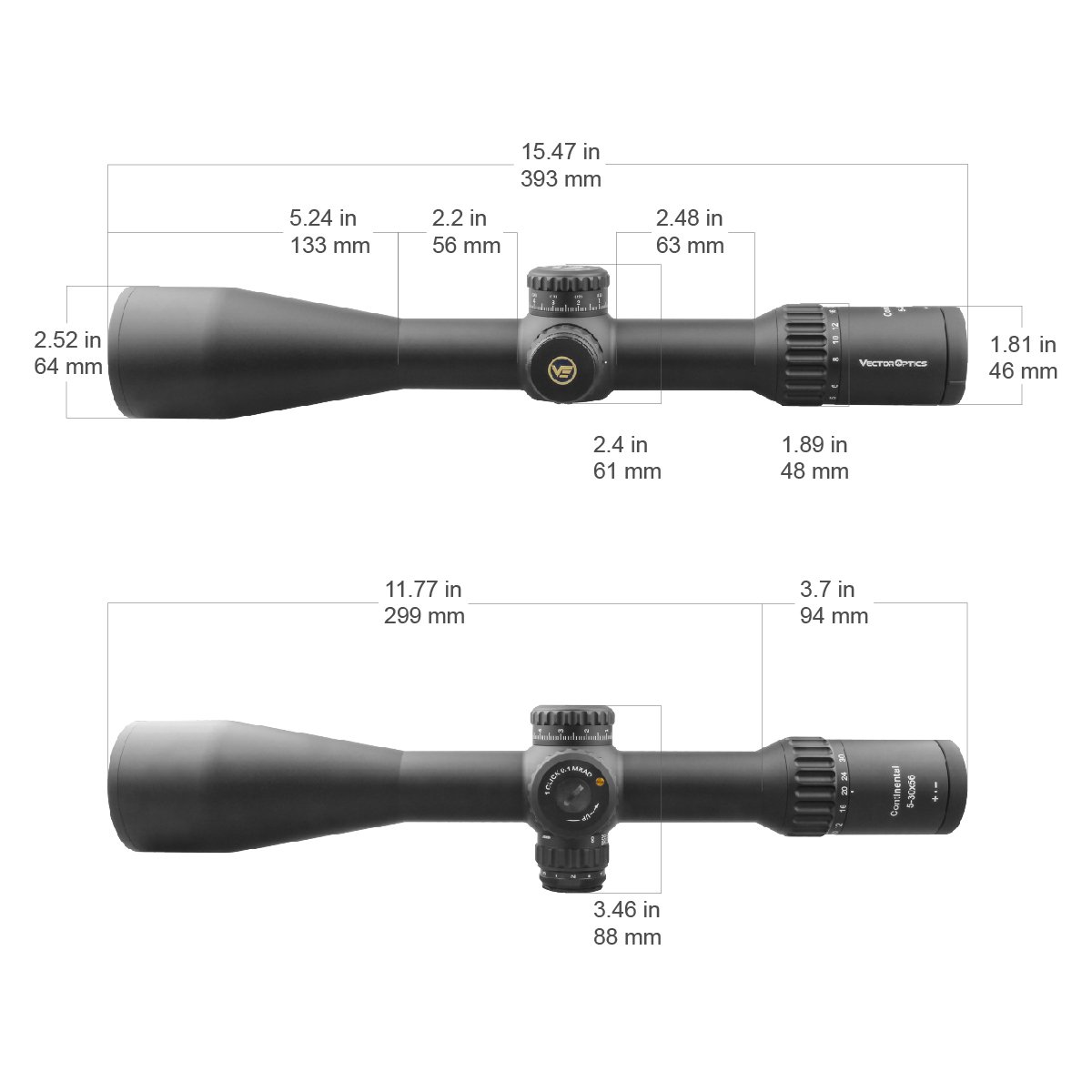

| Length | 393 mm / 15.5 in |
| Weight | 810 g / 28.6 oz |

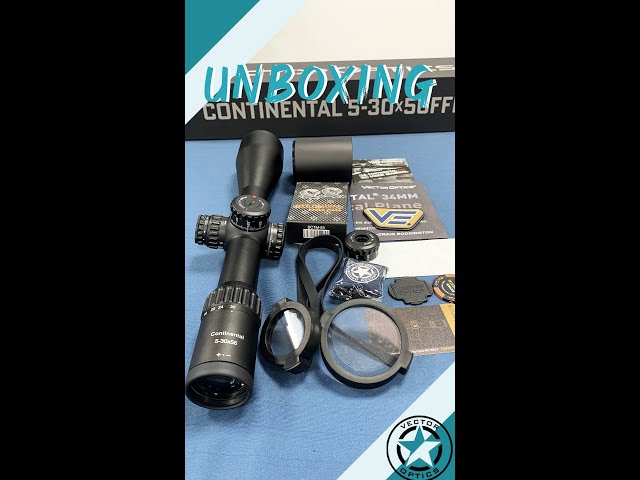

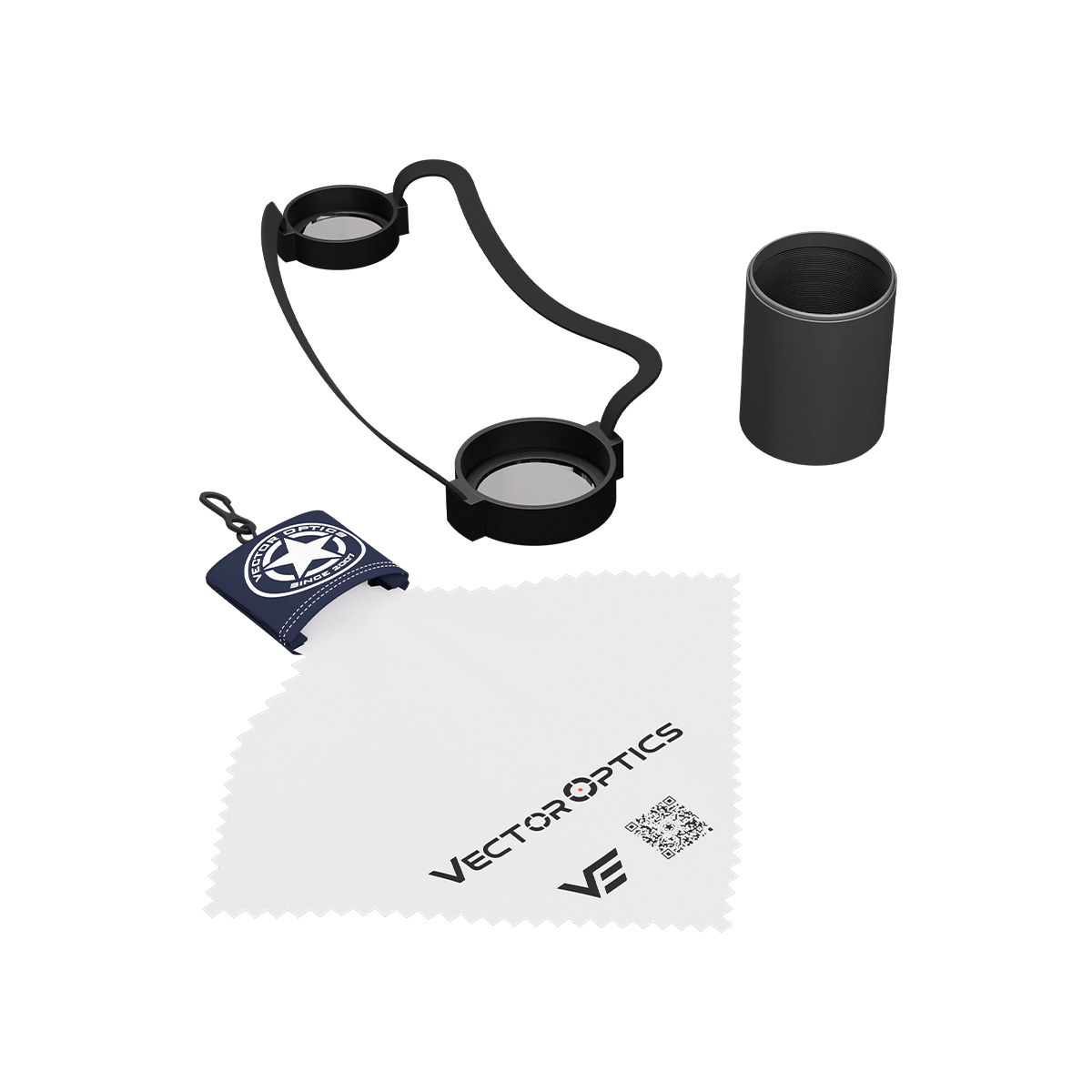

| Items in the Package | One Oair of 34mm Picatinny Scope Rings, Spare Elevation Turret (without zero stop feature), Sunshade, Instruction, Lens Caps and Cleaning Cloth. |
