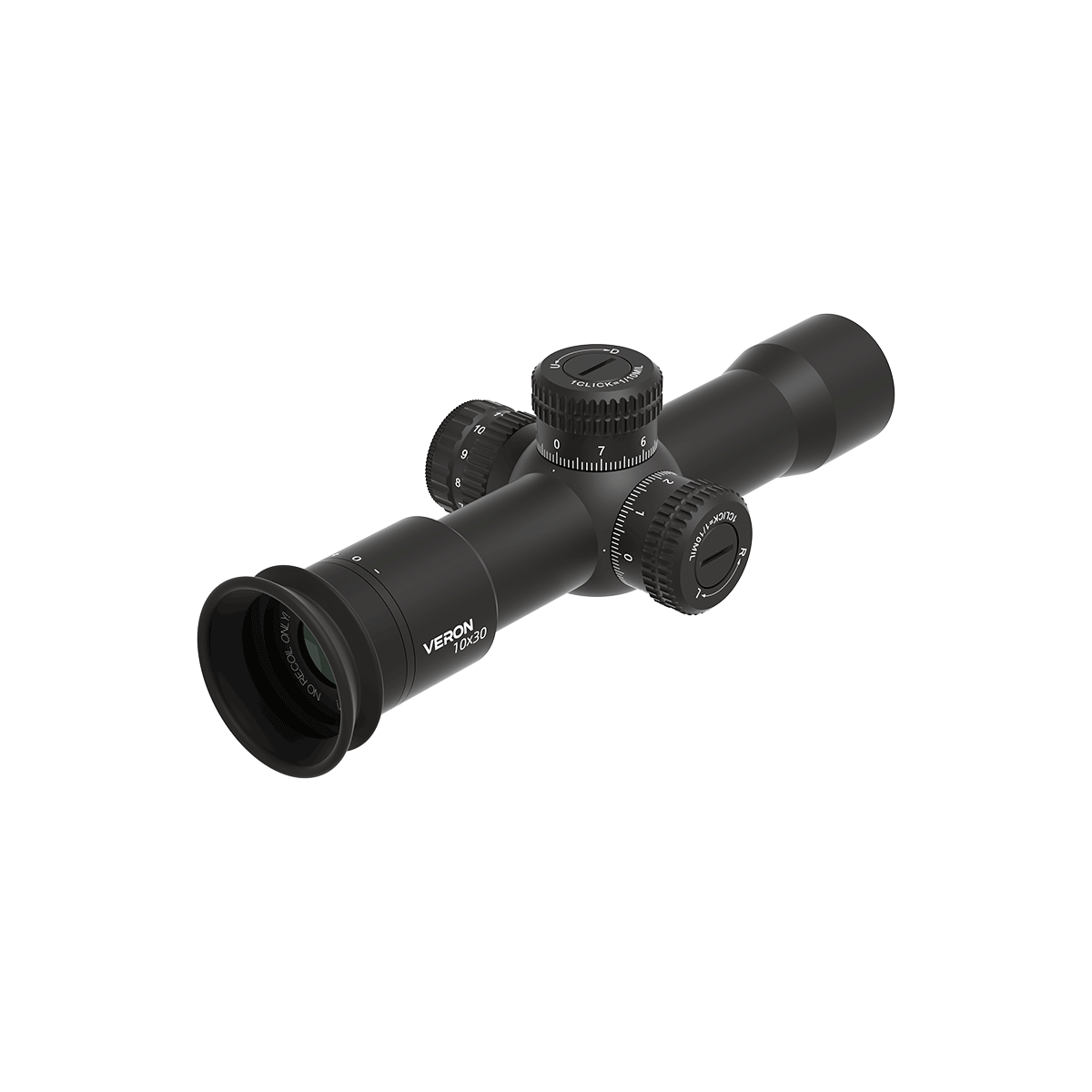

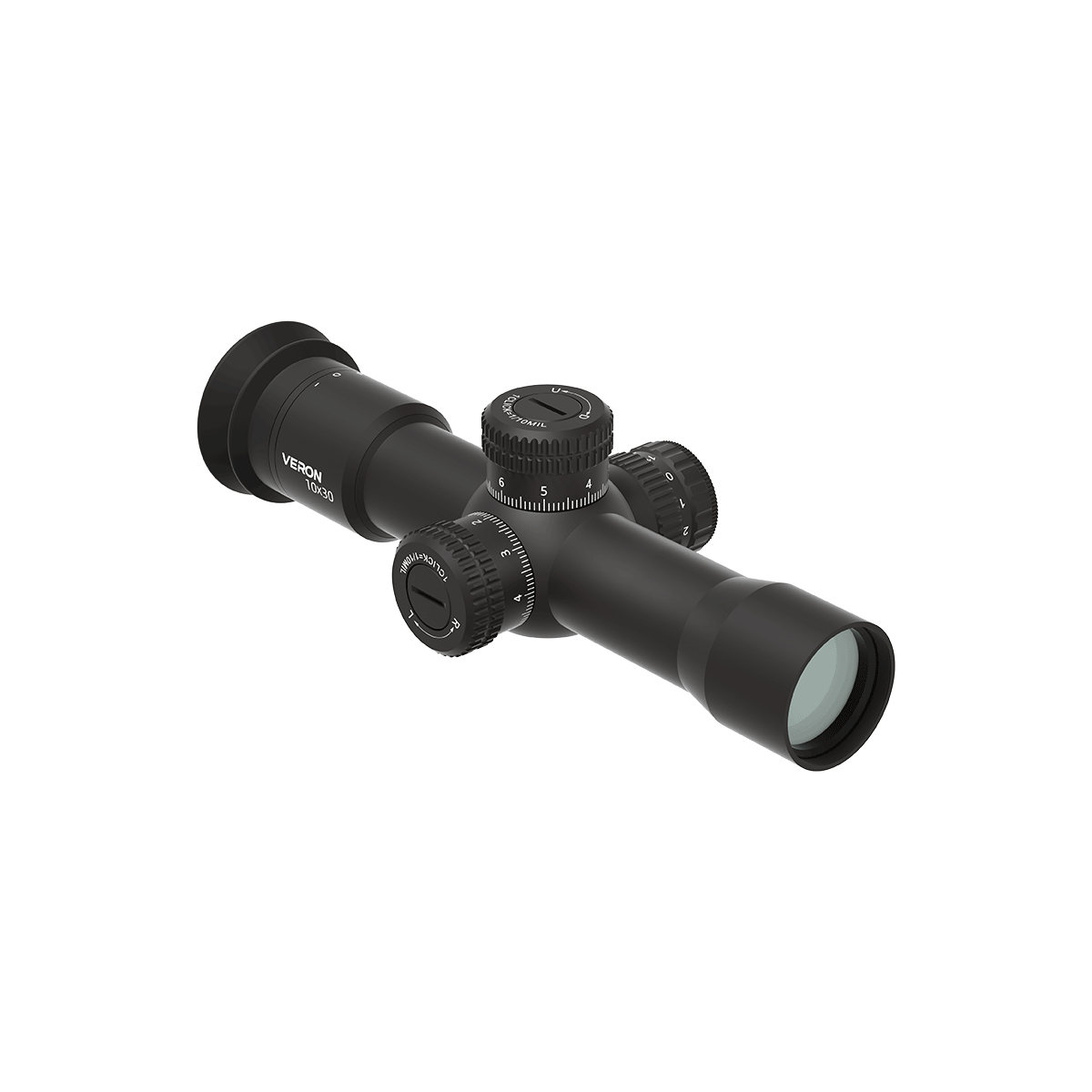

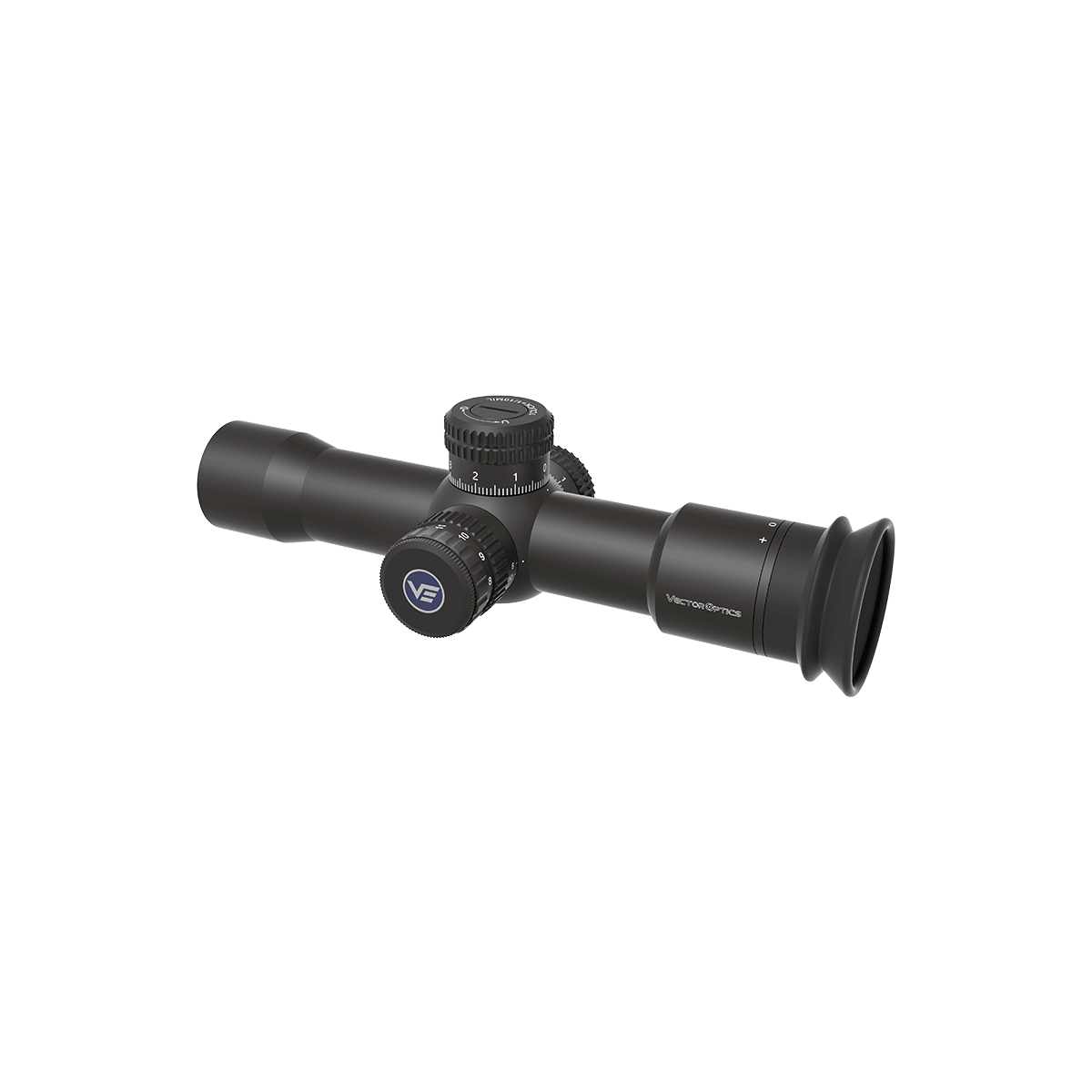

17mm Super Short Eye Relief 10x Fixed Scope, Designed for No-Recoil Airguns in Field Target Ultra-Wide 5.4° FOV at 100m, 700% Wider than Previous Model, Perfect for Small Game Hunting 0.18 MIL Center Dot for Field Target Precise Aiming, Christmas Tree for Fast Follow-up Correction Fully Multi-Coated Lens Presents Bright and Crisp Sight Pictures, Side Focus Starts from 6m Rubber Eyecup on Ocular Lens Achieves Zero Eye Relief for Instant Alignment and Quick Targeting
| Magnification | 10x |
| Objective Lens Dia | 30 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 17 mm / 0.67 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 28.3 ft @ 100 yards |
| Linear Field of View @ 100 m | 9.4 m @ 100 meters |
| Angular Field of View ° | 5.4 ° |
| Tube Dia | 30 mm |
| Side Focus | 6 m to Infinity |
| Click Value | 1/10 MIL |

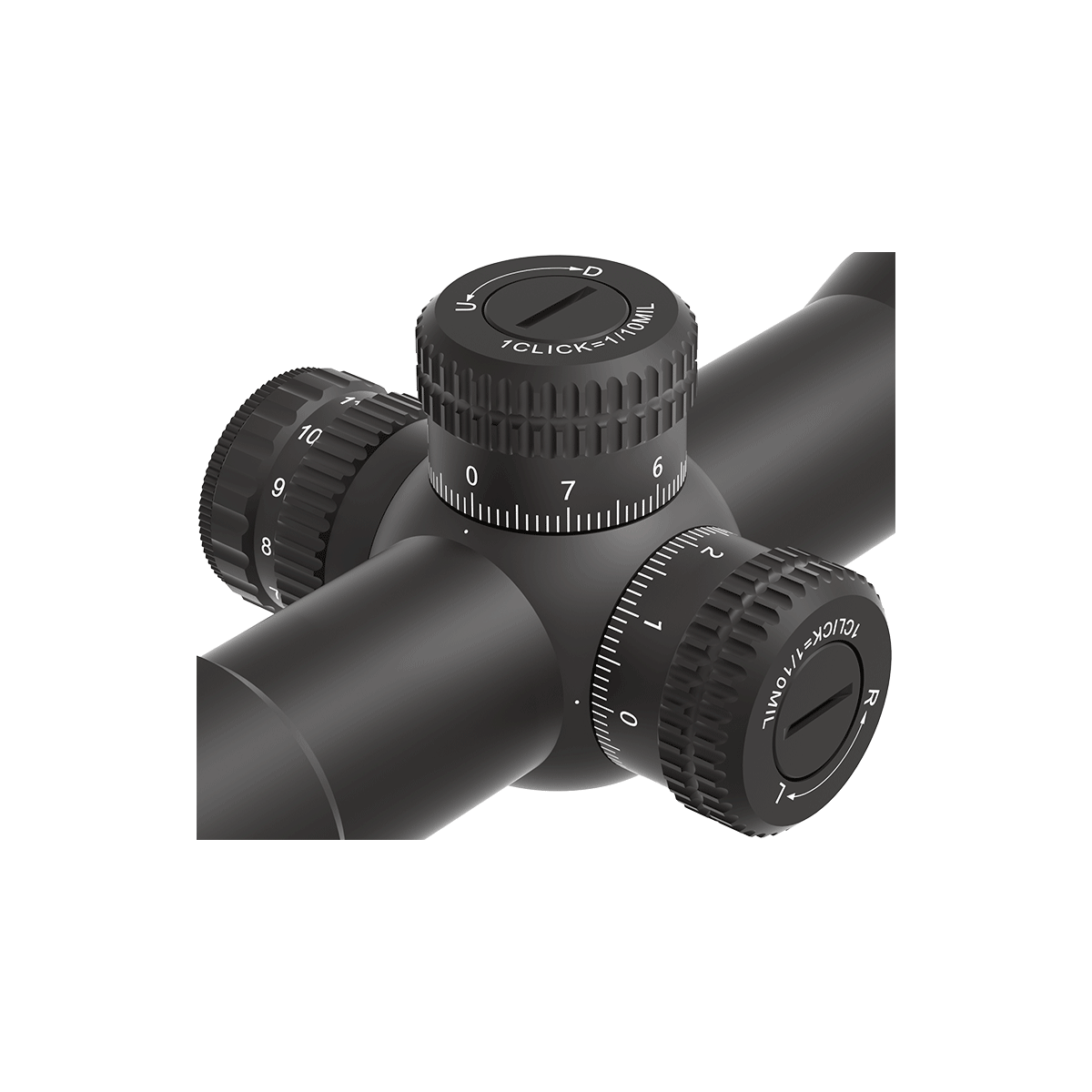

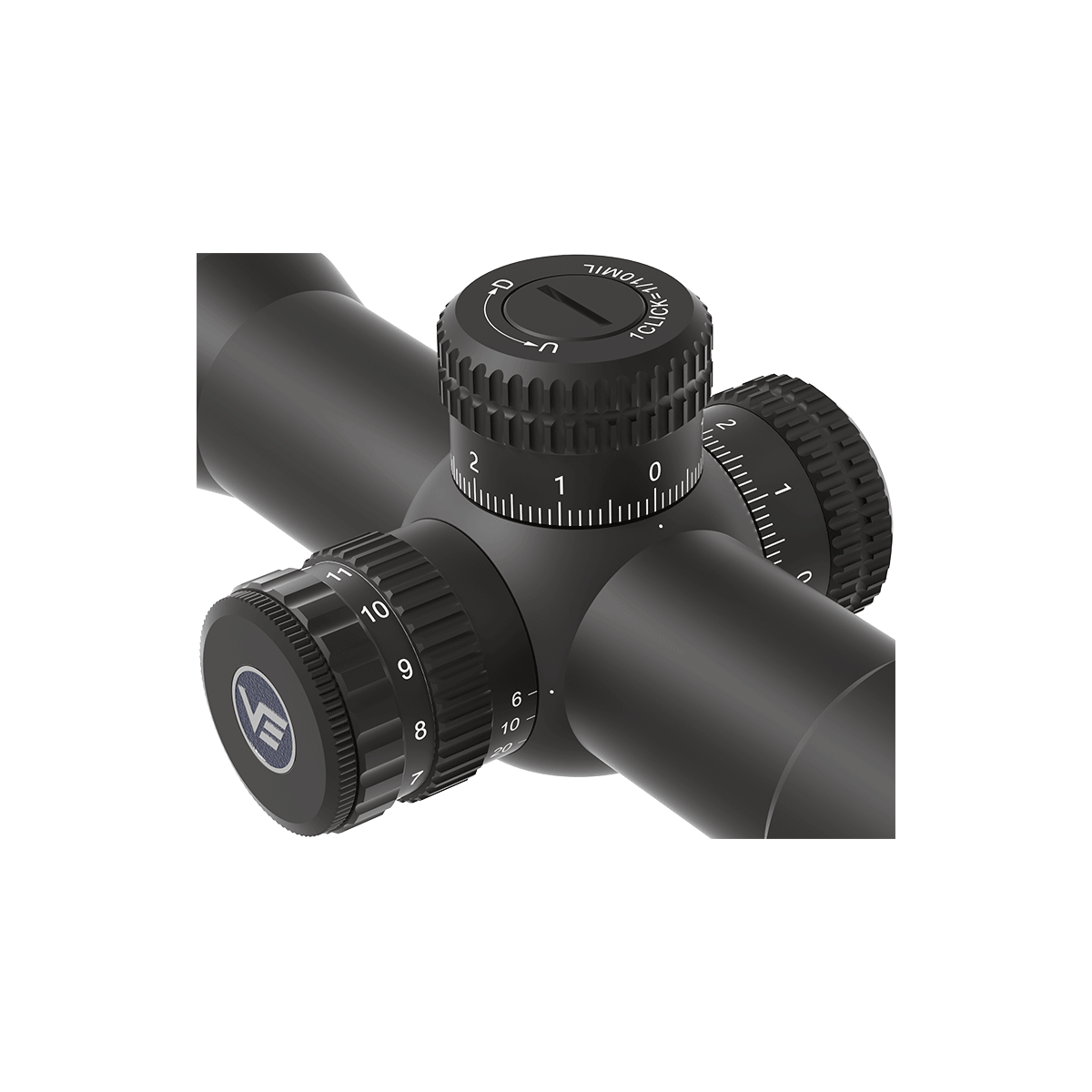

| Turret Function | Turret Lock |
| Elevation Adjustment Range | > 30 MIL |
| Windage Adjustment Range | >26 MIL |
| Diopter Compensation | -5 to +5 |
| Illumination Setting | 11 Gears |
| Battery Type | CR2032 |
| Waterproof | IP67 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

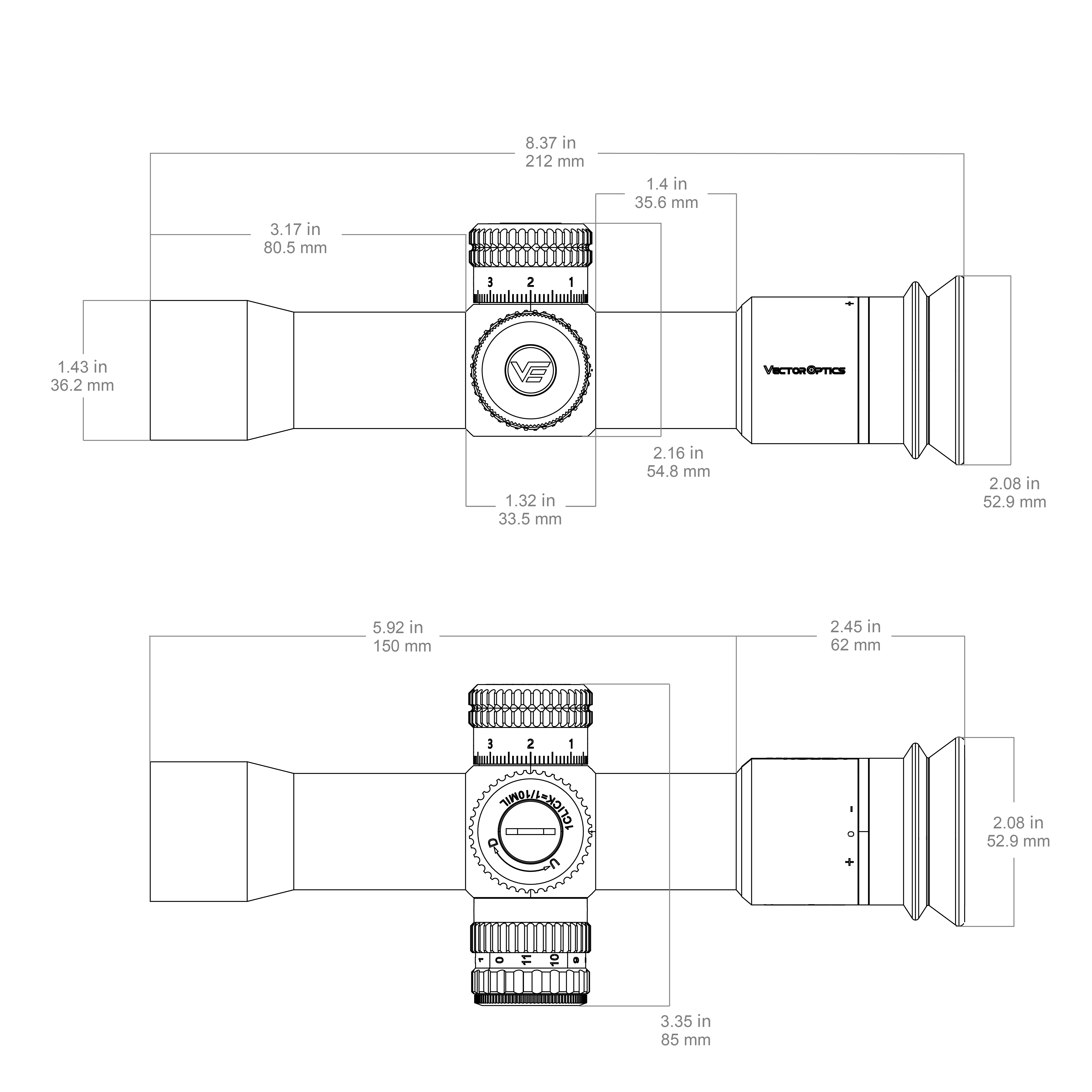

| Length | 212 mm / 8.4 in |
| Weight | 420 g / 14.8 oz |

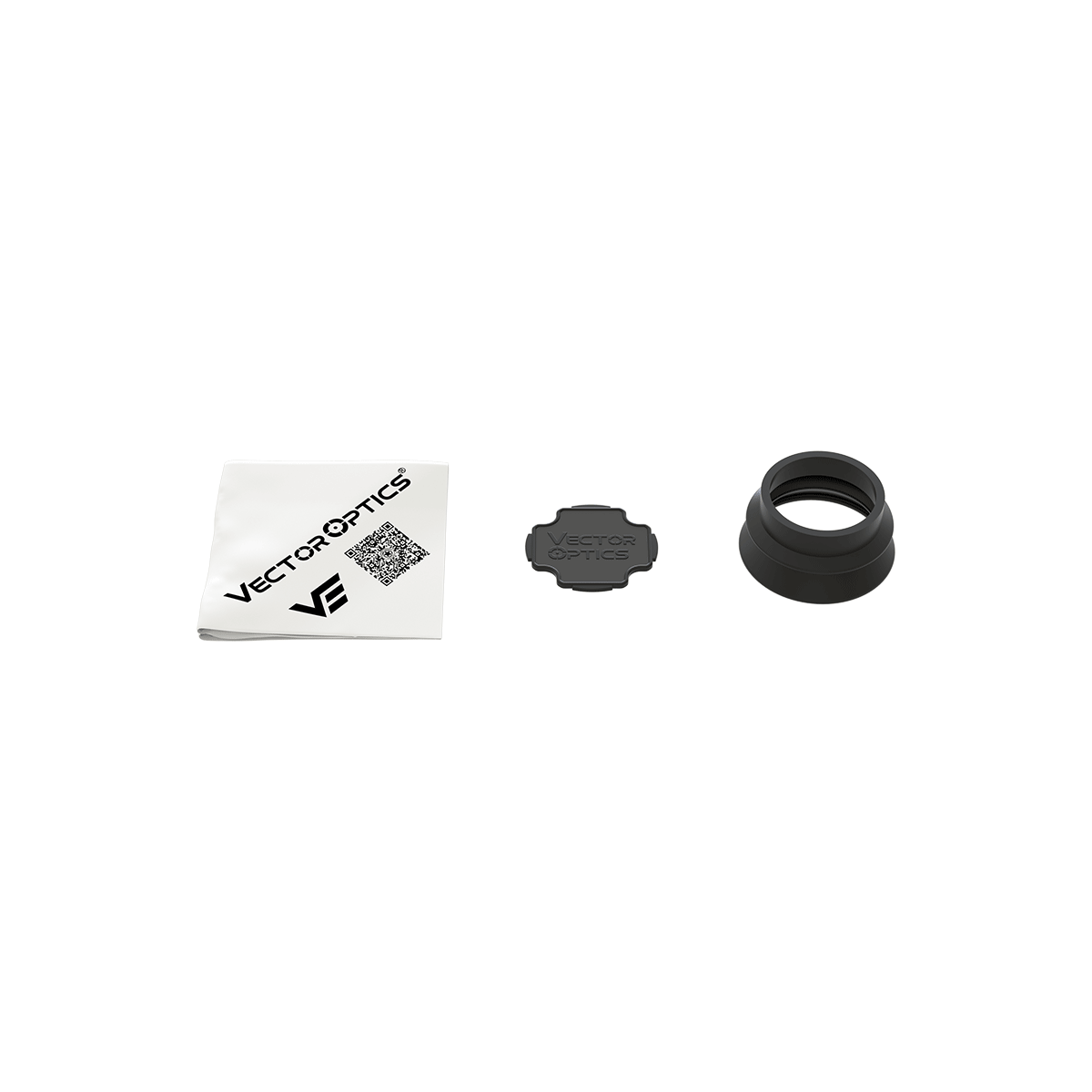

| Items in the Package | User Manual, Cleaning Cloth, Plastic Wrench, Flip-up Cap, Rubber Eyecups, A Pair of 30mm Weaver Rings, etc. |
