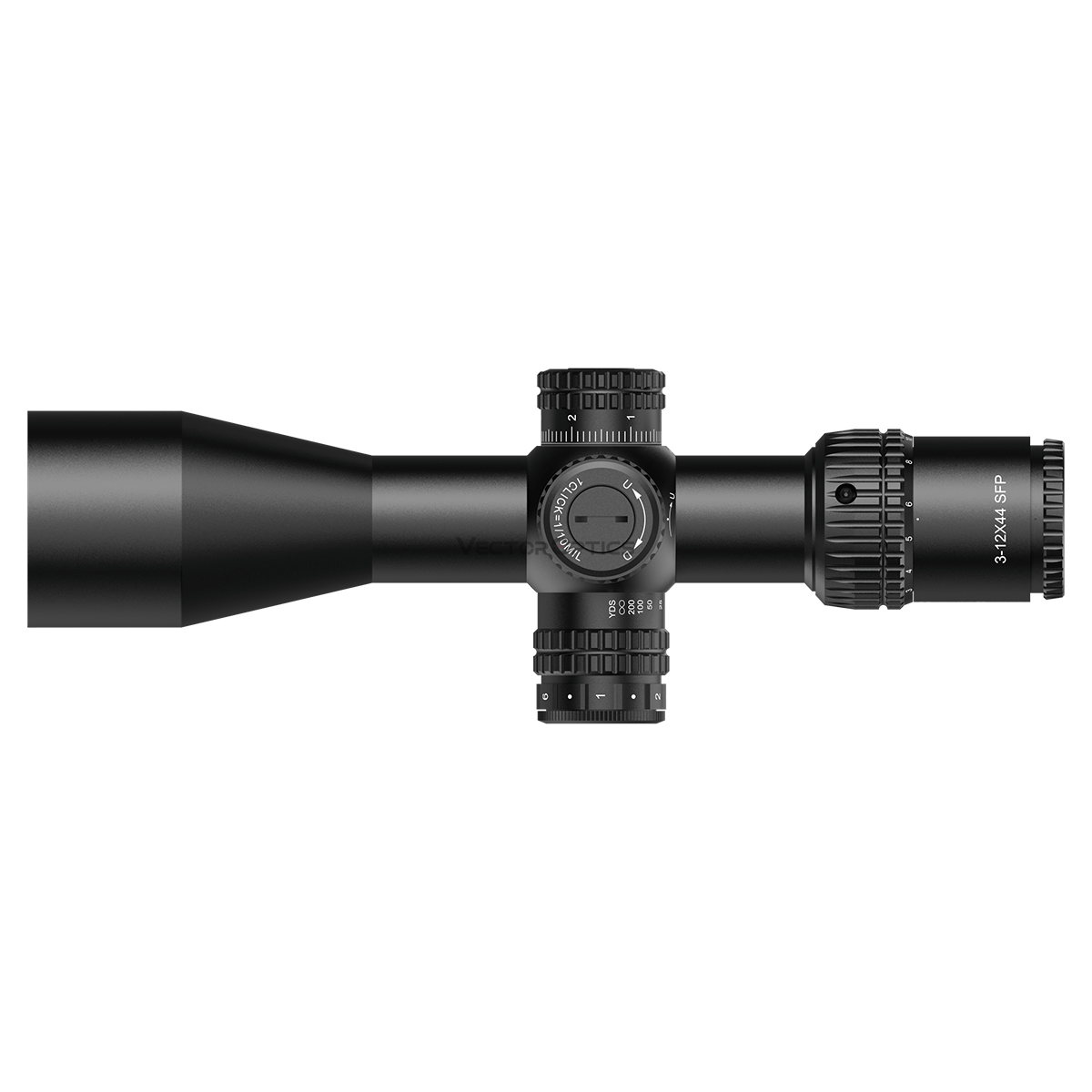

Ultra Compact 243mm / 9.6in Length, Ideal for Use on Light Firearms, without Adding Extra Bulk 0.18 MIL Center Dot for Field Target Precise Aiming, Christmas Tree for Fast Follow-up Corrections 30mm Monotube Enlarges the Elevation Adjustment Range to 30 MIL with 1/10 MIL Click Value Side Focus from 10m for Close-Range Shooting, Turret Lock Prevents Unwanted Adjustment
| Magnification | 3-12x |
| Objective Lens Dia | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 35.1-8.7 ft @ 100 yards |
| Linear Field of View @ 100 m | 11.7-2.9 m @ 100 meters |
| Angular Field of View | 6.7-1.7° |
| Reticle | MPR-V10 etched glass reticle with center dot illuminated |
| Tube Dia | 30 mm |
| Side Focus | 10 m to Infinity |
| Click Value | 1/10 MIL |

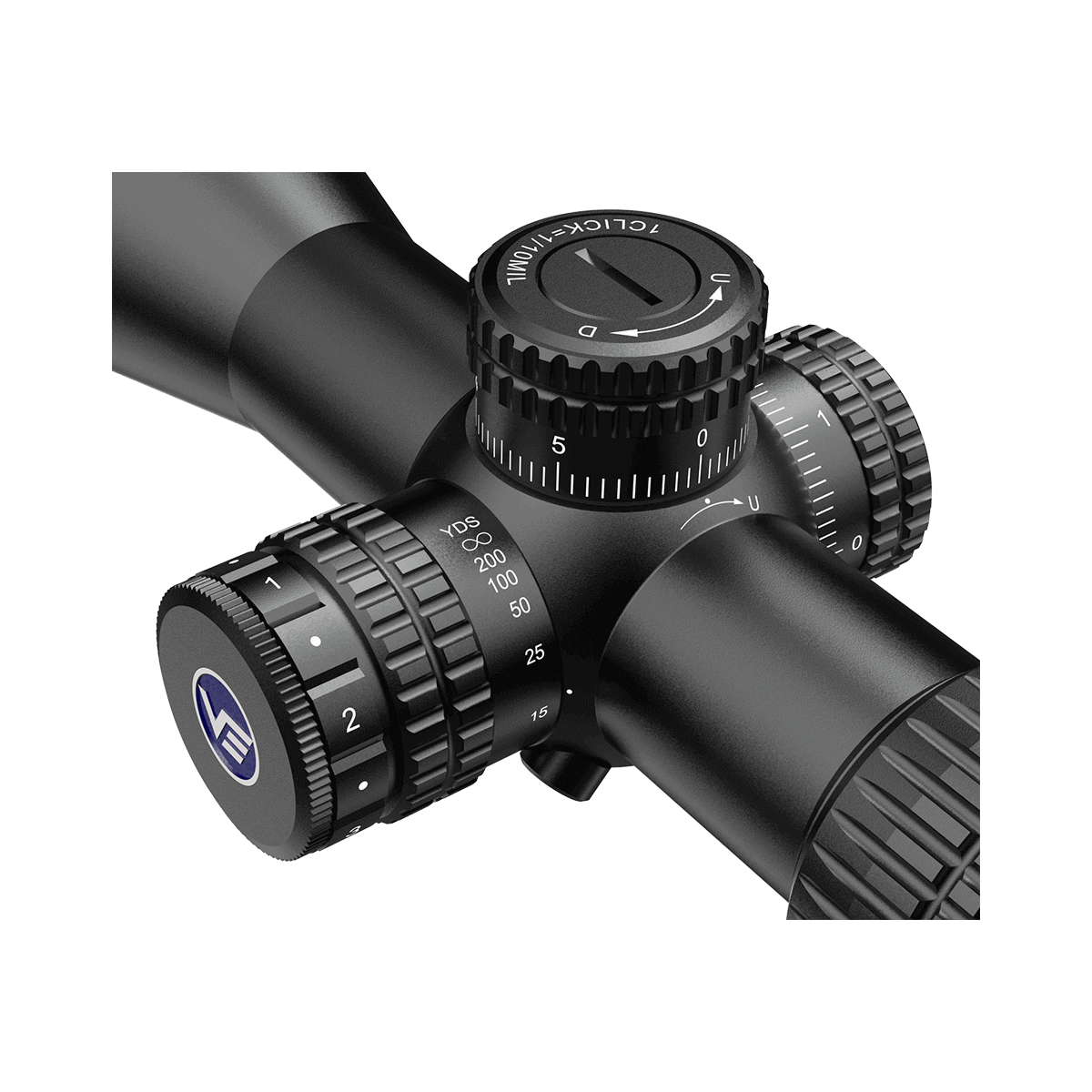

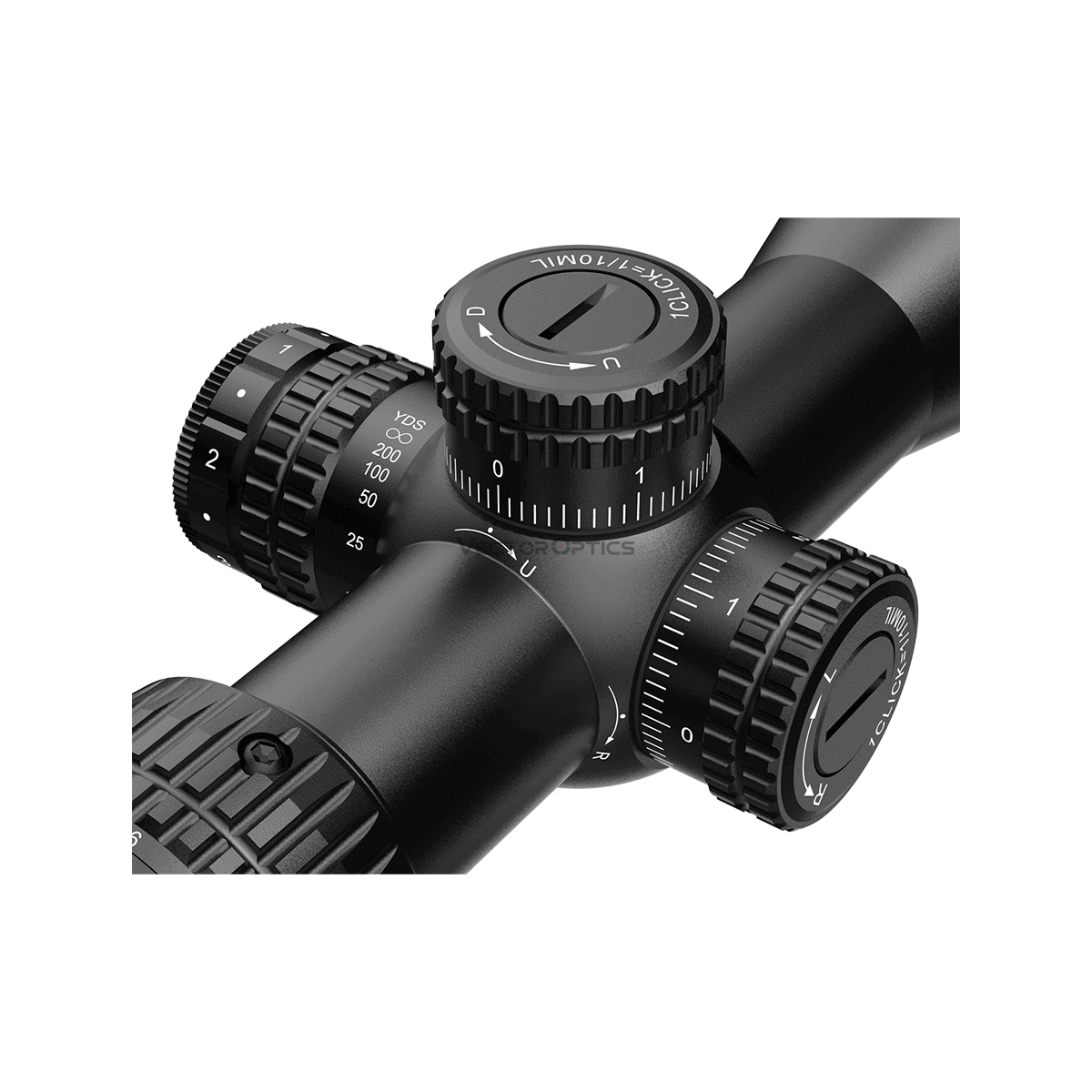

| Turret Function | Zero Reset, Turret Lock |
| Elevation Adjustment Range | 30 MIL |
| Windage Adjustment Range | 17.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

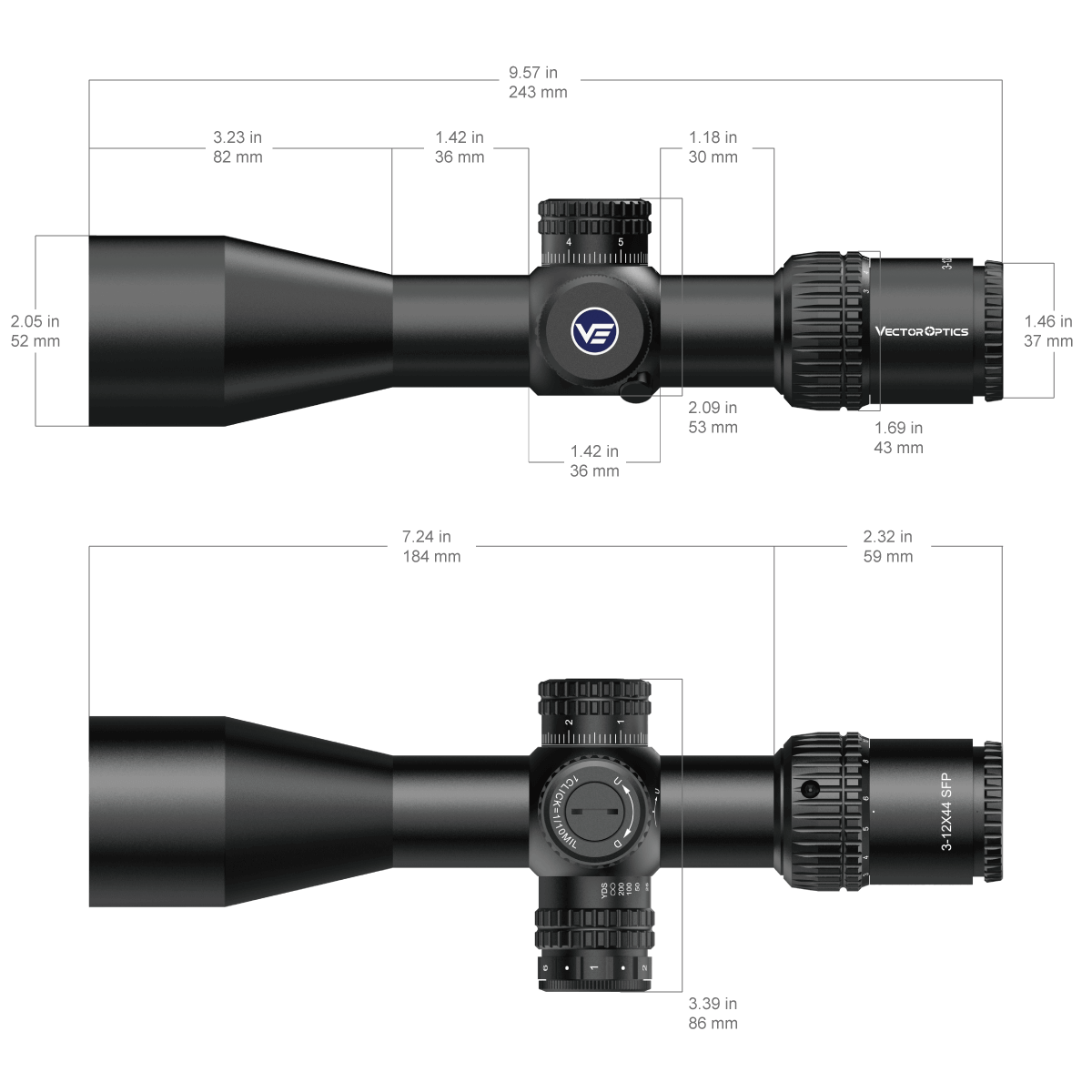

| Length | 243 mm / 9.6 in |
| Weight | 530g / 18.7 oz |

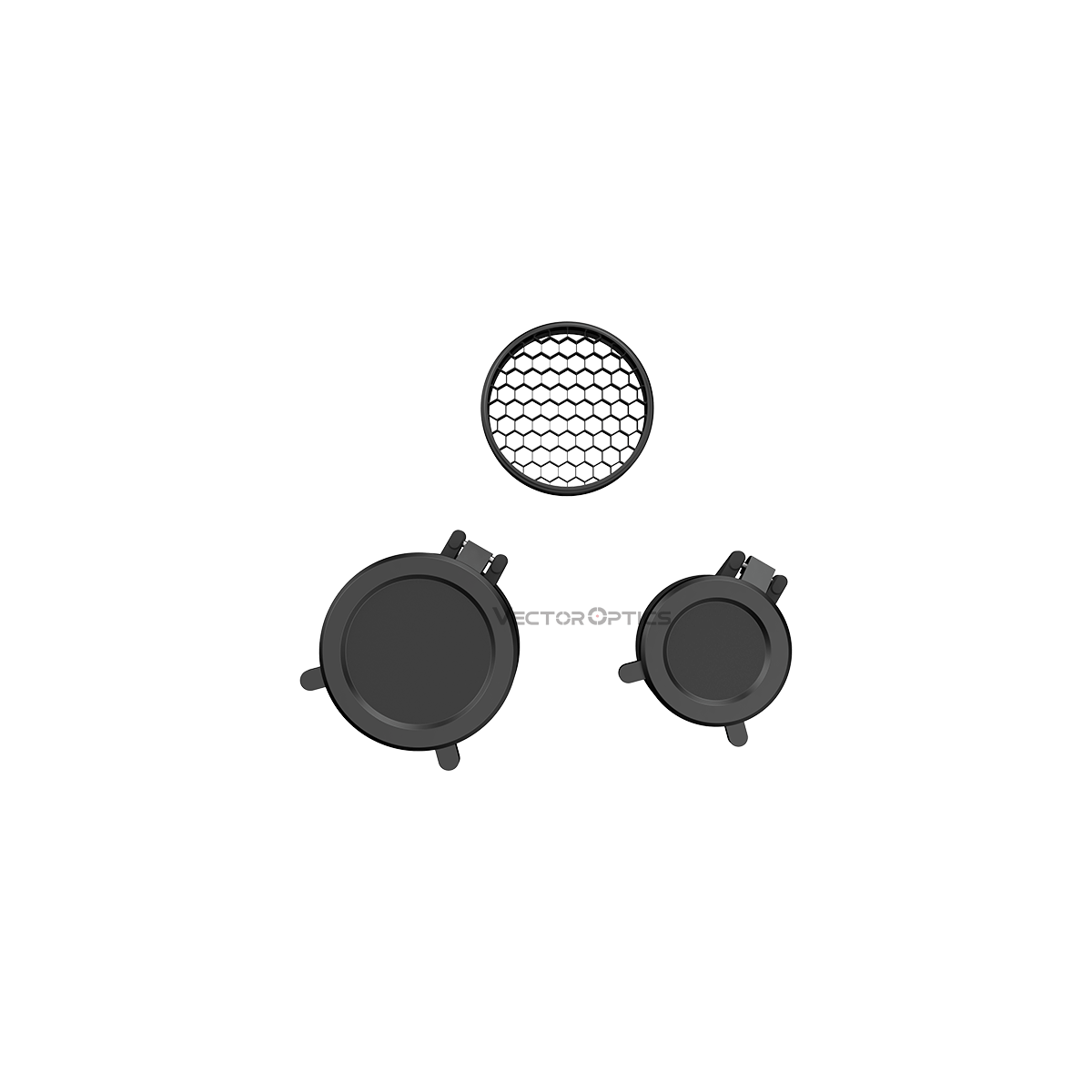

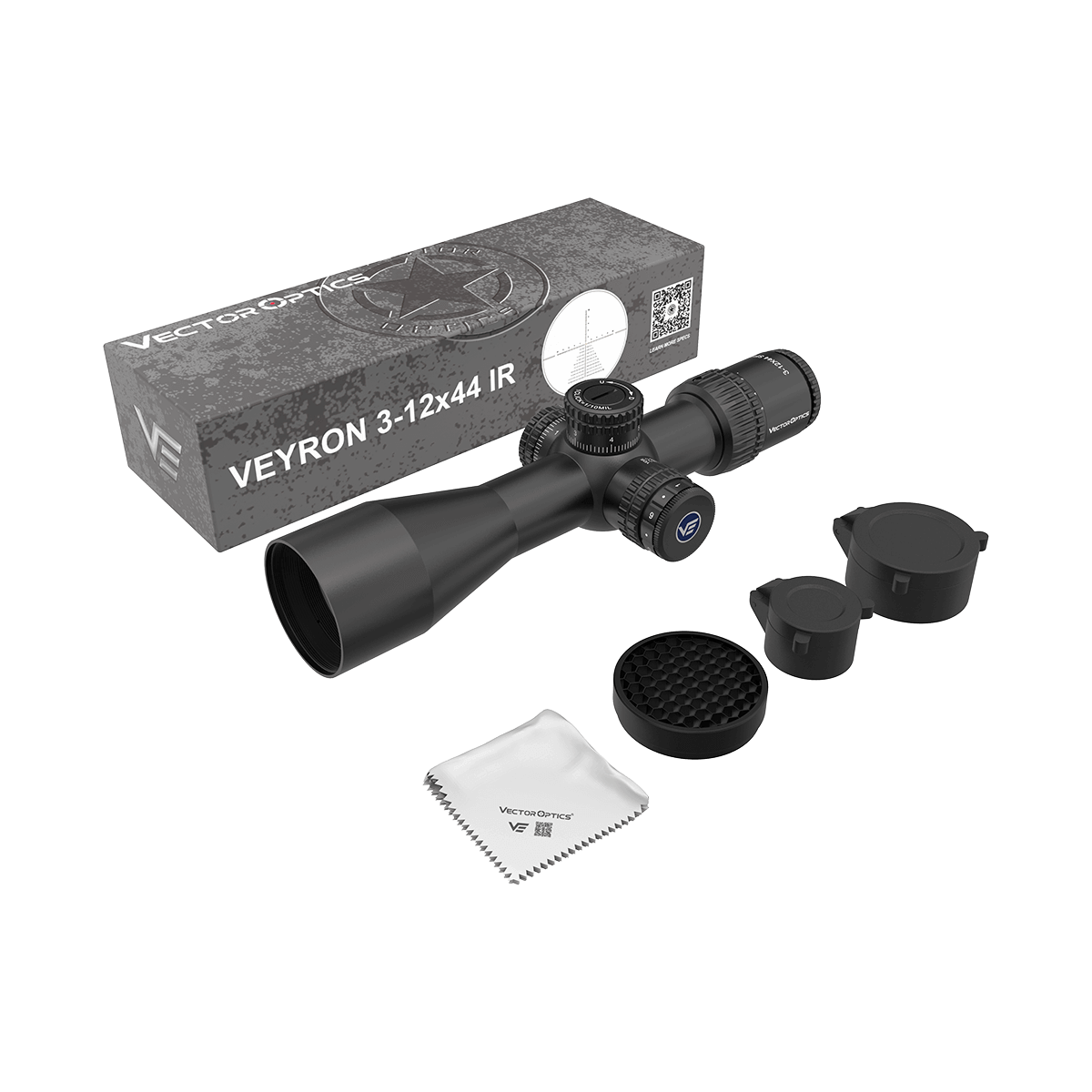

| Items in the Package | One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Honeycomb Sunshade & Cleaning Cloth etc. |
I think this is a great optic for the price. The image quality exceeds my expectations. Great for Hunter Field Target shooting. I recommend it for air guns and light weapons.Read More
Shooting
It features low, medium, and high-power versions with MIL turret-lock adjustment, which are especially designed for PCP, springer and gas-ram recoiling air rifles. Available models in 2-8x32, 3-12x44, 4-16x44 and 6-24x44, with 6 levels illuminated reticle. Read More.
