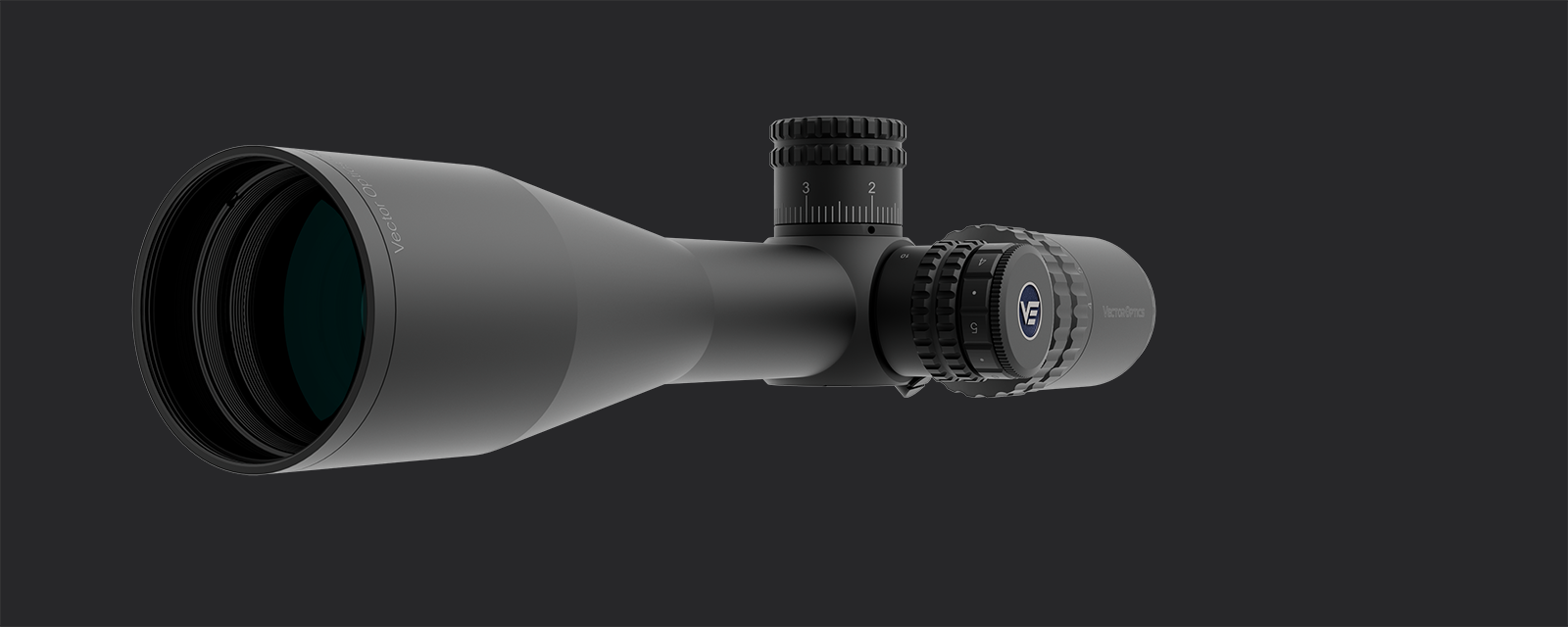

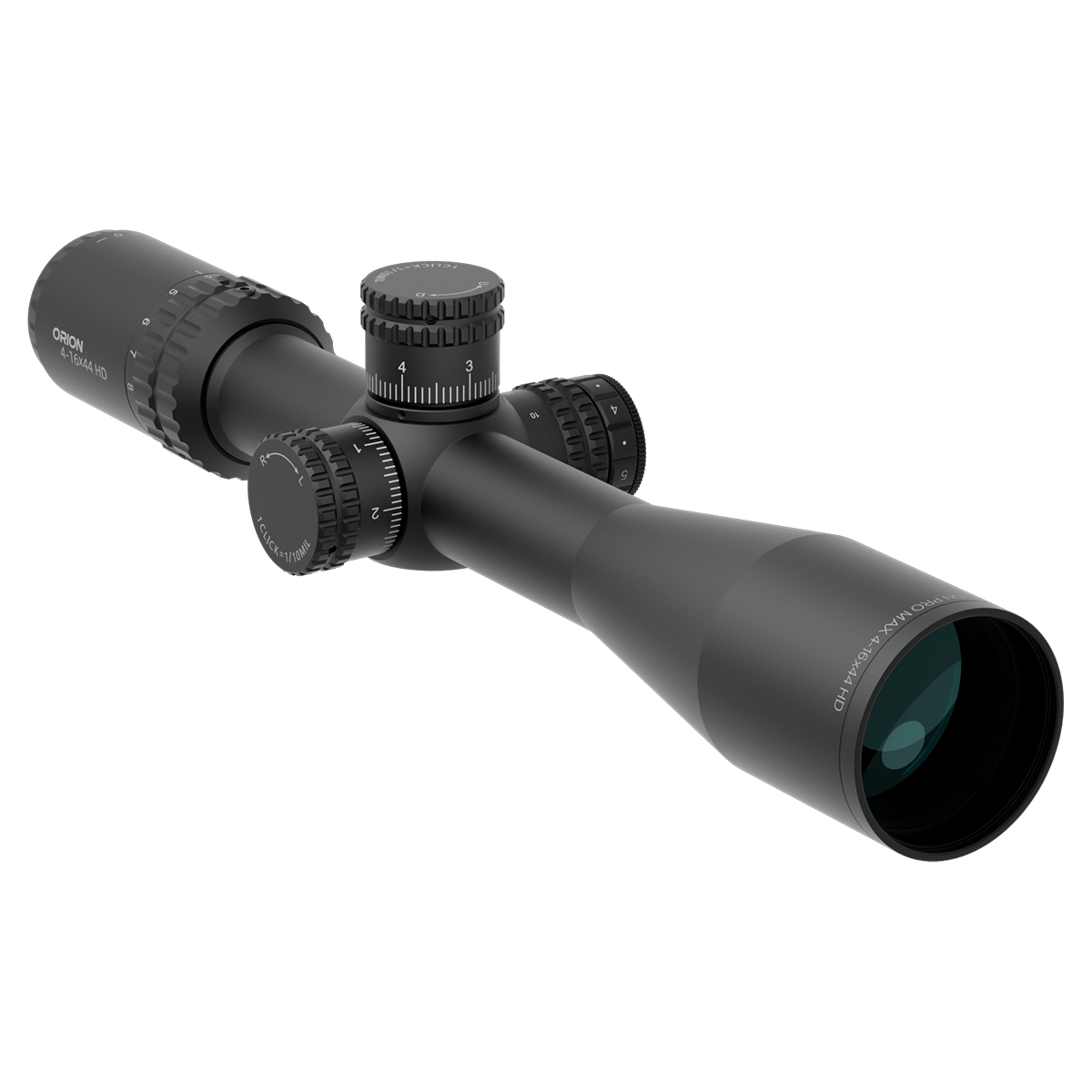

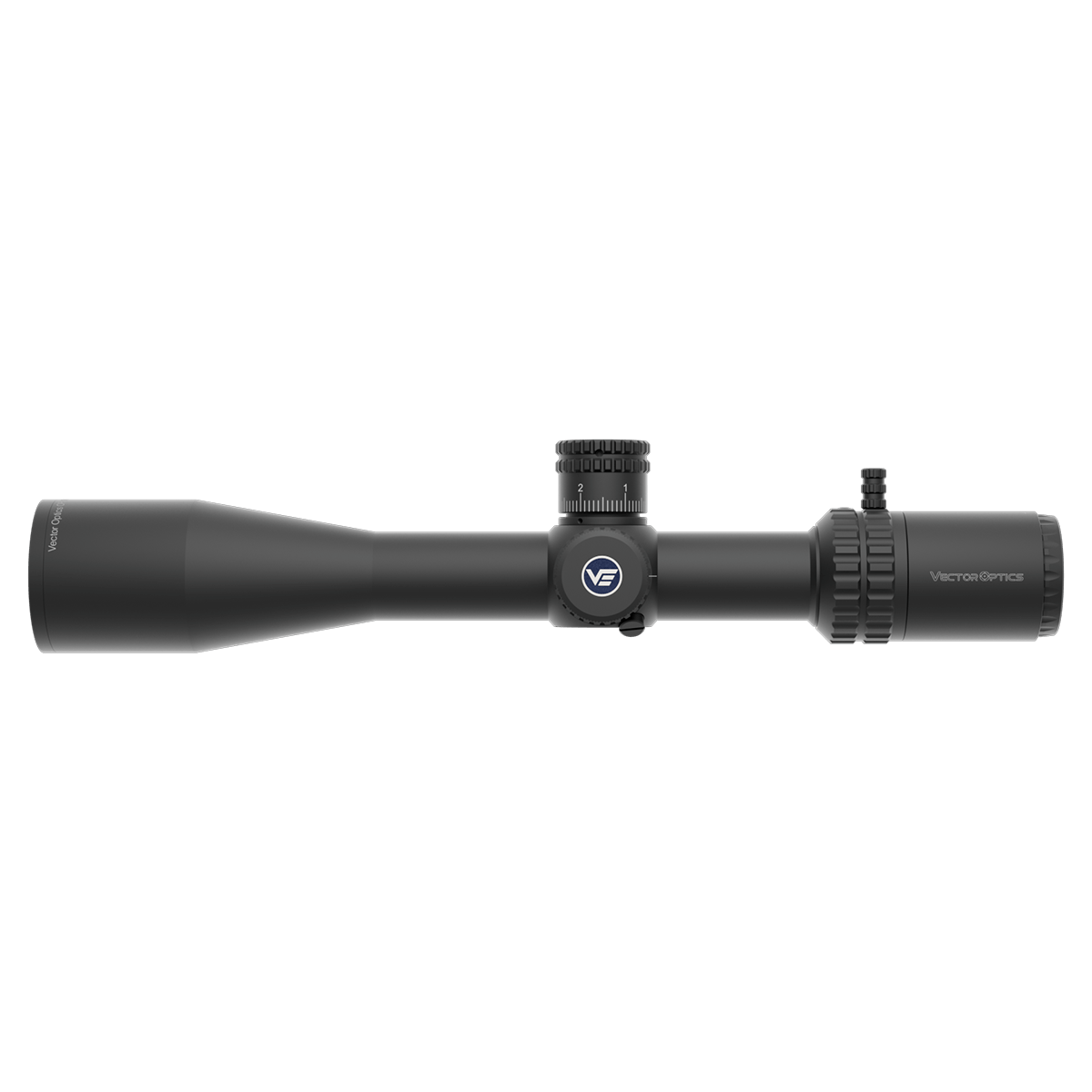

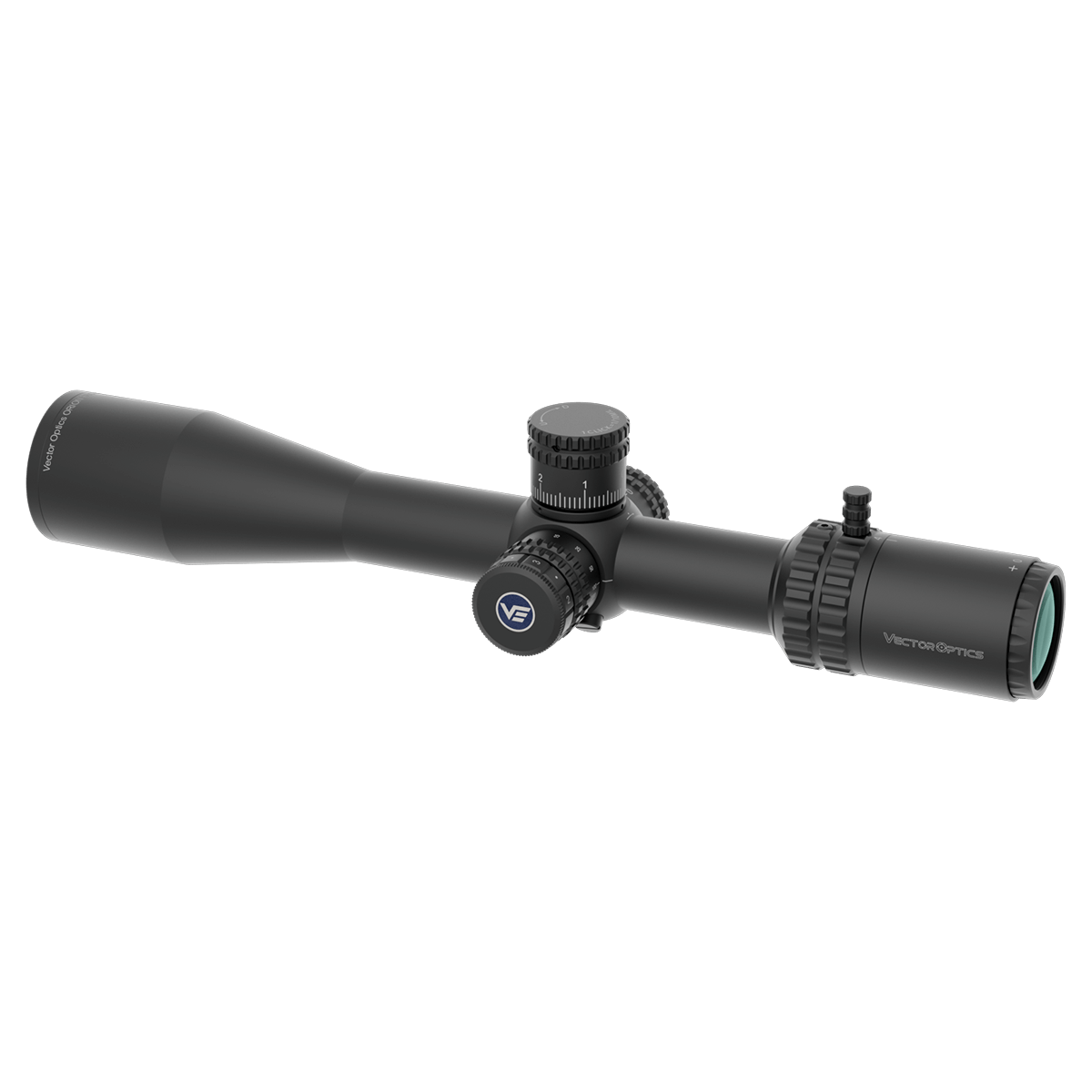

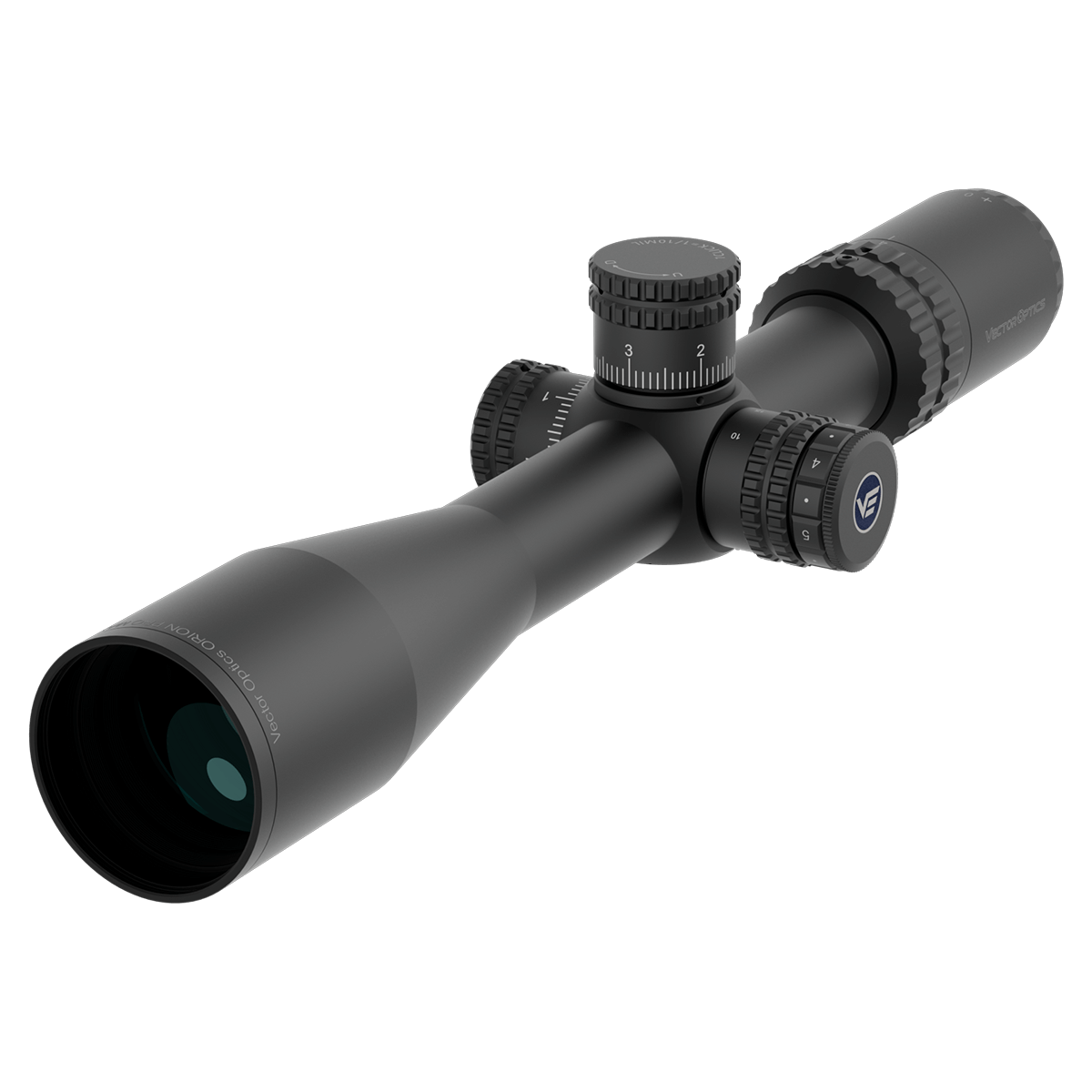

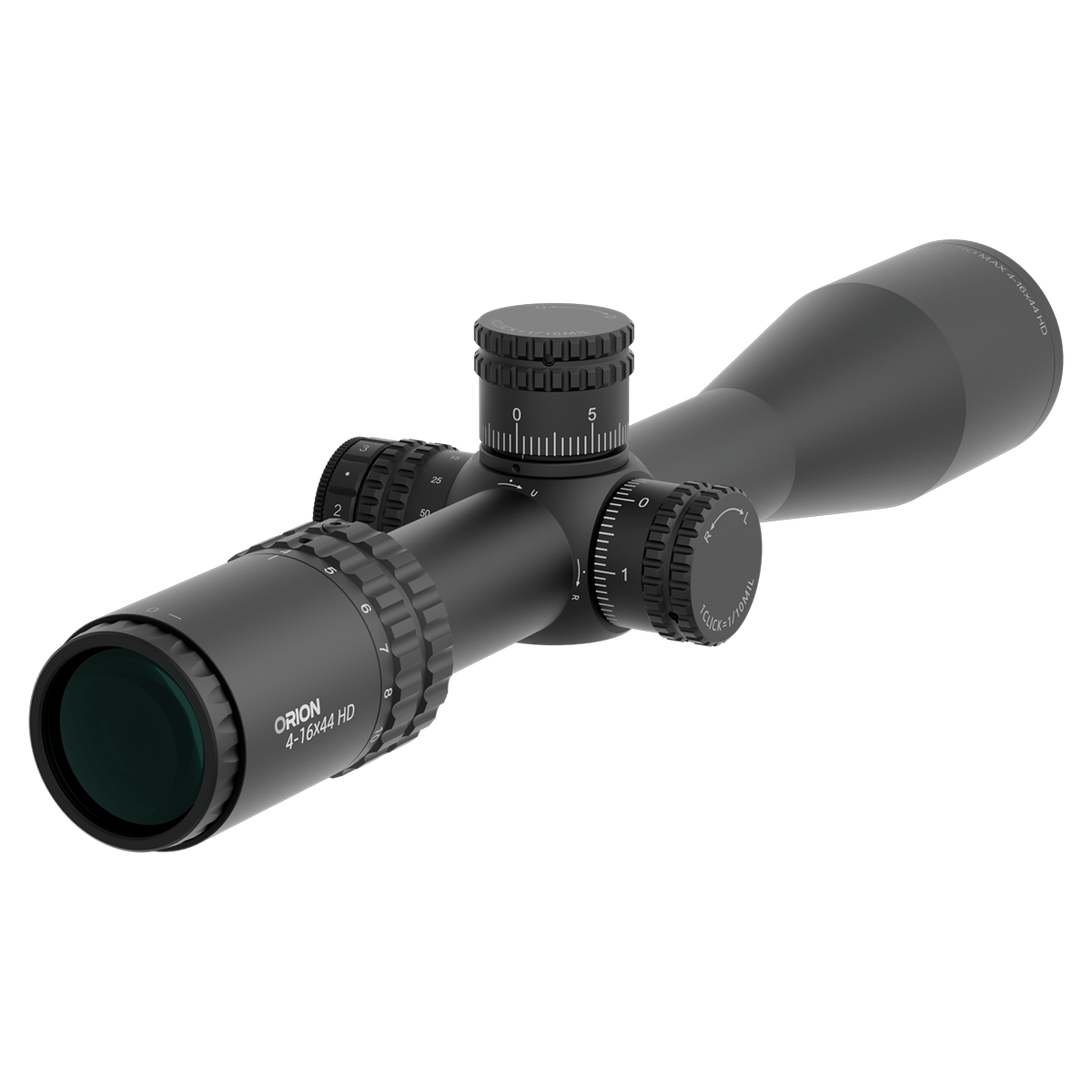

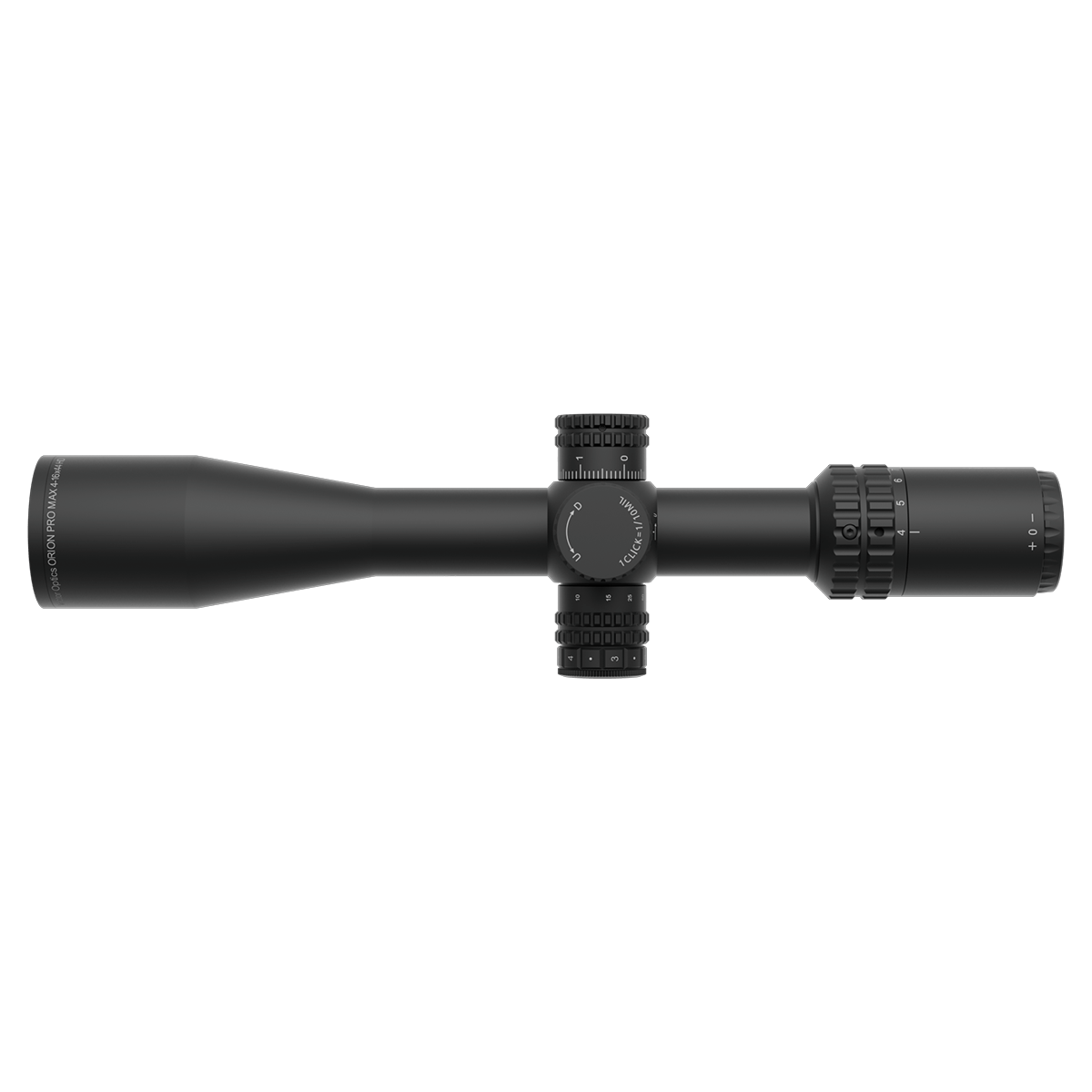

Orion Pro Max 4-16x44 HD SFP Rifle Scope

Model: SCOL-62
Plain Game Hunting Benchrest Shooting

0.08 MIL Center Dot for Mid-Range Precise Aiming, Mil-Dot Reticle Could be Used for Fast Ranging and BDC LaREE HD Lens System with FMC Optics Delivers Edge-to-Edge Clarity and Strong Low-Light Performance 30mm Tube Dia Enhances Elevation Adjustment Range to 30 MIL, 1/10 MIL Click Value for Precise Adjustment Integrated Zero Stop System Enables Fast and Confident Return to Pre-Set Zero After Elevation Adjustments

Find Online Stores Send Inquiry

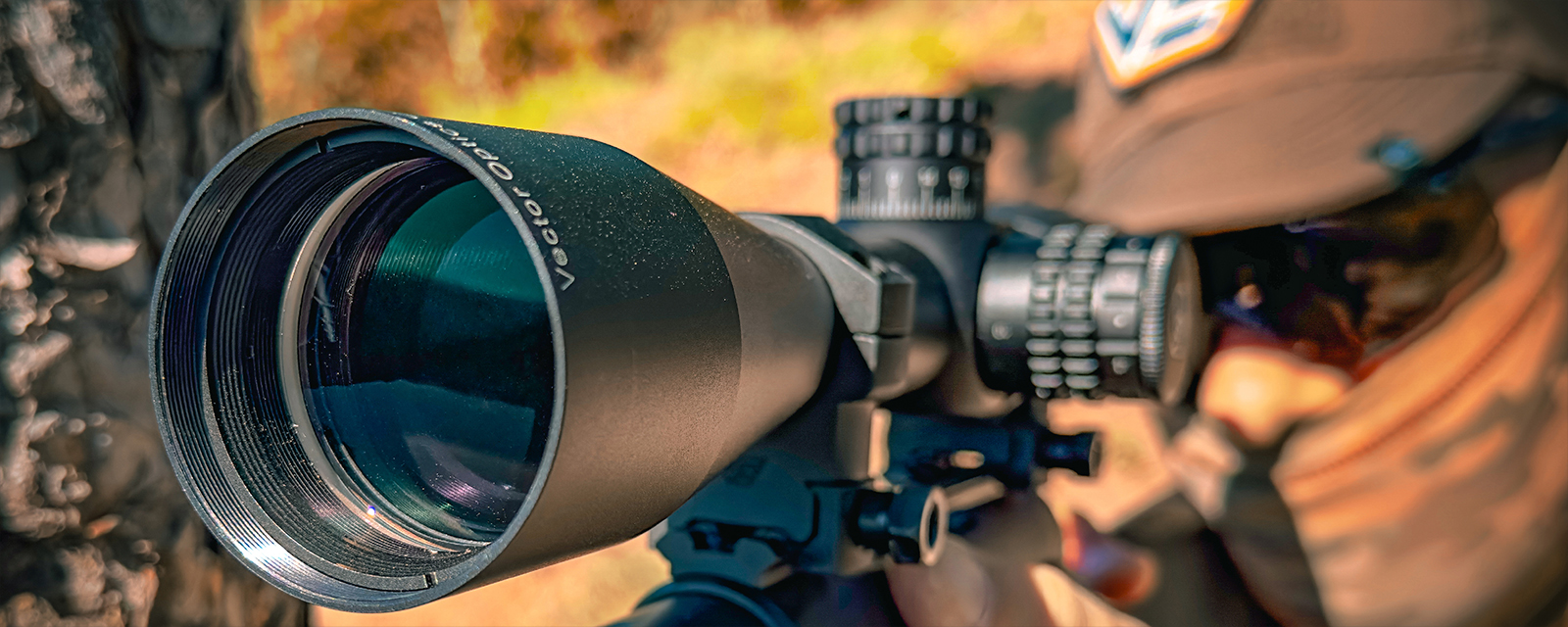

Fully Multi-Coated Lens

The FMC lens reduces glare, improves color contrast, and makes the image appear sharper and brighter even in low-light conditions.

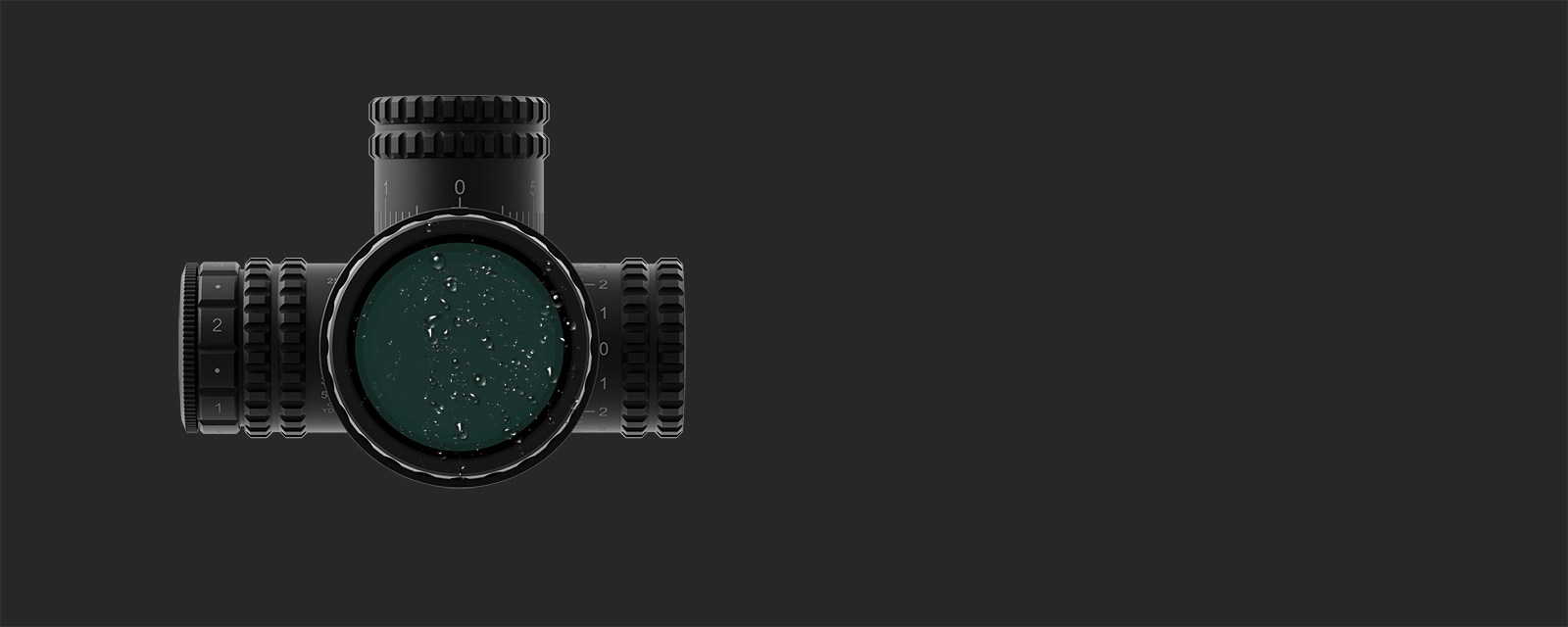

IPX4 Waterproof Rating

IPX4 water resistance makes the rifle scope suitable for use in wet weather conditions, such as rain or snow, without compromising its performance.

750G Shockproof

750G level of shockproof capability ensures that the rifle scope remains durable and reliable even in high-impact situations, providing peace of mind to the shooter that the scope will continue to function effectively under demanding conditions.

Features

  • 30mm Tube Size

    Large to Increase the Adjustment Range

  • Second Focal Plane

    Consistent Reticle with Varying Magnification

  • LaREE HD Lens

    LaREE High Definition Glass

  • FMC/ Fully Multi-Coated Lens

    Deliver Bright & Crisp Images

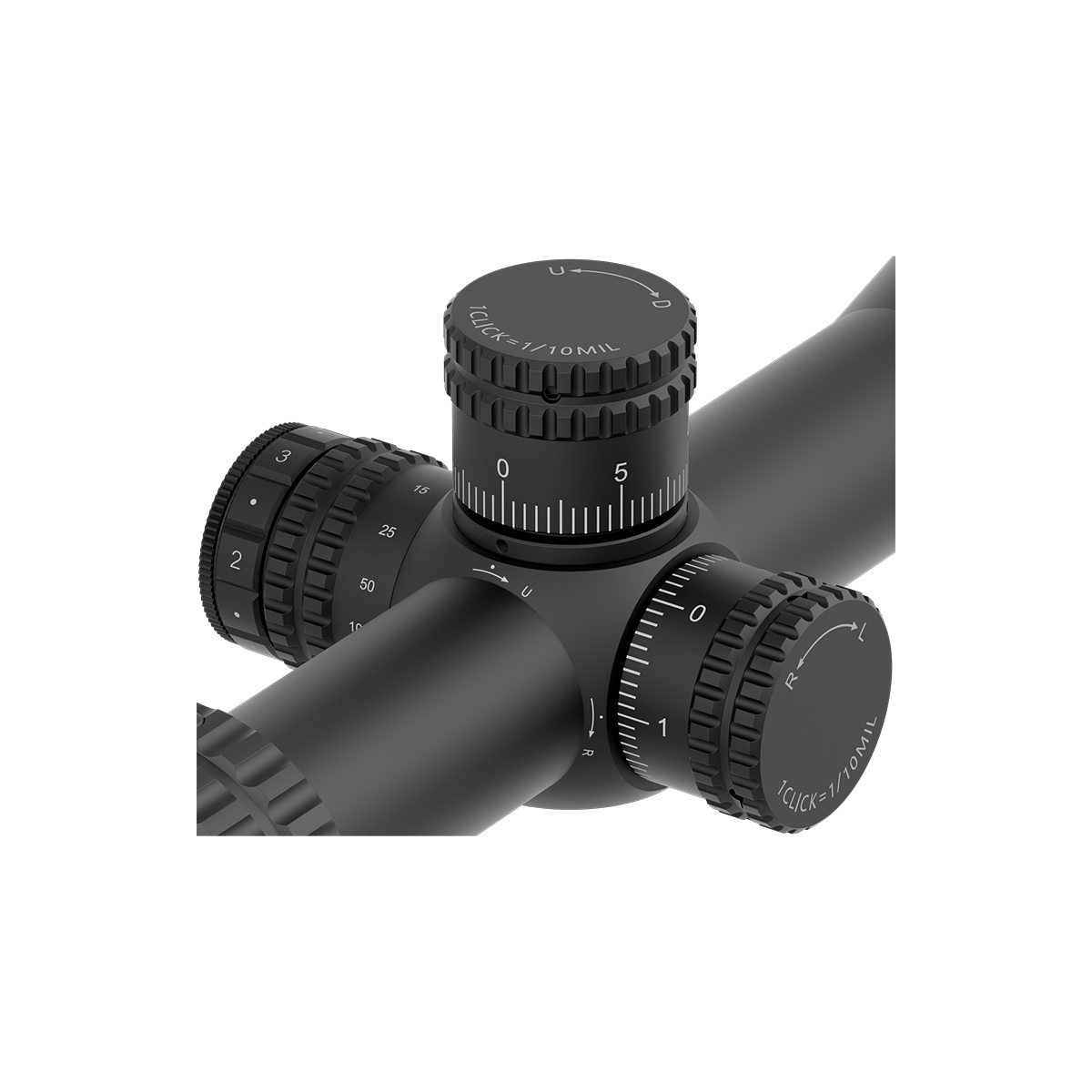

  • Zero Stop

    Effortlessly Return to Pre-set Zero

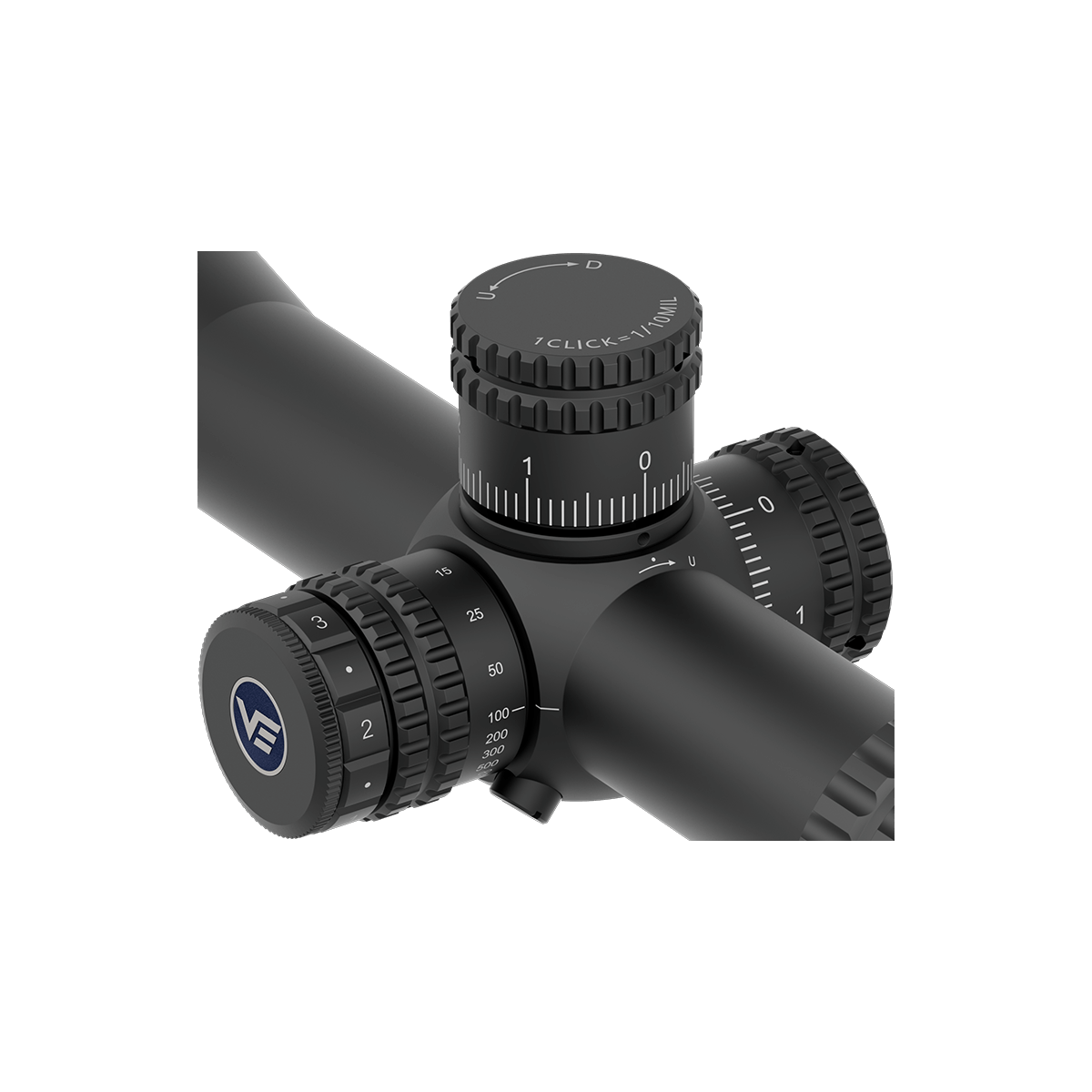

  • 6 Gear Illumination

    Visible Reticle in all Light Conditions

  • IPX4 Waterproof

    It can withstand water splashes, such as rain or accidental spills

  • Hunting Style

    Best/Built for Hunting

Specifications

  • Optical Parameter
  • Mechanical Parameter
  • Magnification 4-16x
    Objective Lens Dia 44 mm
    Focal Plane Second Focal Plane
    Eye Relief 95 mm
    Lens Coating Fully Multi-Coated
    Linear Field of View @ 100 yd 28.8-6.8 ft @ 100 yards
    Linear Field of View @ 100 m 9.6-2.2 m @ 100 meters
    Angular Field of View 5.5-1.3°
    Reticle VOR-7 MIL
  • Tube Dia 30 mm
    Side Focus 10 yards to Infinity
    Click Value 1/10 MIL
    Turret Function Zero Stop
    Elevation Adjustment Range 30 MIL
    Windage Adjustment Range 20 MIL
    Diopter Compensation -2 to +2
    Illumination Setting 6 Gears, On/Off Switch
    Battery Type CR2032
    Waterproof IPX4
    Fogproof Nitrogen Filled
    Shockproof 750 G
    Housing Material 6061-T6 Aluminum Alloy
    Finish Matte Black
    Length 344 mm / 13.6 in
    Weight 753 g / 26.6 oz

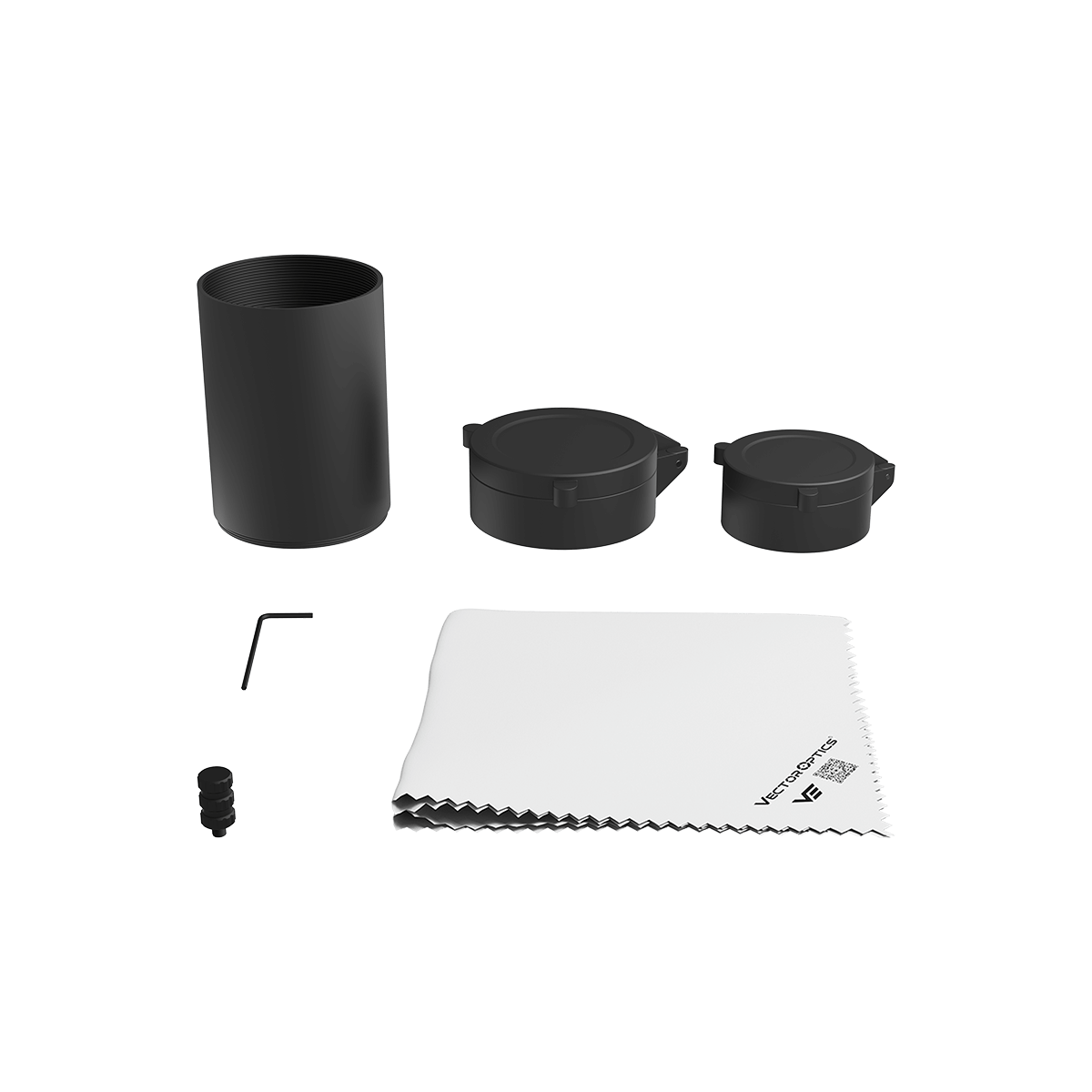

    Items in the Package User Manual, Cleaning Cloth, Flip-up Caps, Hex Keys, Sunshade, Power Throw Lever,etc.

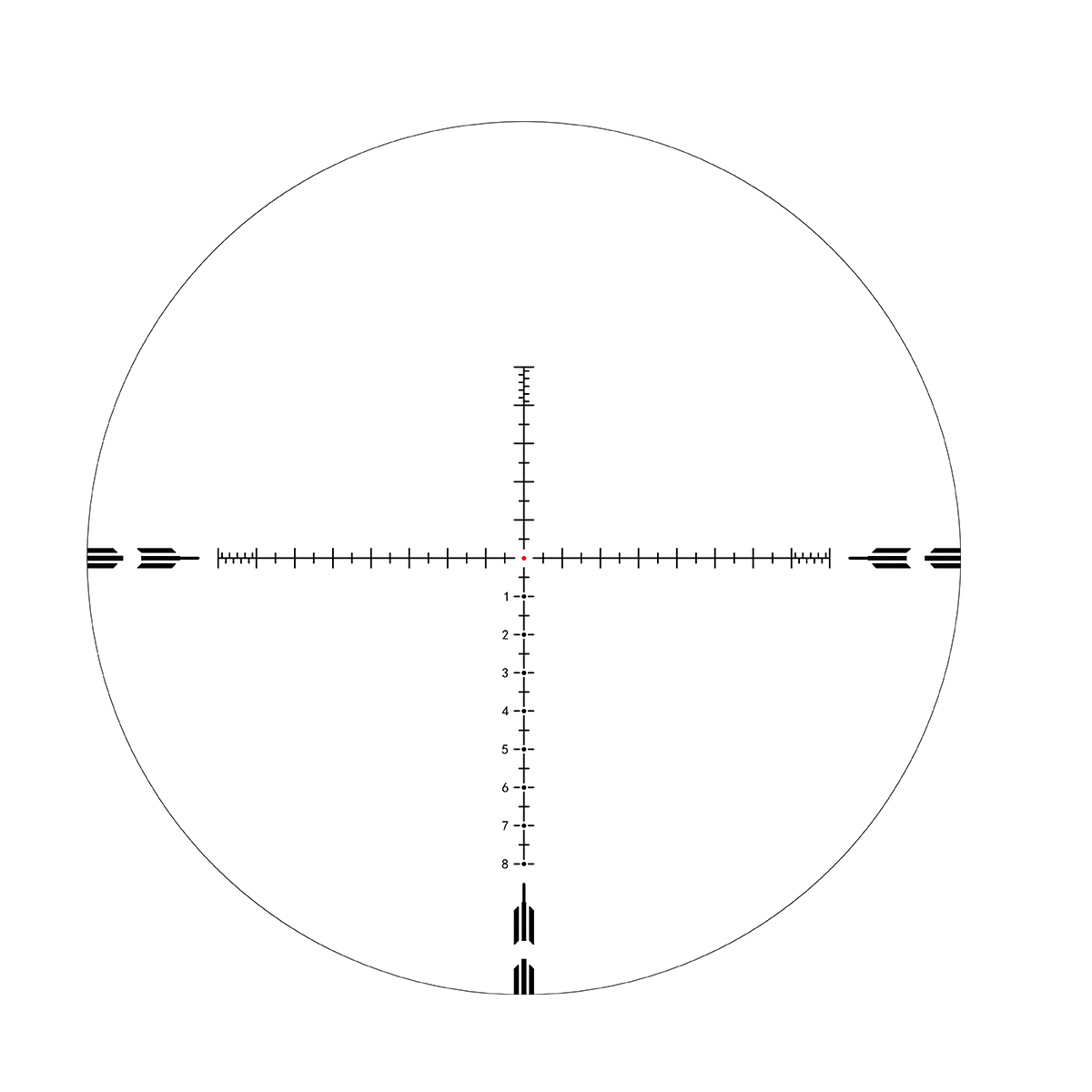

Reticle

  • VOR-7 MIL

    Could be used for hunting and plinking

    Recommend shooting ranges within 500m

  • VOR-7 MIL Subtension

    0.08 MIL center dot for precise aiming within mid to long-range

    MIL-dot pattern could be used for fast ranging and BDC

Download

  • Orion User Manual
  • VOR-7 MIL SFP Reticle User Manual

Video

Reviews

This is a great telescope. It worked very well for me in the Hunter Field Target competition, but I also recommend it for larger caliber weapons. It is also excellent for silhouette shooting. An excellent choice in terms of value for money. Read More
Shooting
Orion Pro Max 4-16x44 HD SFP Rifle Scope Review from Borbás Gábor

The Vector Optics Orion Max Pro 6-24x50 HD FFP scope is an excellent choice for precision shooting and hunting applications, offering great performance at an affordable price point.Read More
Shooting
Orion Pro Max 6-24X50 FFP HD Rifle Scope Review from Bertus Coetzee

Warranty Policy

The product supports a 5-year warranty policy.
