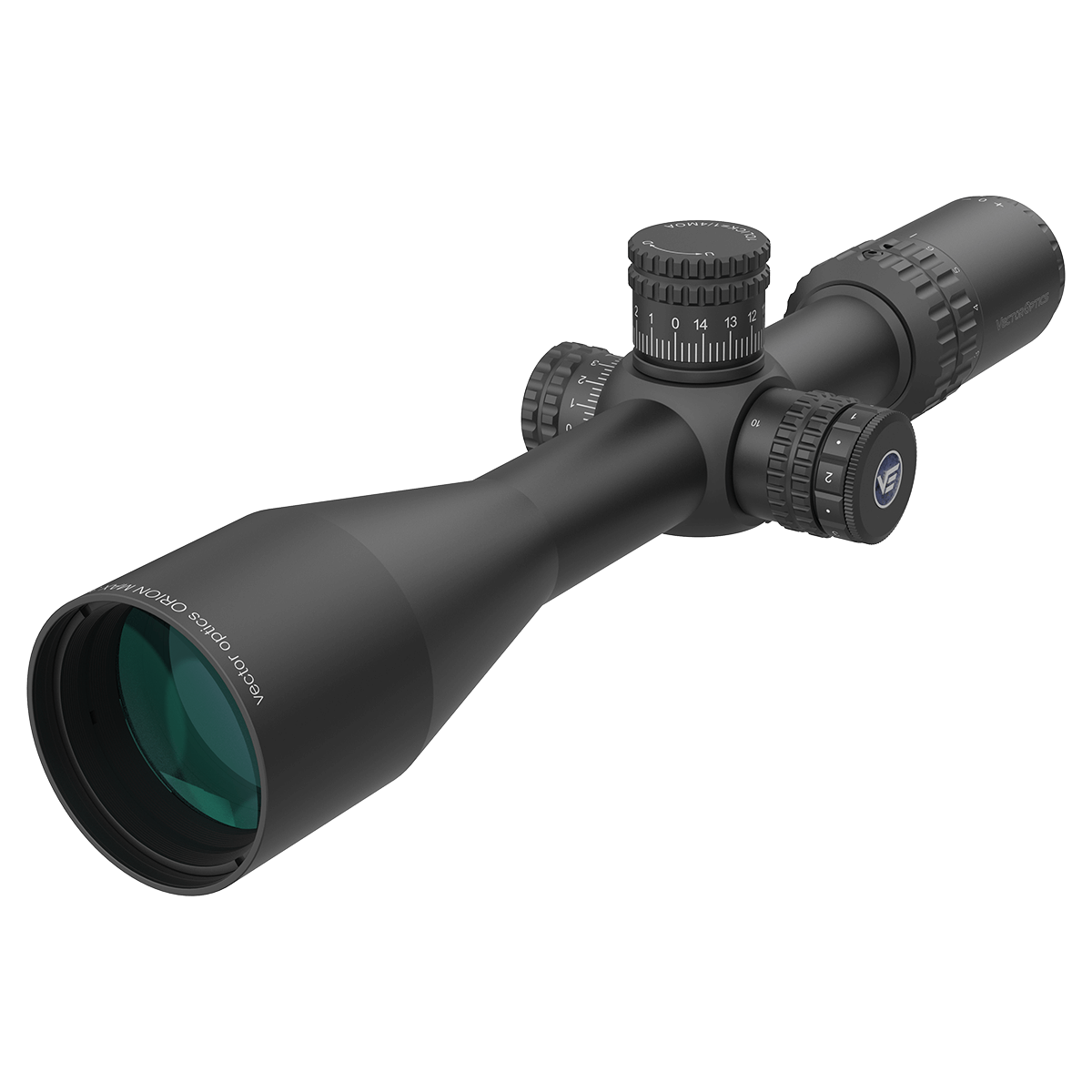

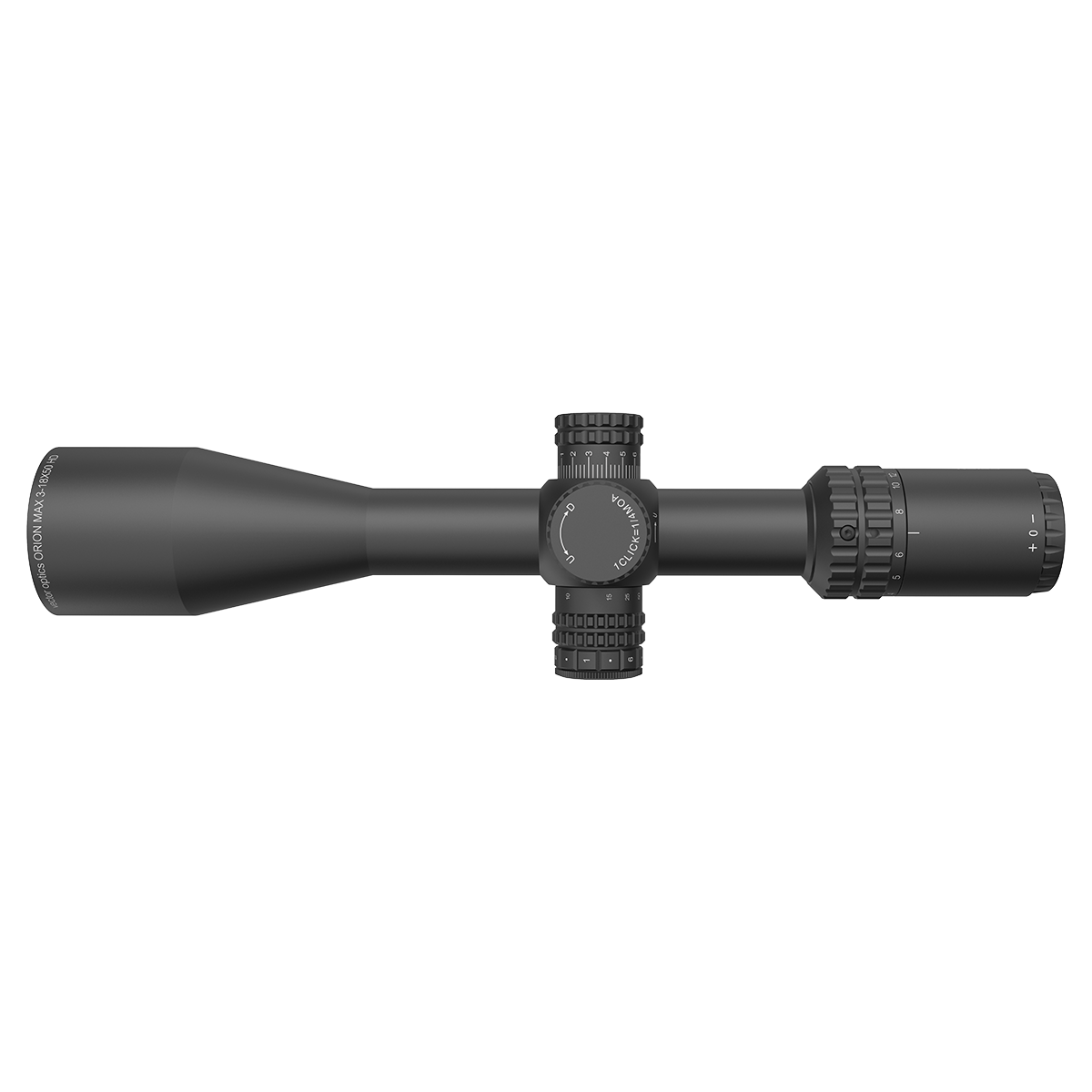

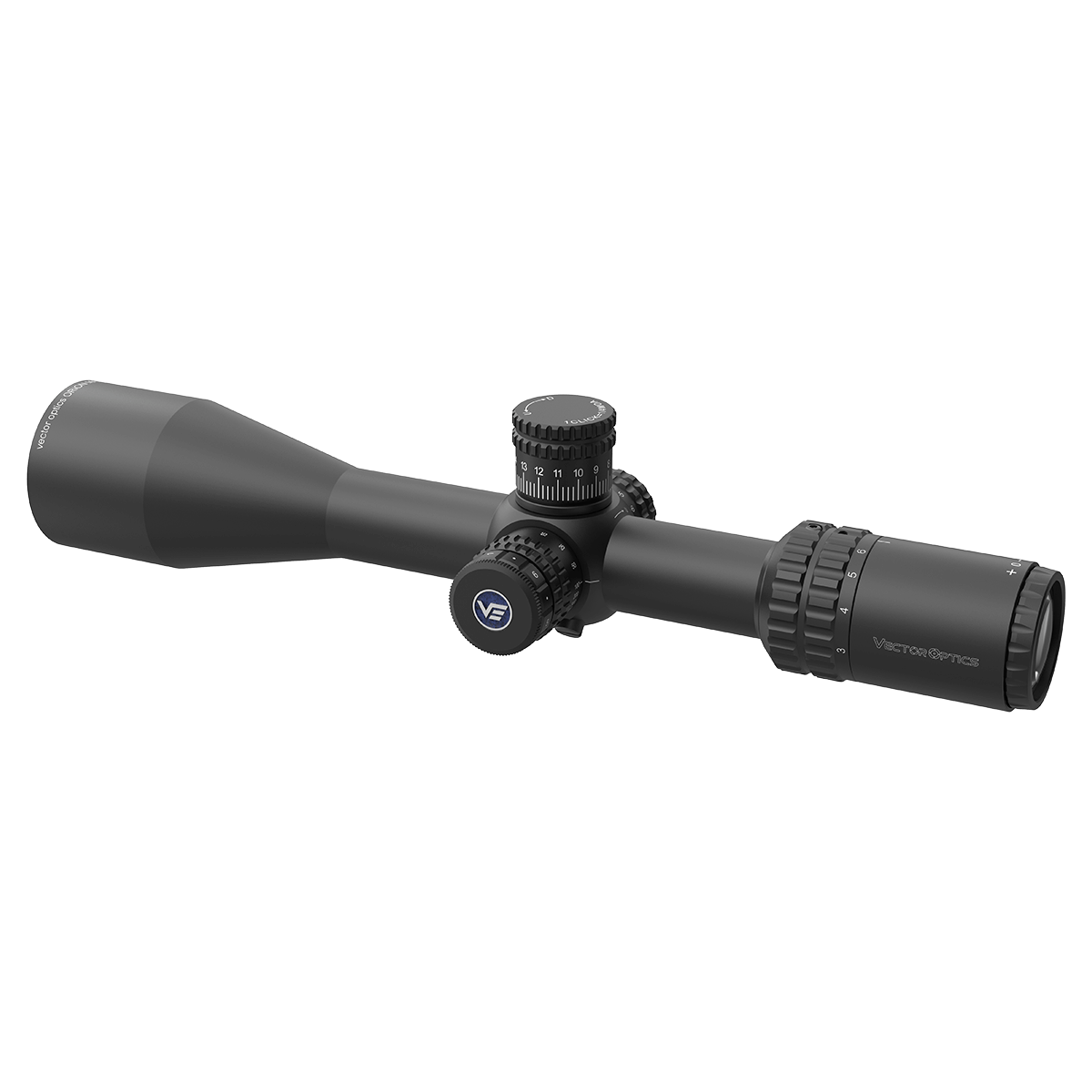

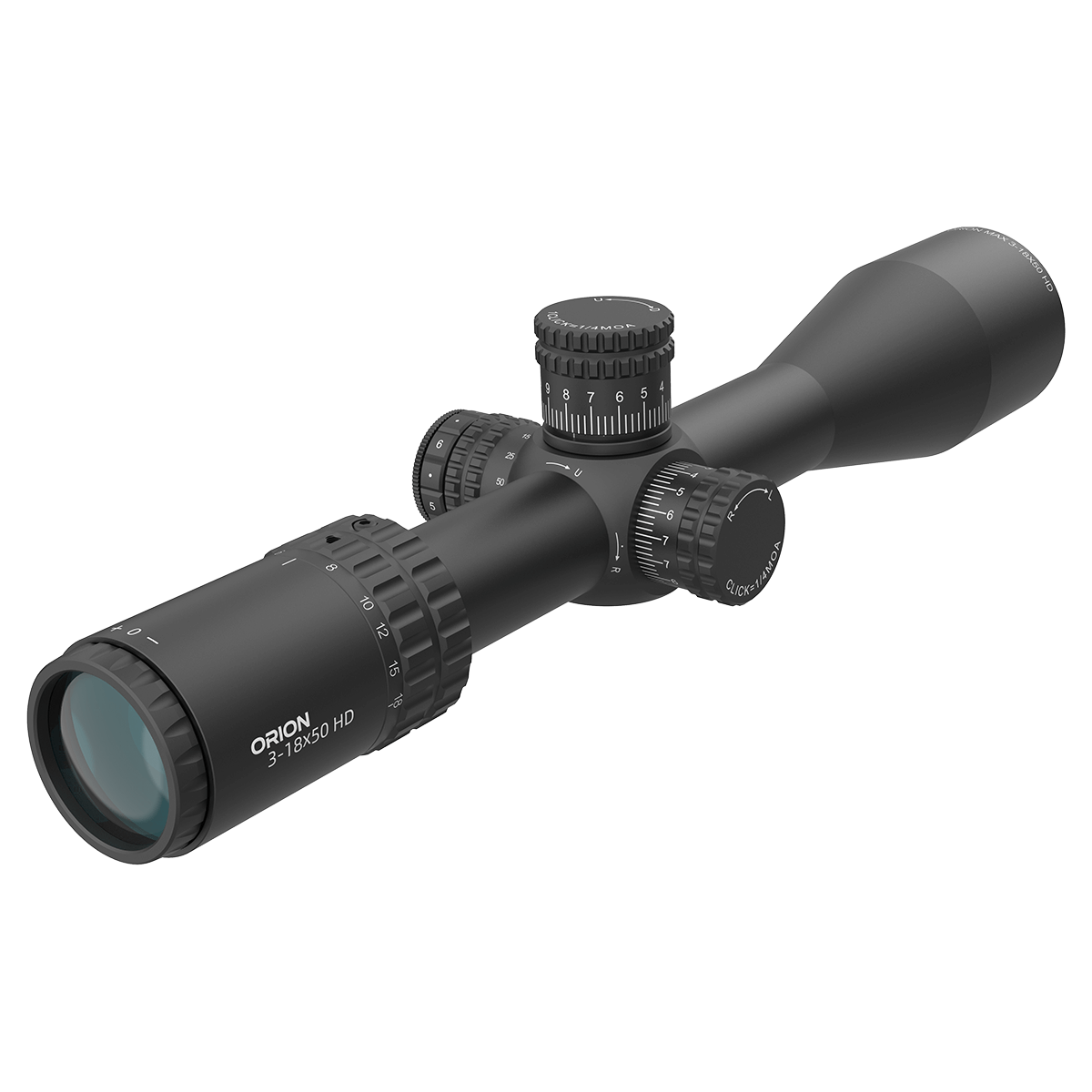

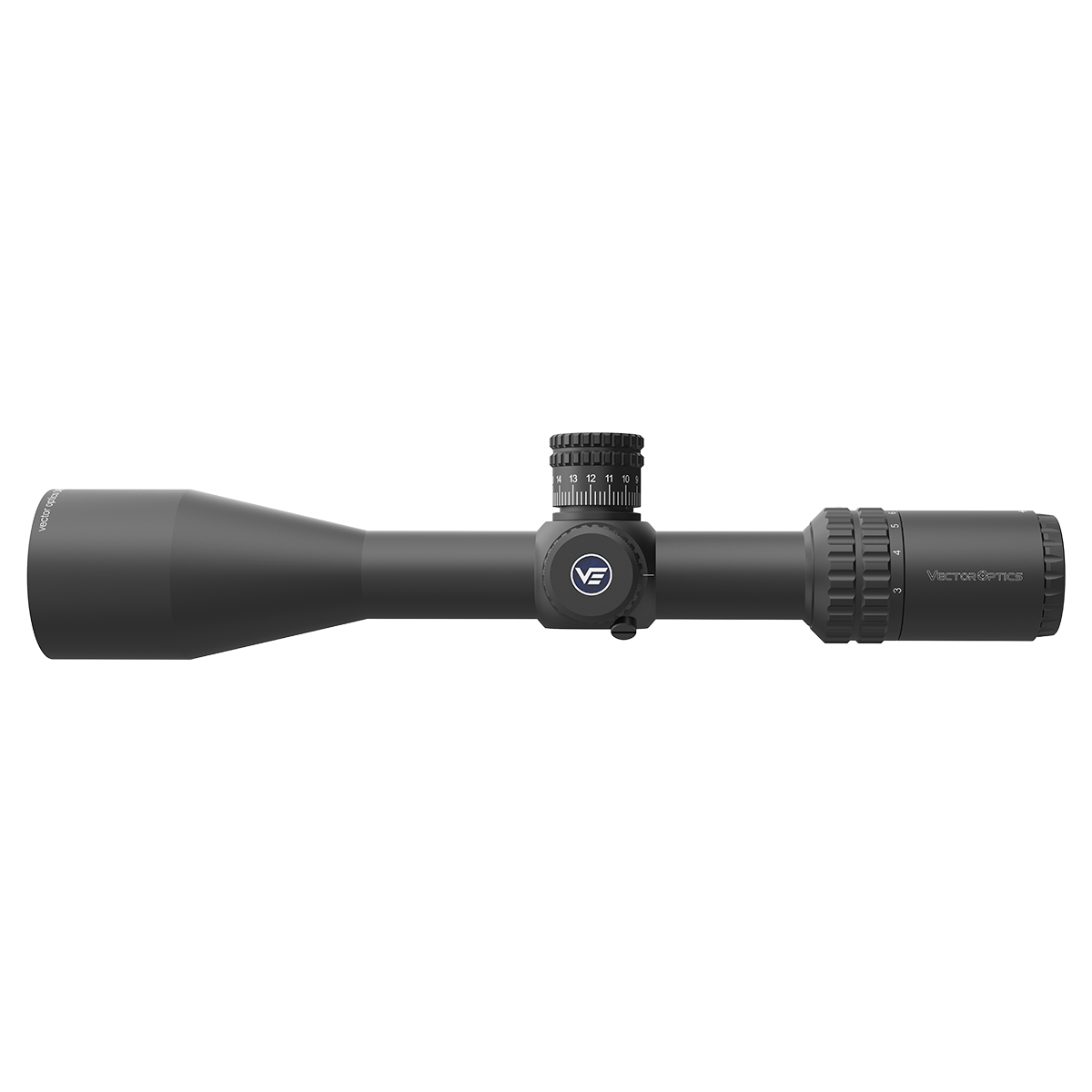

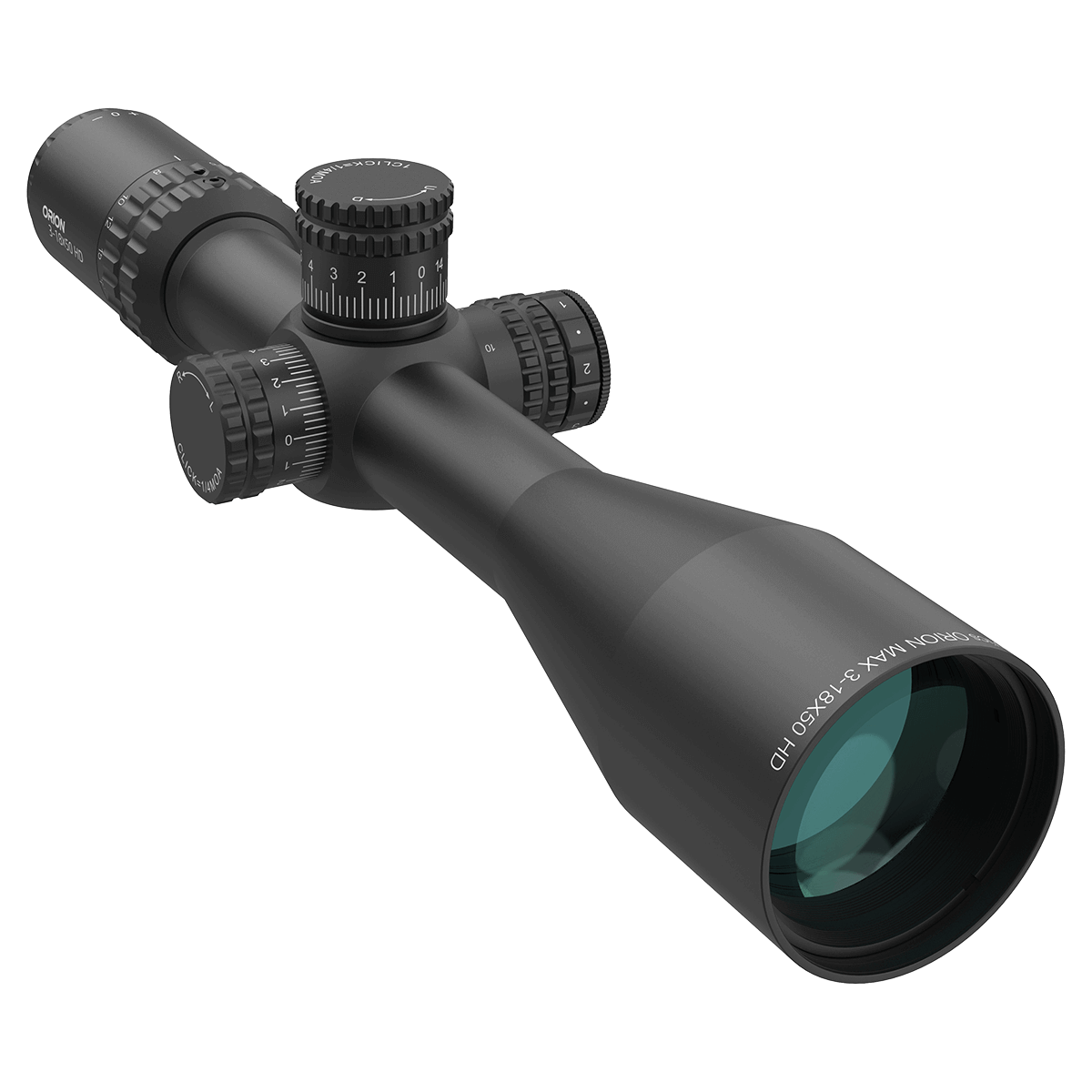

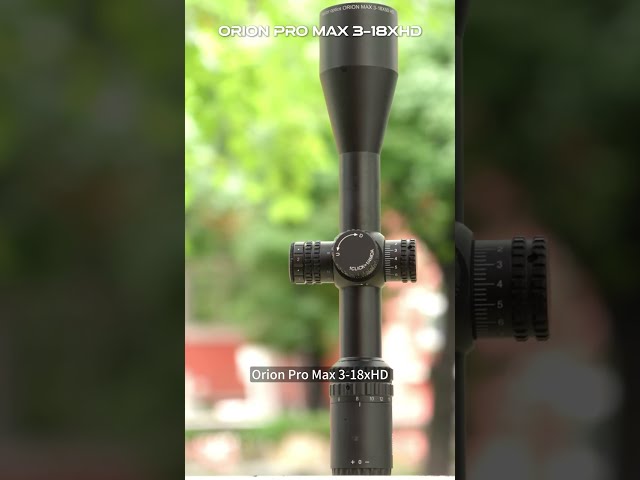

Orion Pro MAX 3-18x50 HD SFP Rifle Scope

Model: SCOL-57

0.3 MOA Center Dot for Precise Aiming, 2.5 MOA Hashmark Increment, Design for Mid to Long-Range Shooting 30mm Tube Enlarges Elevation Adjustment Range to 100 MOA, 1/4 MOA Click Value for Precise Adjustment LaREE HD Lens Presents Bright and Clear Image, Fully Multi-Coated Lens Increases Light Transmission Zero Stop Return Effortlessly to a Pre-Set Zero Point, 6 Gears Illumination Adaptable to Various Light Condition

Features

  • 30mm Tube Size

    Large to Increase the Adjustment Range
  • Second Focal Plane

    Consistent Reticle with Varying Magnification
  • Fully Multi-Coated

    Deliver Bright & Crisp Images

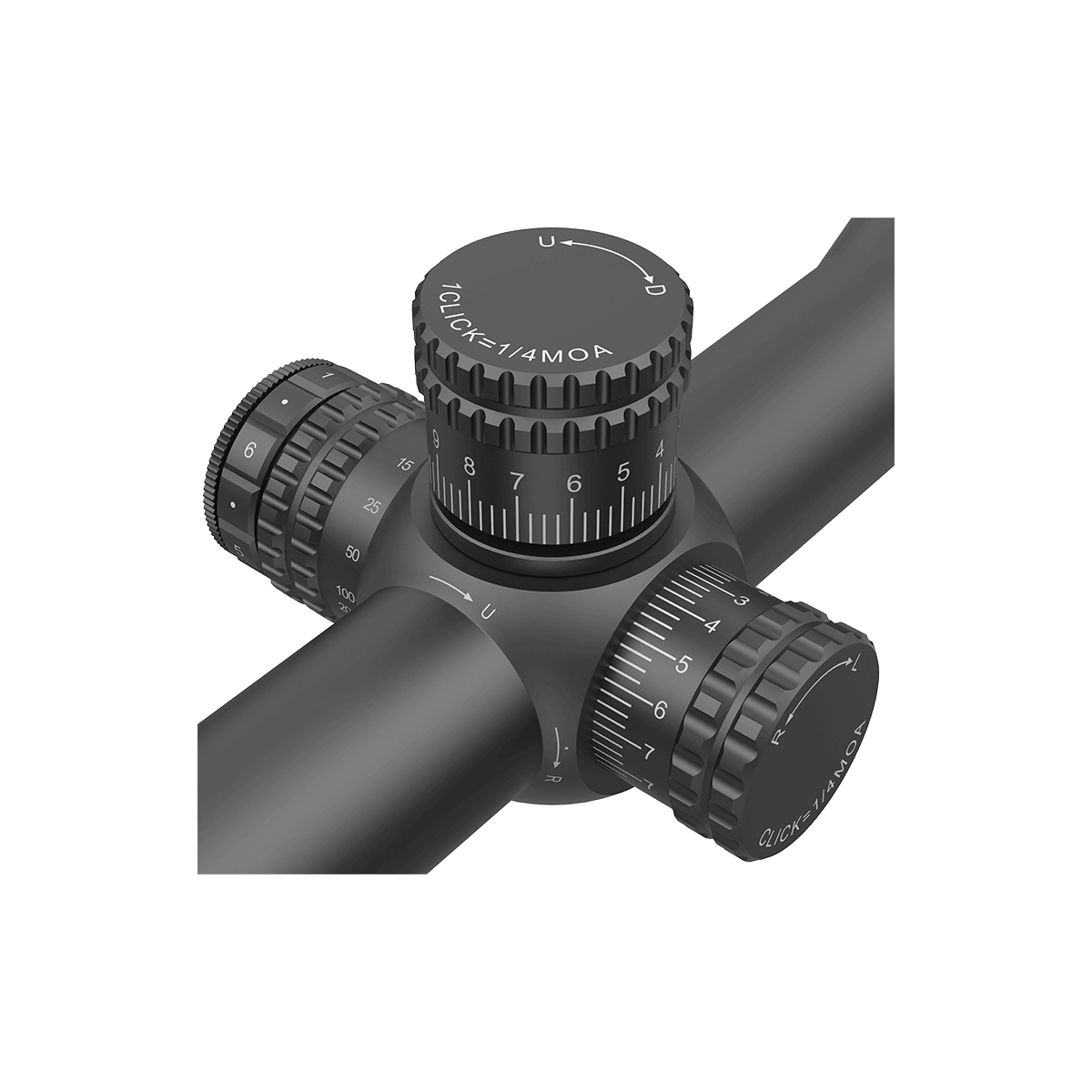

  • Zero Stop

    Effortlessly Return to Pre-set Zero
  • Nitrogen Purged

    Prevent Internal Fogging for Clear Visibility

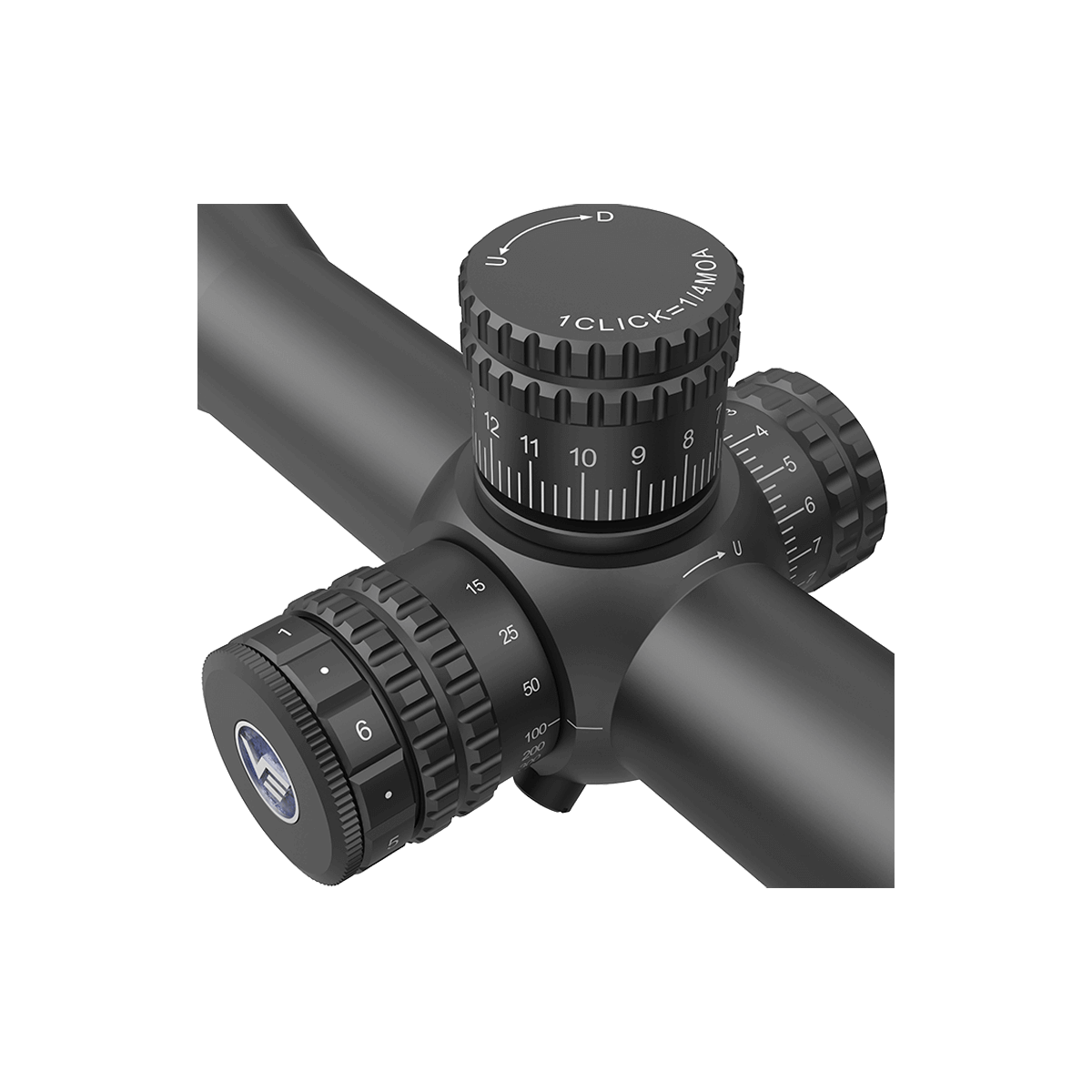

  • Side Focus

    Easy & Rapid Parallax Adjustment
  • 6 Gear Illumination

    Visible Reticle in all Light Conditions
  • Hunting Style

    Designed for Hunting

Specifications

  • Magnification 3-18x
    Objective Lens Dia 50 mm
    Focal Plane Second Focal Plane
    Eye Relief 95 mm
    Lens Coating Fully Multi-Coated
    Linear Field of View @ 100 yd 38.2-6.3 ft @ 100 yards
    Linear Field of View @ 100 m 12.7-2.1 m @ 100 meters
    Angular Field of View 7.3-1.2°
    Reticle VOR-5 MOA
  • Tube Dia 30 mm
    Side Focus 10 yards to Infinity
    Click Value 1/4 MOA
    Turret Function Zero Stop
    Elevation Adjustment Range 100 MOA
    Windage Adjustment Range 60 MOA
    Diopter Compensation -2 to +2
    Illumination Setting 6 Gears, On/off Switch
    Battery Type CR2032
    Waterproof IPX4
    Fogproof Nitrogen Filled
    Shockproof 750 G
    Housing Material 6061-T6 Aluminum Alloy
    Finish Matte Black
    Length 338 mm / 15.3 in
    Weight 825 g / 29.1 oz

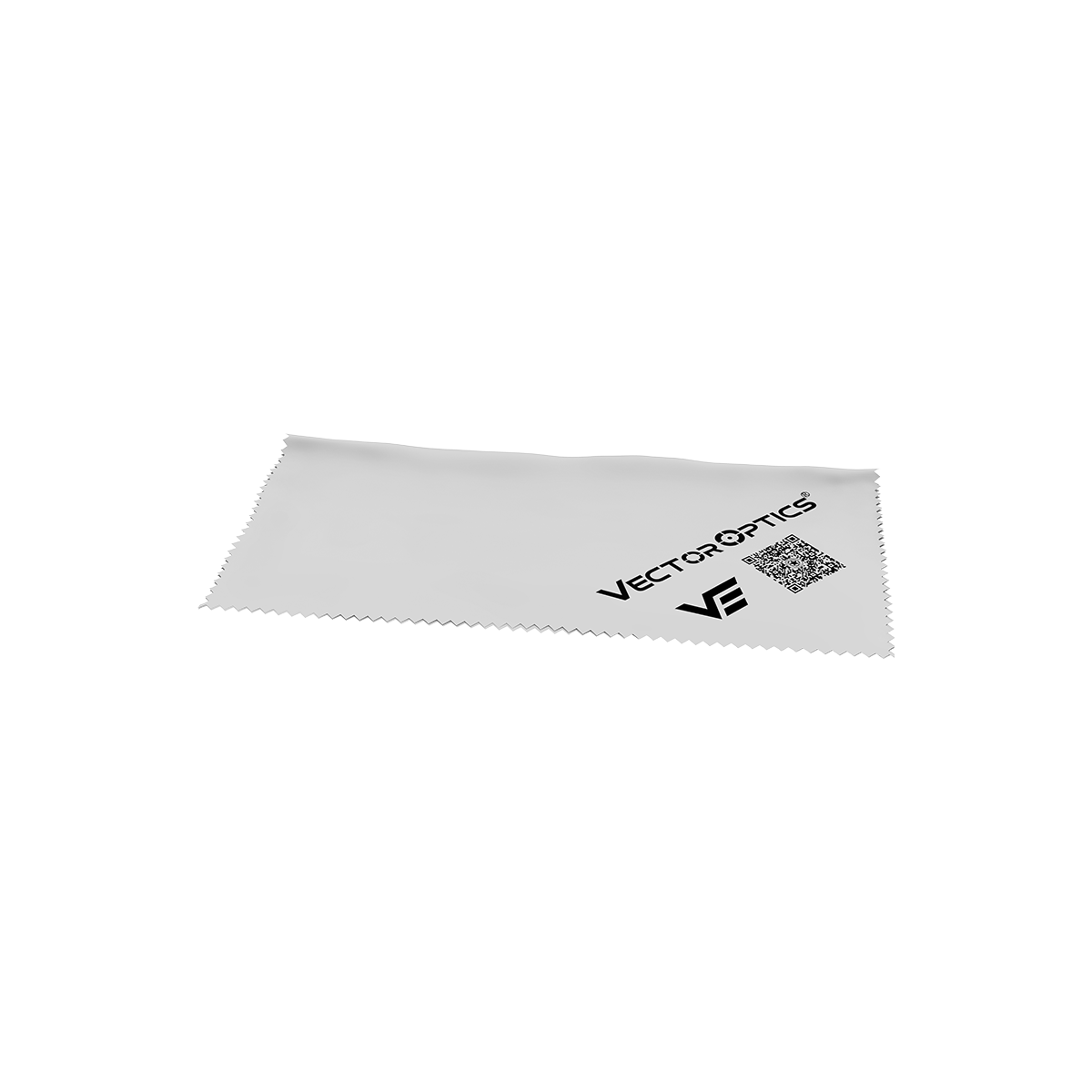

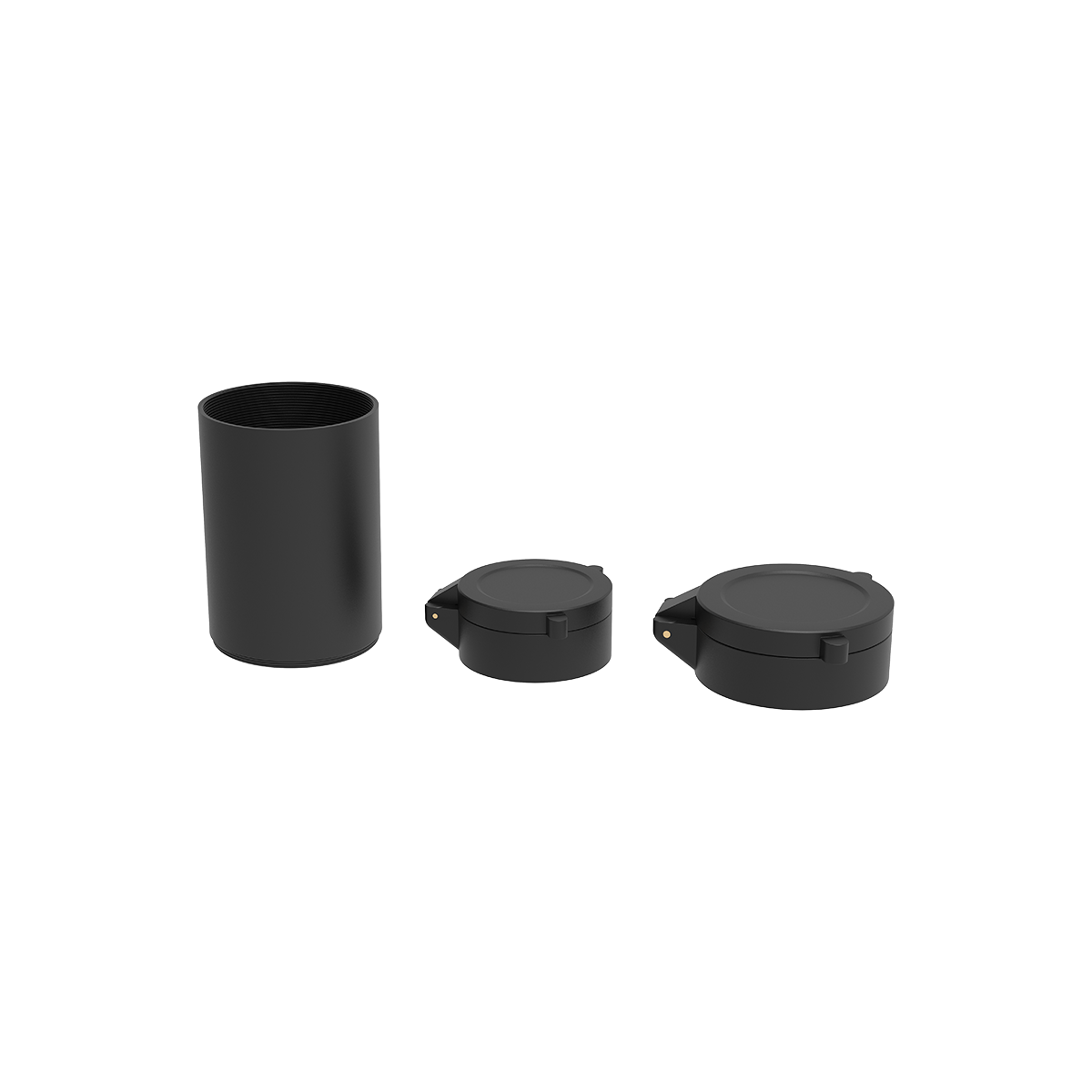

    Items in the Package User Manual, Cleaning Cloth, Flip-up Caps, Sunshade, Hex Key, Throw Lever, etc.

Reticle

  • VOR-5 MOA

    Design for mid to long-range shooting/hunting
  • VOR-5 MOA Subtension

    0.3 MOA center dot and 2 MOA diameter circle for precise long-range shooting

    2.5 MOA even hashmark increment for fast ranging and BDC

Download

  • Orion User Manual
  • VOR-5 MOA SFP Reticle User Manual

Warranty Policy

The product supports a 5-year warranty policy.
