VMD-2 Pattern Design for Rapid Target Acquisition and Range Estimation 40mm Objective Lens Dia, Full Multi-coated Lens Delivers Bright Images Long Eye Relief and Wide Field of View 6.2° - 2.1° Benefits Situational Awareness 1 Inch / 25.4 mm Tube Dia, Lightweight and Compact Design for Easy Portability
Magnification | 3-9x |
Objective Lens Dia | 40 mm |
Focal Plane | SFP |
Eye Relief | 105-96 mm / 4.1-3.8 in |
Lens Coating | Fully Multi-coated |
Linear Field of View @ 100 yd | 32.44-10.99 ft @100 yards |
Linear Field of View @ 100 m | 10.8-3.66 m @100 meters |
Angular Field of View ° | 6.2-2.1° |

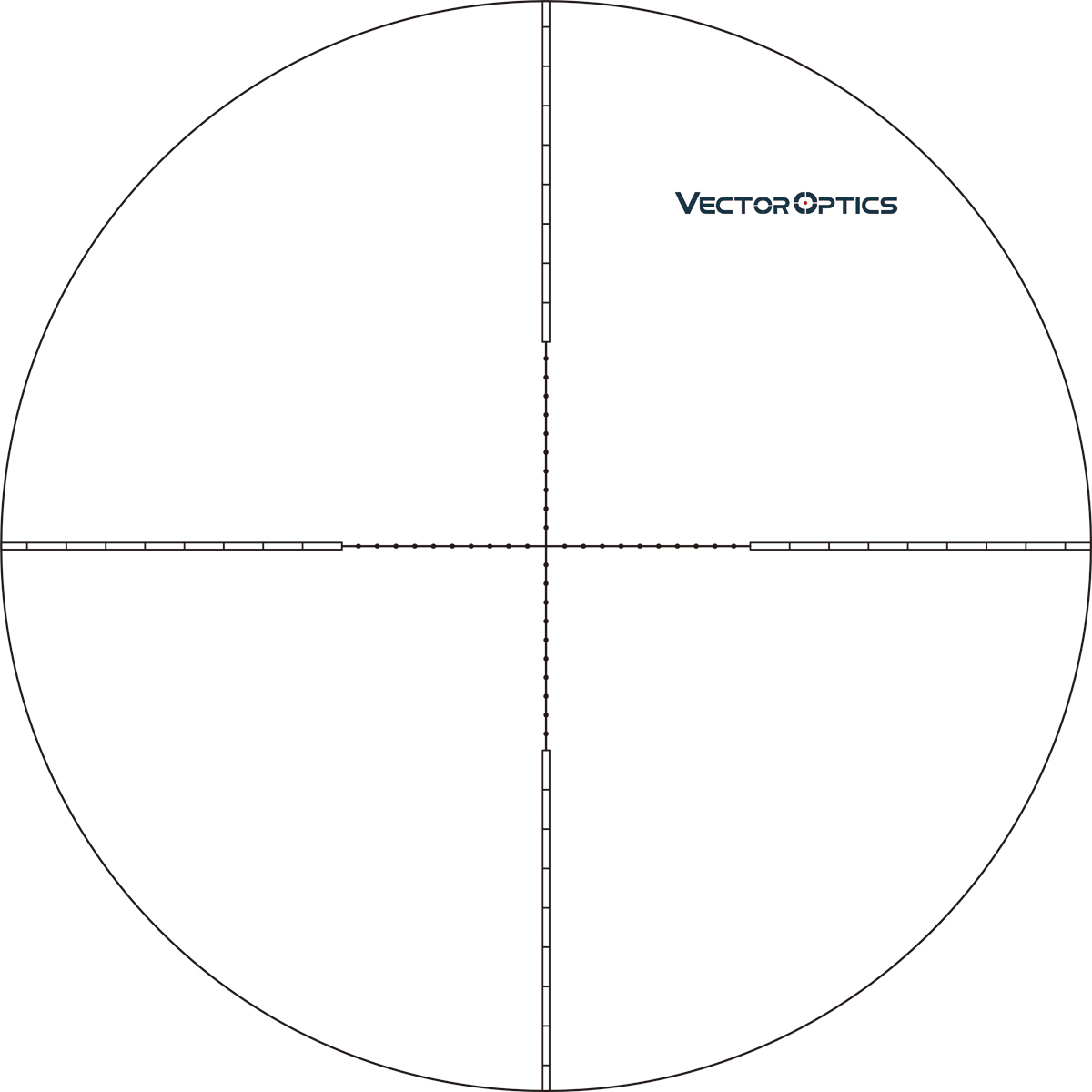

Reticle | VMD-2 |
Parallax Setting | 100 yards |
Tube Dia | 25.4 mm |

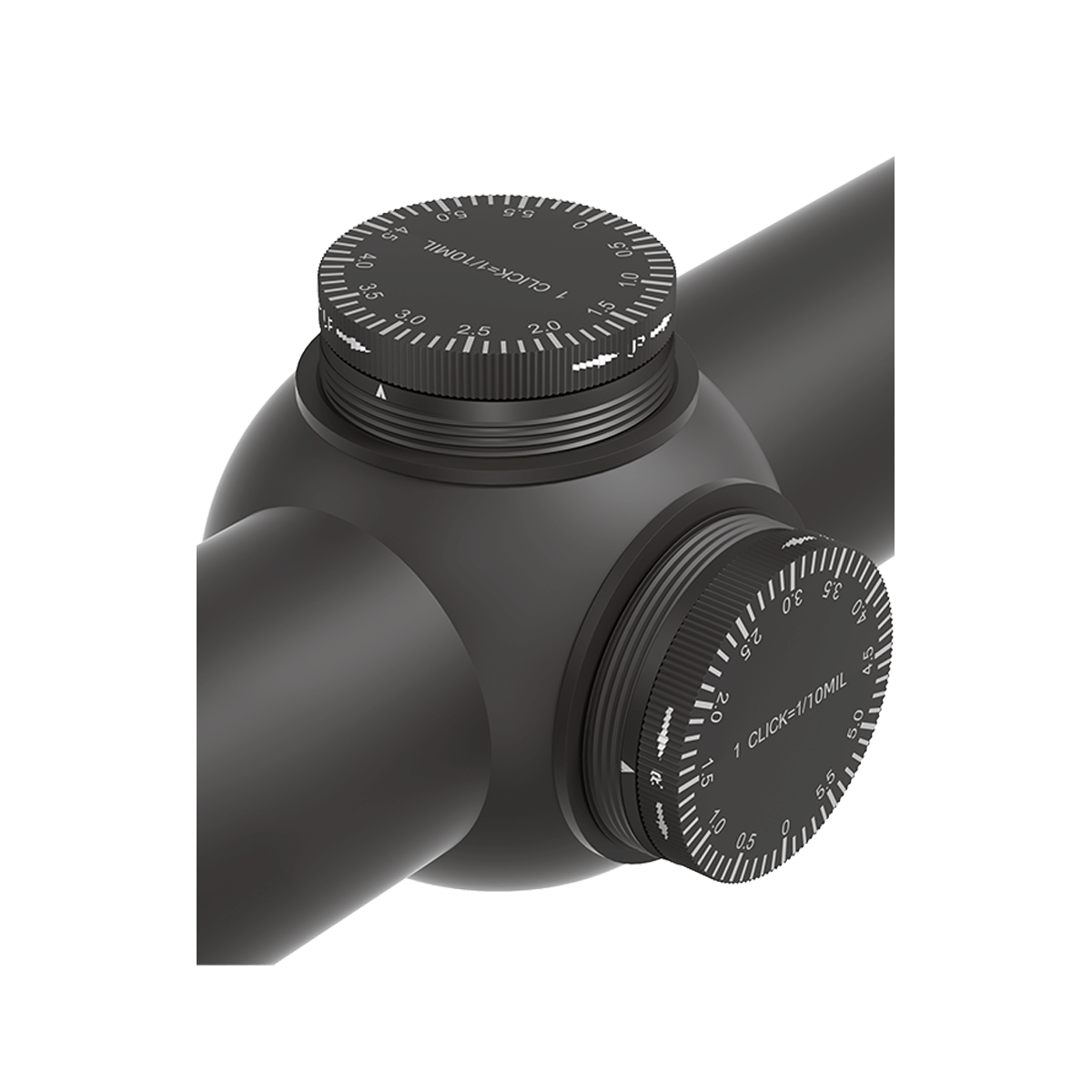

Click Value | 1/10 MIL |
Turret Function | N/A |
Elevation Adjustment Range | 17.5 MIL |
Windage Adjustment Range | 17.5 MIL |
Diopter Compensation | -2 to +2 |
Illumination Setting | N/A |
Battery Type | N/A |
Waterproof | IPX4 |
Fogproof | Filled Nitrogen |
Shockproof | 600 G |
Housing Material | 6061-T6 Aluminum Alloy |
Finish | Matte Black |

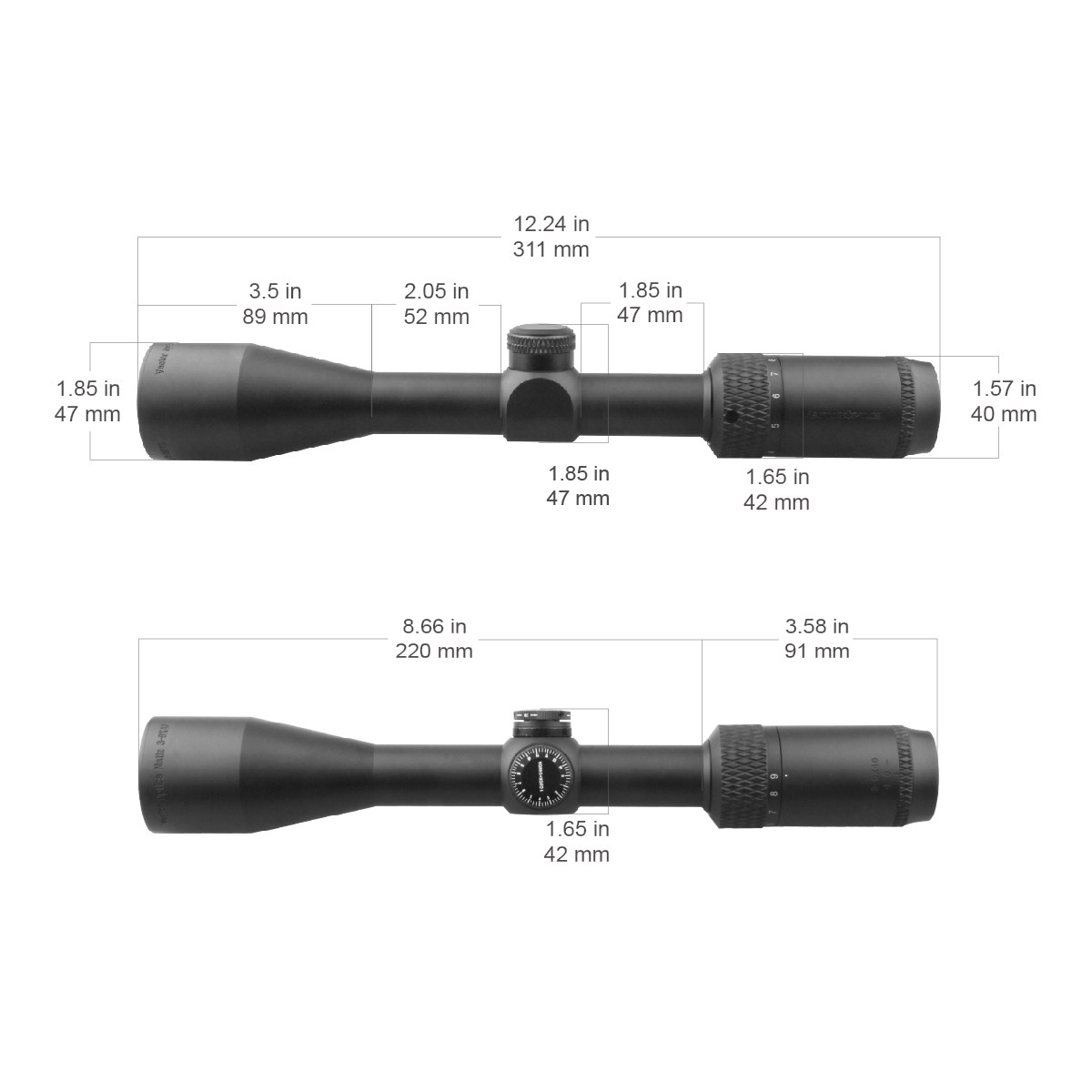

Length | 311 mm / 12.24 in |
Weight | 390 g / 13.8 oz |

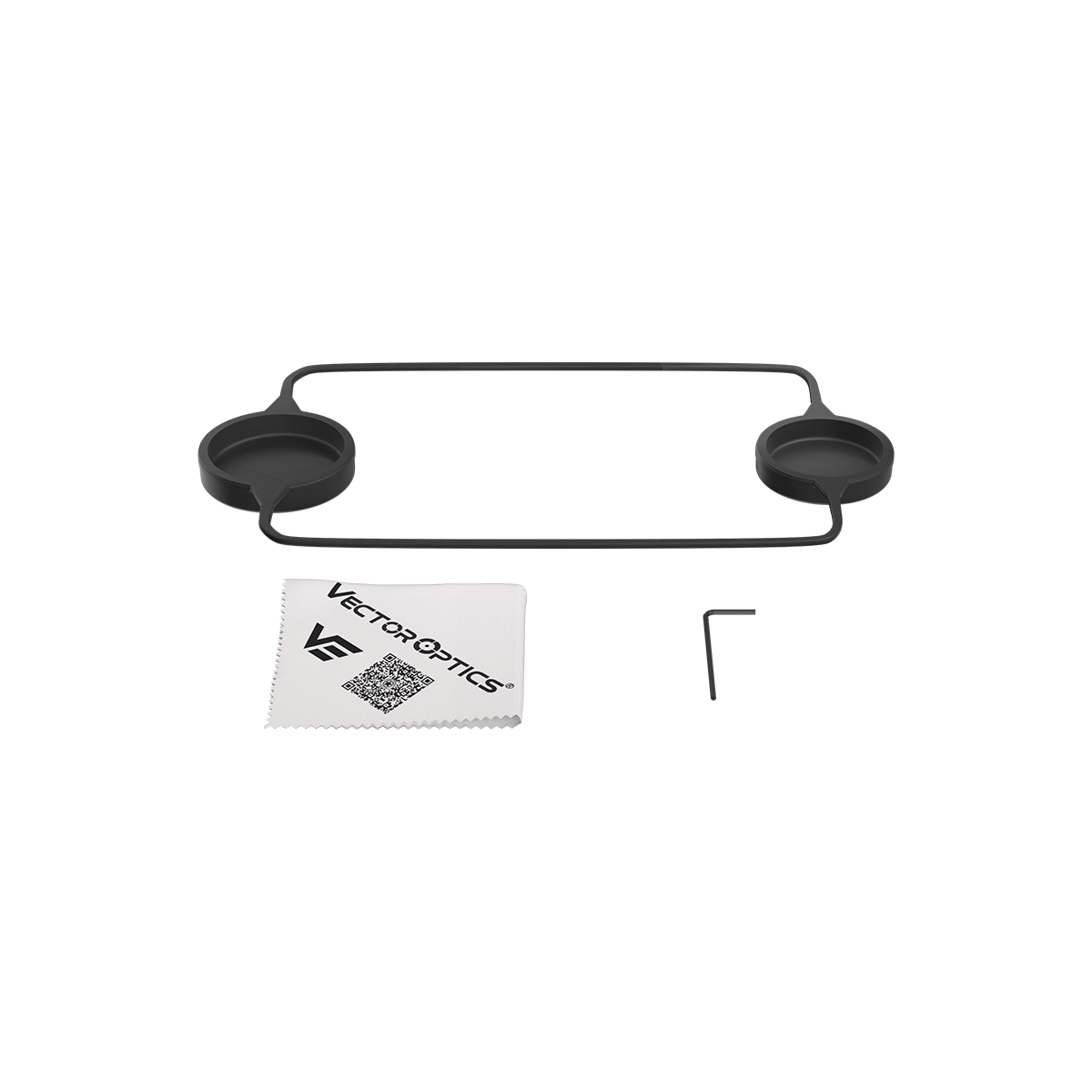

Items in the Package | One Pair of 25.4mm Weaver Scope Rings, Lens Caps and Cleaning Cloth, etc. |
