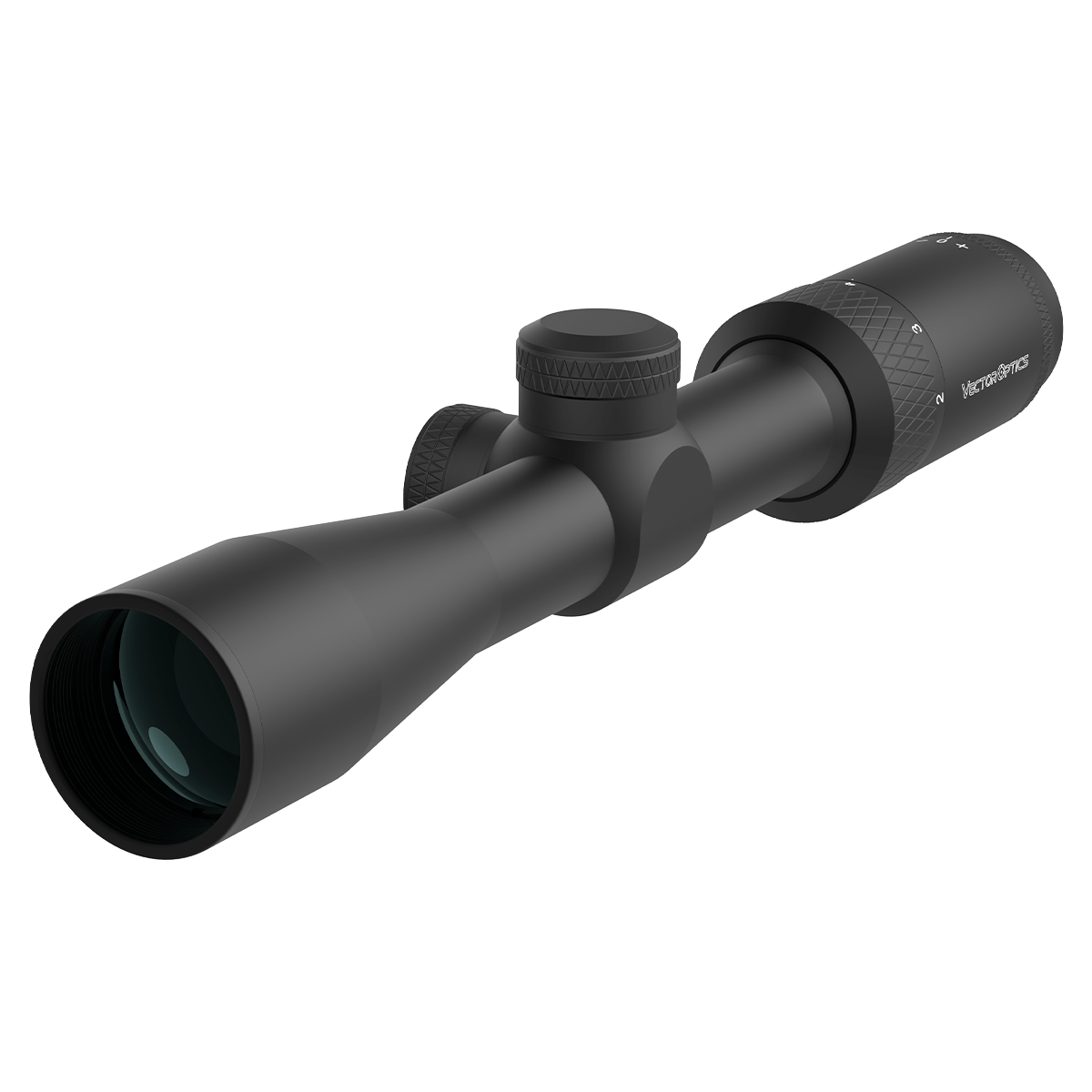

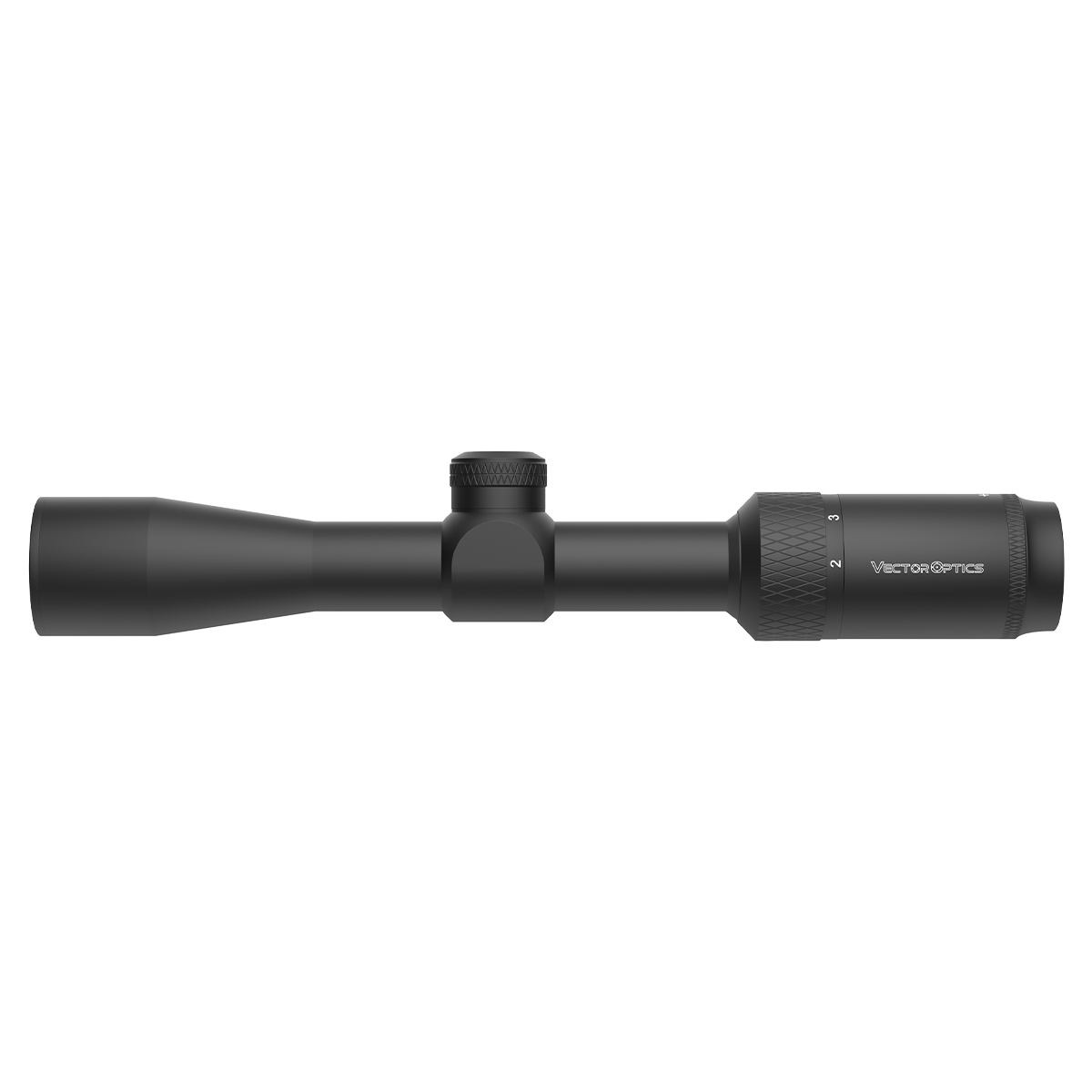

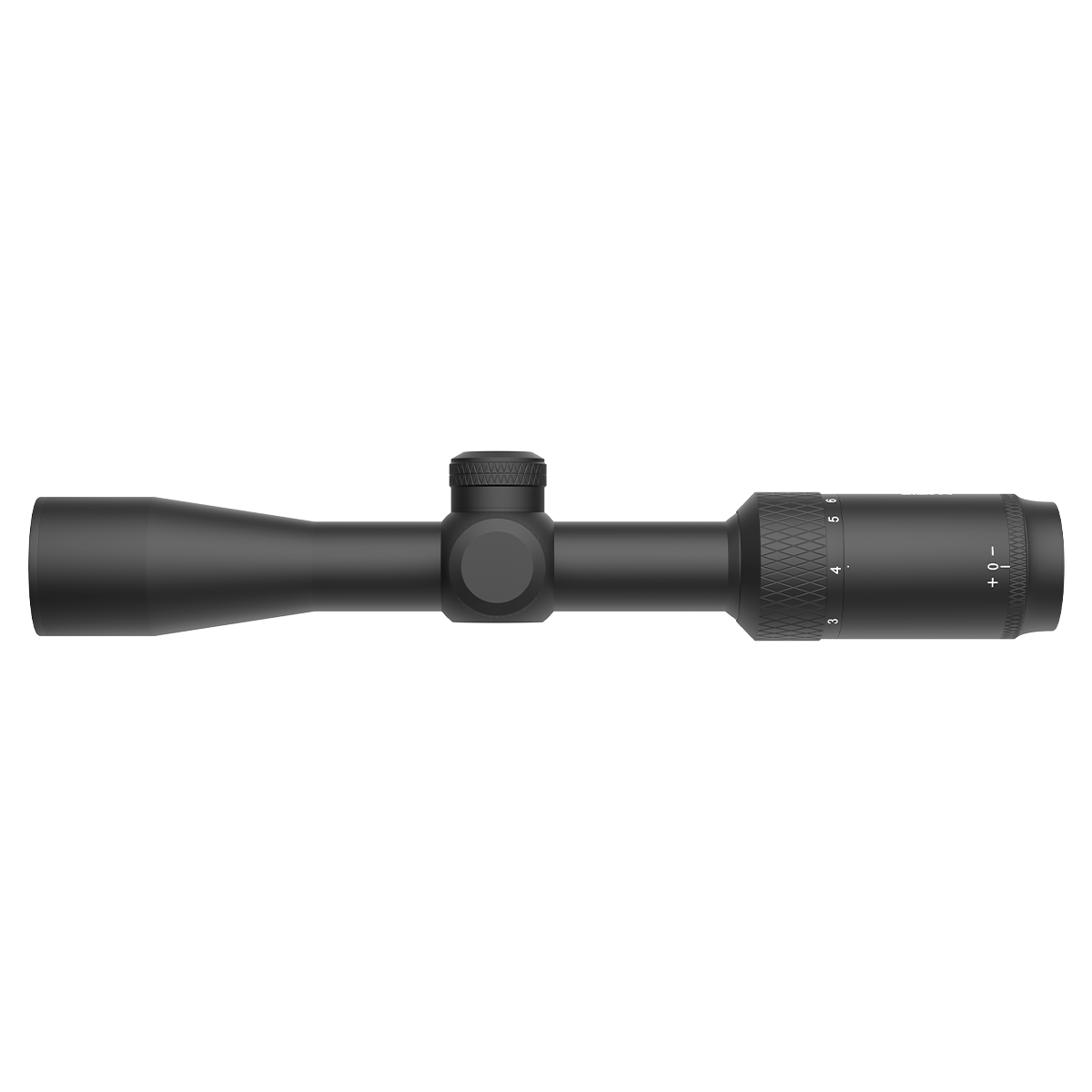

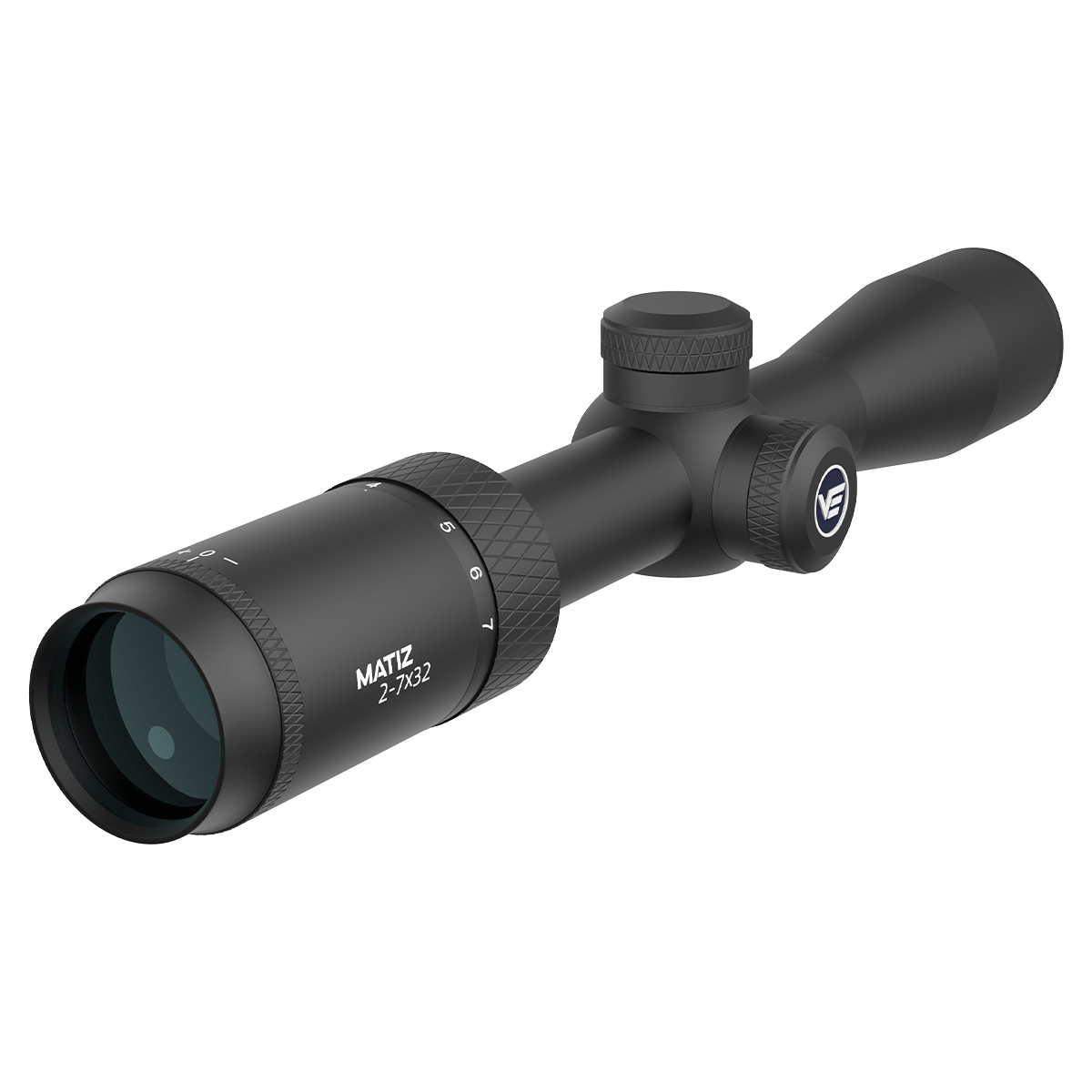

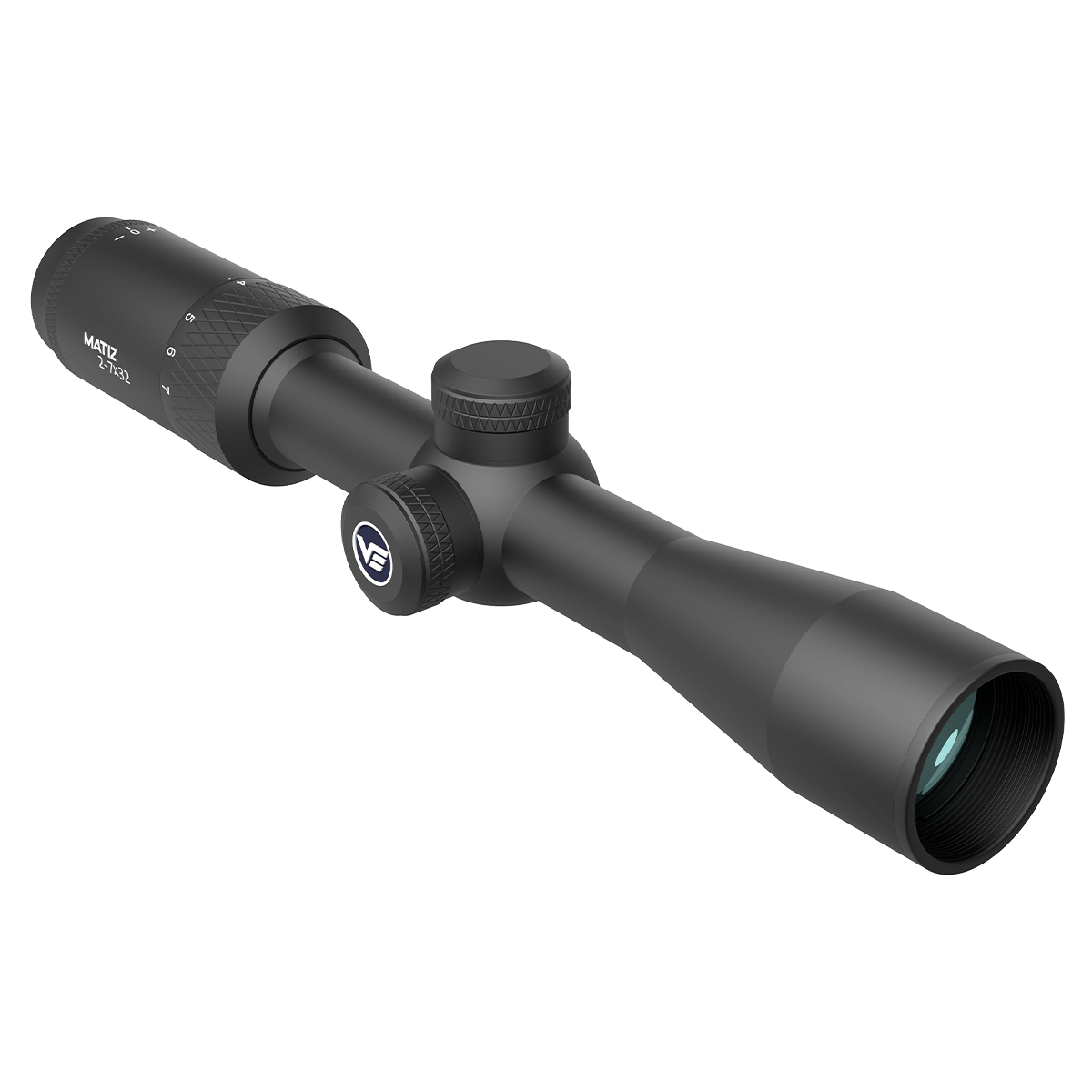

VOW-MOA Design for Both Rapid Target Acquisition and Range Estimation 32mm Objective Lens Dia, Fully Multi-Coated Lens Delivers Bright Images Long Eye Relief and Wide Field of View 8.0° to 2.15° Benefits Situational Awareness 1 Inch / 25.4 mm Tube Dia, Lightweight and Compact Design for Easy Portability
| Magnification | 2-7x |
| Objective Lens Dia | 32 mm |
| Focal Plane | SFP |
| Eye Relief | 108-98 mm / 4.2-3.9 in |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 41.97-12.05 ft @100 yards |
| Linear Field of View @ 100 m | 13.99-4.01 m @100 meters |
| Angular Field of View ° | 8.0-2.15° |
| Reticle | VOW-MOA |
| Parallax Setting | 100 yards |
| Tube Dia | 25.4 mm |

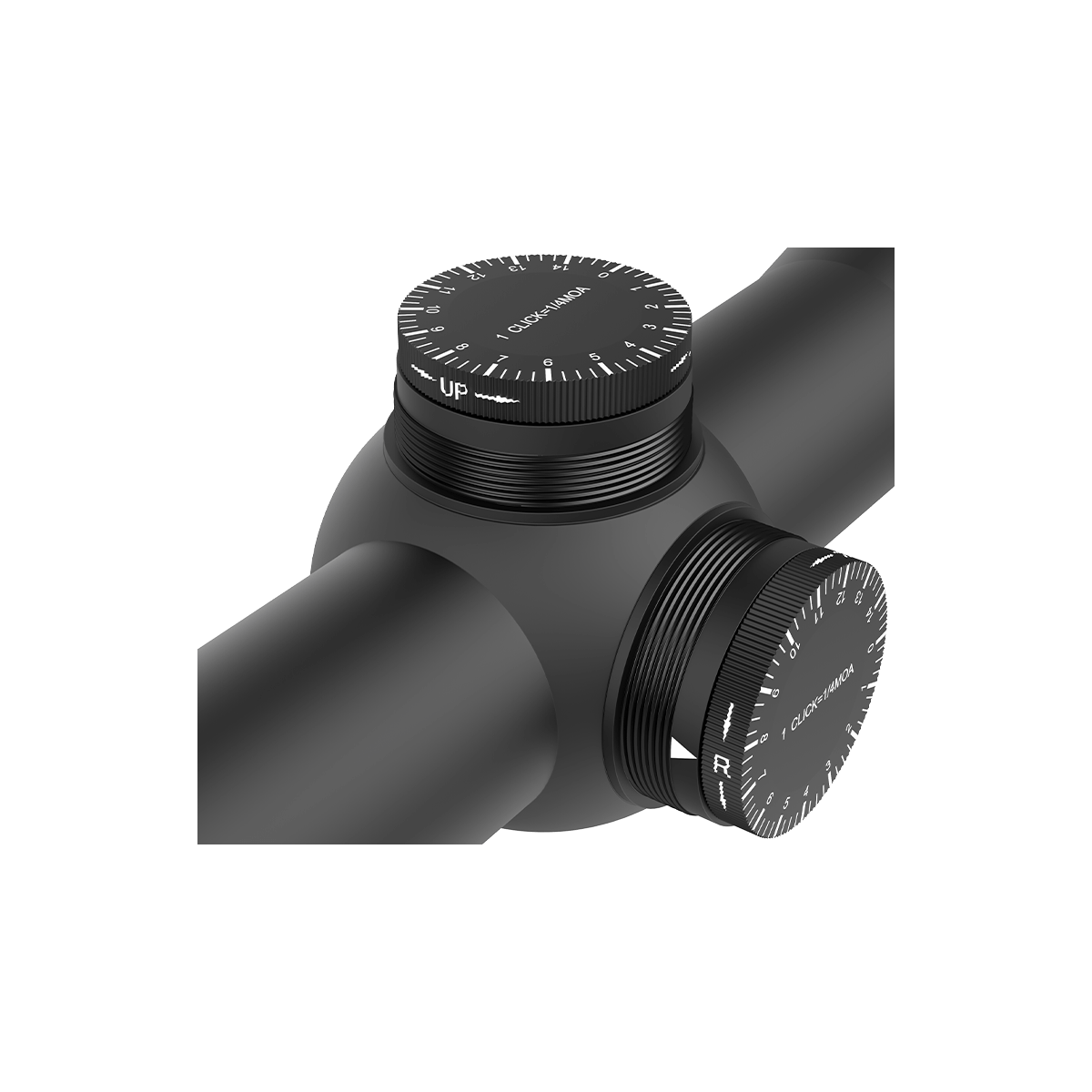

| Click Value | 1/4 MOA |
| Turret Function | N/A |
| Elevation Adjustment Range | 60 MOA |
| Windage Adjustment Range | 60 MOA |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | N/A |
| Battery Type | N/A |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 600 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |
| Length | 279 mm / 11.0 in |
| Weight | 375 g / 13.2 oz |

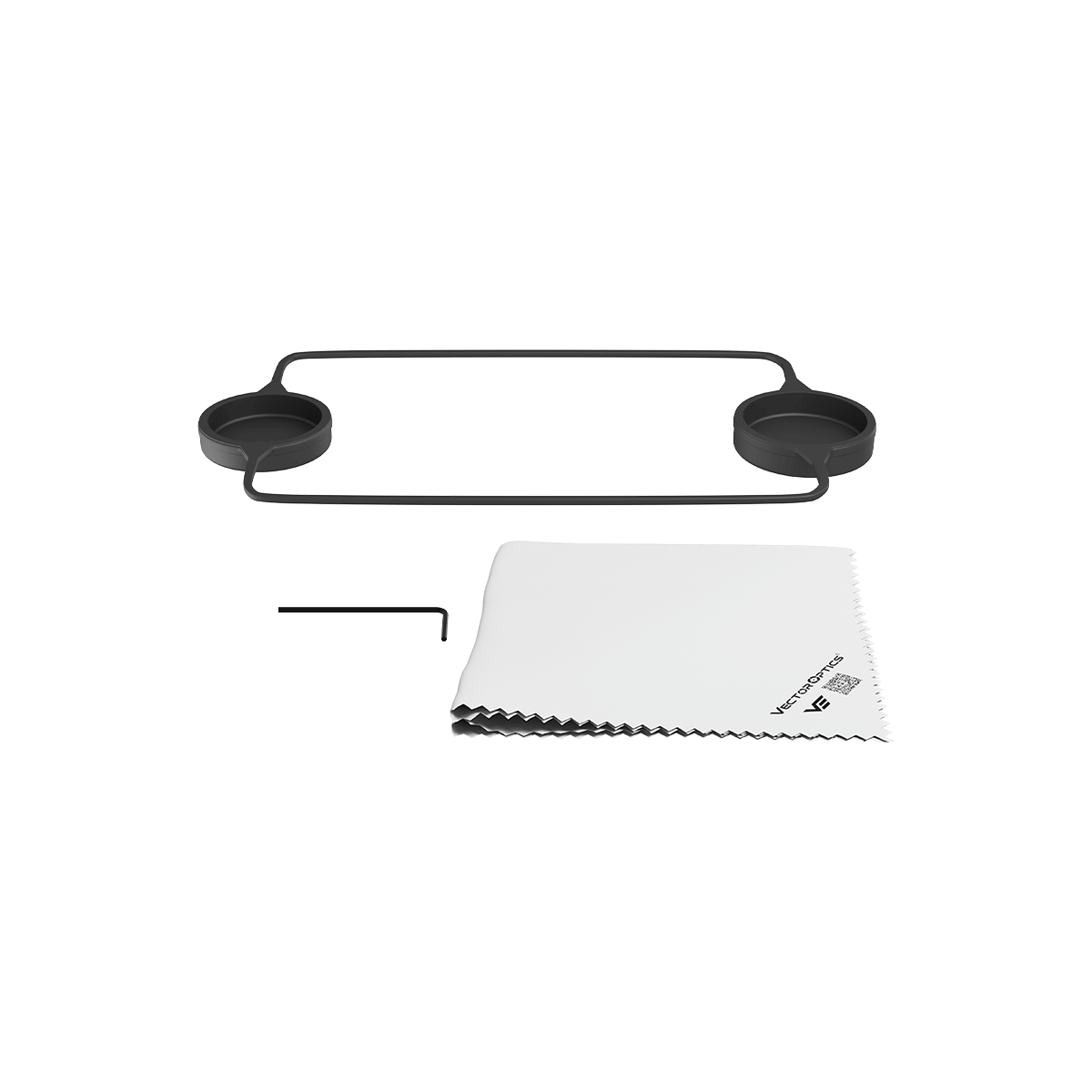

| Items in the Package | One Pair of 25.4mm Weaver Scope Rings, Lens Caps and Cleaning Cloth, etc. |
