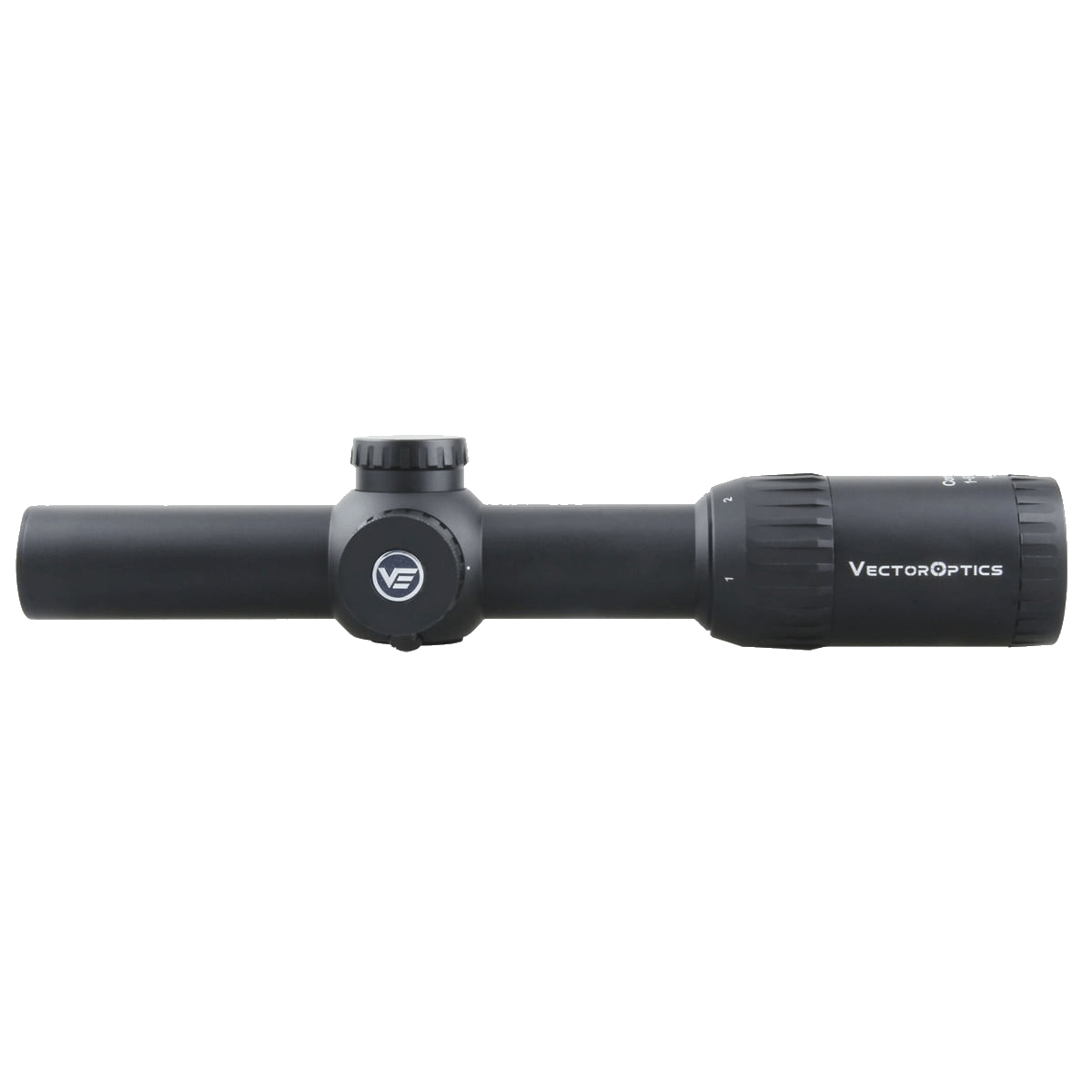

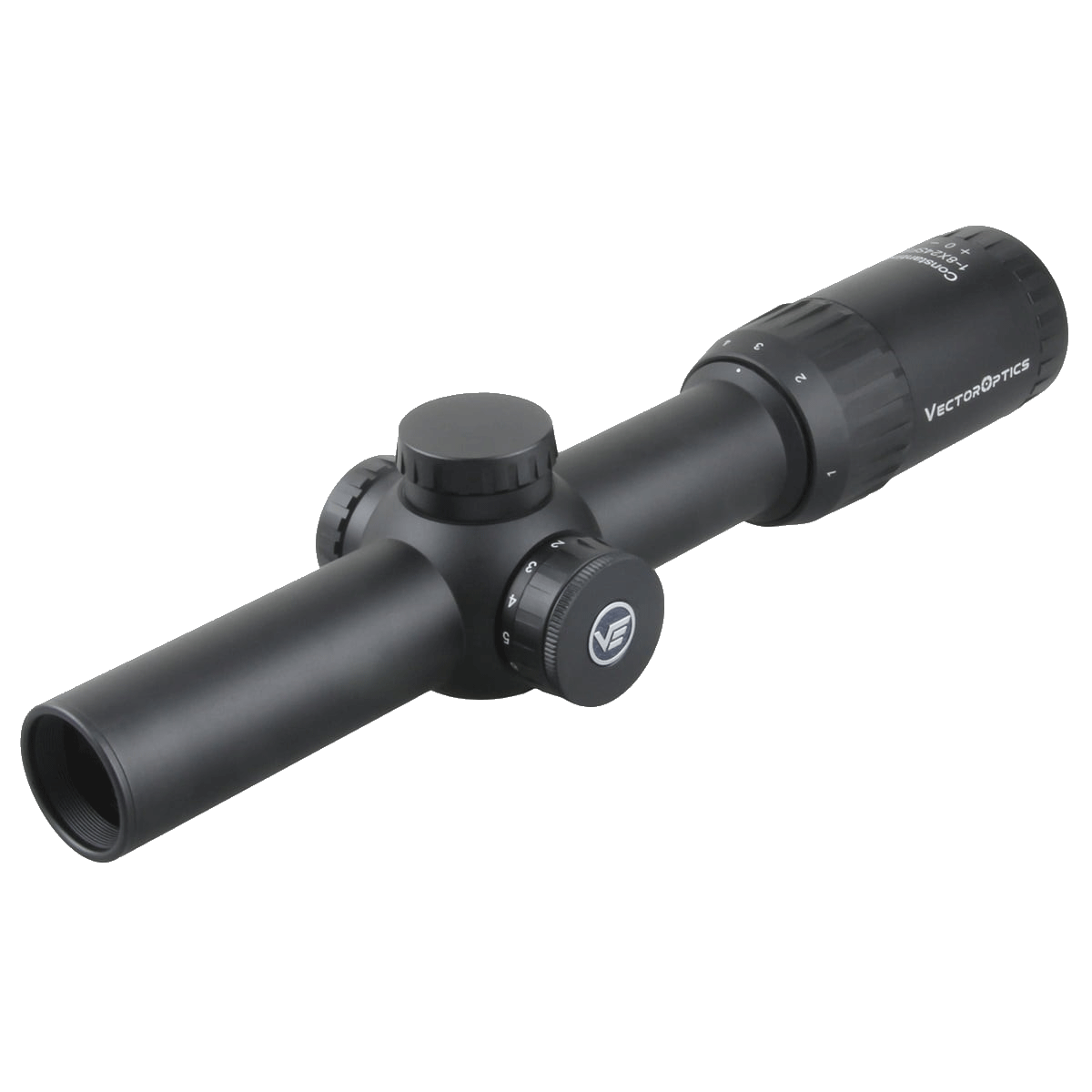

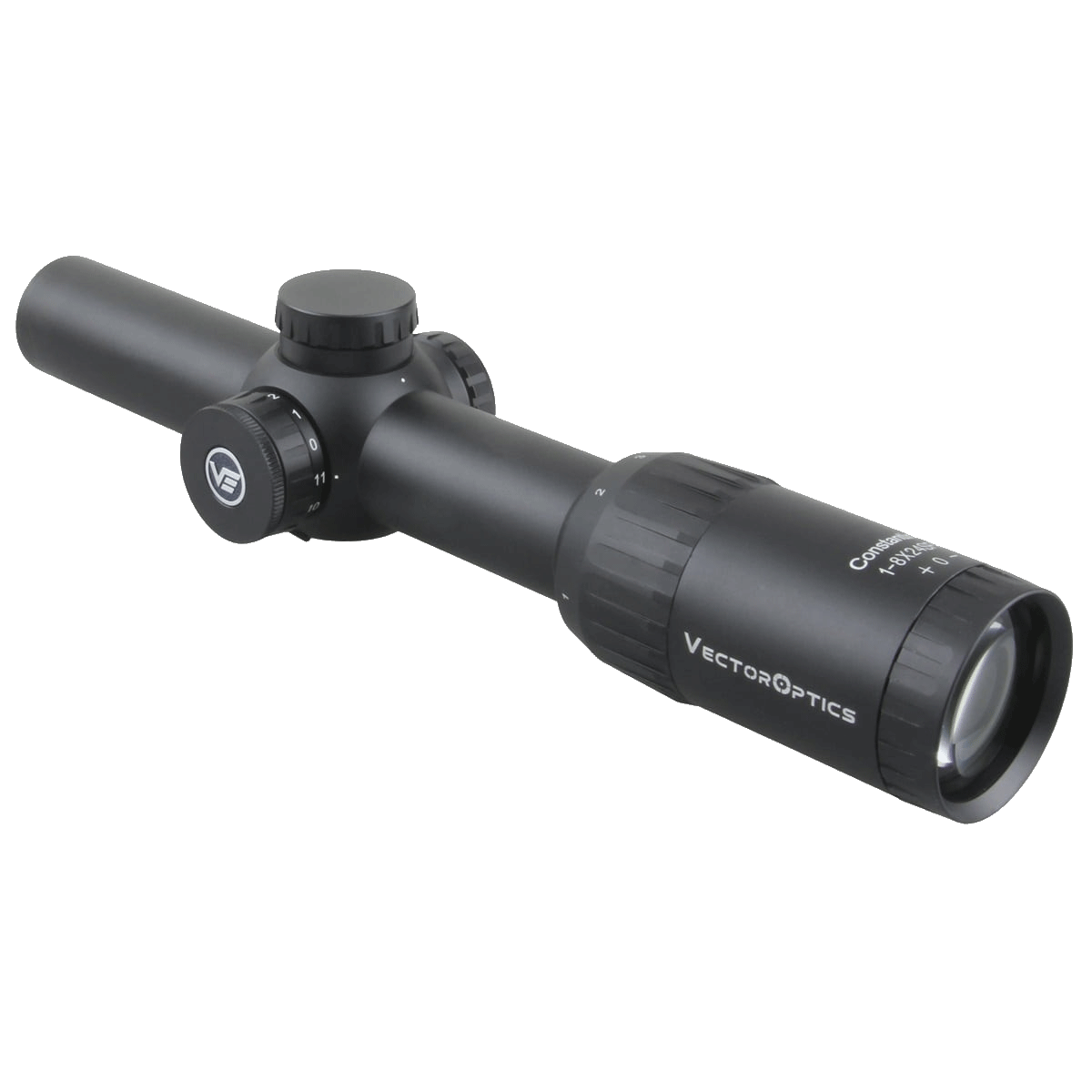

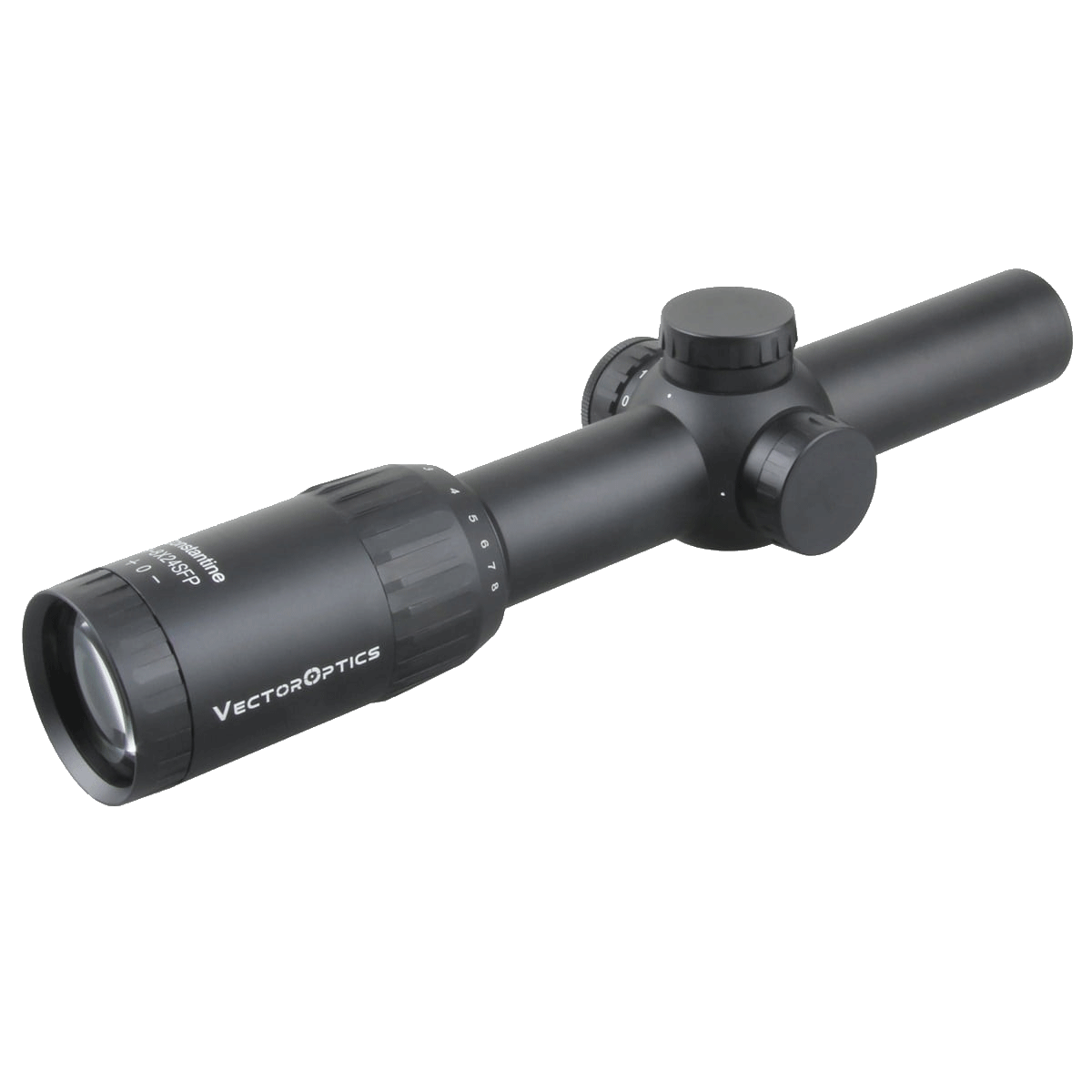

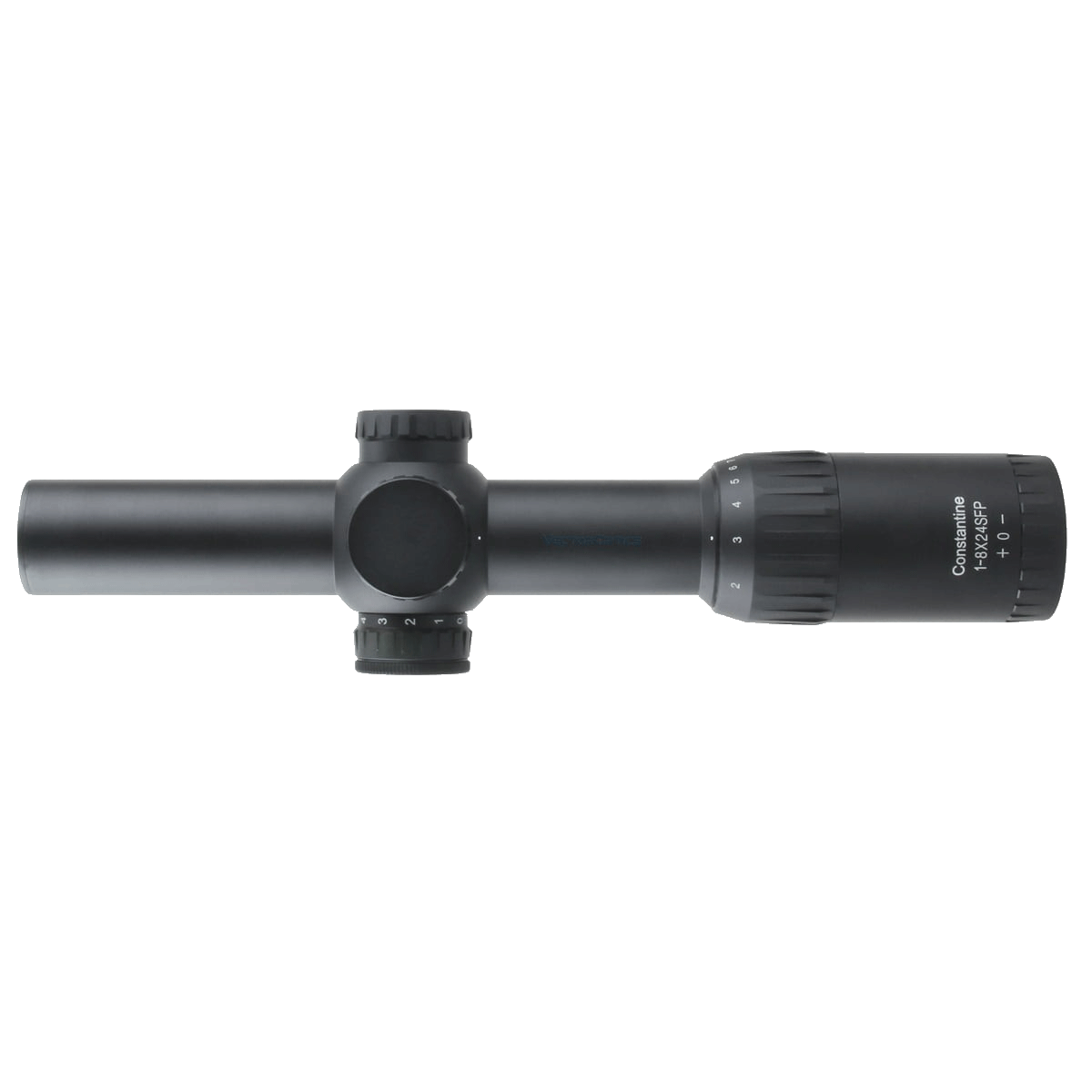

Constantine 1-8x24 SFP Rifle Scope

Model: SCOC-27

SFP VOS-EHT Reticle Benefits Small Game Hunting, Christmas Tree Pattern for Fast Follow-up Corrections 0.3MIL Center Dot with 2MIL Dia Ring for Precise Aiming,11 Gears Illumination for Rapid Target Acquisition True 1x Power Allows Two-Eyes-Open Shooting and Situational Awareness, Improving Hunting Experience Capped Turret to Prevent Accidental Slippage, 1/10 MIL Click Value for Precise Adjustment to Improve Accuracy

Features

  • 30mm Tube Size

    Large to Increase the Adjustment Range
  • Second Focal Plane

    Consistent Reticle with Varying Magnification
  • Fully Multi-Coated

    Deliver Bright & Crisp Images

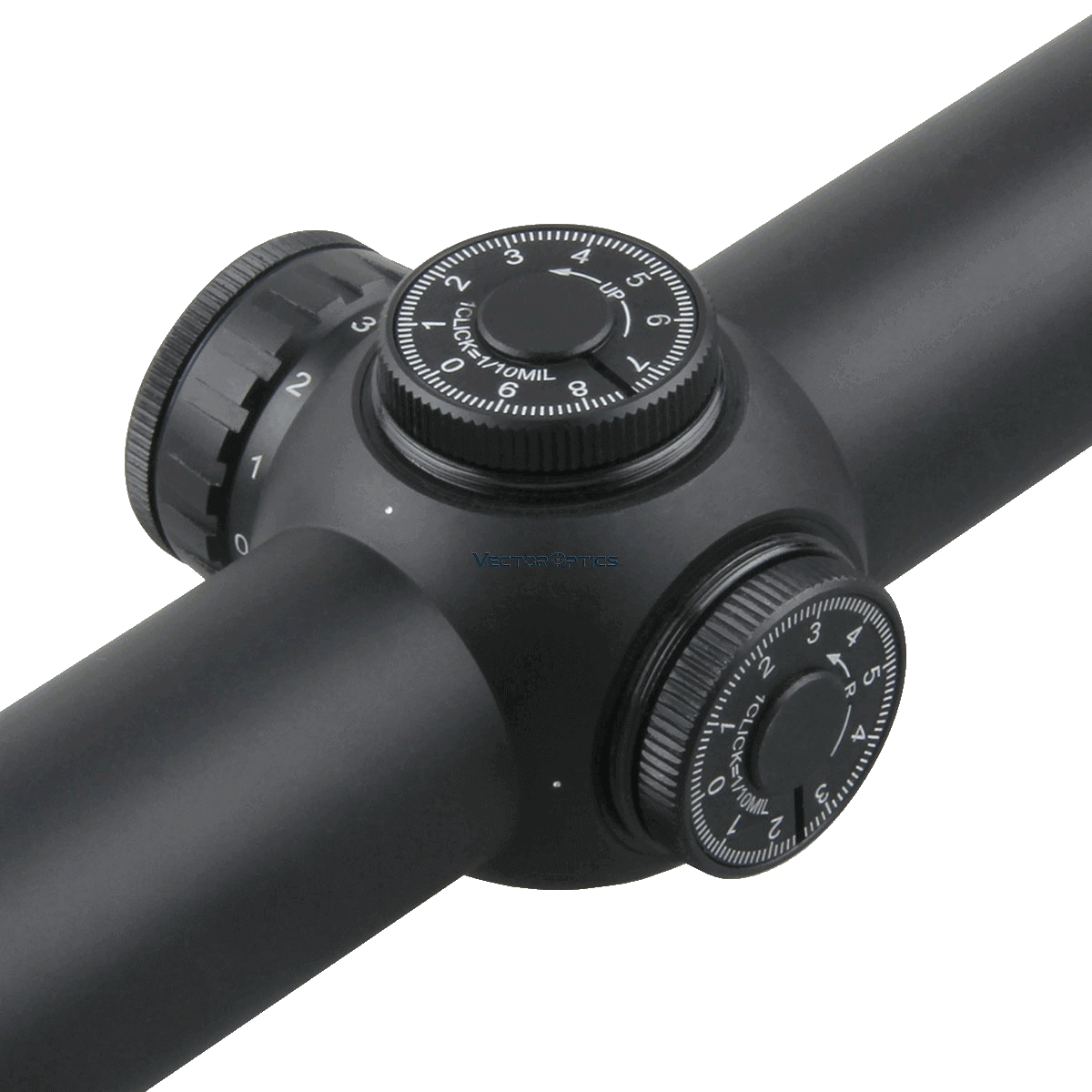

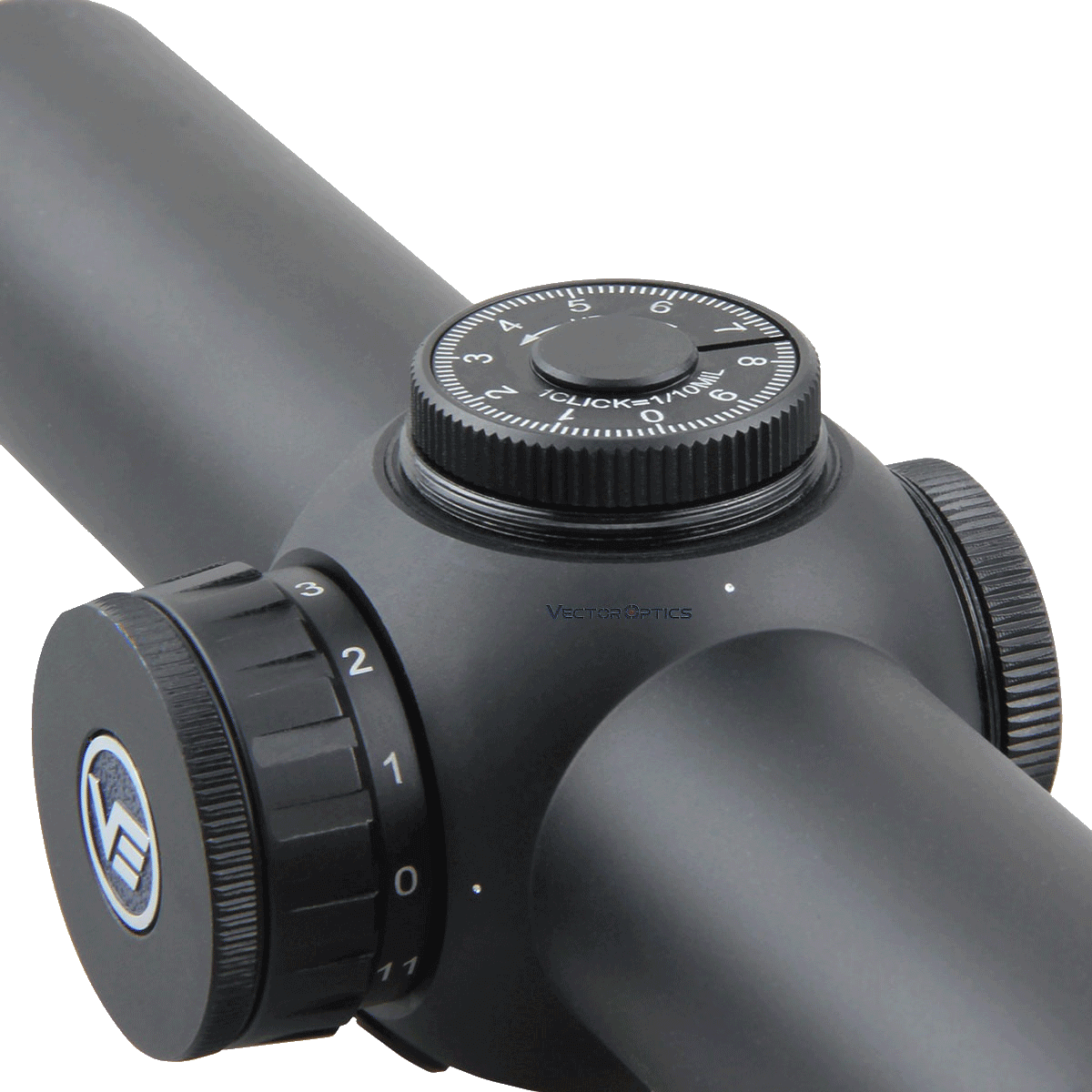

  • Capped Turret

    Protect the Turret from Accidental Adjustments
  • True 1x Power

    Enable Two Eyes Open Shooting
  • IPX6

    Durable Against Heavy Rain
  • Nitrogen Purged

    Prevent Internal Fogging for Clear Visibility
  • Small Game Hunting

    Design/Suitable for Small Game Hunting

Specifications

  • Magnification 1-8x
    Objective Lens Dia 24 mm
    Focal Plane SFP
    Eye Relief 90 mm / 3.5 in
    Lens Coating Fully Multi-coated
    Linear Field of View @ 100 yd 125.6-14.8 ft @100 yards
    Linear Field of View @ 100 m 41.88-4.93 m @100 meters
    Reticle VOS-EHT
    Parallax Setting 100 Yards
  • Tube Dia 30 mm
    Click Value 1/10 MIL
    Turret Function N/A
    Elevation Adjustment Range >35MIL
    Windage Adjustment Range >35MIL
    Diopter Compensation -2 to +2
    Illumination Setting 11 Levels Red
    Battery Type CR2032
    Waterproof IPX6
    Fogproof Filled Nitrogen
    Shockproof 1000 G
    Housing Material 6061-T6 Aluminum Alloy
    Finish Matte Black

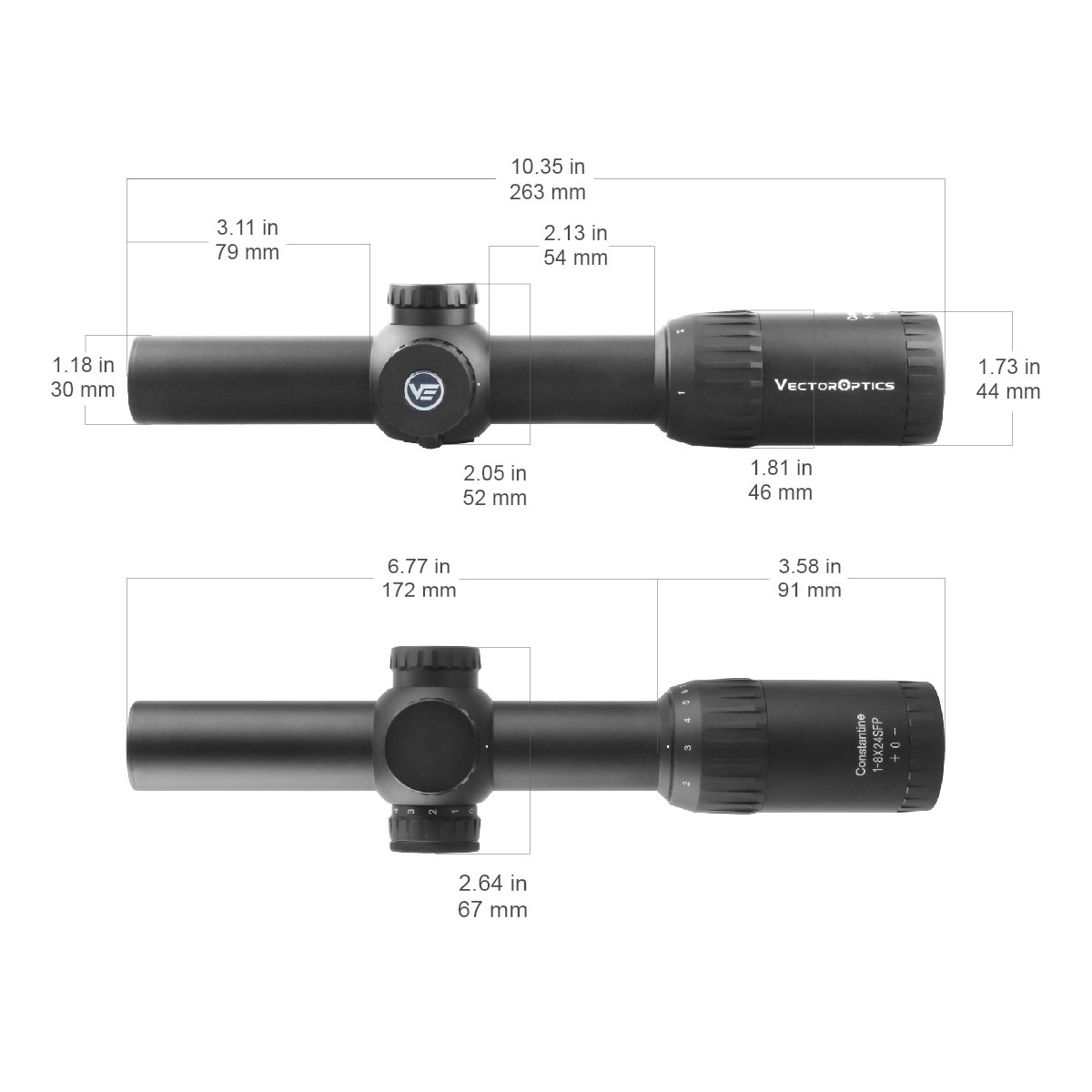

    Length 263 mm / 10.3 in
    Weight 500 g / 17.6 oz

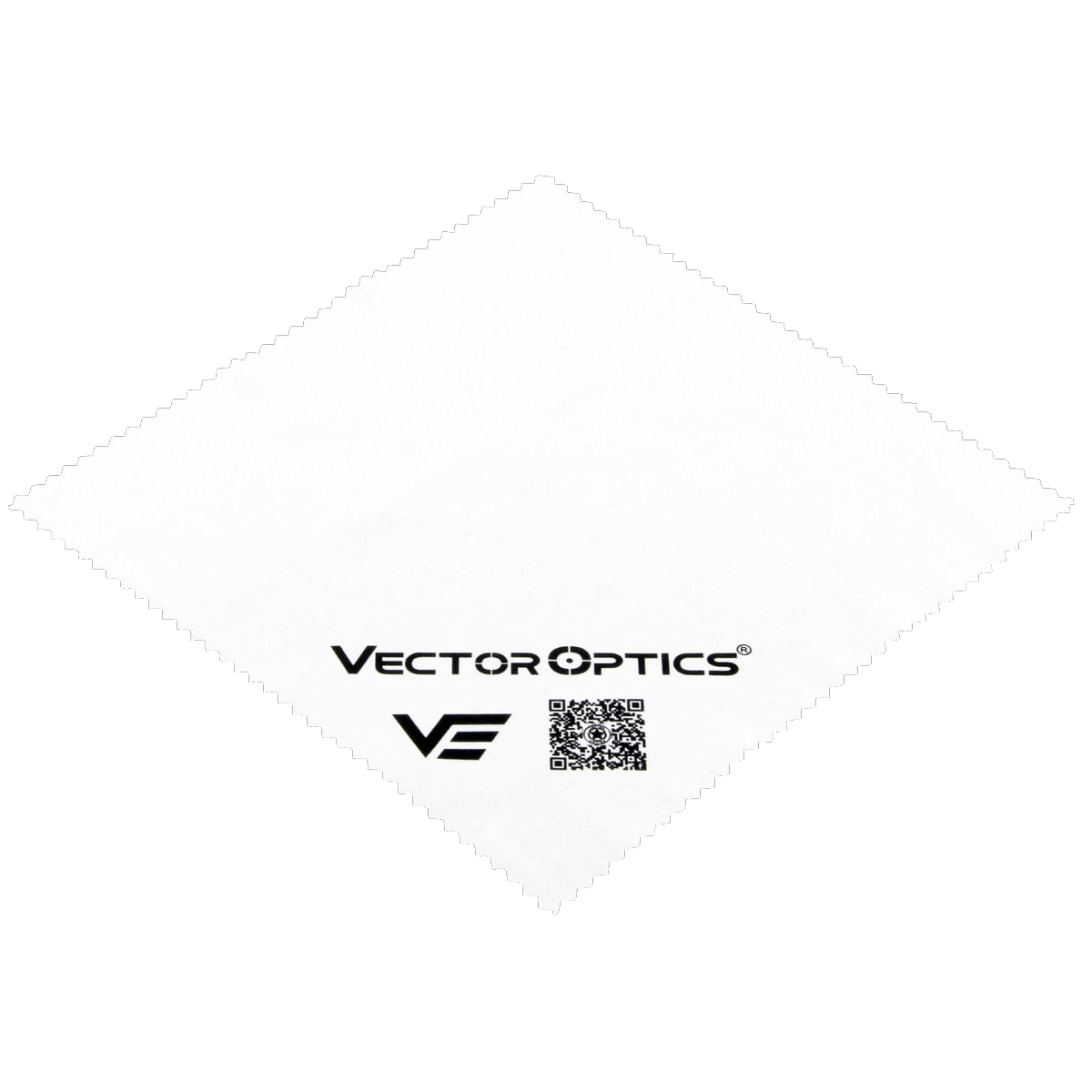

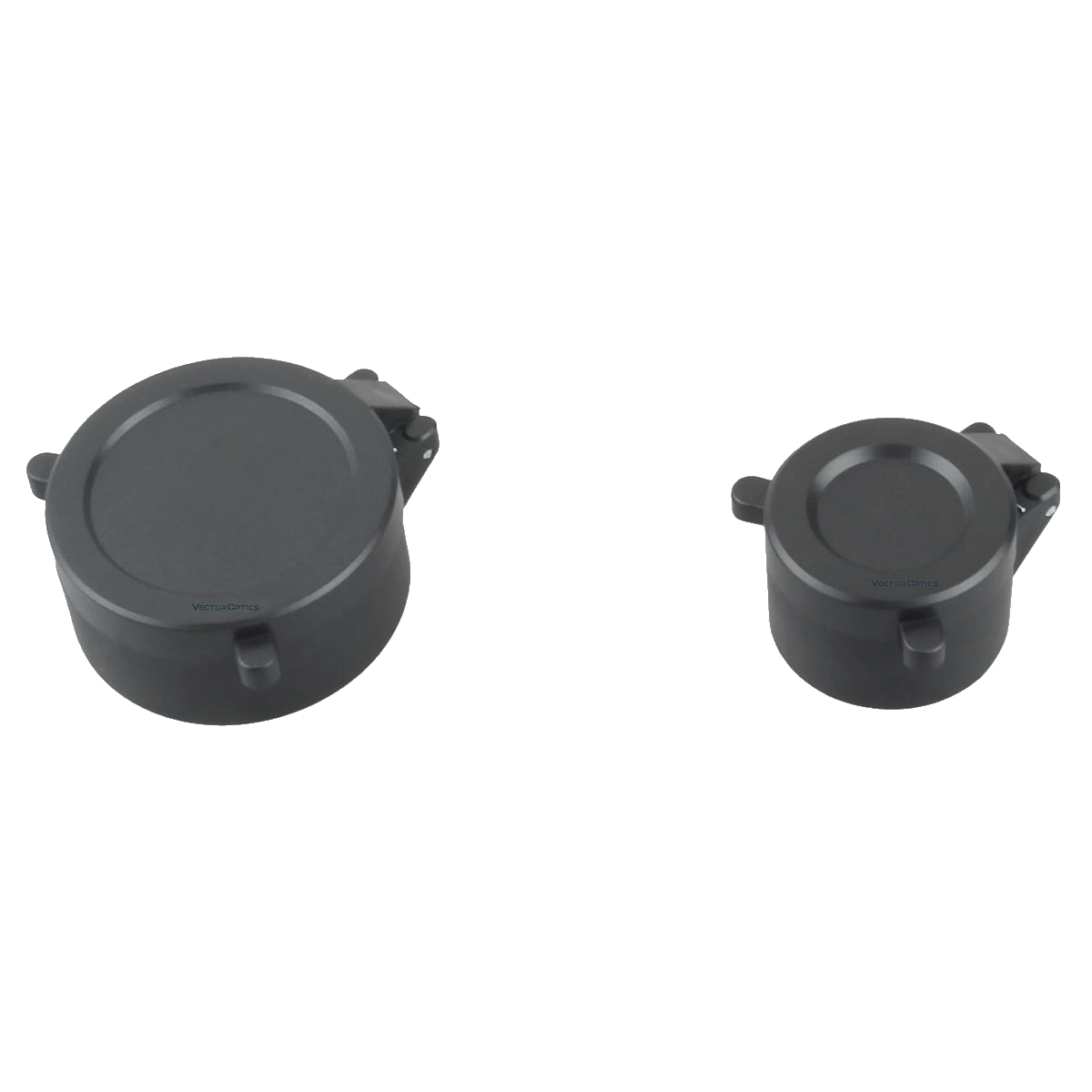

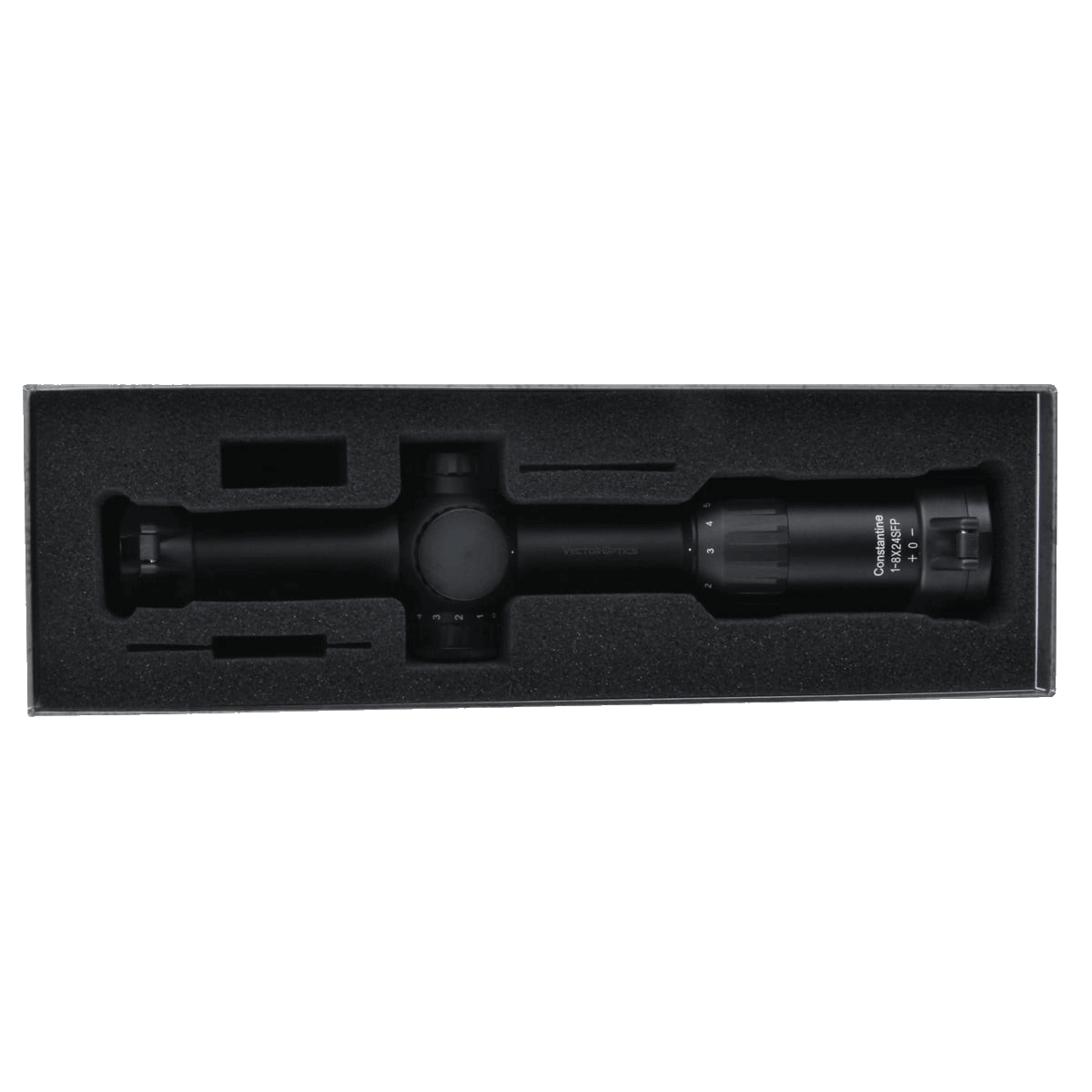

    Items in the Package One Pair of 30mm Weaver Scope Rings, Lens Caps and Cleaning Cloth, etc.

Reticle

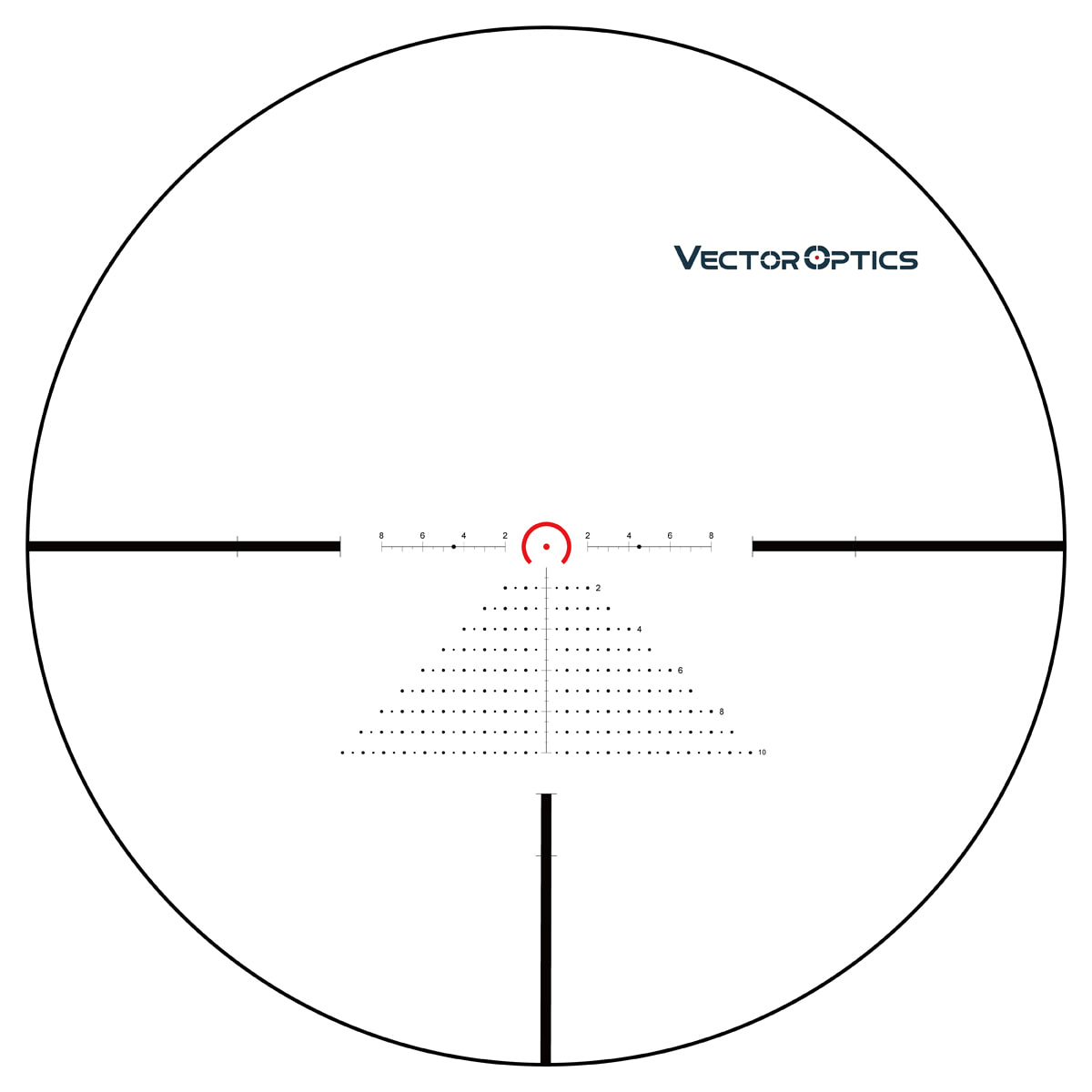

  • VOS-EHT

    Recommend for Small Game Hunting
  • VOS-EHT Subtension

    0.3 MIL center dot for precise aiming

    2 MIL dia center ring with 11 gear illuminations for fast target acquisition and ranging

    Christmas tree pattern for fast follow-up corrections

    G4 design for fast target acquisition

Download

  • Constantine User Manual
  • VOS-EHT Reticle User Manual
  • VECNS-G4F & VOS-EHT & VOS-TMOA & VOF-EHT & VCO-1 MIL & VCO-2 MIL
  • VECNS-G4F & VOS-EHT & VOS-TMOA & VOF-EHT & VCO-1 MIL

Warranty Policy

The product supports 5-year warranty policy
