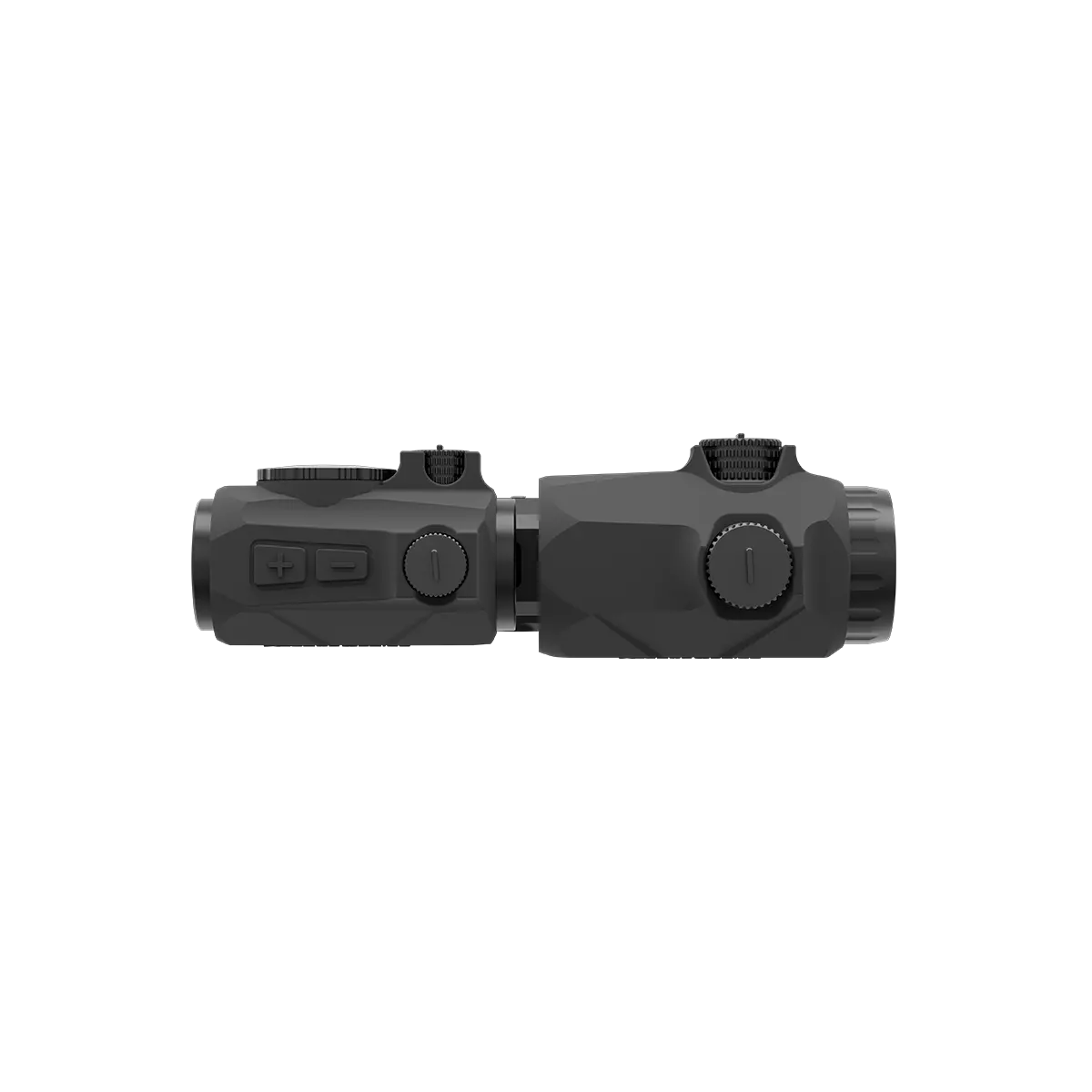

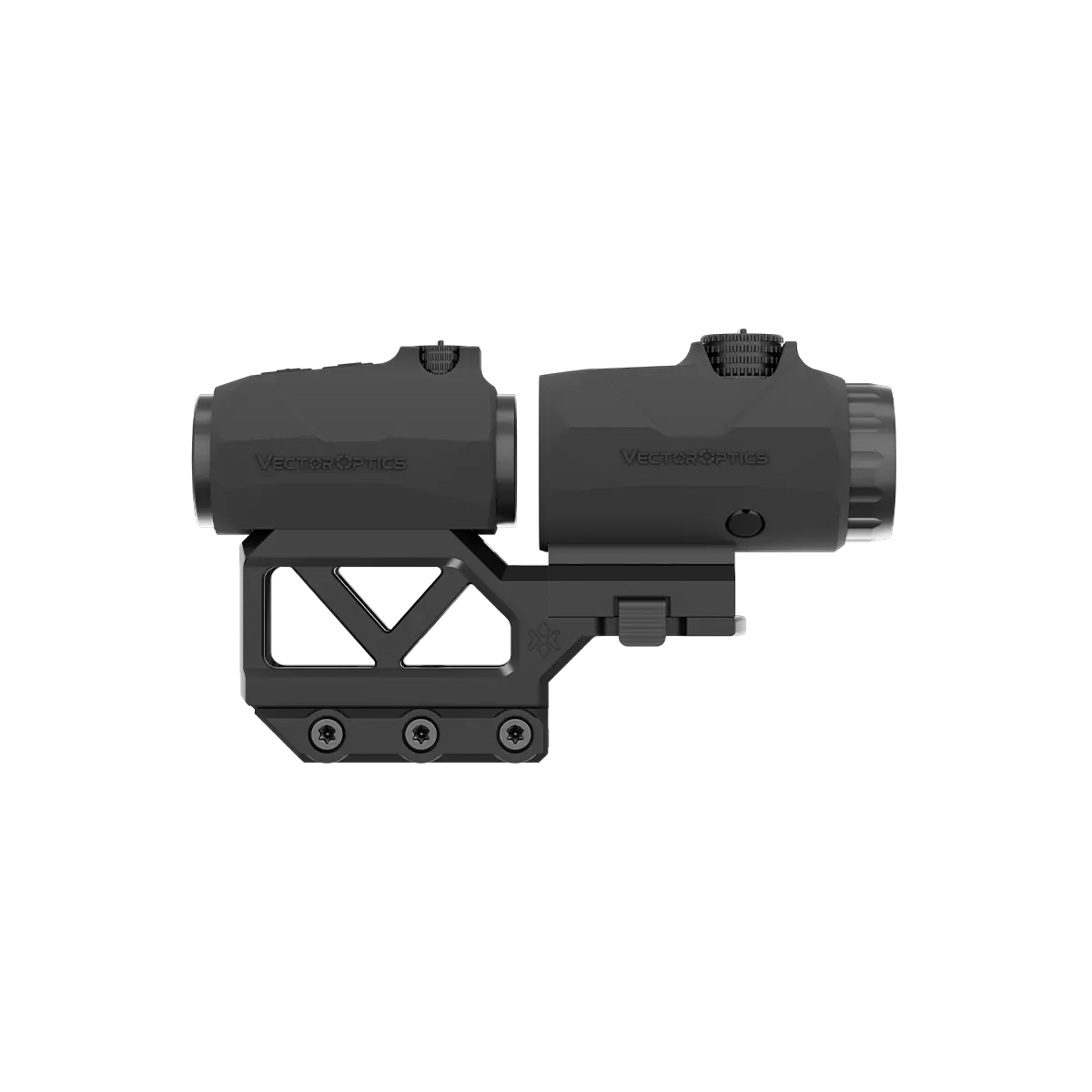

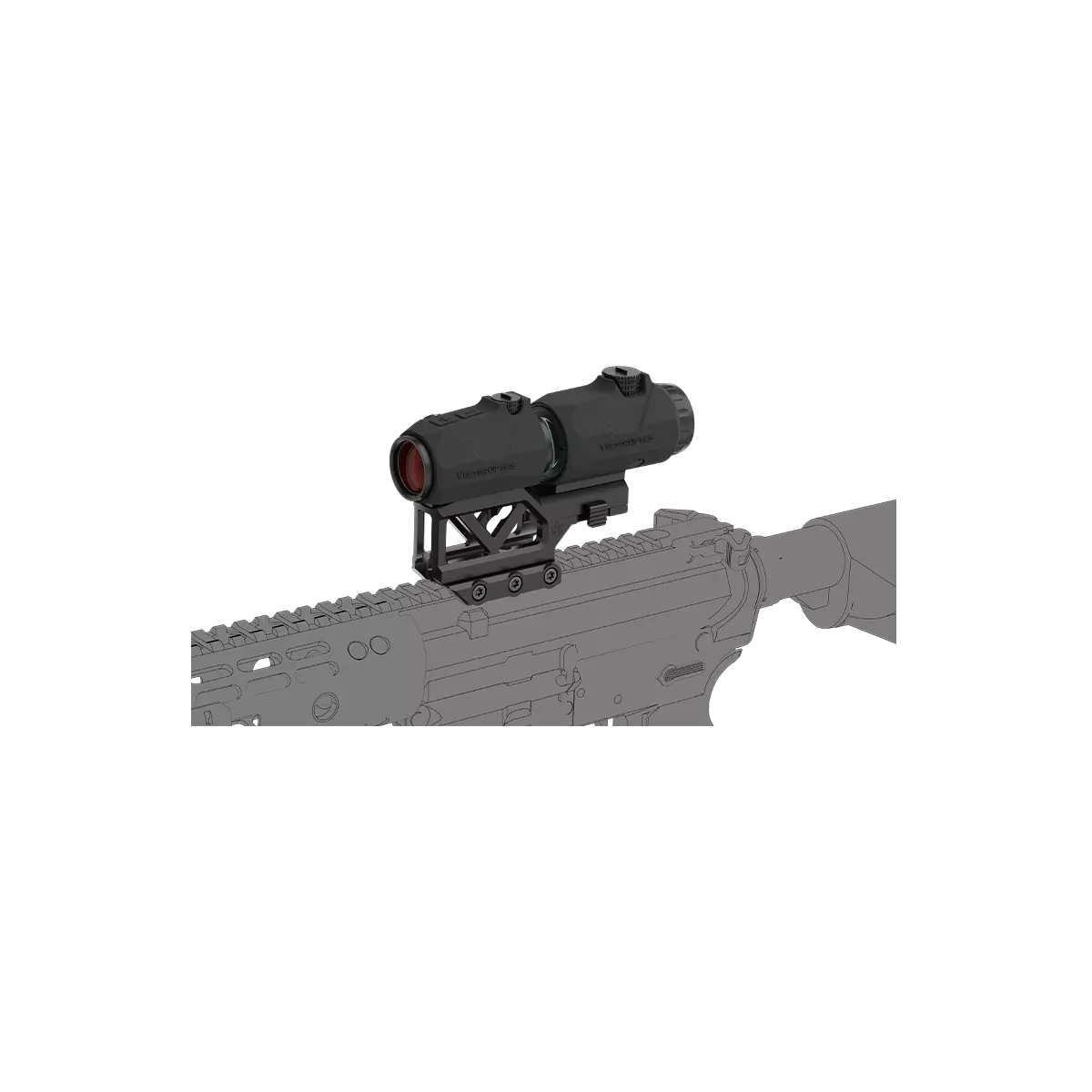

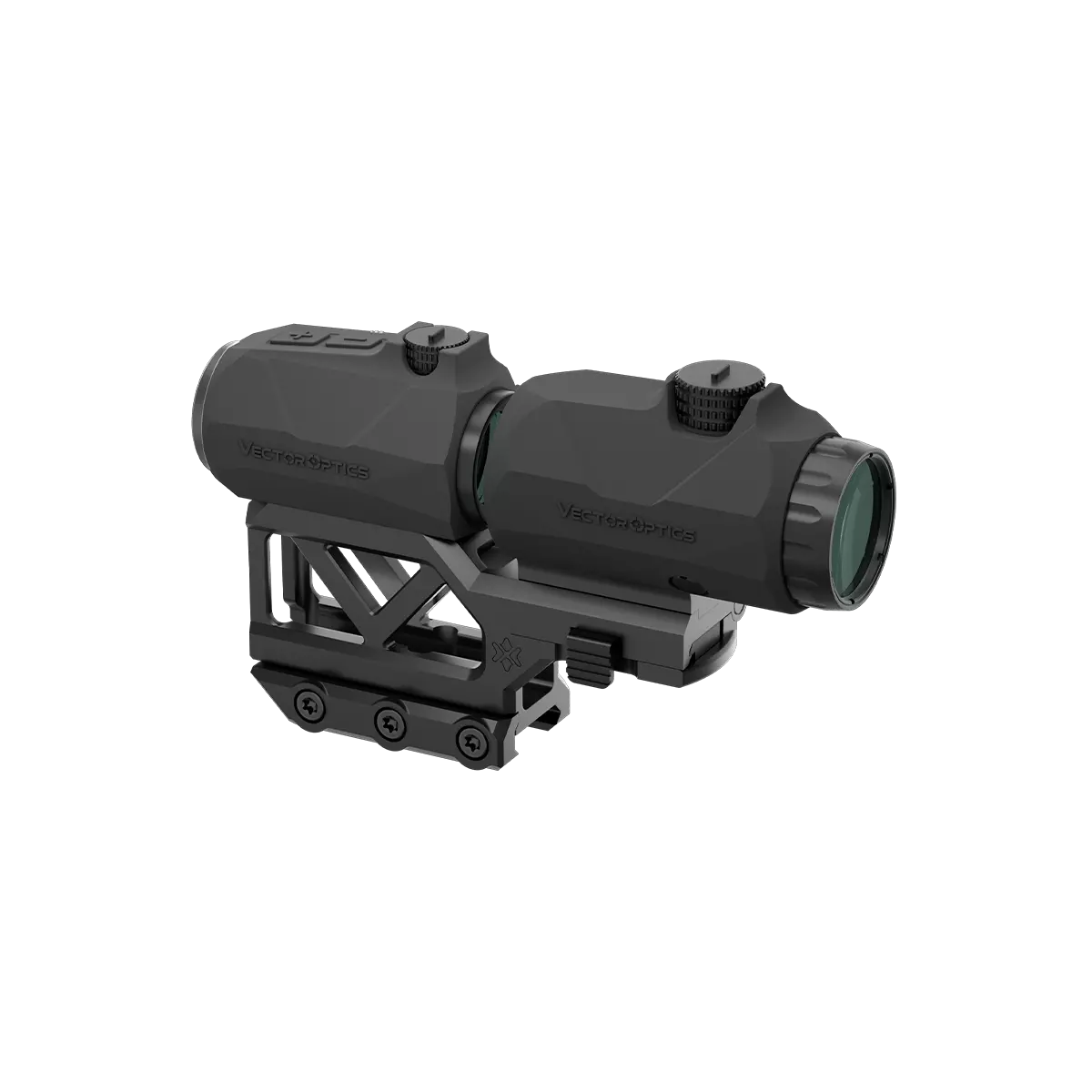

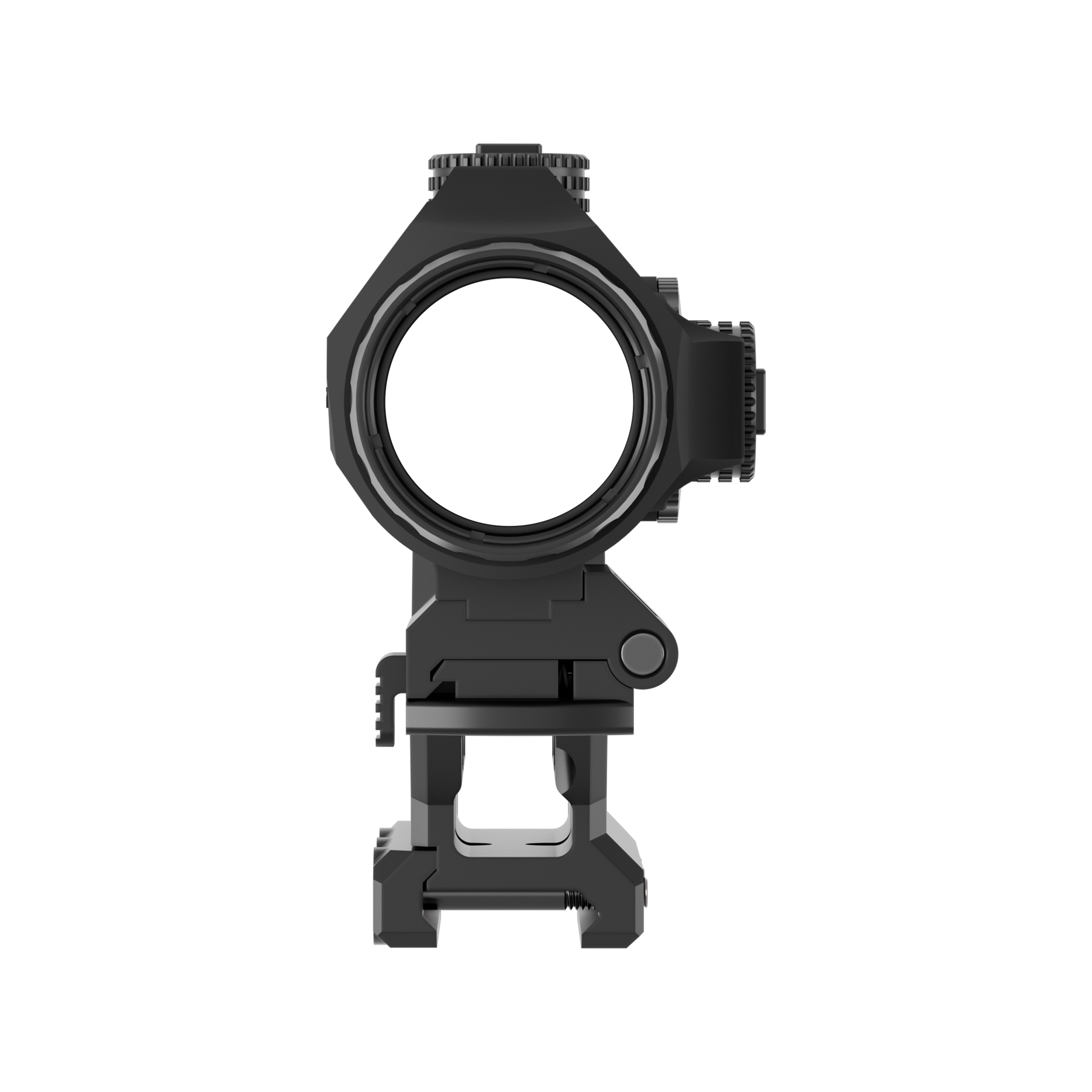

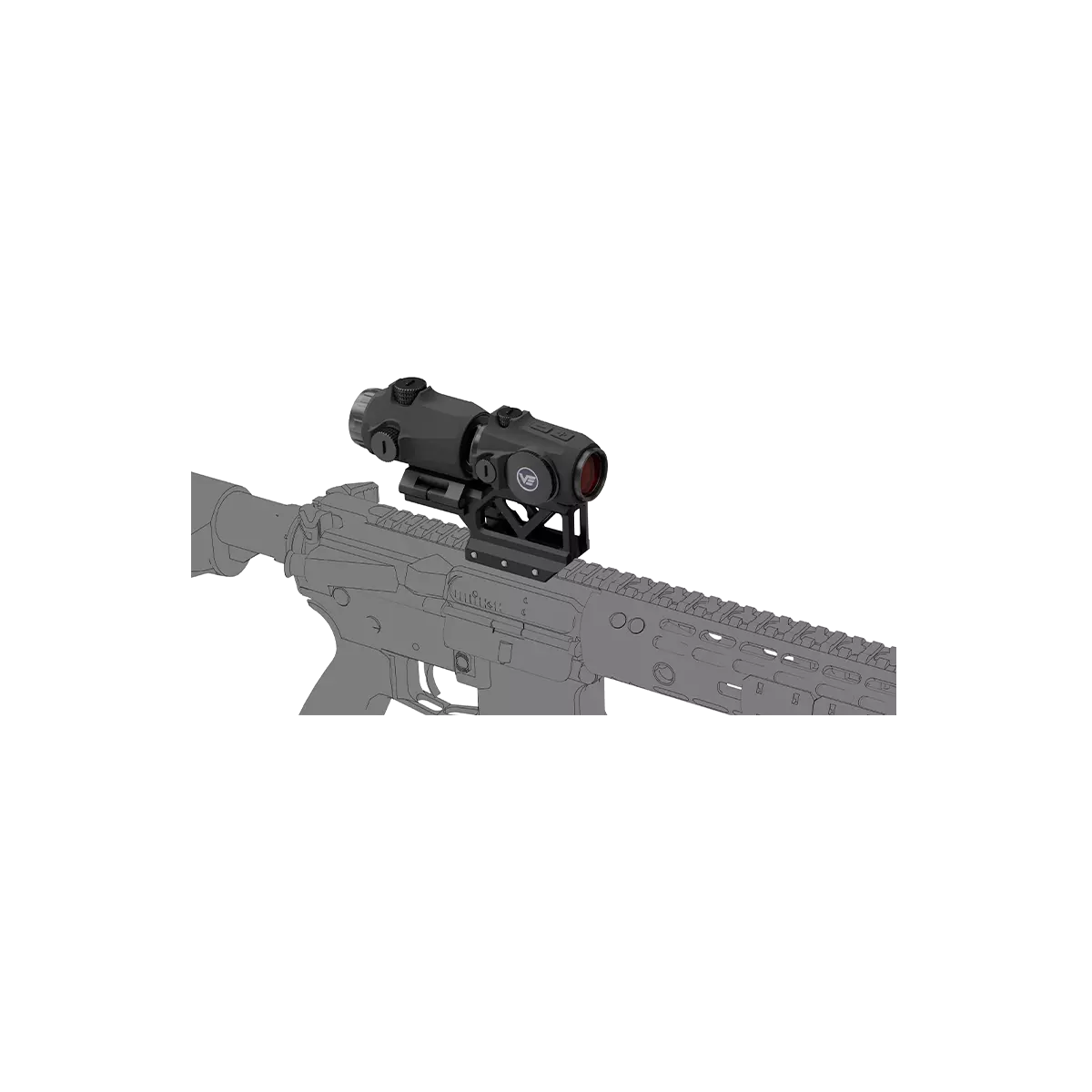

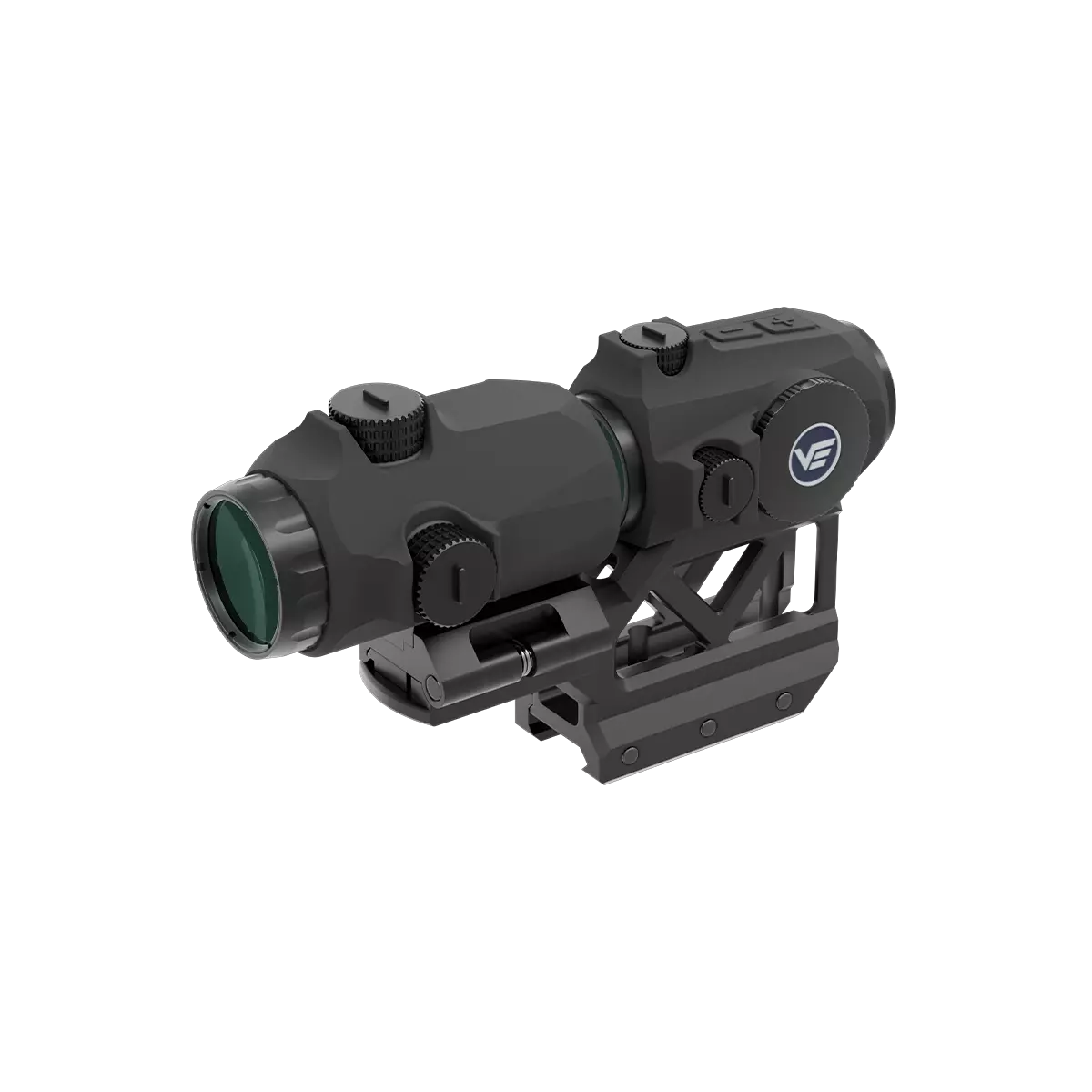

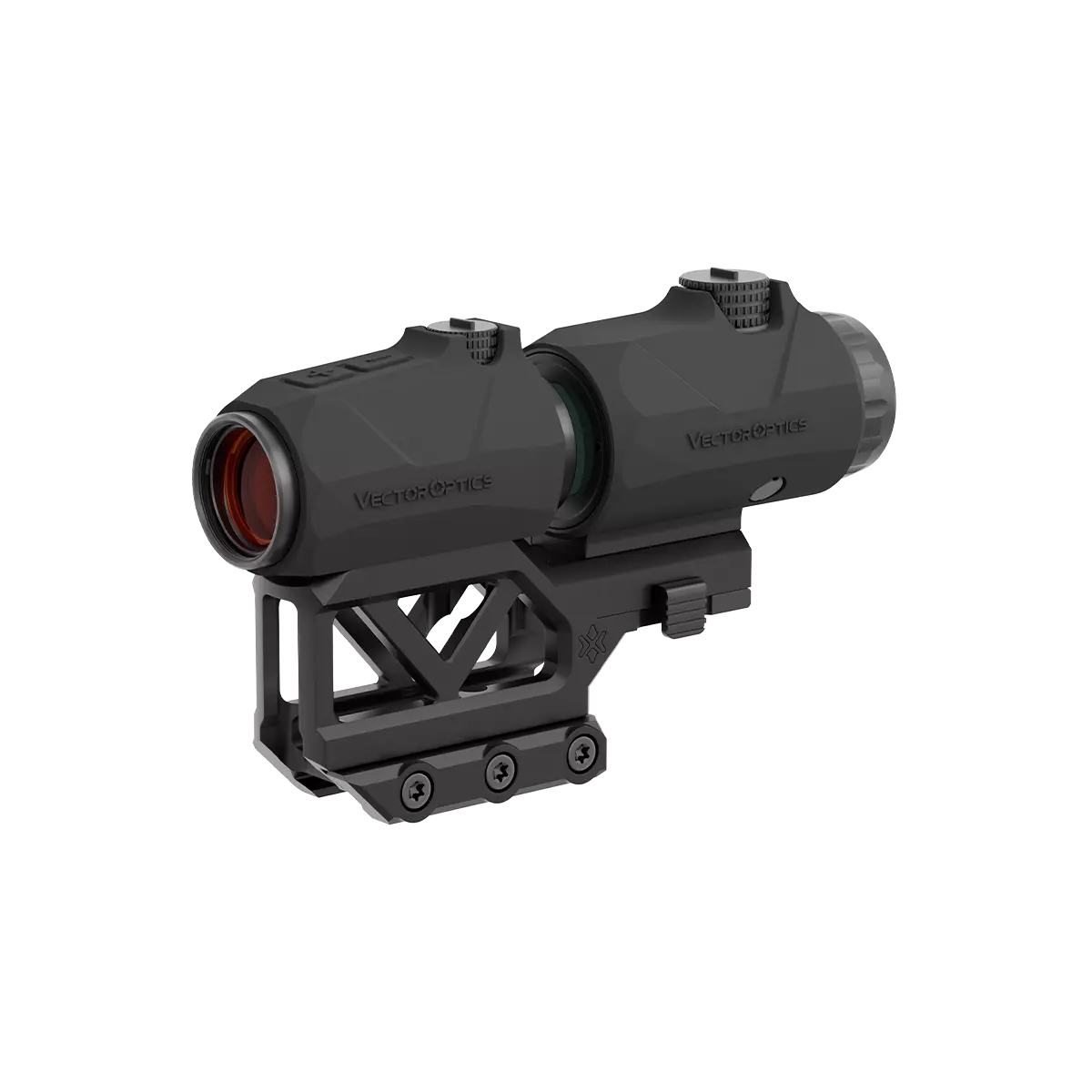

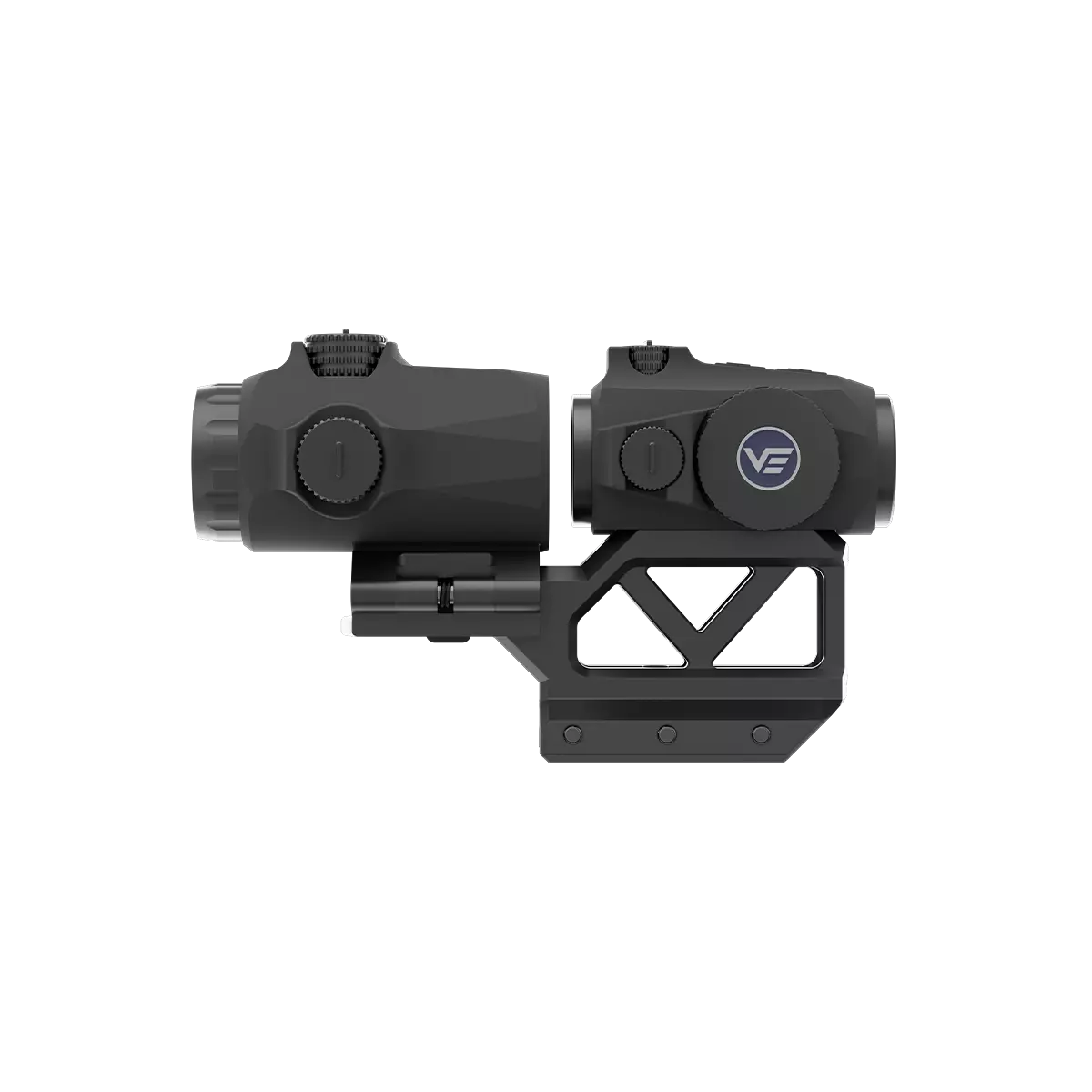

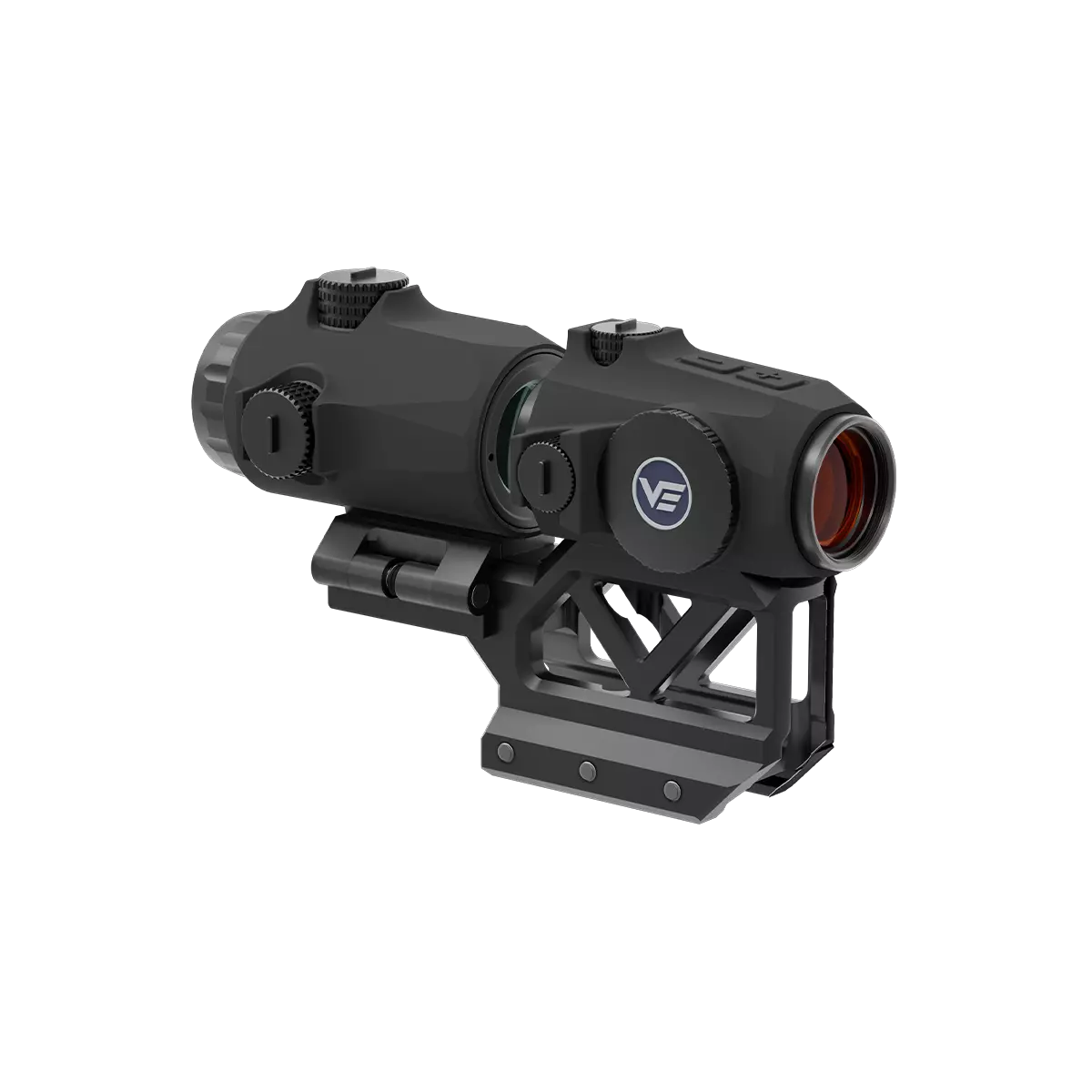

Maverick Mini Red Dot Scope & 3x Magnifier Kit with Integrated One-Piece Mount

Model: VOGP-02

A New Kit Includes Maverick 1x20 Mini Red Dot Scope, 3x22 Mini Magnifier and a Durable One-Piece Picatinny Mount Co-Axial Optical Alignment Enhances Image Clarity and Field of View, While the Integrated Mount Saves Upper Rail Space Mini Red Dot Scope with 3 MOA Dot and 1/3 Co-Witness 2.26 in (57.4 mm) Center Height for Comfortable Target Acquisition Compact, Ergonomic Mini Magnifier with Rubber Armor, 27% Shorter than Maverick Gen-III for Easier Handling and Balance Flip-to-Side Design Allows Quick Shift Between Combined or Independent Use of Red Dot and Magnifier for Fast Transitions

Find Online Stores Send Inquiry

Features

  • 3 MOA Dot Size

    Popular Size to Balance Precision and Speed

  • Parallax Free

    Point of Aim Aligns with Point of Impact

  • Side-load Battery Tray

    Change Battery without Re-zero

  • Quick Release Picatinny Mount

    Quickly Secure and Uninstall Optic

Specifications

  • Optical Parameters
  • Mechanical Parameters
  • Maverick 1x20 Mini Red Dot Scope
    Magnification N/A
    Objective Lens Dia 20 mm
    Parallax Free (<3 MOA)
    Parallax Setting 50 yards
    Dot Size/ Reticle 3 MOA
    Dot/ Reticle Color Red
    Maverick 3x22 Mini Magnifier
    Magnification 3x
    Objective Lens Dia 22 mm / 0.87 in
    Eye Relief 70 mm / 2.76 in
    Angular Field of View 8°
    Lens Coating Multi-Coated
  • Maverick 1x20 Mini Red Dot Scope
    Click Value 1 MOA
    Elevation Adjustment Range >45 MOA
    Windage Adjustment Range >45 MOA
    Footprint N/A
    Mounting Rail Weaver
    Illumination Setting 10 Levels
    Battery Type CR2032
    Battery Placement Side-Loading
    Waterproof IP66
    Shockproof N/A
    Working Temperature -20~+55° C
    Housing Material 6061-T6 Aluminum Alloy
    Finish Matte Black
    Center Height (Complete Kit) 57.4 mm / 2.26 in
    Weight (Net) 140 g / 4.9 oz (Without Mount)
    Items in the Package (Complete Kit) Quick Release Cantilever Weaver Mount, Low Weaver Mount, Flip-to-Side Quick Release Picatinny Mount, 3mm Riser Section, Cleaning Cloth, Hex Key, etc
    Maverick 3x22 Mini Magnifier
    Mount Quick Release Picatinny
    Windage and Elevation ≥ 90 MOA
    Diopter Compensation -2 to +2
    Waterproof IP56
    Shockproof 750 G
    Material 6061-T6 Aluminum Alloy
    Housing Material Armored Rubber
    Finish Matte Black
    Length 75 mm / 2.95 in
    Weight (net) 271 g / 9.56 oz
    Maverick One-Piece Picatinny Mount
    Height 50 mm / 1.97 in
    Width 35 mm / 1.38 in
    Length 109 mm / 4.29 in
    Material 6061-T6 Aluminum Alloy
    Weight 125 g / 4.41 oz
    Mount Picatinny
    Finish Matte Black
