Magnification
1-6x
Objective Lens Dia
24 mm
Focal Plane
Second Focal Plane
Eye Relief
100 mm / 4.0 in
Lens Coating
Fully Multi-coated
Linear Field of View @ 100 yd
125.15-20.84 ft @ 100 yards
Linear Field of View @ 100 m
41.71-6.95 m @ 100 meters
Angular Field of View °
23.9-3.98 °
Reticle
VEC-FDR
Tube Dia
30 mm
Side Focus
100 yards
Click Value
1/10 MIL

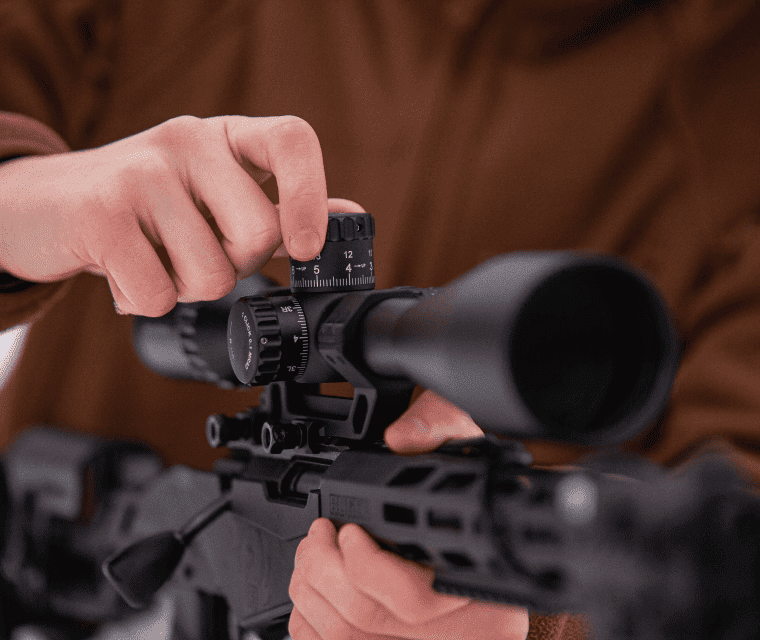

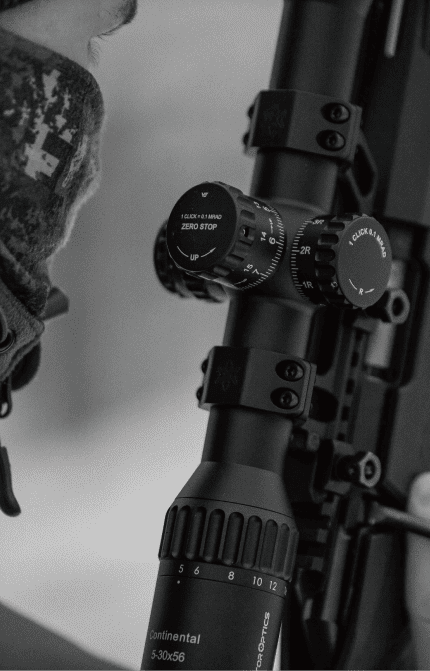

Turret Function
Turret Lock
Elevation Adjustment Range
40 MIL
Windage Adjustment Range
40 MIL
Diopter Compensation
-3 to +2
Illumination Setting
6 Gears
Battery Type
CR2032
Waterproof
IP67
Fogproof
Nitrogen Filled
Shockproof
750 G
Housing Material
6061-T6 Aluminum Alloy
Finish
Matte Black
Length
283 mm / 11.1 in
Weight
510 g / 18.0 oz
Items in the Package
One Pair of 30mm Picatinny Scope Rings, Spare Elevation Turret, Lens Caps and Cleaning Cloth, etc.
