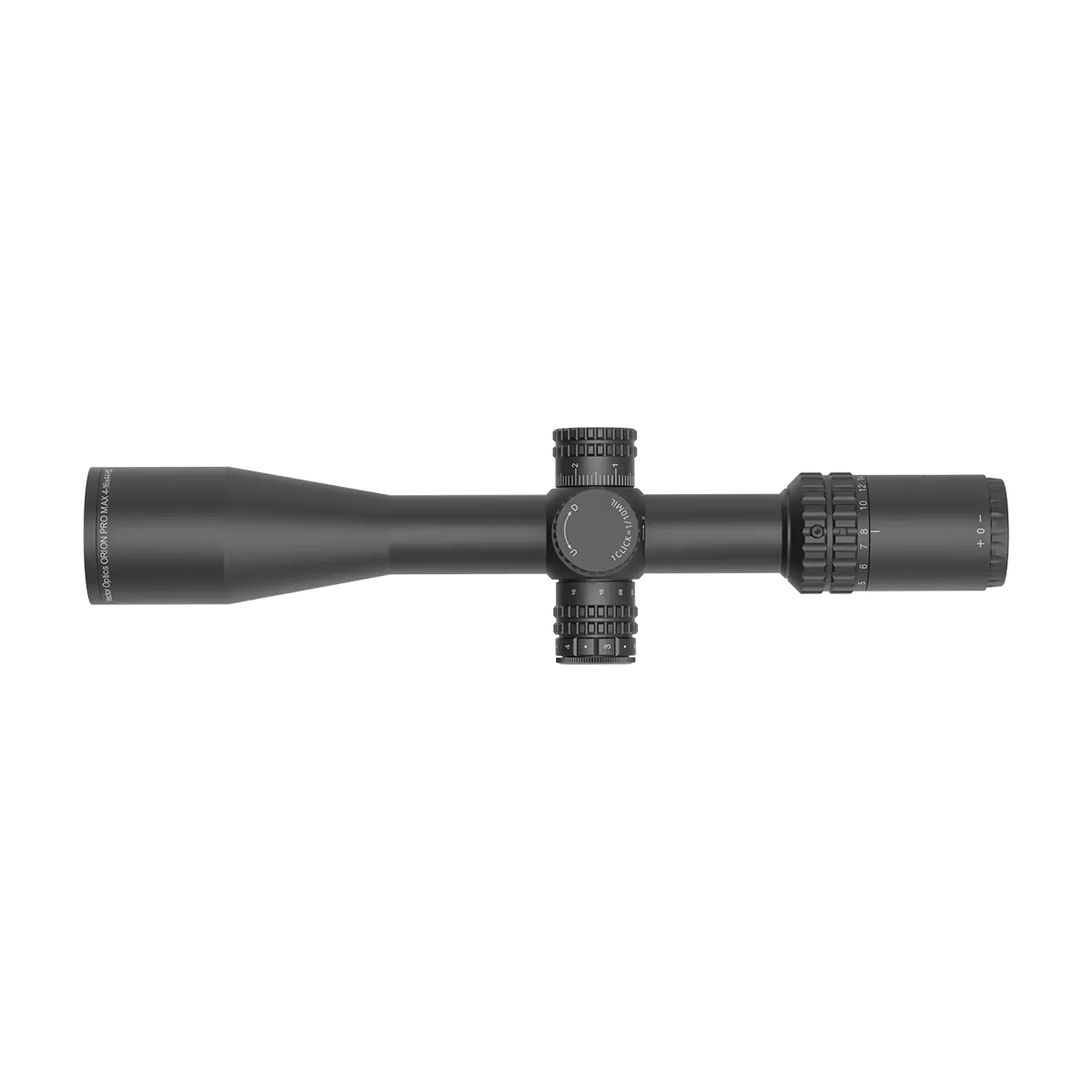

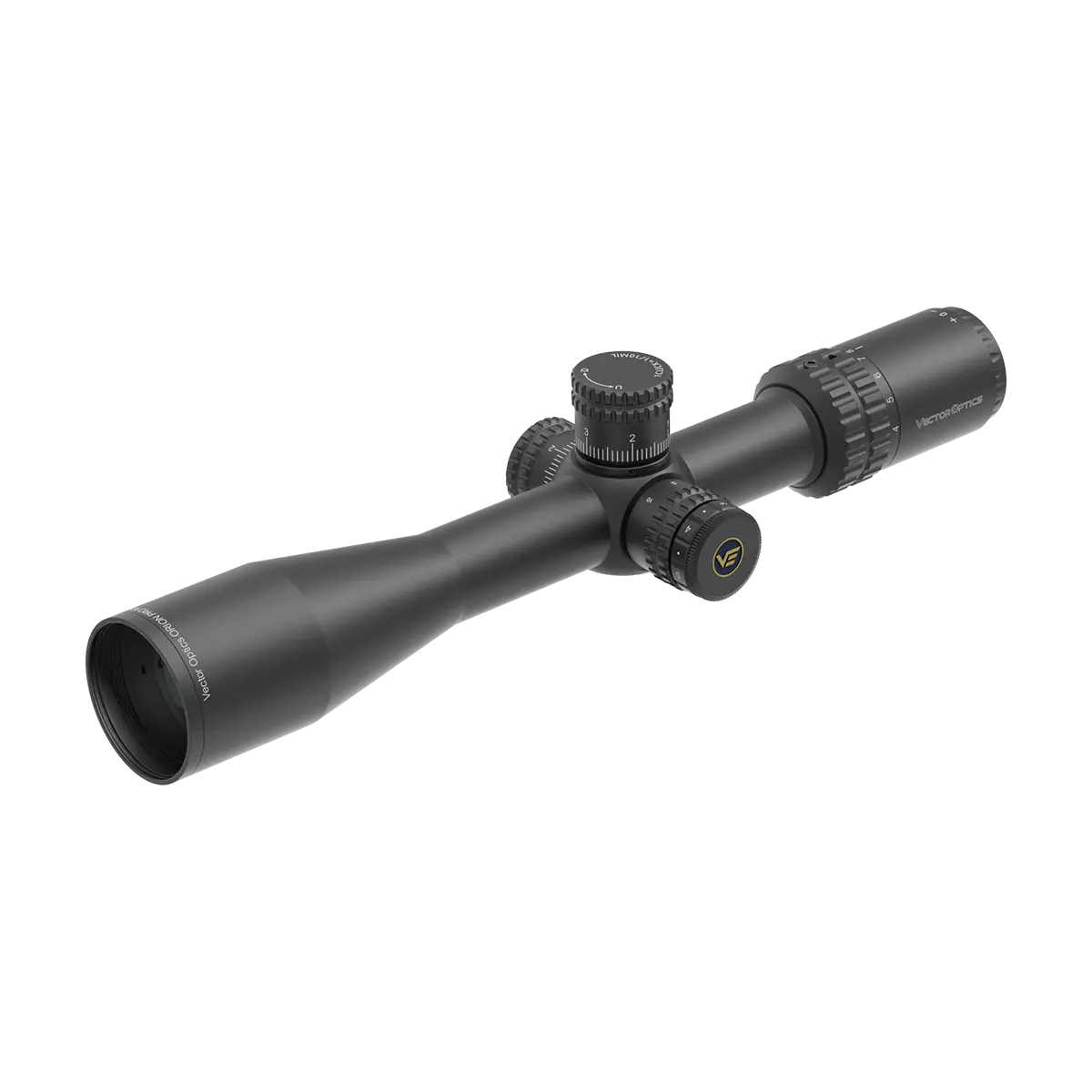

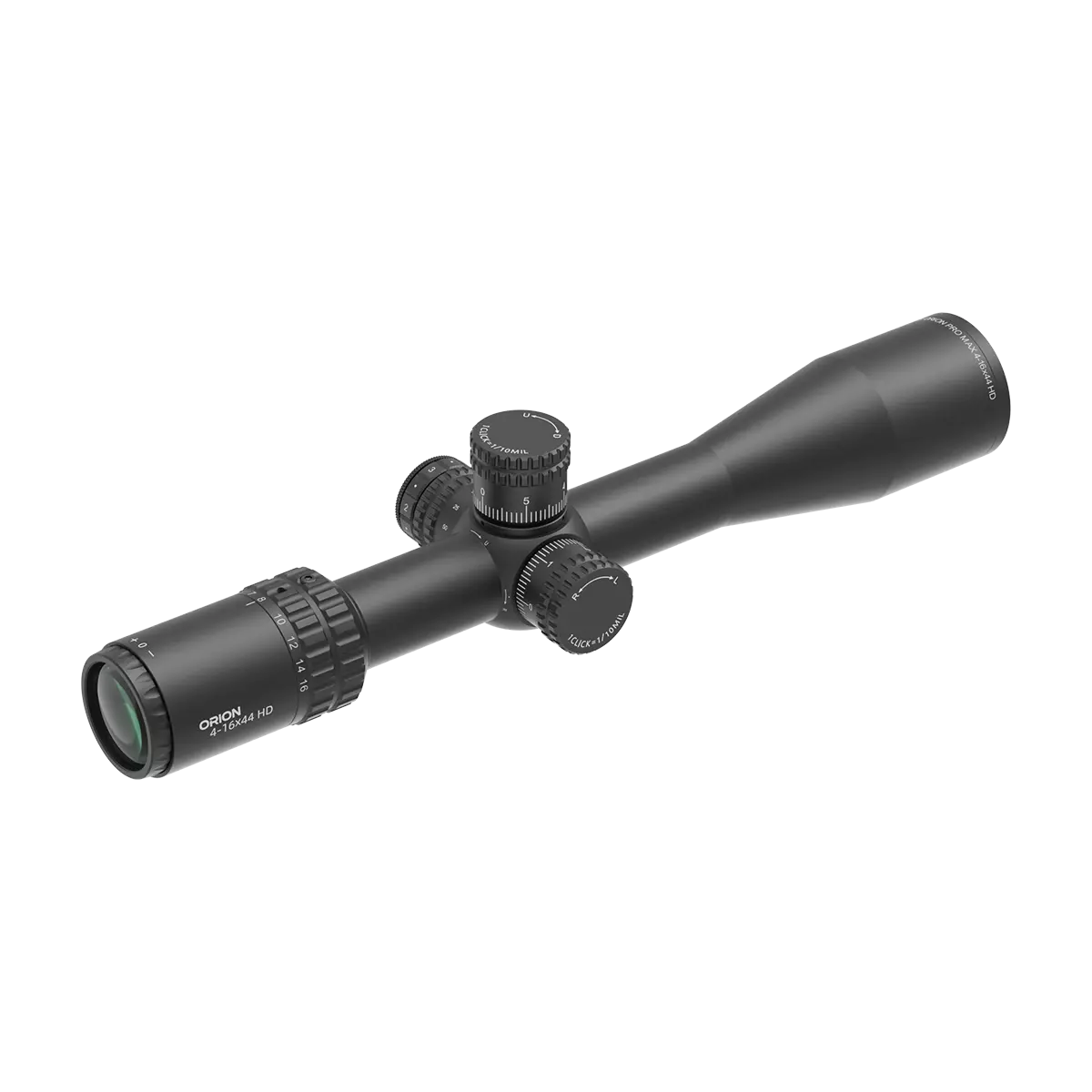

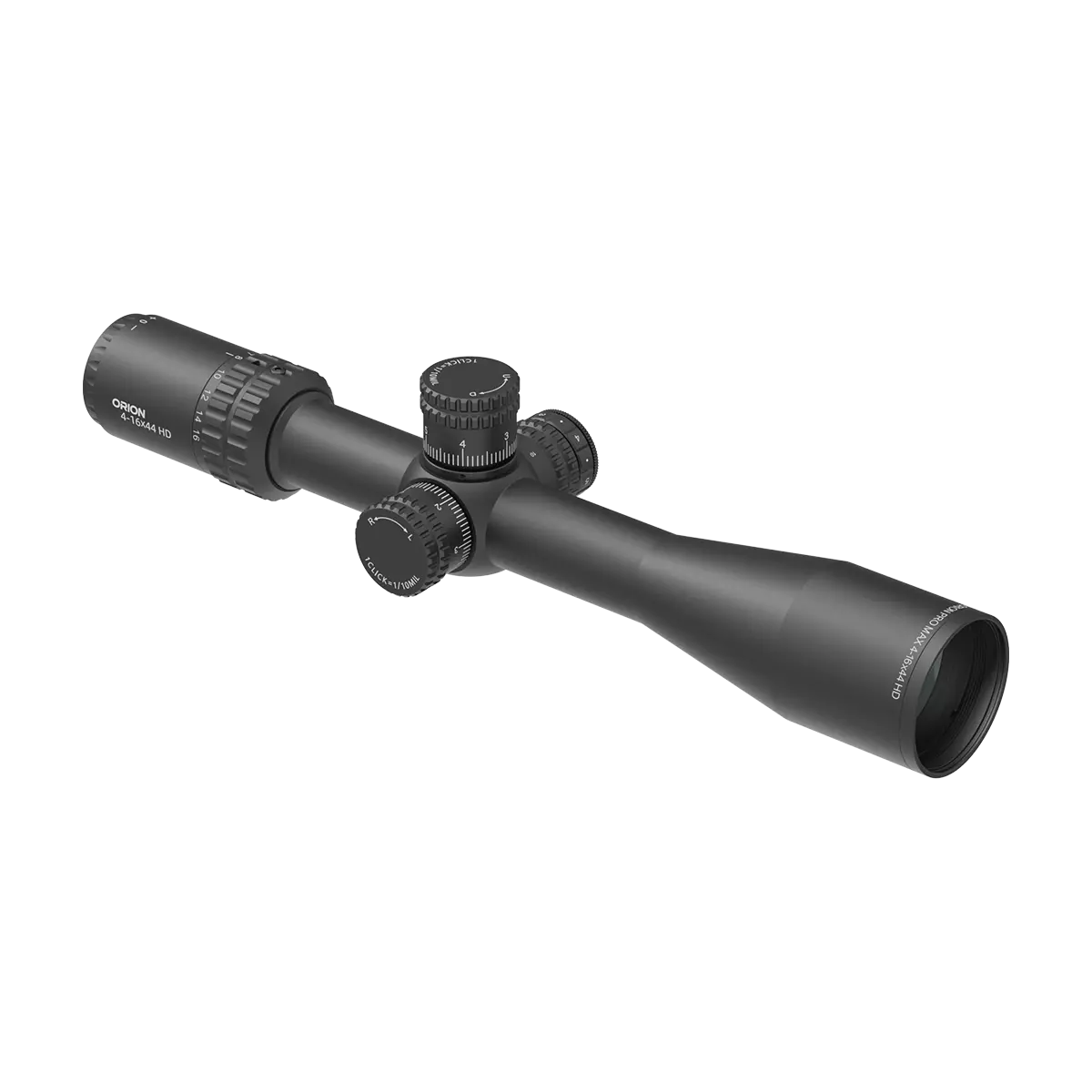

Orion Pro MAX 4-16x44 HD Rifle Scope

Model: SCFF-59
Long-range

FFP with MIL Dot Reticle Pattern for Mountain Hunting, 0.08 MIL Center Dot for Precise Aiming within Long-Range 30mm Monotube to Enhance Elevation Adjustment Range to 32 MIL, 1/10 MIL Click Value for Precise Adjustment LaREE HD Lens Ensures Bright and Clear Images, Fully Multi-Coated Lens Increases Light Transmission Zero Stop Return Effortlessly to Pre-Set Zero Point, 6 Gears Illumination Adaptable to Various Light Condition

Find Online Stores Send Inquiry

Features

  • 30mm Tube Size

    Large to Increase the Adjustment Range

  • First Focal Plane

    Reticle Changes Along with Magnification

  • HD Glass

    High Definition Glass

  • FMC/ Fully Multi-Coated Lens

    Deliver Bright & Crisp Images

  • Side Focus

    Easy & Rapid Parallax Adjustment

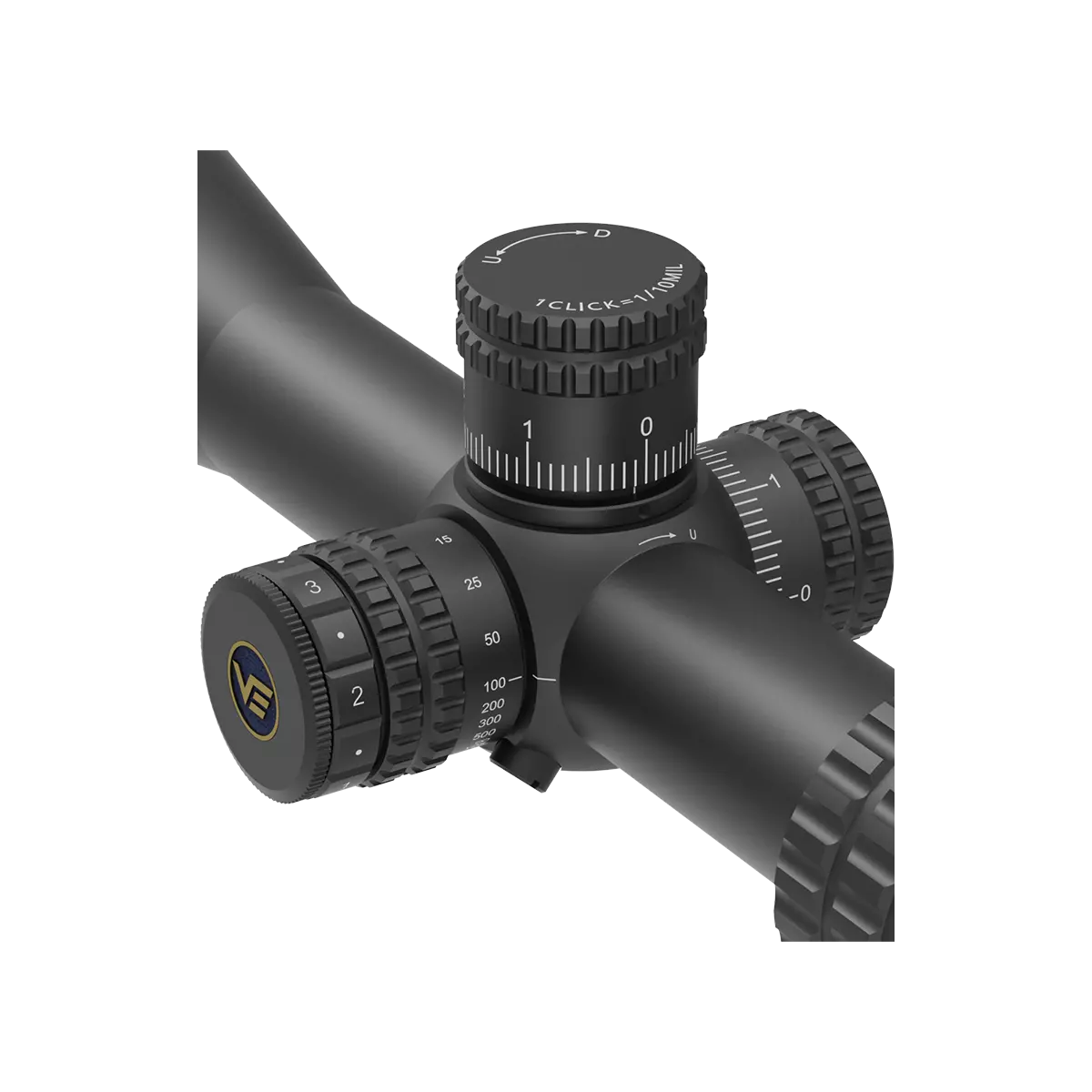

  • Zero Stop

    Effortlessly Return to Pre-set Zero

  • Nitrogen Purged

    Prevent Internal Fogging for Clear Visibility

  • Long Range Shooting / Long Range Target

    Precision Targeting for Long-Range Engagement

Specifications

  • Optical Parameter
  • Mechanical Parameter
  • Magnification 4-16x
    Objective Lens Dia 44 mm
    Focal Plane First Focal Plane
    Eye Relief 95 mm
    Lens Coating Fully Multi-Coated
    Linear Field of View @ 100 yd 28.8-6.8 ft @ 100 yards
    Linear Field of View @ 100 m 9.6-2.2 m @ 100 meters
    Angular Field of View 5.5-1.3°
    Reticle VOR-4 MIL
  • Tube Dia 30 mm
    Side Focus 10 yards to Infinity

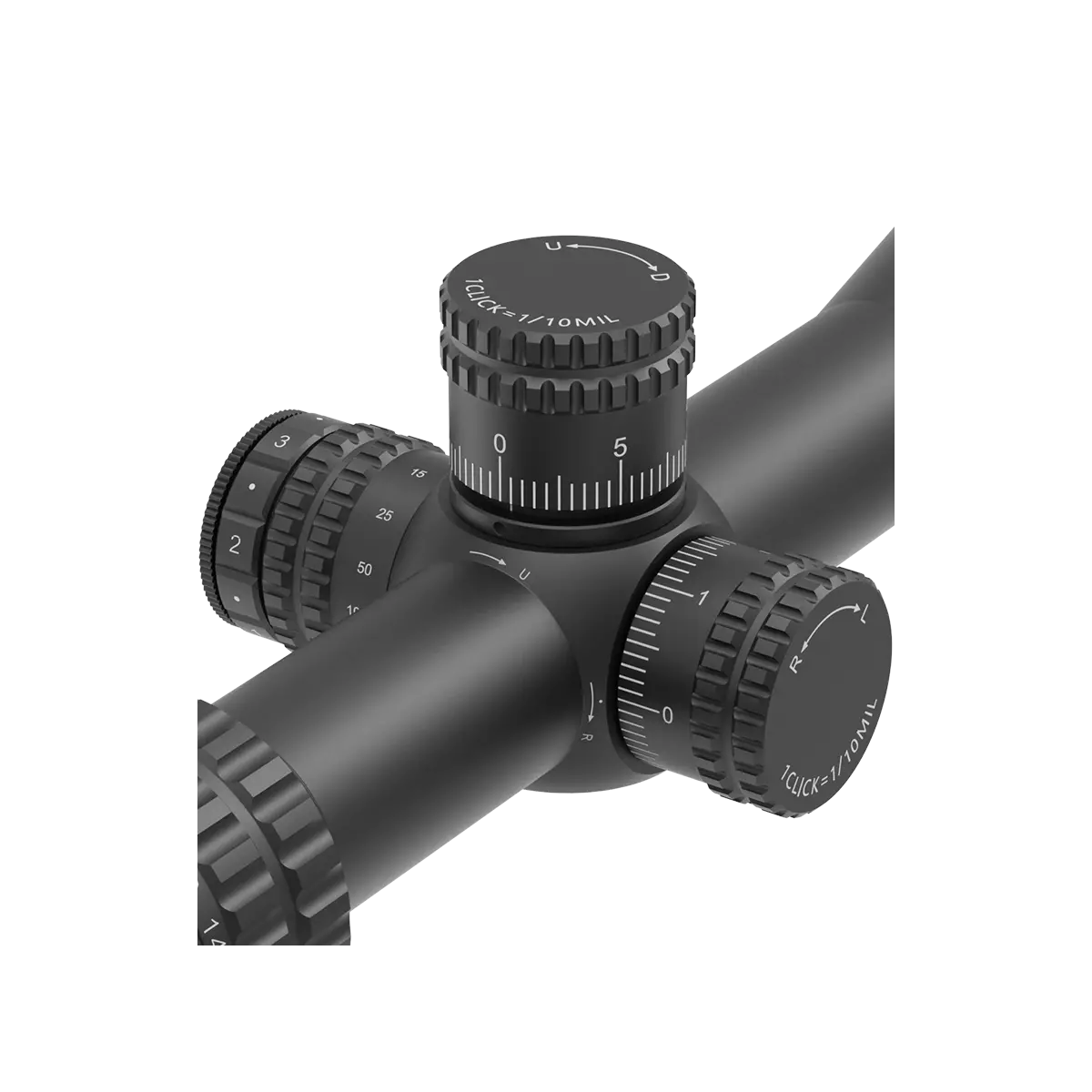

    Click Value 1/10 MIL
    Turret Function Zero Stop
    Elevation Adjustment Range 32 MIL
    Windage Adjustment Range 18 MIL
    Diopter Compensation -2 to +2
    Illumination Setting 6 Gears, On/Off Switch
    Battery Type CR2032
    Waterproof IPX4
    Fogproof Nitrogen Filled
    Shockproof 750 G
    Housing Material 6061-T6 Aluminum Alloy
    Finish Matte Black

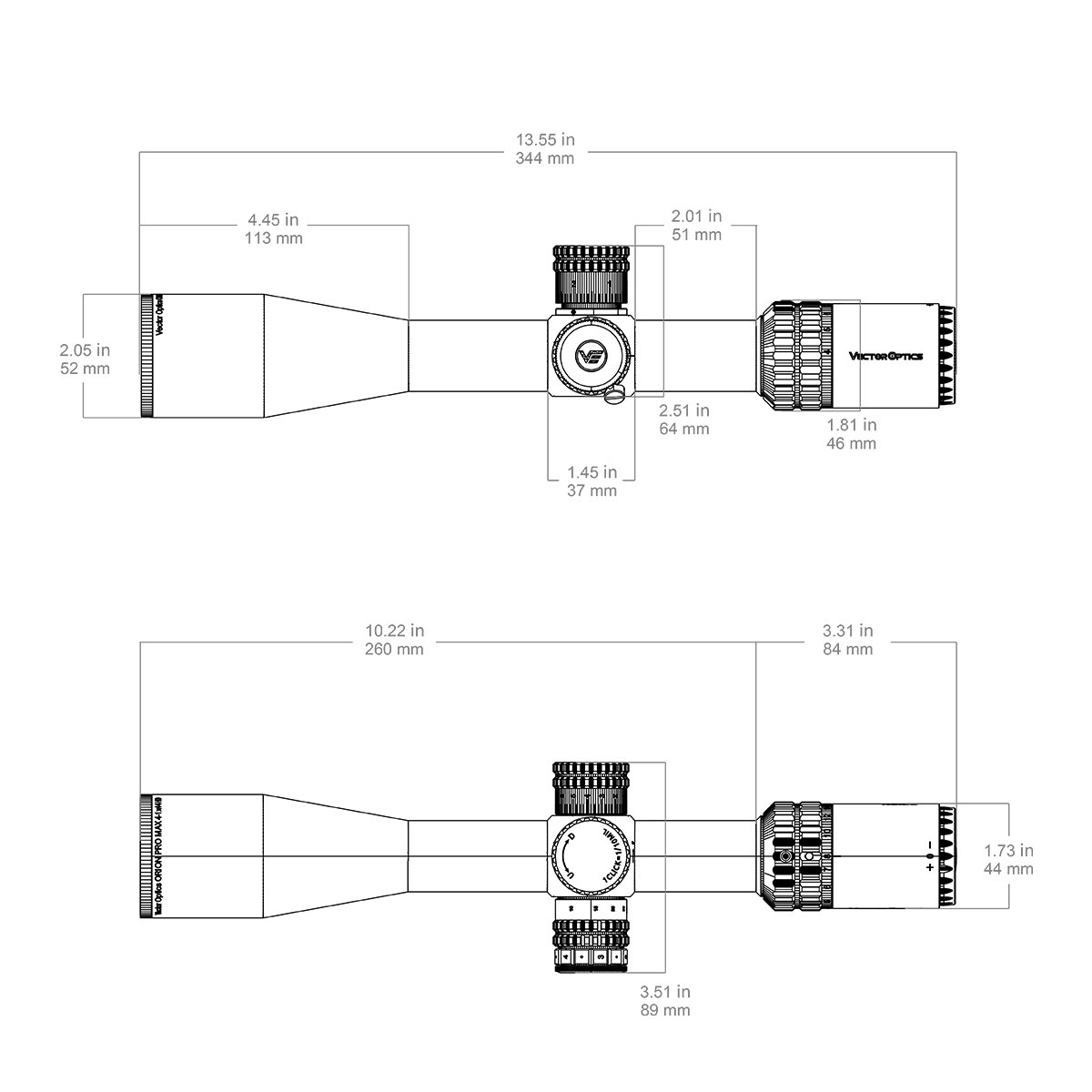

    Length 344 mm / 13.6 in
    Weight 756 g / 26.6 oz

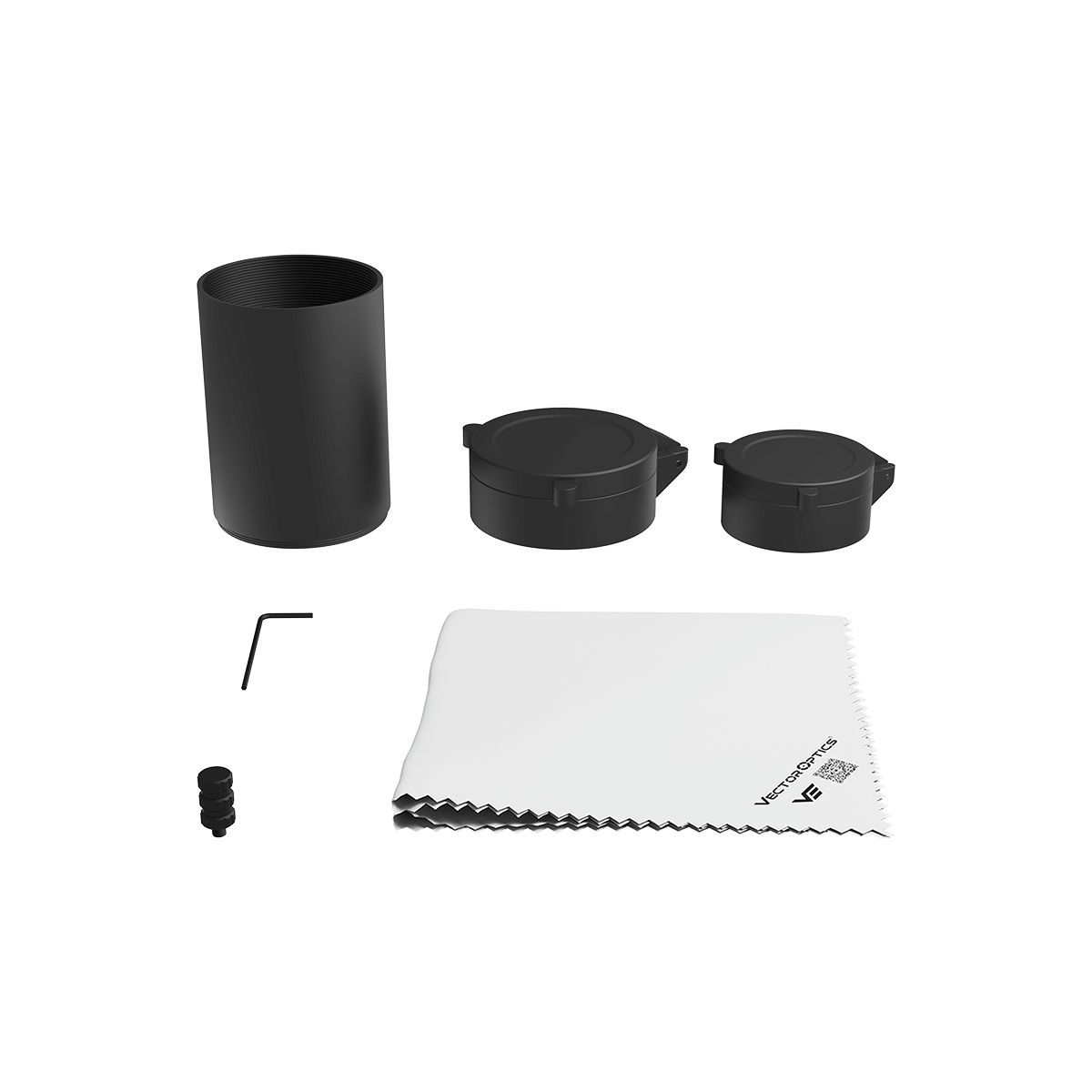

    Items in the Package User Manual, Cleaning Cloth, Flip-up Caps, Hex Keys, Sunshade, Power Throw Lever,etc.

Reticle

  • VOR-4 MIL

    Design for mid to long-range shooting

    Recommend for mountain hunting

  • VOR-4 MIL Subtension

    0.08 MIL center dot for precise aiming

    0.5 MIL even hashmark Increment for ranging and holdover adjustments

Download

  • VOR-4 MIL FFP Reticle User Manual
  • Orion User Manual
  • SCFF-59 Orion Pro MAX 4-16x44 MIL HD User Manual

Video

Reviews

La mia votazione generale per questa ottica è un 4 su 5 perchè L'Orion Pro Max 3-18x50 HD SFP offre caratteristiche di fascia alta che si trovano tipicamente in cannocchiali più costosi, rendendolo un'opzione conveniente per i tiratori più esigenti ma anche per chi si approccia da neofita al tiro specie con armi ad aria compressa. Read More.
Shooting
Orion Pro MAX 3-18x50 HD SFP Rifle Scope (SCOL-57) Italian Review

This is a great telescope. It worked very well for me in the Hunter Field Target competition, but I also recommend it for larger caliber weapons. It is also excellent for silhouette shooting. An excellent choice in terms of value for money. Read More
Shooting

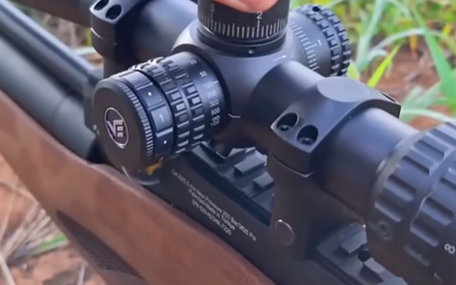

Orion Pro Max 4-16x44 HD SFP Rifle Scope Review from Borbás Gábor
